CAS DB-II series Manuel utilisateur

CONTENTS

PRECAUTIONS......................................................... 4

PREFACE........................................................................ 6

NAMESAND FUNCTIONS.............................. 6

OPERATIONS............................................................. 8

SETUPMODE........................................................... 20

ERROR MESSAGES............................................ 25

SERIALINTERFACE.......................................... 25

SPECIFICATIONS................................................. 26

HOWTO INSTALLDB –II Series............... 27

ASSEMBLINGTHE DISPLAY

OF DB-II WALLTYPE........................................ 28

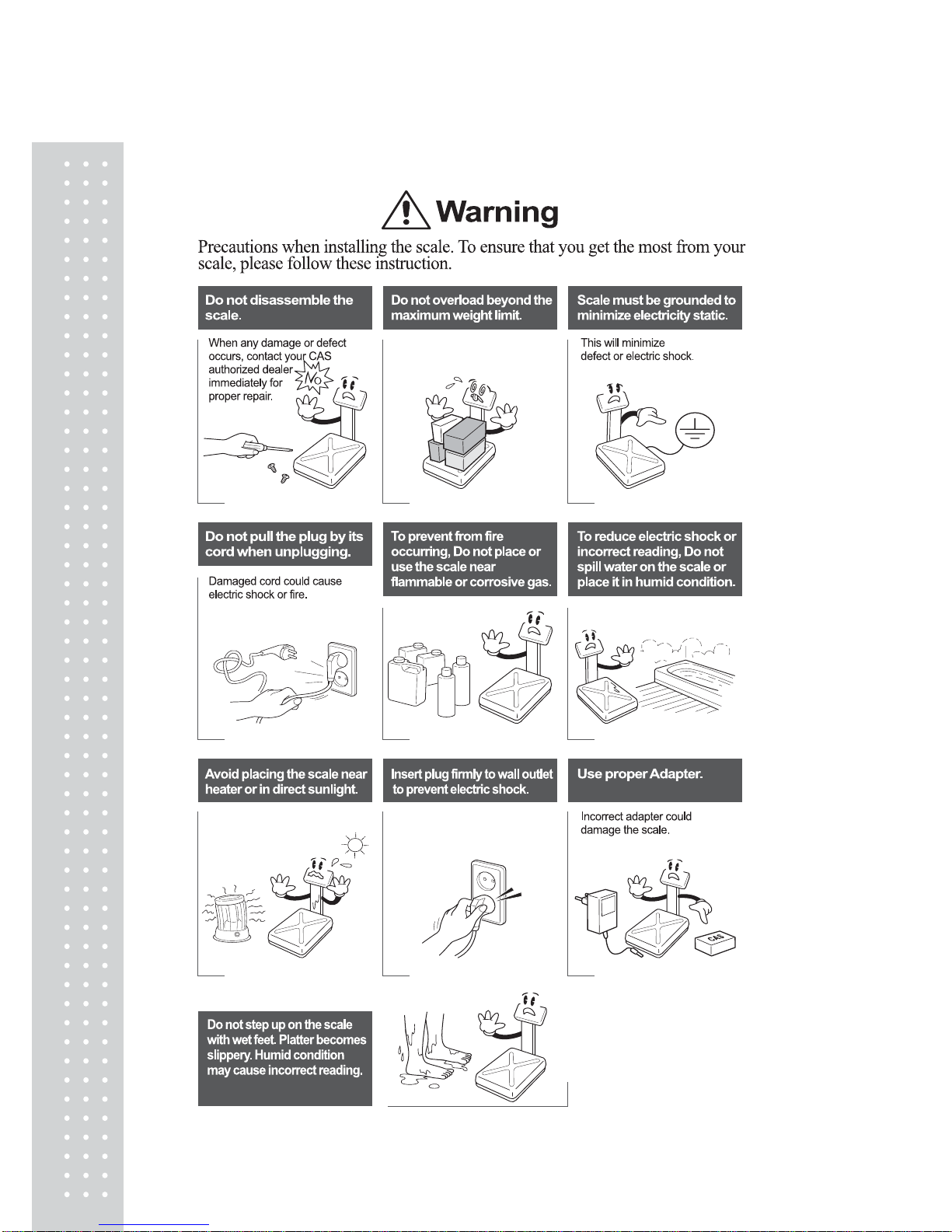

PRECAUTIONS

PREFACE

Thank you for the purchasing of CAS DB-II series.

This series have been designed with CAS reliability, under rigid quality control

and with outstanding performance. Your specialty departments can enjoy with

CAS products.

We hope that CAS product meets your needs.

The user manual is designed to guide you to understand product operation and

proper care of product.

NAMESAND FUNCTIONS

OVERALLVIEW

DISPLAYAND KEYBOARD

■KEY FUNCTIONS

KEYS DESCRIPTIONS

Used to set the zero point to 0.00.

Used as an ESC key in Setup Mode.

Used to enter a tare weight and used to cancel a tare weight.

Used to convert the mode as below.

[WEIGHING] [pcs] [%][WEIGHT LIMIT ON/OFF] 

[COUNT LIMIT ON/OFF] [UNIT CONVERSION] [WEIGHING]

Used as an ENTER key.

Used to calculate a unit weight of a sample.

[ ] Used to enter next digit.▶

Used to display average weight.

[▲] Used to have number up.

KEY DESCRIPTIONS

PRINT key.

[▼] Used to have number down.

Used to turn ON or OFF the power.

OPERATIONS

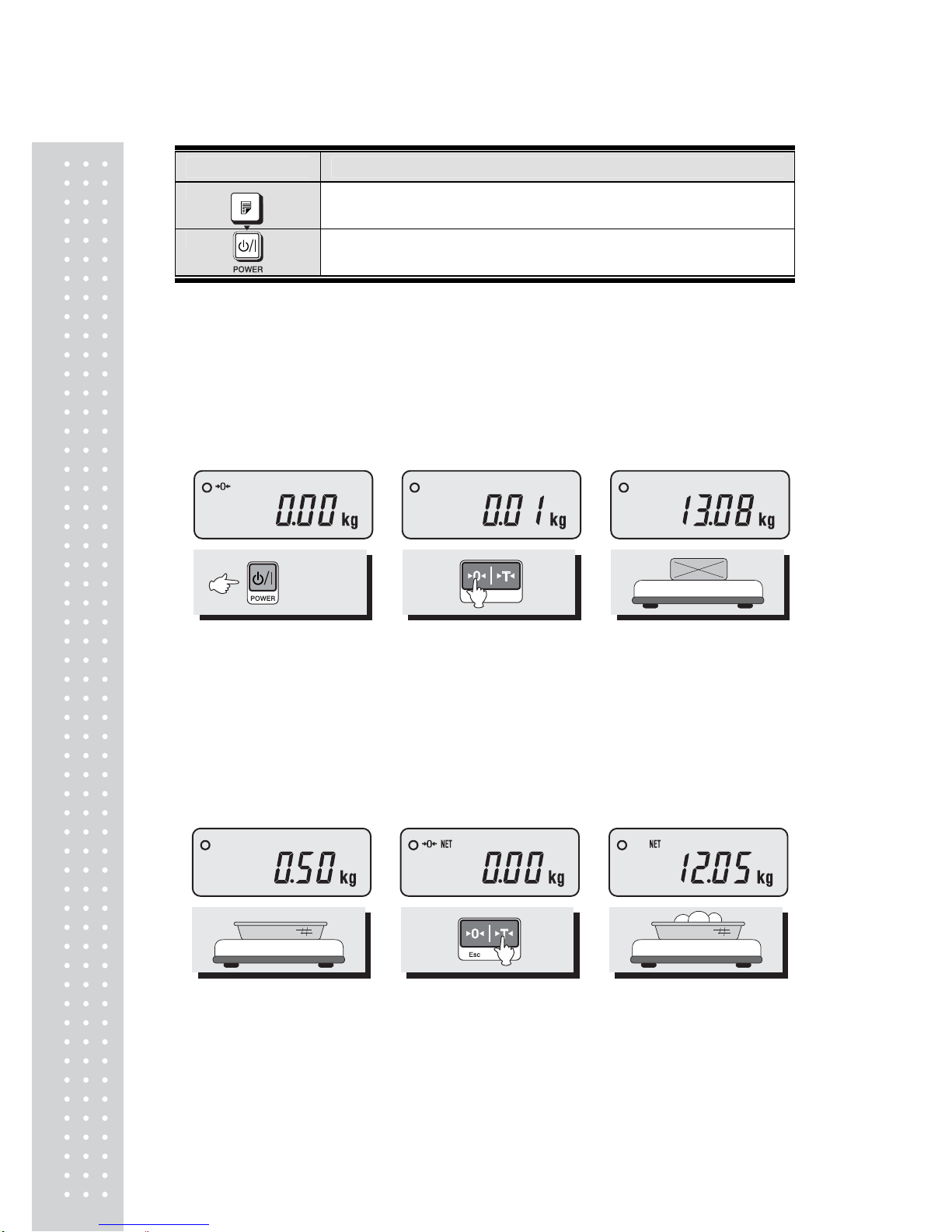

1. General Weighing

■The display indicates if the scale is at zero or if there is a tare entered into the

scale by way of a ZERO and NET.

①Turn on the power.

The display shows 0.00.

Make sure that STABLE and

ZERO lamps are on.

②When the display is not zero

though there is nothing on

the platter, press the ZERO

key.

③Place an item on the platter.

When the STABLE lamp is

on, read the weight.

2. Weighing with Tare

■Tare is the weight of container being used for a commodity.

The TARE key subtracts the weight of the container.

①Place the container on the

platter.

②Press the TARE key, NET

lamp is on.

③Place an item in the

container.

④To release the TARE function, remove an item and

container from the platter and press the TARE key.

3. Counting Mode

■If you want to count parts, first you have to set sample size.

①Press the MODE key until the display shows “PCSSET”. Make

sure that PCS lamp is on. If you have set sample size before,

the display shows “0”.

②Press the SAMPLE key,

then the display shows “10”.

③If you want to increase sample size, press the SAMPLE key.

The display shows 10, 20, 30, 40, 50, 100, 150 and 200 every

time pressing the SAMPLE key.

④If you set sample size to 10, place 10 samples on the platter.

⑤If the display shows “LACK”, the counting result may not correct. (LCD version : Lack of Unit lamp is On) If the

display shows “ LOW”, it is impossible to count samples because the unit weight is too small. (Refer to Table 1)

Model DB-II6kg DB-II15kg DB-II30kg DB-II60kg DB-II150kg DB-II300kg

Range of Lack (Single) 2g ≥Lack ≥0.1g 5g ≥Lack ≥0.1g 10g≥Lack ≥0.1g 20g ≥Lack ≥1g 50g ≥Lack ≥1g 100g ≥Lack≥1g

Range of Lack (Dual) 1g ≥Lack ≥0.1g 2g ≥Lack ≥0.1g 5g ≥Lack ≥0.1g 10g ≥Lack ≥1g 20g ≥Lack ≥1g 50g ≥Lack ≥1g

Range of Low 0.1g ≥Low 0.1g ≥Low 0.1g≥Low 1g ≥Low 1g ≥Low 1g ≥Low

< Table 1 >

⑥Place parts on the platter, then the display shows the number

of parts. You can also use tare function in counting mode.

4. Percent Weighing Mode

■The weight is displayed as a percentage of the reference.

①Press the MODE key until the display shows “PErSEt”. If you

have set reference sample before, the display shows “0.0”.

②If you want to use container,

place it and press the TARE key.

③Place reference sample on the platter and press the SAMPLE

key.

he display shows “100.0”.

Make sure that reference sample should be bigger than 3% of

maximum capacity. If it is lower than 3% of maximum capacity,

he display shows “low”. In this case, increase the weight of

reference sample and press the SAMPLE key.

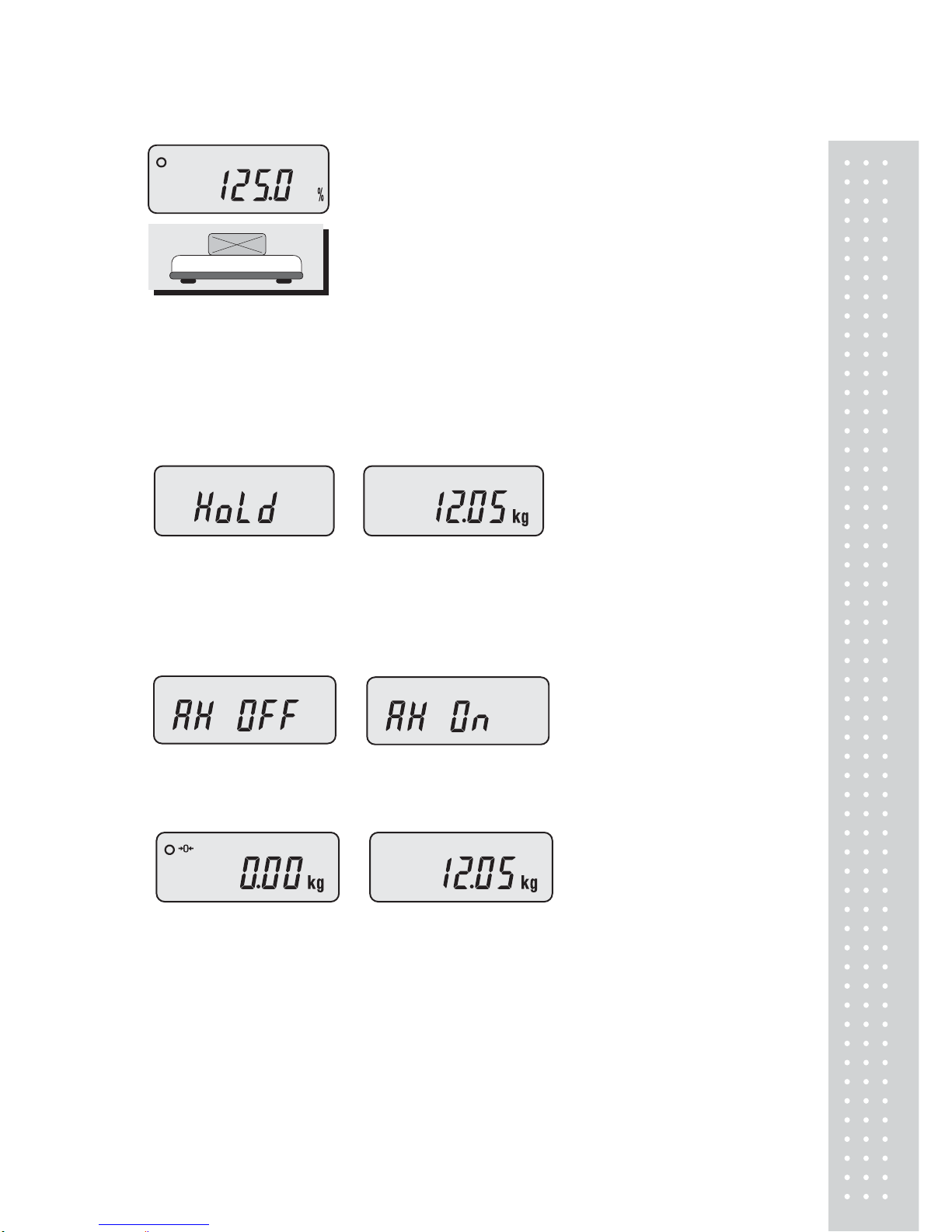

5. Hold Function(Weight Mode ONLY)

■Key hold

①Place an item on the platter and then press the HOLD key.

①“HOLD” is shown on the

display.

②Average weight is shown on

the display.

■After average weight display 3 times, HOLD function will be release automatically.

■Auto Hold function

①After weighing item

remove all of the container

from the platter, press Hold key.

②Use “TARE” key to select

one of Auto Hold function.

③Press “Hold” key to save

and exit to normal mode.

④Place an item on the platter.

Then weight display will show “Hold”.

The “Hold” blinks for two times, and then

the average weight blinks continuously.

⑤After remove the item of the platter, place another item on the platter.

Then display will show average weight again.

If you don’t want use auto-hold function, remove the item and press hold key.

Display shows AH_on. Press tare key. İt will be changed AH_off.

Then press Hold key. Auto-hold function will not operate.

④Place an item on the platter, then the weight is displayed as a

percentage of the reference.
