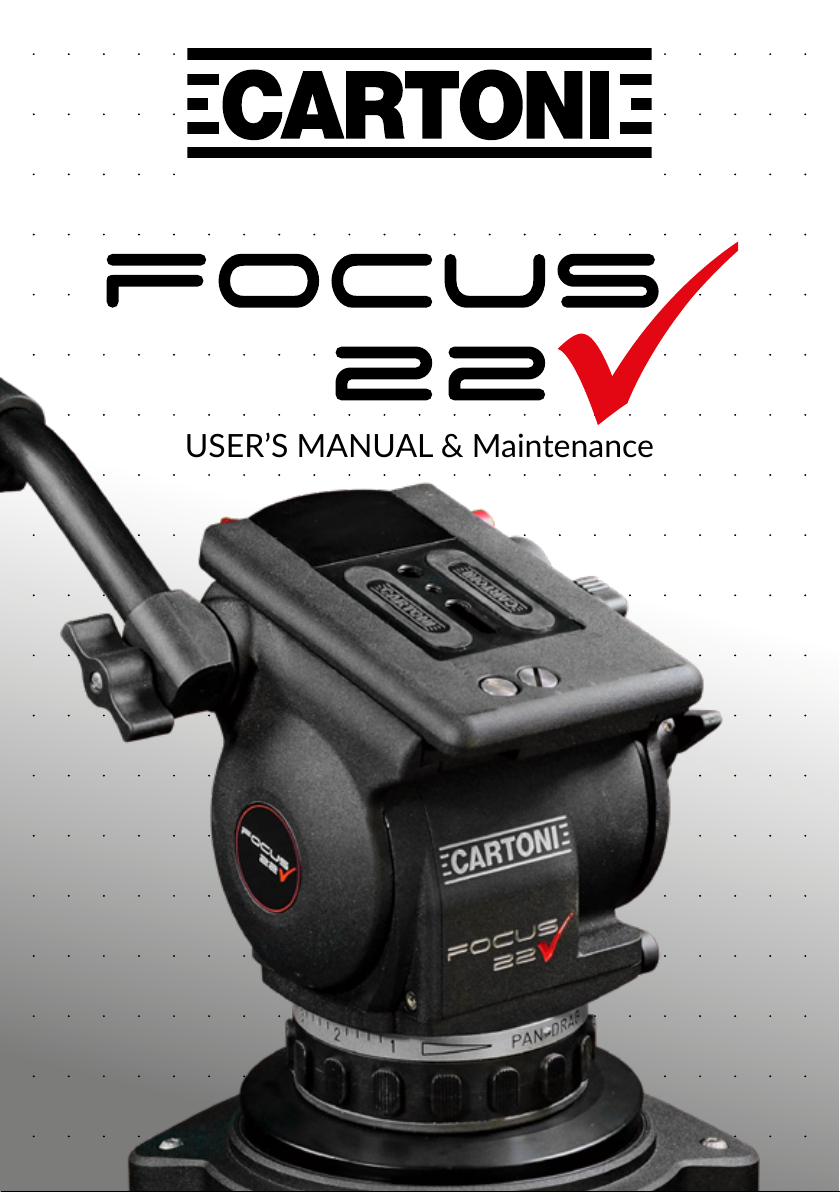

Cartoni FOCUS 22 Manuel utilisateur
PROFESSIONAL CAMERA SUPPORT
USER’S MANUAL & Maintenance
2
3
Index
1.
Safety & Set-UpIntrodUctIon 5
2.
operatIng elementS 6
3.
procedUreS 8
4.
SpecIfIcatIonS 9
5.
maIntenance 10
6.
Warranty 10
7.
acceSSorIeS & prodUct lIne 11
CARTONI ®
All rights reserved ©
Manual Version: 2.3
Issue date: March 2020
4
5
1. Safety & Set-UpIntrodUctIon
The FOCUS 22 Fluid Head is specically designed to support the wide
variety of new ENG cameras, so compact yet so fully accessorized, featur-
ing the patented CARTONI “wing” connuously adjustable counterbalance.
With its broad range of payloads – 3 kg (6.6 lbs) to 22 kg (49.0 lbs) - The FO-
CUS 22 is the ideal partner for all news gathering and outdoor shoong jobs.
Rugged but easy to operate the Fluid Head has all the ergonomic set-
ngs at the right place. Fluid drag in both pan and lt feature the disncve
renowned CARTONI patented innitely adjustable labyrinth system.
Posive locks, wide range sliding plaorm incorporang the European
style quick release plate, a switchable illuminated spirit level completes the
operang specs.
FOCUS 22, weighs only 3,9 kg (8.6 lbs) thanks to the extensive use of
extremely lightweight magnesium alloys.
The FOCUS 22 interfaces with all 100 mm bowl base tripods. In the
FOCUS 22/150 version, it interfaces with the all 150 mm bowl base Tri-
pods and with Pedestals through the standard Vinten 4 bolts.
Before using the product read this user manual.
Before installing the Fluid Head on the Tripod check the Tripod sta-
bility.
Verify that the Camera payload (including lenses and accessories) is
lower than the maximum capacity of the Fluid Head.
Before installing the Camera make sure that the Fluid Head is in good
condions and bares no evident damages.
6
1
Camera plate
2
Sliding Camera plaorm
3
Pan bar aachment
4
Pan bar extension
5
Pan drag selector
6
Pan brake lever
7
Tilt brake lever
❶ ❷
❸ ❺❹ ❼
2. operatIng elementS
❻
7
8
Tie down knob
9
Removable e down sha
10
Camera plate release lever
11
Safety buon
12
Sliding plaorm lock
13
Tilt drag selector
14
Illuminated spirit level
15
Counterbalance selector
16
Pan bar
⓮ ❽
⓬ ⓫ ❿ ⓰
⓭ ❻
⓯
❾
8
Place the FOCUS 22 on your Tripod by loosening the e-down knob
(8) under the Fluid Head and level using the illuminated spirit level
(14). In low light condions, press buon for light.
Connect the Pan bar (16) to the Fluid Head ghtening the lever (3) on
the Pan bar aachment and select your desired operang angle. The
telescopic Pan bar length can be adjusted via lever (4).
Lock both Pan and Tilt brakes (6 & 7), turn both Tilt drag selector (13)
and Counterbalance knob (15) to the minimum.
Open the Camera plate release lever (10) completely to release the
Camera
plate (1).
Remove the Camera plate (1) from the sliding Camera plaorm (2)
by squeezing simultaneously Camera plate
release
lever (10) and the
safety buon (11). Aach the Camera plate (1) to the boom of the
Camera and ghten the clamping screw to secure the Camera. Try to
center the Camera plate on the Camera, keeping the center of gravity
(CG) posion in mind.
Lock the sliding plaorm lever (12), click the Camera into the quick
release sliding plaorm (2), the plate will lock into place.
Hold the Camera in horizontal posion with the Pan bar (16) and re-
lease the Tilt brake lever (7). Release the sliding plaorm lever (12) and
nd the correct center of gravity (CG) posion, by sliding the Camera
plaorm (2) back and forth unl you have achieved the correct bal-
ance. Lock the sliding plaorm lock (12).
3. procedUreS
9
Set the Counterbalance system by turning the balance knob clockwise
(15) to appropriate tension. The Camera has to stay at any lt angle.
Eventually ne-tune by adjusng the sliding plate.
Unlock the Pan brake lever (6) and set the Fluid drag control by adjust-
ing selectors (5 & 13).
The FOCUS 22 can be aached to most of the sliders via a 3/8” tread-
ed hole under the Head. Remove the e down sha (9) with a M10
key and nd the hole underneath.
When the illuminated spirit level light fails it is me to replace the
baeries (14). Pull out the baery tray.
Minimum payload 3 Kg 6.6 lbs
Maximum payload 22 Kg 49 lbs
Weight Focus 22 3,9 Kg 8.6 lbs
Weight Focus 22/150 4,9 Kg 10.8 lbs
Camera Aachment Euro-Style quick release
Bowl diameter 100 mm/150/Flat
Fluid Drag Connuous
Counterbalance Connuous
Pan range 360°
Tilt range +-90°
Temperature range -40 /+60 °C -40 /+140 °F
4. SpecIfIcatIonS
10
5. maIntenance
6. Warranty
With indoor use - when needed - just clean the FOCUS 22 and Tripod
with a so cloth. Dirt accumulated during storage may be removed using a
brush or Air spray.
CARTONI products main mechanisms are sealed as they are also built
for professional outdoor use.
However, use under rough condions will require special care. Salt water
is very corrosive and can cause extreme damages. In atempt to avoid fur-
ther damage the Fluid Head should be washed o with fresh water at the
earliest opportunity and dried before storage.
Sand and dirt are abrasive and should be removed using a semi-s
brush or Air spray.
Disconnect the illuminated spirit level baery during long term storage.
All CARTONI Fluid Heads & Pedestals have a free of charge three (3)
year warranty. Register your product at www.cartoni.com within 30 days
from date of rst purchase/invoice to receive further two (2) year warranty
for the unsurpassed free ve (5) year warranty.
Tripods, spreaders, dollies and all accessories are guaranteed one (1)
year from the date of rst purchase/invoice.
CARTONI warrant that the product supplied will - under proper use -
be free from defects in workmanship and materials and agrees that it will,
at its opon, either repair or replace any defecve part within duraon of
warranty from date of rst purchase with no labour charge.
