Carrier TP-WEM01 Manuel utilisateur

Installation Guide

A14577

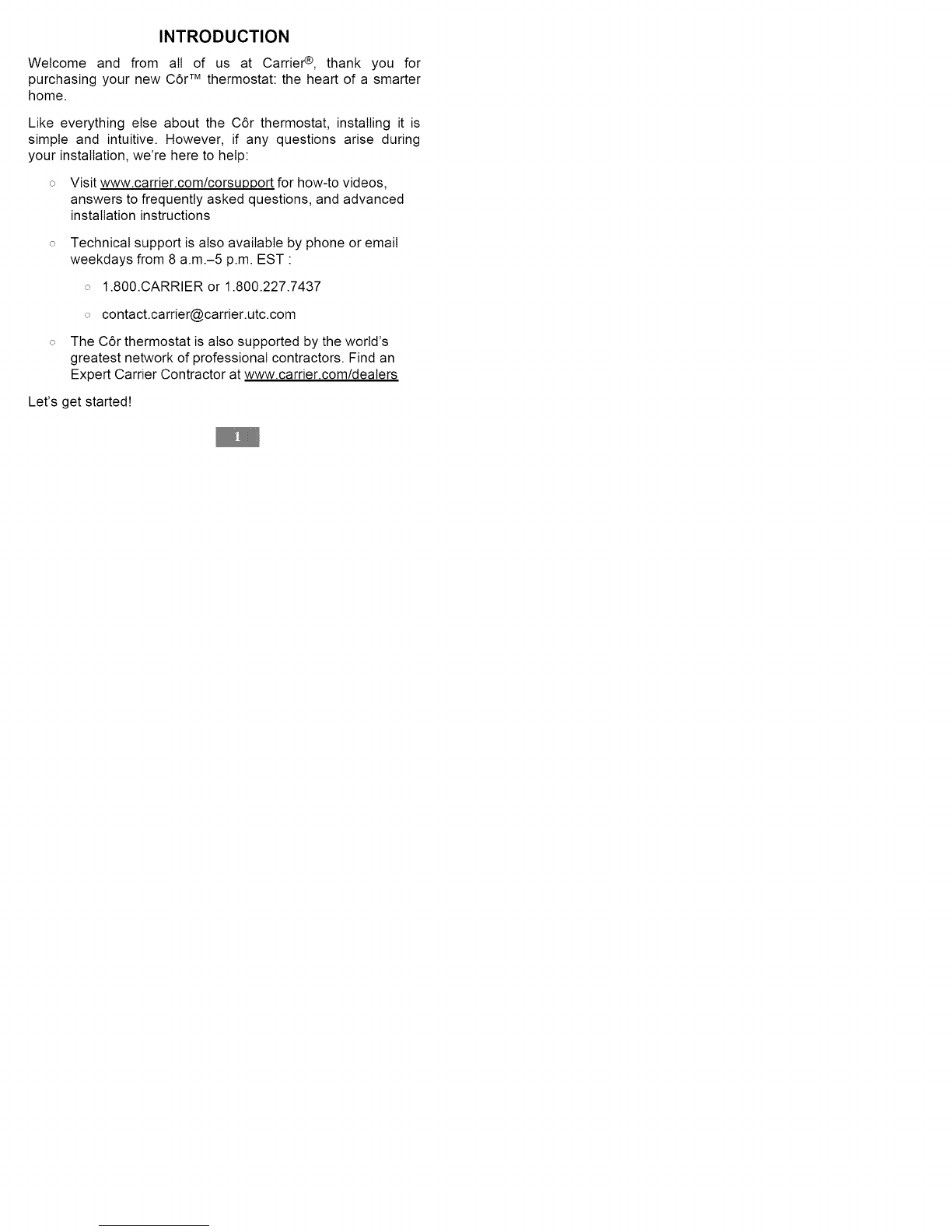

INTRODUCTION

Welcome and from all of us at Carrier _, thank you for

purchasing your new C6r TM thermostat: the heart of a smarter

home.

Like everything else about the C6r thermostat, installing it is

simple and intuitive. However, if any questions arise during

your installation, we're here to help:

Visit www.carrier.com/corsupport for how-to videos,

answers to frequently asked questions, and advanced

installation instructions

Technical support is also available by phone or emaiI

weekdays from 8 a.m.-5 p.m. EST :

o 1.800.CARRIER or 1.800.227.7437

c_ [email protected]

The C6r thermostat is also supported by the world's

greatest network of professional contractors. Find an

Expert Carrier Contractor at www.carrier.com/dealers

Let's get started!

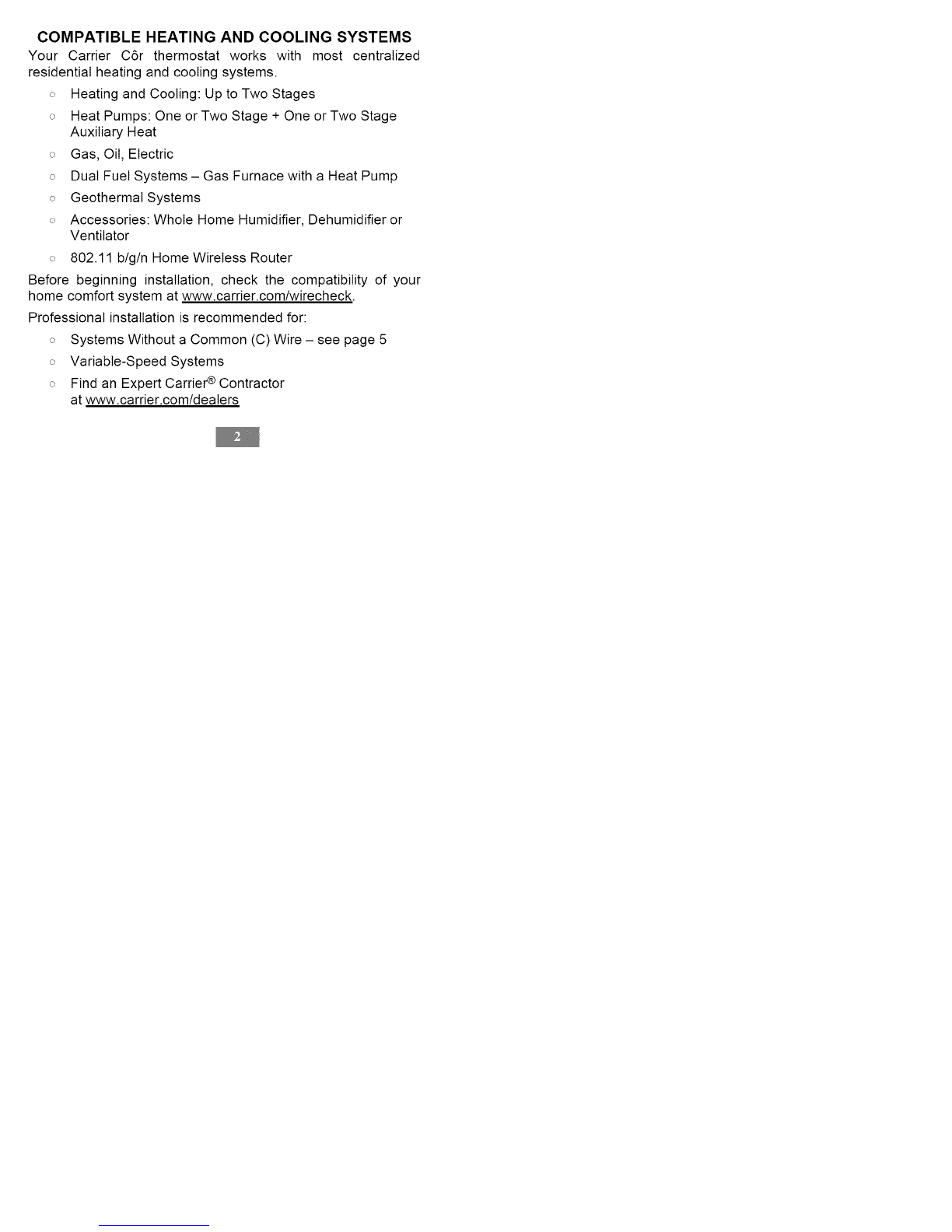

COMPATIBLE HEATING AND COOLING SYSTEMS

Your Carrier C6r thermostat works with most centralized

residential heating and cooling systems.

o Heating and Cooling: Up to Two Stages

o Heat Pumps: One or Two Stage + One or Two Stage

Auxiliary Heat

o Gas, Oil, Electric

o Dual Fuel Systems - Gas Furnace with a Heat Pump

o Geothermal Systems

o Accessories: Whole Home Humidifier, Dehumidifier or

Ventilator

o 802.11 b/gin Home Wireless Router

Before beginning installation, check the compatibility of your

home comfort system at www.carrier.com/wirecheck.

Professional installation is recommended for:

o Systems Without a Common (C) Wire - see page 5

o Variable-Speed Systems

o Find an Expert Carrier ¢ Contractor

at www.carrier.com/dealers

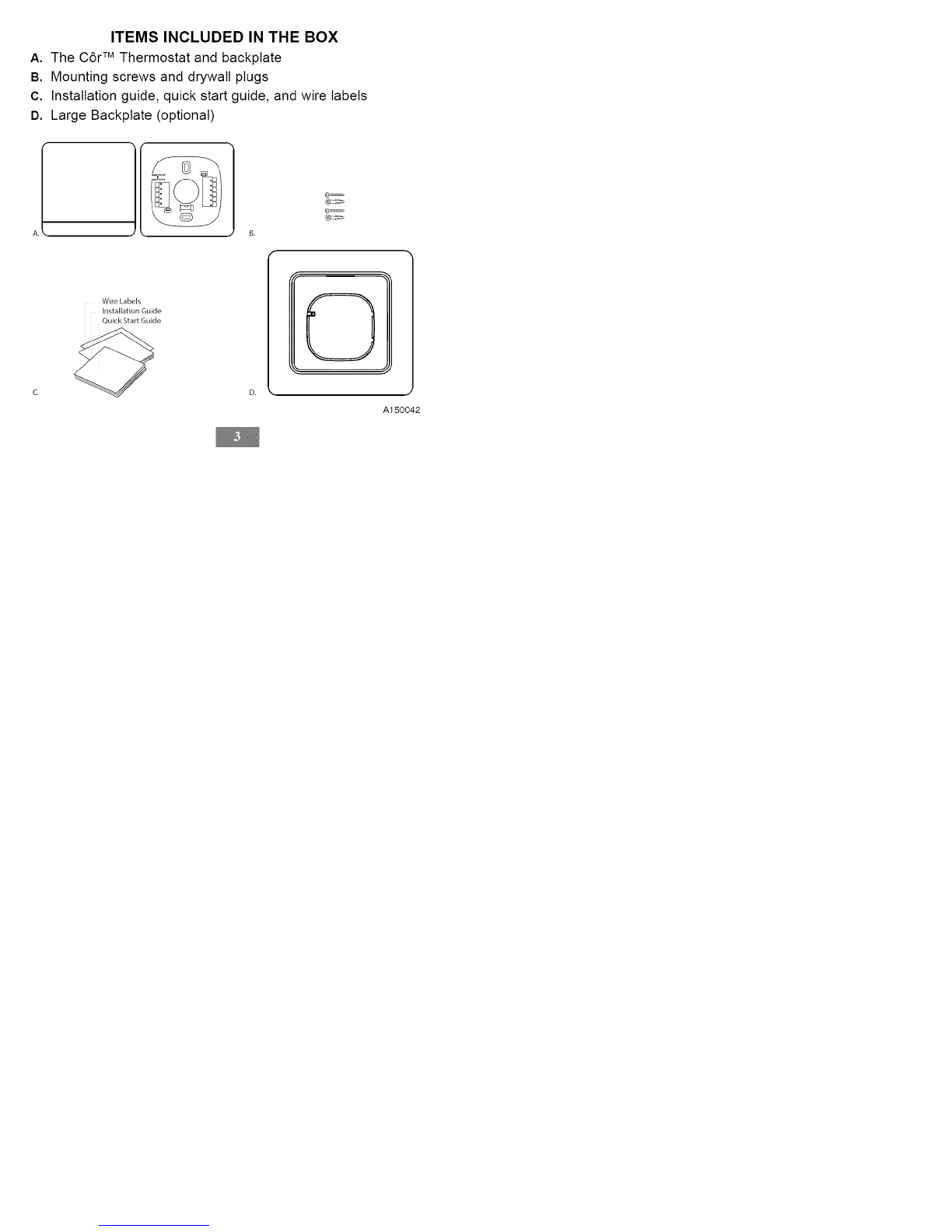

ITEMS INCLUDED IN THE BOX

A. The C6r TM Thermostat and backptate

B. Mounting screws and drywall plugs

C. Installation guide, quick start guide, and wire labels

D. Large Backptate (optional)

Wire Labels

Installation Guide

Quick Start Guide

D. k.

A150042

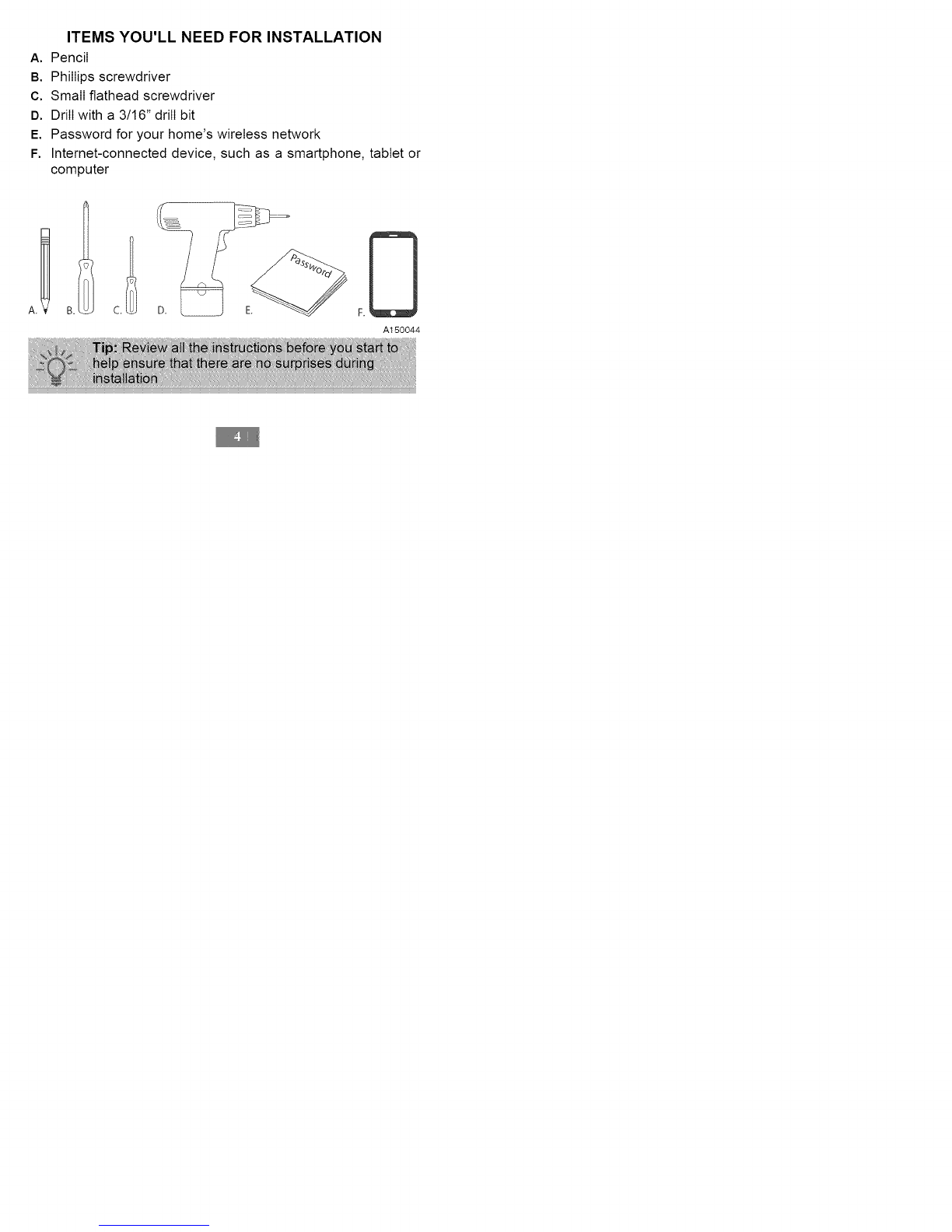

ITEMS YOU'LL NEED FOR INSTALLATION

A. Pencil

B. Phillips screwdriver

C. Small flathead screwdriver

D. Drill with a 3/16" drill bit

E. Password for your home's wireless network

F. Internet-connected device, such as a smartphone, tablet or

computer

A150044

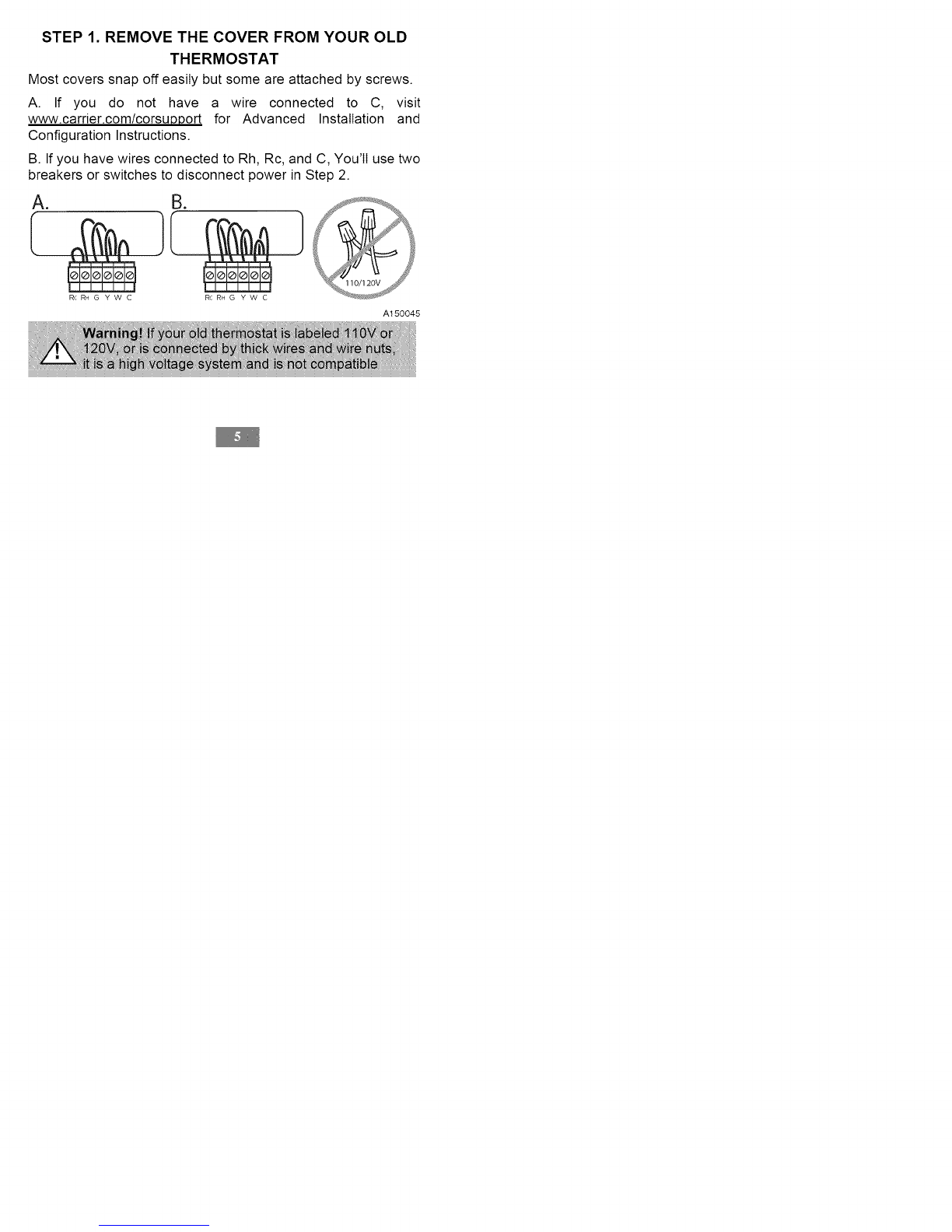

STEP 1. REMOVE THE COVER FROM YOUR OLD

THERMOSTAT

Most covers snap off easily but some are attached by screws.

A. If you do not have a wire connected to C, visit

www.carrier.com/corsupport for Advanced Installation and

Configuration Instructions.

B. If you have wires connected to Rh, Rc, and C, You'll use two

breakers or switches to disconnect power in Step 2.

A. &

RcRHG YWC RcRHG YW C

A150045

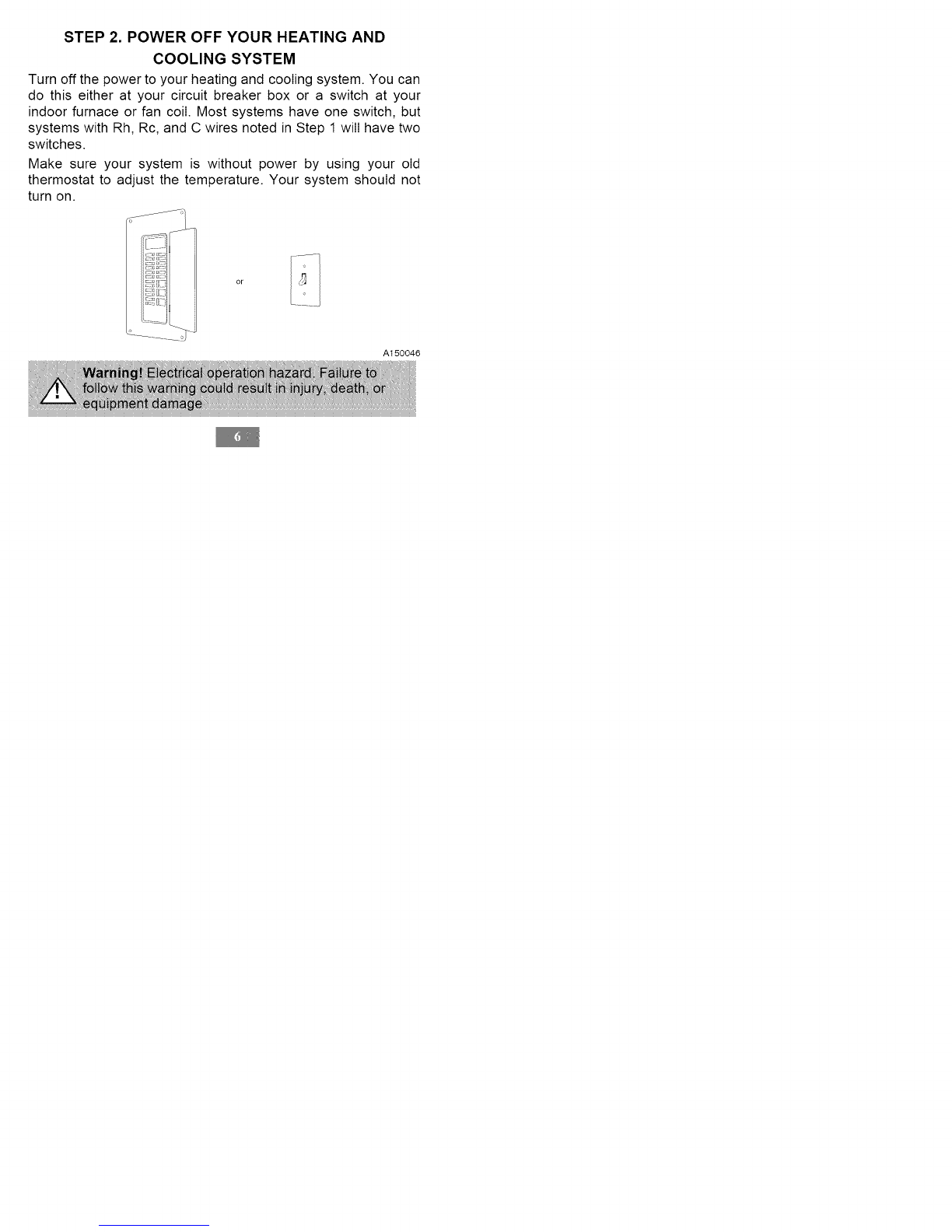

STEP 2. POWER OFF YOUR HEATING AND

COOLING SYSTEM

Turn off the power to your heating and cooling system. You can

do this either at your circuit breaker box or a switch at your

indoor furnace or fan coil. Most systems have one switch, but

systems with Rh, Rc, and C wires noted in Step 1will have two

switches.

Make sure your system is without power by using your old

thermostat to adjust the temperature. Your system should not

turn on.

At50046

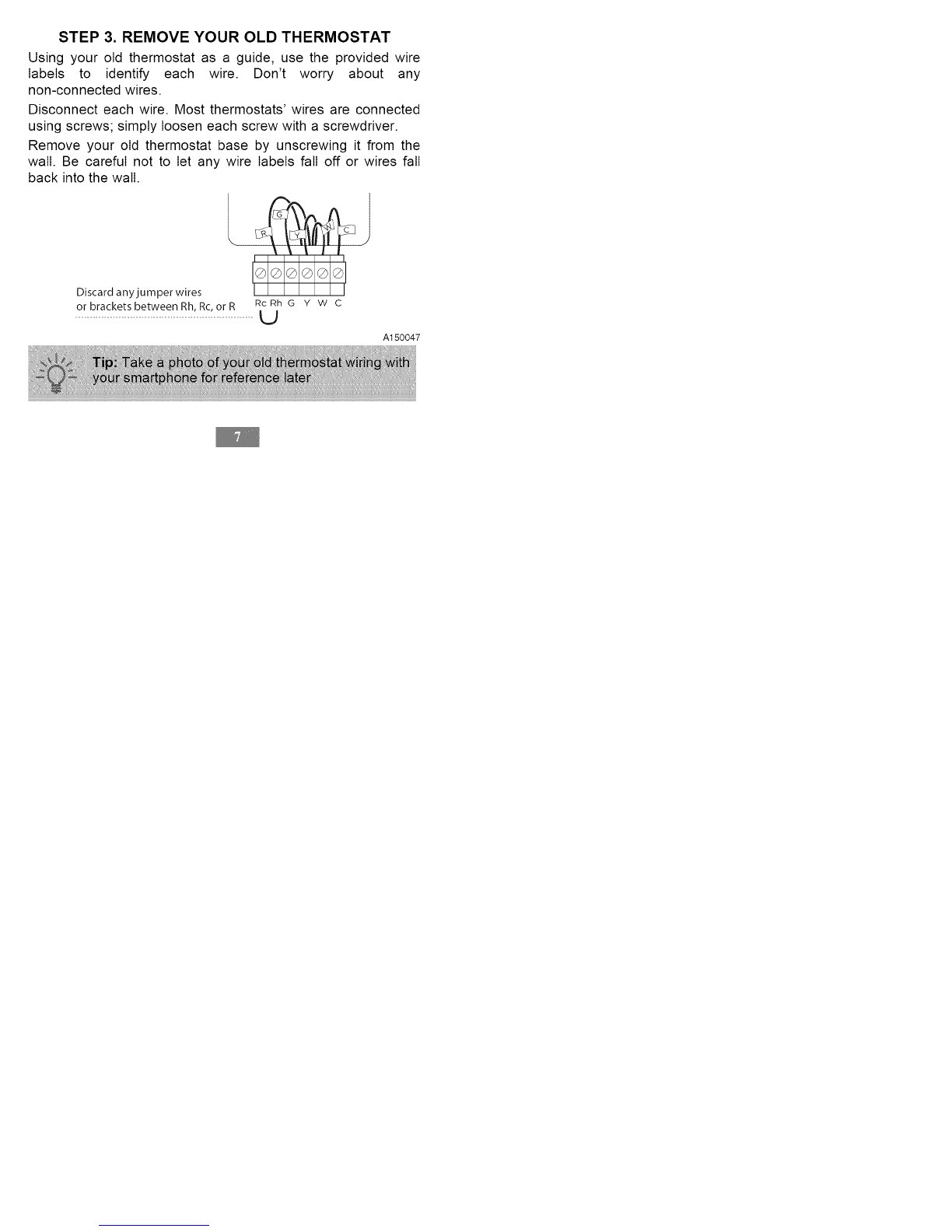

STEP 3. REMOVE YOUR OLD THERMOSTAT

Using your old thermostat as a guide, use the provided wire

labels to identify each wire. Don't worry about any

non-connected wires.

Disconnect each wire. Most thermostats' wires are connected

using screws; simply loosen each screw with a screwdriver.

Remove your old thermostat base by unscrewing it from the

wail. Be careful not to let any wire labels fall off or wires fall

back into the wall.

Discard any jumper wires

or brackets between Rh, Rc,or R Rc Rh G Y w C

................................................................................................................U

A150047

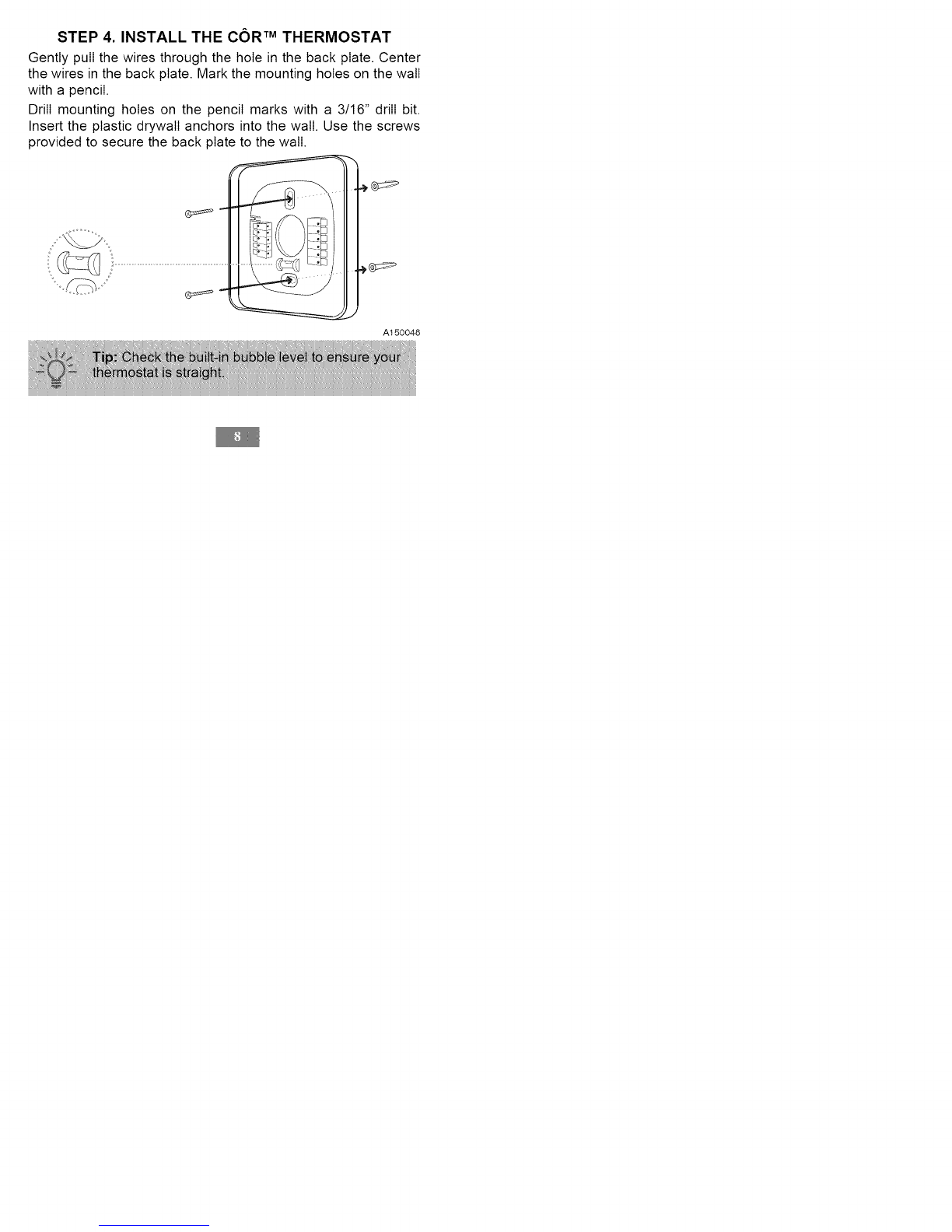

STEP 4. INSTALL THE COR TM THERMOSTAT

Gently pull the wires through the hole in the back plate. Center

the wires in the back plate. Mark the mounting holes on the wall

with a pencil.

Drill mounting holes on the pencil marks with a 3/16" drill bit.

Insert the plastic drywall anchors into the wall. Use the screws

provided to secure the back plate to the wall.

A150048

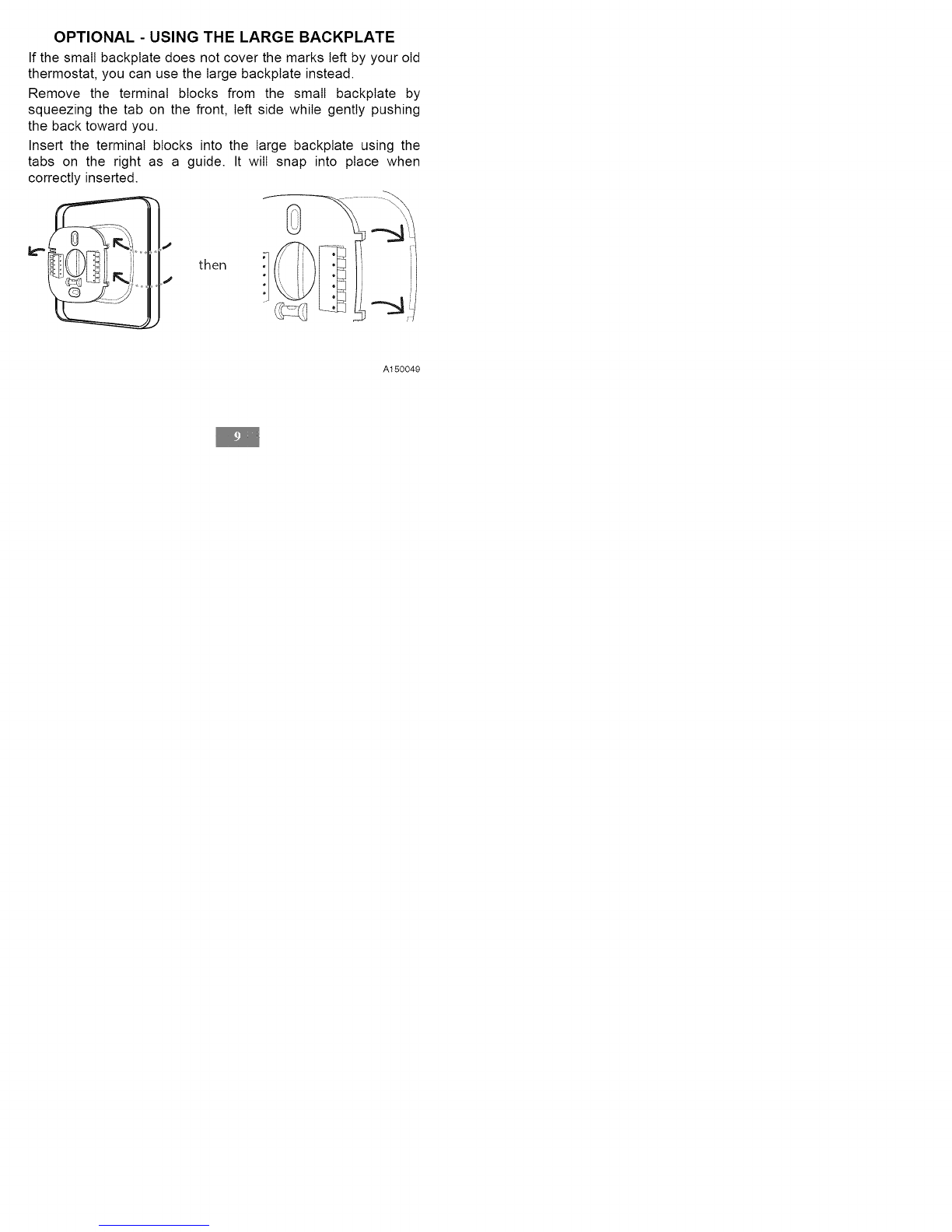

OPTIONAL - USING THE LARGE BACKPLATE

If the small backptate does not cover the marks left by your old

thermostat, you can use the large backptate instead.

Remove the terminal blocks from the small backptate by

squeezing the tab on the front, left side while gently pushing

the back toward you.

Insert the terminal blocks into the large backplate using the

tabs on the right as a guide. It will snap into place when

correctly inserted.

_J then

A150049
