Carrier RBC-AMS54E-UL Guide de dépannage

Carrier Enterprise

Technical Services

Basic Operation:

1. Turn ON the remote control by pressing the ON/OFF button.

2. Select the MODE be pressing the MODE (F1) button.

•AUTO, HEAT, DRY, COOL, FAN are selectable modes of operation.

3. Select FAN speed by pressing Fan Speed (F2).

•AUTO, HIGH, MED+, MED, LOW+, LOW are selectable fan speeds.

4. OnceAUTO, COOL, DRY or HEAT mode is selected, set desired

temperature using the UP/DOWN arrow button. InAUTO mode set both

the HEAT & COOL set points, see next page for additional information.

More detailed information on these items and more can be found in the

Installation and Operation Manual that came with the remote controller.

If lost contact CE Tech Service with model number for replacement.

Page 1 of 8Ver. 1.0

Carrier Toshiba VRF Remote

Control Quick Startup Guide

1 – MONITOR: Displays the monitoring

screen.

2 –MENU: Displays the menu screen.

3 –CANCEL: Functions as indicated on

the display, such as returning to the

previous menu screen.

4 –UP: During normal operation, adjusts

the temperature. On the menu screen,

selects menu item.

5 –DOWN: During normal operation,

adjusts the temperature. On the menu

screen, selects menu item.

6 –F1: Varies its function according to the

setting screen.

7 –F2: Varies its function according to the

setting screen.

8 –ON/OFF: Turns system ON or OFF

More display icons are explained on page

3 of this document.

RBC-AMS54E-UL –Remote Controller

Carrier Enterprise

Technical Services

Page 2of 8

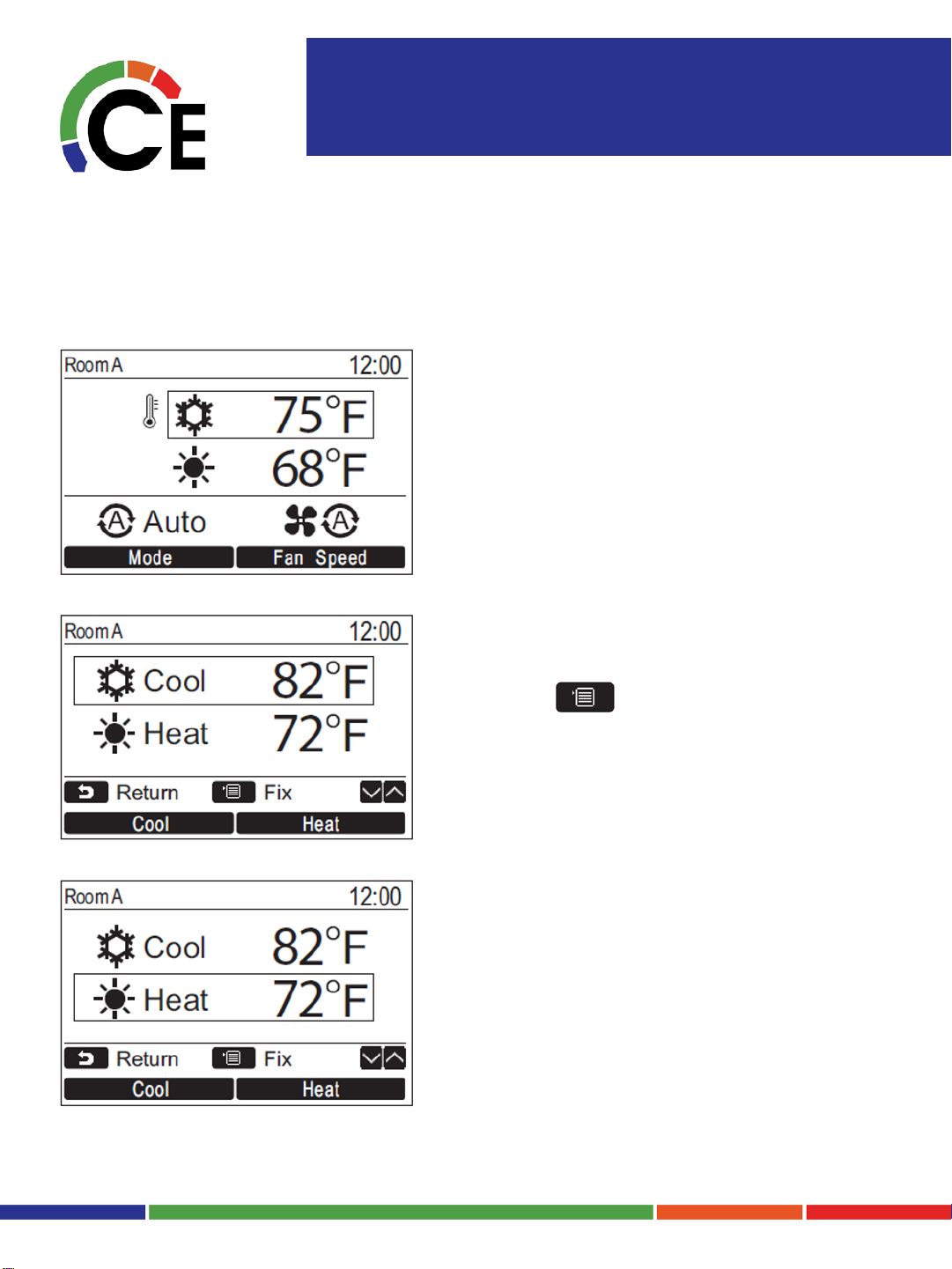

Auto Mode & Dual Set Points:

In dual set point setting, the temperature set point of individual cooling and

heating can be set to adjust the indoor temperature.

Carrier Toshiba VRF Remote

Control Quick Startup Guide

1. Push the UP or DOWN button to switch

to the display shown on the left.

2. To set the cooling temperature set

point, push [Cool] and adjust the

setting with UP/DOWN buttons.A box

will surround [ Cool] and

[Temperature set point]. To set the

heating temperature set point, push

[Heat] and adjust the setting with

UP/DOWN buttons.A box will surround

[ Heat] and [Temperature set point].

Push [ MENU] to confirm the

settings and return to the normal

display.

Push [ CANCEL] to cancel the

settings and return to the normal

display.

Carrier Enterprise

Technical Services

Page 3of 8

Display Modes:

To switch between displays: Push and hold the [CANCEL] button and

the [ Monitor] button at the same time for more than 4 seconds.

1. Normal Display (factory default)

2. Detailed Display

Carrier Toshiba VRF Remote

Control Quick Startup Guide

Carrier Enterprise

Technical Services

Page 4of 8

Initial Settings:

1. Press the [MENU] button. Once the Menu is displayed press the

UP/DOWN buttons to highlight Initial Setting and then press

[ F2] button to select.

Initial Settings Menu:

Carrier Toshiba VRF Remote

Control Quick Startup Guide

Carrier Enterprise

Technical Services

Page 5of 8

Field Settings:

1. Press the [ MENU] button to display the menu screen.

2. Push and hold the [ MENU] button and the [DOWN] button at

the same time to display the “Field setting menu”.

Push and hold the buttons for more than 4 seconds.

3. Push the [ CANCEL]button to return.

4. Press the UP/DOWN buttons to highlight and then press

[ F2] button to select field setting to adjust.

•Commonly used:

• 5. Setting louver position

• 7. DN setting

For full list of DN codes, see page 6 ~ 8.

Carrier Toshiba VRF Remote

Control Quick Startup Guide

Carrier Enterprise

Technical Services

Page 6of 8

DN Codes:

Carrier Toshiba VRF Remote

Control Quick Startup Guide

Carrier Enterprise

Technical Services

Page 7of 8

DN Codes (cont.):

Carrier Toshiba VRF Remote

Control Quick Startup Guide

Carrier Enterprise

Technical Services

Page 8of 8

DN Codes (cont.):

Carrier Toshiba VRF Remote

Control Quick Startup Guide
