Carrier Access Terminal Server Router Manuel utilisateur

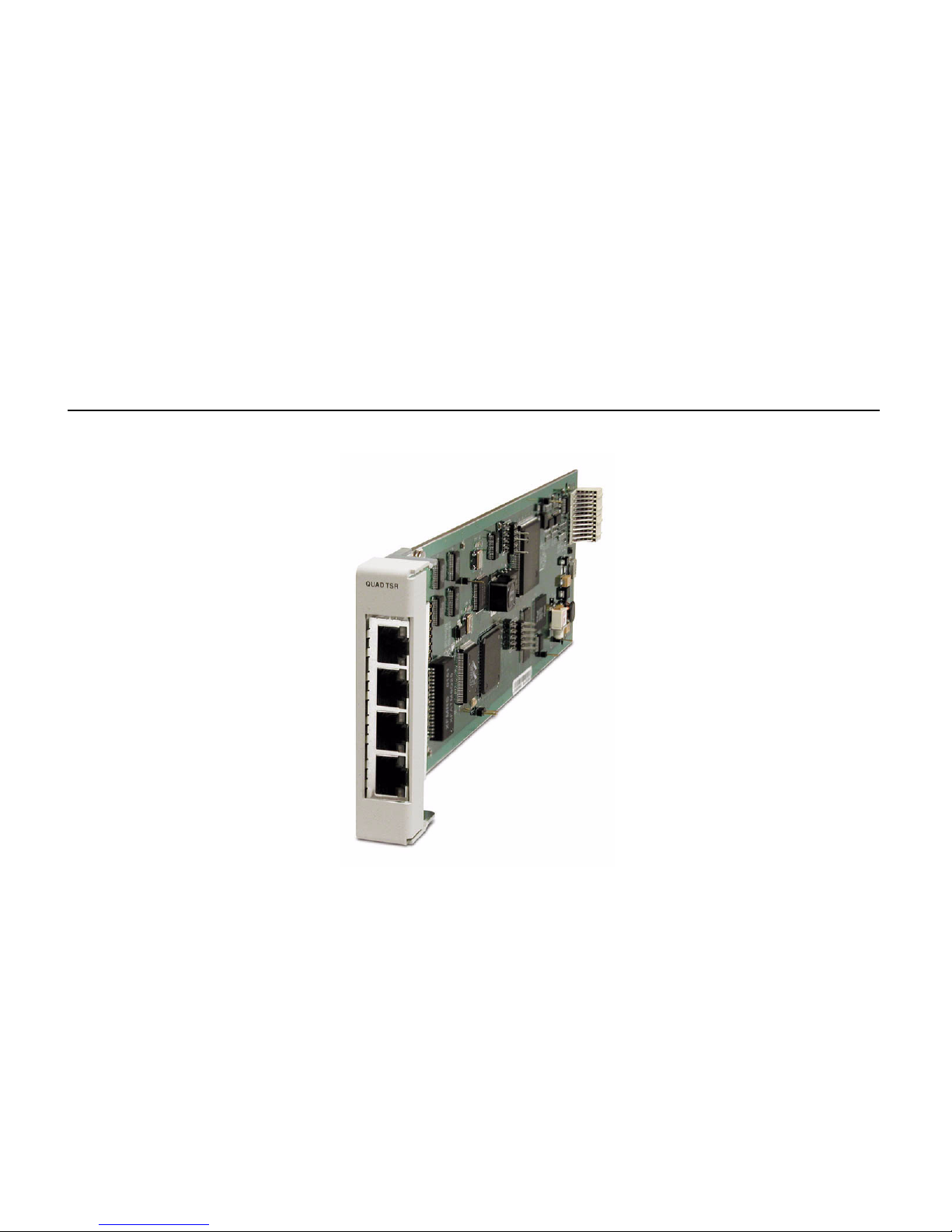

Terminal Server Router

QUICK START GUIDE

PartNumber: 002-0152-0005

Product Release: 1.3

May 2004

The information presented in this manual is subject to change without notice and does not represent a

commitment on the part of Carrier Access Corporation. The hardware and software described herein are

furnished under a license or non-disclosure agreement. The hardware, software, and manual may be used or

copied only in accordance with the terms of this agreement. It is against the law to reproduce, transmit,

transcribe, store in a retrieval system, or translate into any medium - electronic, mechanical, magnetic,

optical, chemical, manual, or otherwise - any part of this manual or software supplied with the Axxius 800

for any purpose other than the purchaser’s personal use without the express written permission of Carrier

Access Corporation.

The Carrier Access Logo, Adit, Axxius and solve for x are registered trademarks of Carrier Access

Corporation. All other brand or product names are trademarks or registration trademarks of their respective

companies or organizations.

Contact Information:

Carrier Access Corporation

5395 Pearl Parkway

Boulder, CO 80301-2490

Corporate Phone: (800) 495-5455

Fax: (303) 443-5908

www.carrieraccess.com

Customer Support Direct: (800) 786-9929

E-mail: tech-suppo[email protected]m

Supporting Software Version:

TSR Software Release 1.3

Axxius 800 Software Release 2.1

Adit 600 Software Release 8.0

RemoteValet Software Release 1.1

QUICK START GUIDE

In this Guide

nInstallation

nBasic Setup

nPPP Internet Connection and Public IP Address

Routing

nFrame Relay Internet Connection and Public IP

Address Routing

nInternet Connection using PPP, NAT/PAT and

Firewall Filters

nInternet Connection using NAT and Static NAT

Addresses

nBack-to-Back with PPP

nBack-to-Back with Multi-Link PPP

nBack-to-Back with Frame Relay

4 Terminal Service Router - Release 1.3

Quick Start Guide

Installation

Installation of the router card into the Adit chassis.

lUnit can be on or off

lRouter card will work in any slot

lSlide card into slot until fully seated

lRouter has completed it’s boot cycle when CRD light is solid

The following setups are all executed with CLI

NOTE: Configuration can be done with the following CLI commands or

with the Router Menu-Driven Software.

Basic Setup

Command Description

set {ds0-addr} type data Confirm DS0 is set to type data.

ds0-addr = {slot:port:channel} of DS0

Example: set a:1:1-24 type data

connect {slot:port:trunk}

{slot:port:channel}

Cross-connect T1 to router card.

Example: connect a:1:1-24 6:1:1 (router in slot 6)

set {router-addr} proxy Disable/enable router proxy.

router-addr = {slot:port}| of router card.

Example: set 6:1 disable.

set {slot:port} up Set Router LAN as In-Service.

Example: set 6:1 up

telnet {router_card-addr} Telnet to Router card.

router_card-addr = {slot} location of router card

Example: telnet 6 (if earlier than 3.0 release {slot:port}

must be used)

Local and Remote Profile Setup

reinitialize To enable any configuration changes, the card must be

reinitialized.

Terminal Service Router - Release 1.3 5

Quick Start Guide

PPP Internet Connection and Public IP Address Routing

PPP Internet Connection and

Public IP Address Routing

Router in Slot 1

ISP Router that provides the Internet connection.

Command Description

set clock1 a:1 Set primary master transmit clock source

set 1 default Set Router to default settings

disconnect a:1 Disconnect all connections to the T1 on the

Controller (slot a)

disconnect 1 Disconnect all connections to the router in slot 1

set a:1:all type data Set the T1-1 of the Controller, Type to Data

connect a:1:all 1:1:1 Connect all of T1-1 to the Router that is in slot 1

rename 1 "LocalUnit" "Boulder" Rename the Axxius 800 from "LocalUnit"

(default) to "Boulder" (LAN)

rename 1 "RemoteUnit" "wan1" Rename WAN #1 from "RemoteUnit" (default) to

"wan1"

set 1:1 ip address 215.168.21.14

255.255.255.0

Set the ethernet IP address, in the conventional IP

address format. (Router LAN)

add 1 "wan1" static ip network

0.0.0.0 0.0.0.0 1

Adds a static IP network (route) to the WAN

interface

set 1 "wan1" trunk 1 Set the WAN interface named "wan1" to be

mapped to trunk 1

reset 1 Reboot the router, to enable all configurations set

6 Terminal Service Router - Release 1.3

Quick Start Guide

Frame Relay Internet Connection and Public IP Address Routing

Frame Relay Internet Connection and

Public IP Address Routing

Router in Slot 1

ISP Router that provides the Internet connection.

Command Description

set clock1 a:1 Set primary master transmit clock source

set 1 default Set Router to default settings

disconnect a:1 Disconnect all connections to the T1 on the

Controller (slot a)

disconnect 1 Disconnect all connections to the router in slot 1

set a:1:all type data Set the T1-1 of the Controller, Type to Data

connect a:1:all 1:1:1 Connect all of T1-1 to the Router that is in slot 1

rename 1 "LocalUnit" "Boulder" Rename the Axxius 800 from "LocalUnit"

(default) to "Boulder" (LAN)

rename 1 "RemoteUnit" "wan1" Rename WAN #1 from "RemoteUnit" (default) to

"wan1"

set 1:1 ip address 215.168.21.14

255.255.255.0

Set the ethernet IP address, in the conventional IP

address format. (Router LAN)

add 1 "wan1" static ip network

0.0.0.0 0.0.0.0 1

Adds a static IP network (route) to the WAN

interface

set 1:1:1 encapsulation fr Set the encapsulation on trunk 1 to Frame Relay

set 1 lmi annexd Disable LMI to Annex D

set 1 "wan1" trunk 1 Set the WAN interface named "wan1" to be

mapped to trunk 1

set 1 "wan1" dlci 101 Set the DLCI number

reset 1 Reboot the router, to enable all configurations set

Terminal Service Router - Release 1.3 7

Quick Start Guide

Internet Connection using PPP, NAT/PAT and Firewall Filters

Internet Connection using PPP, NAT/PAT and

Firewall Filters

Router in Slot 1

ISP Router that provides the Internet connection. Router with NAT/PAT and Firewall

Filters.

Command Description

set clock1 a:1 Set primary master transmit clock source

set 1 default Set Router to default settings

disconnect a:1 Disconnect all connections to the T1 on the

Controller (slot a)

disconnect 1 Disconnect all connections to the router in slot 1

set a:1:all type data Set the T1-1 of the Controller, Type to Data

connect a:1:all 1:1:1 Connect all of T1-1 to the Router that is in slot 1

rename 1 "LocalUnit" "Boulder" Rename the Axxius 800 from "LocalUnit"

(default) to "Boulder" (LAN)

rename 1 "RemoteUnit" "wan1" Rename WAN #1 from "RemoteUnit" (default) to

"wan1"

set 1:1 ip address 192.168.21.14

255.255.255.0

Set the ethernet IP address, in the conventional IP

address format. (Router LAN)

set 1 "wan1" nat enable Set the WAN interface named "wan1" enable

NAT mapping

set 1 "wan1" nat address

216.174.44.2 1

Set the WAN interface named "wan1" NAT

address

add 1 "wan1" static ip network

0.0.0.0 0.0.0.0 1

Adds a static IP network (route) to the WAN

interface

add 1 "wan1" firewall 1 pass

incoming log telnet

192.168.21.14/32

xxx.xxx.xxx.xxx/32

Adds a Firewall rule to the WAN. Where

xxx.xxx.xxx.xxx is the host’s IP address at the far

end that will be able to ping or telnet to the router.

0.0.0.0/0 will allow any other host at the far end

to ping and/or telnet to the router.

8 Terminal Service Router - Release 1.3

Quick Start Guide

Internet Connection using PPP, NAT/PAT and Firewall Filters

Command Description

add 1 "wan1" firewall 2 pass

inout nolog ping

192.168.21.14/32

xxx.xxx.xxx.xxx/32

Adds a Firewall rule to the WAN. Where

xxx.xxx.xxx.xxx is the host’s IP address at the far

end that will be able to ping or telnet to the router.

0.0.0.0/0 will allow any other host at the far end

to ping and/or telnet to the router.

add 1 "wan1" firewall 3 pass

inout nolog ping 0.0.0.0/0

0.0.0.0/0

Adds a Firewall rule to the WAN.

add 1 "wan1" firewall 4 pass

inout nolog tcp 1-65535 0.0.0.0/0

0.0.0.0/0

Adds a Firewall rule to the WAN.

add 1 "wan1" firewall 5 pass

inout nolog udp 1-65535 0.0.0.0/0

0.0.0.0/0

Adds a Firewall rule to the WAN.

set 1 "wan1" trunk 1 Set the WAN interface named "wan1" to be

mapped to trunk 1

reset 1 Reboot the router, to enable all configurations set

Terminal Service Router - Release 1.3 9

Quick Start Guide

Internet Connection using NAT and Static NAT Addresses

Internet Connection using NAT and Static NAT

Addresses

Router in Slot 1

ISP Router that provides the Internet connection. Router with NAT and Static NAT

addresses.

Command Description

set clock1 a:1 Set primary master transmit clock source

set 1 default Set Router to default settings

disconnect a:1 Disconnect all connections to the T1 on the

Controller (slot a)

disconnect 1 Disconnect all connections to the router in slot 1

set a:1:all type data Set the T1-1 of the Controller, Type to Data

connect a:1:all 1:1:1 Connect all of T1-1 to the Router that is in slot 1

rename 1 "LocalUnit" "Boulder" Rename the Axxius 800 from "LocalUnit"

(default) to "Boulder" (LAN)

rename 1 "RemoteUnit" "wan1" Rename WAN #1 from "RemoteUnit" (default) to

"wan1"

set ethernet ip address

192.168.21.15 255.255.255.0

Set the Ethernet IP address and Subnet Mask, for

the Axxius 800

set 1:1 ip address 192.168.21.14

255.255.255.0

Set the ethernet IP address, in the conventional IP

address format. (Router LAN)

set 1 "wan1" nat enable Set the WAN interface named "wan1" enable

NAT mapping

set 1 "wan1" nat address

216.174.44.2 1

Set the WAN interface named "wan1" NAT

address

add 1 "wan1" static ip network

0.0.0.0 0.0.0.0 1

Adds a static IP network (route) to the WAN

interface

add 1 "wan1" static nat address

192.168.21.14 216.174.44.232

Add static NAT bi-directional mapping to wan1

10 Terminal Service Router - Release 1.3

Quick Start Guide

Internet Connection using NAT and Static NAT Addresses

216.174.44.232 is the static NAT address assigned to the router.

216.174.44.233 is the static NAT address assigned to the controller.

216.174.44.234 is the static NAT address for a server*.

216.174.44.235 is the static NAT address for a host*.

*In the private network that can be reached from the outside world.

There can be up to 16 static NAT addresses, therefore the actual range can be

216.174.44.232 to 216.174.44.247. Only 4 were used in this example.

Command Description

add 1 "wan1" static nat address

192.168.21.15 216.174.44.233

Add static NAT bi-directional mapping to wan1

add 1 "wan1" static nat address

192.168.21.16 216.174.44.234

Add static NAT bi-directional mapping to wan1

add 1 "wan1" static nat address

192.168.21.17 216.174.44.235

Add static NAT bi-directional mapping to wan1

set 1:1:1 encapsulation fr Set the encapsulation on trunk 1 to Frame Relay

set 1 lmi annexd Disable LMI Annex D

set 1 "wan1" trunk 1 Set the WAN interface named "wan1" to be

mapped to trunk 1

set 1 "wan1" dlci 101 Set the DLCI number

reset 1 Reboot the router, to enable all configurations set

Table des matières

Autres manuels Carrier Access Routeur réseau

Carrier Access

Carrier Access Network Device Adit 3104 Manuel utilisateur

Carrier Access

Carrier Access 770-0015 AM Manuel utilisateur

Carrier Access

Carrier Access Access Navigator Manuel utilisateur

Carrier Access

Carrier Access CMG Router Manuel utilisateur

Carrier Access

Carrier Access Broadmore 1750 Manuel utilisateur

Carrier Access

Carrier Access 002-0118-0180 Manuel utilisateur

Carrier Access

Carrier Access Access Bank II SNMP Manuel utilisateur

Carrier Access

Carrier Access Multi-Service Router (MSR) Card MSR/Adit 3K... Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
