CARLO GAVAZZI WM15 Manuel utilisateur

WM15

Power analyser for three-phase systems

USER MANUAL

2WM15 - User manual | CARLO GAVAZZI Controls SpAWM15 - User manual | CARLO GAVAZZI Controls SpA

Summary

WM15 5

Preliminary remarks 5

Description 5

Available versions 6

UCS (Universal Conguration Software) 7

Use of WM15 8

Preliminary remarks 8

SETTINGS menu display 8

INFO menu display 8

RESET menu display 9

Measurement page display 9

Information and warnings 9

Commissioning 10

Preliminary settings 10

MID SETTINGS menu 10

QUICK SETUP menu 11

WIRING CHECK menu 12

Performing operations in WM15 13

Performing operations in the measurement pages 13

Performing operations in the SETTINGS menu 13

Performing operations in the INFO menu 13

Performing operations in the RESET menu 13

Menu description 14

Measurement pages 14

SETTINGS menu 16

INFO menu 16

RESET menu 17

Things you should be aware of 18

Preliminary remarks 18

Variables 18

Alarm types 18

Average value calculation (dmd) 19

Integration interval 19

Home page 20

Backlight 20

Screensaver 20

Page lter 20

Restoring the settings using the RESET menu 20

Restoring the settings using the reset button 20

Preliminary remarks 21

Display check 21

Check from UCS software or UCS Mobile 21

Virtual correction from UCS software or UCS Mobile 21

3WM15 - User manual | CARLO GAVAZZI Controls SpAWM15 - User manual | CARLO GAVAZZI Controls SpA

Maintenance and disposal 22

Measuring problems 22

Alarms 22

Communication problems 22

Display problem 22

4WM15 - User manual | CARLO GAVAZZI Controls SpAWM15 - User manual | CARLO GAVAZZI Controls SpA

Information property

CARLO GAVAZZI Controls SpA reserves the right to apply modifications or make improvements to the relative documentation without the

obligation of advance notice.

Safety messages

The following section describes the warnings related to user and device safety included in this document:

NOTICE: indicates obligations that if not observed may lead to damage to the device.

CAUTION! Indicates a risky situation which, if not avoided, may cause data loss.

IMPORTANT: provides essential information on completing the task that should not be neglected.

General warnings

This manual is an integral part of the product and accompanies it for its entire working life. It should be consulted for all situations

tied to configuration, use and maintenance. For this reason, it should always be accessible to operators.

NOTICE: no one is authorized to open the analyzer or remove the MABC module. This operation is reserved exclusively for CARLO

GAVAZZI technical service personnel.

Protection may be impaired if the instrument is used in a manner not specified by the manufacturer.

Service and warranty

In the event of malfunction, fault, requests for information or to purchase accessory modules, contact the CARLO GAVAZZI branch or

distributor in your country.

Installation and use of analyzers other than those indicated in the provided instructions and removal of the MABC module void the warranty.

Download

This manual www.productselection.net/MANUALS/UK/WM15_im_use.pdf

Installation instructions - WM15 www.productselection.net/MANUALS/UK/WM15_im_inst.pdf

UCS software www.productselection.net/Download/UK/ucs.zip

5WM15 - User manual | CARLO GAVAZZI Controls SpAWM15 - User manual | CARLO GAVAZZI Controls SpA

WM15

Introduction

WM15 is a power analyser for single-, two- and three-phase systems.

Depending on the model, WM15 is equipped with a static output (pulse or alarm) or with a static output and a Modbus RTU

static communication port.

The self-powered version can be installed on systems with voltage up to 415 V L-L, while the version with auxiliary power sup-

ply can be installed on systems with voltage up to 600 V L-L.

Description

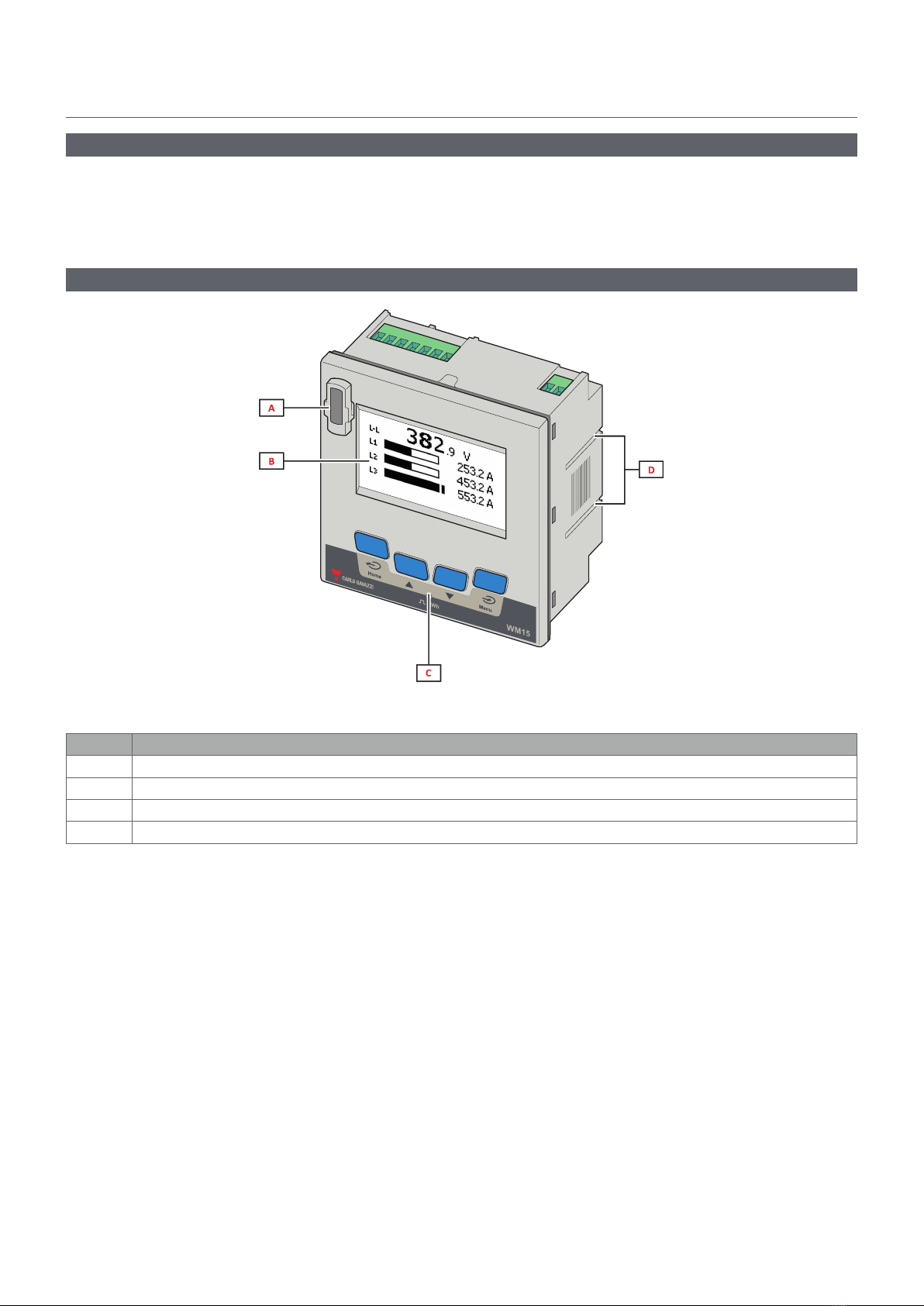

Front

Part Description

AOptical port for easy programming and diagnostics through Optoprog

BMatrix LCD display

CMechanical keys

DGrooves for side brackets

6WM15 - User manual | CARLO GAVAZZI Controls SpAWM15 - User manual | CARLO GAVAZZI Controls SpA

WM15

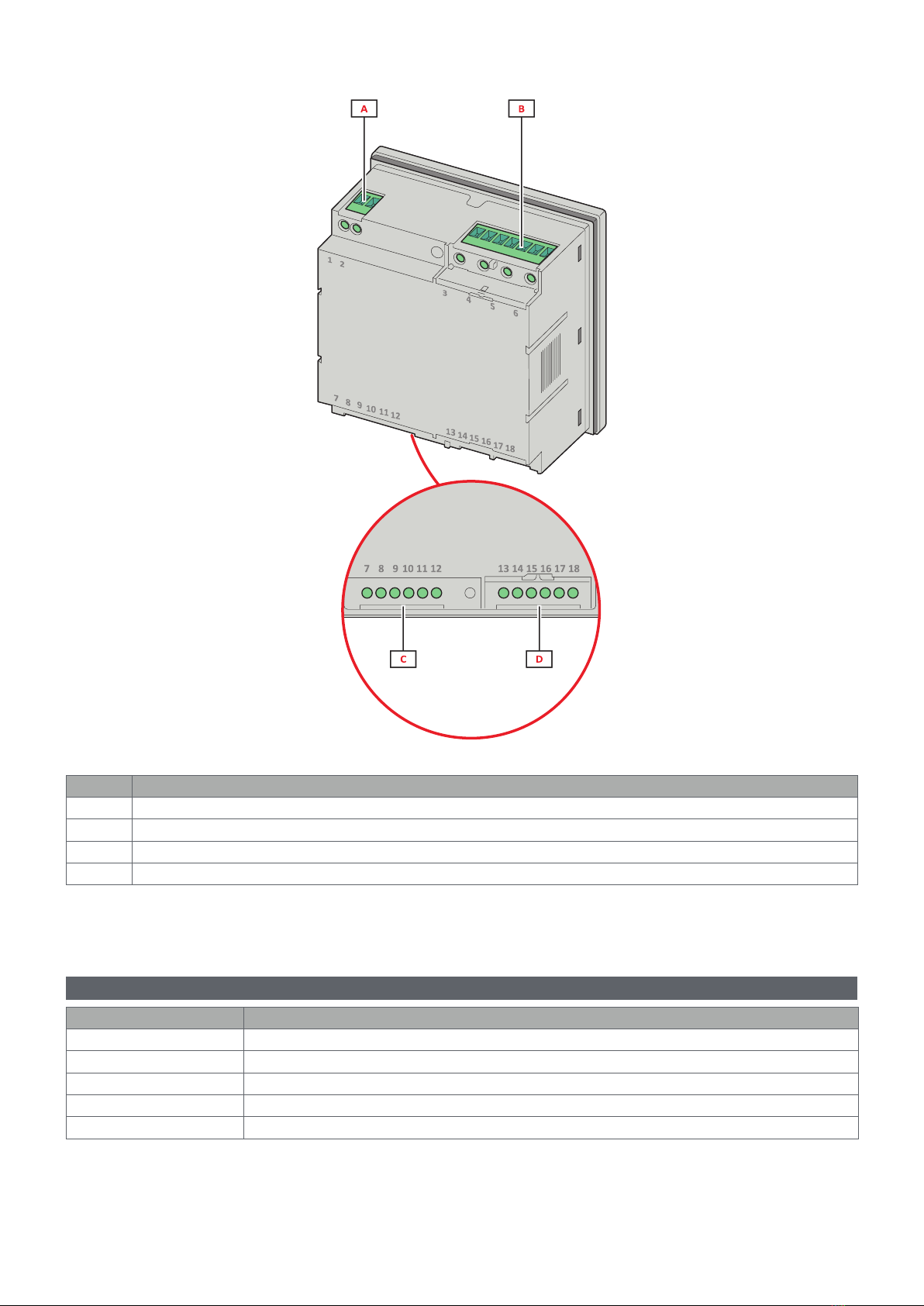

Rear

Part Description

APower supply (version with auxiliary supply)

BThree-phase voltage inputs

CRS485 + digital output

DThree-phase current inputs

Available versions

Code Description

WM1596AV53XOSX Self power supply, 415 V L-L. Digital output and RS485, not MID

WM1596AV53XOSPFB Self power supply, 415 V L-L. Digital output and RS485, MID

WM1596AV53XOXX Self power supply, 415 V L-L. Digital output, not MID

WM1596AV53XOXPFB Self power supply, 415 V L-L. Digital output, MID

WM1596AV53HOSX Auxiliary supply, 600 V L-L. Digital output and RS485, not MID

7WM15 - User manual | CARLO GAVAZZI Controls SpAWM15 - User manual | CARLO GAVAZZI Controls SpA

WM15

UCS (Universal Conguration Software)

UCS is available in desktop and mobile versions.

It may connect to WM15 via RS485 (RTU protocol, desktop version only) or through OptoProg (via Bluetooth).

UCS allows to:

• set up the WM15 unit (online or offline);

• display the system state for diagnostic and setup verification purposes

Overview of the UCS functions:

• Setting up the system with WM15 connected (online setup)

• Defining the setup with WM15 non connected, then applying it at a later time (offline setup)

• Displaying the main measurements

• Displaying the state of inputs and outputs

• Displaying the state of the alarms

• Recording the measurements of selected variables (UCS Desktop version only)

• Displaying the quick help on installing WM15 and connecting with OptoProg (UCS Mobile version only)

8WM15 - User manual | CARLO GAVAZZI Controls SpAWM15 - User manual | CARLO GAVAZZI Controls SpA

Use of WM15

Interface

Introduction

WM15 is organised into two menus:

• Main menu, divided into three sub-menus:

»SETTINGS: pages allowing to set the parameters

»INFO: pages displaying general information and the set parameters

»RESET: pages allowing to reset the partial counters and the dmd calculation, or to restore the factory settings

• Measurement pages: pages allowing to display the meters and the other electrical variables

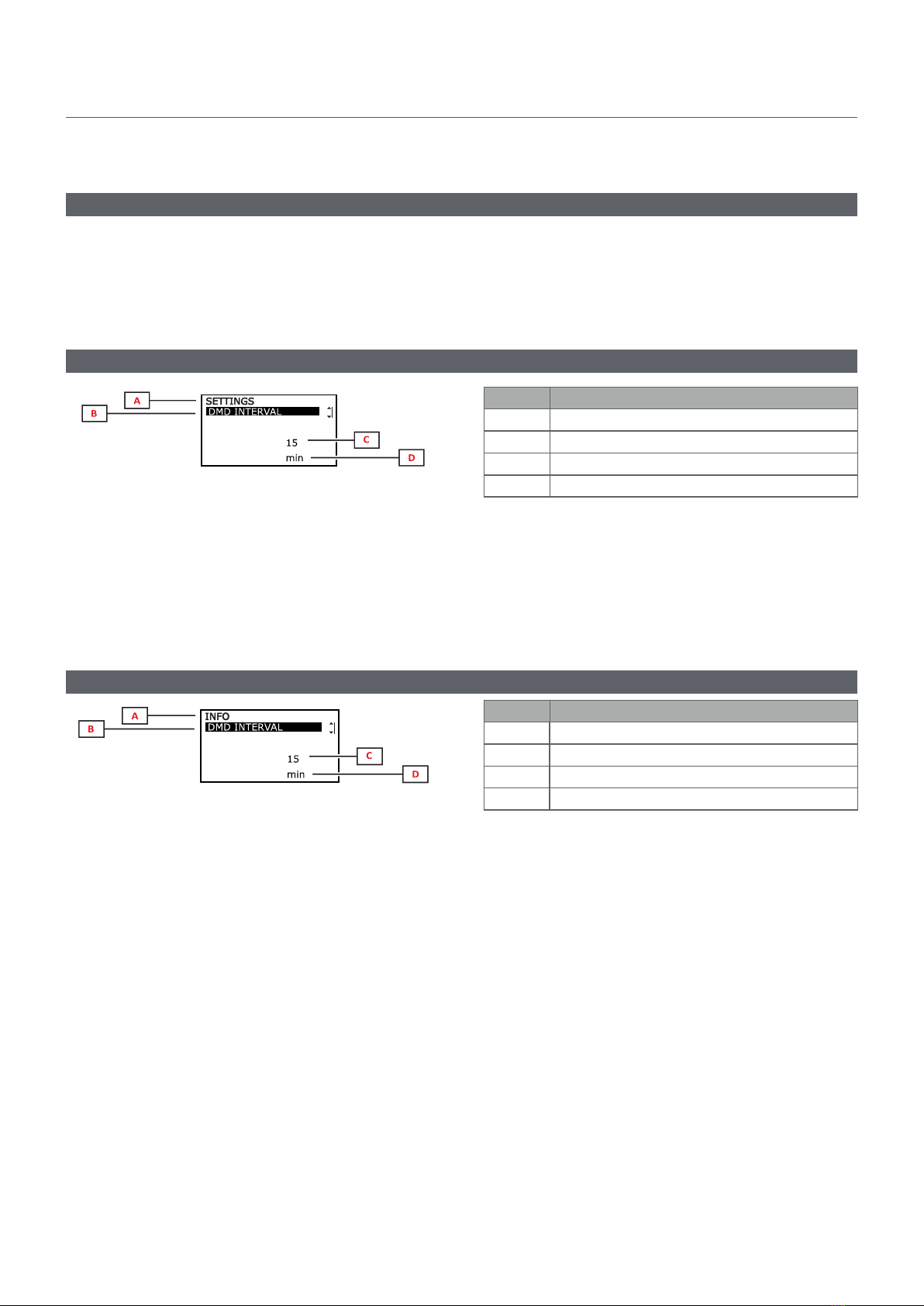

SETTINGS menu display

Part Description

AMenu title

BSub-menu title, see “SETTINGS menu” on page 16

CParameter

DCurrent parameter information

INFO menu display

Part Description

AMenu title

BSub-menu title, see “INFO menu” on page 17

CParameter

DCurrent parameter information

9WM15 - User manual | CARLO GAVAZZI Controls SpAWM15 - User manual | CARLO GAVAZZI Controls SpA

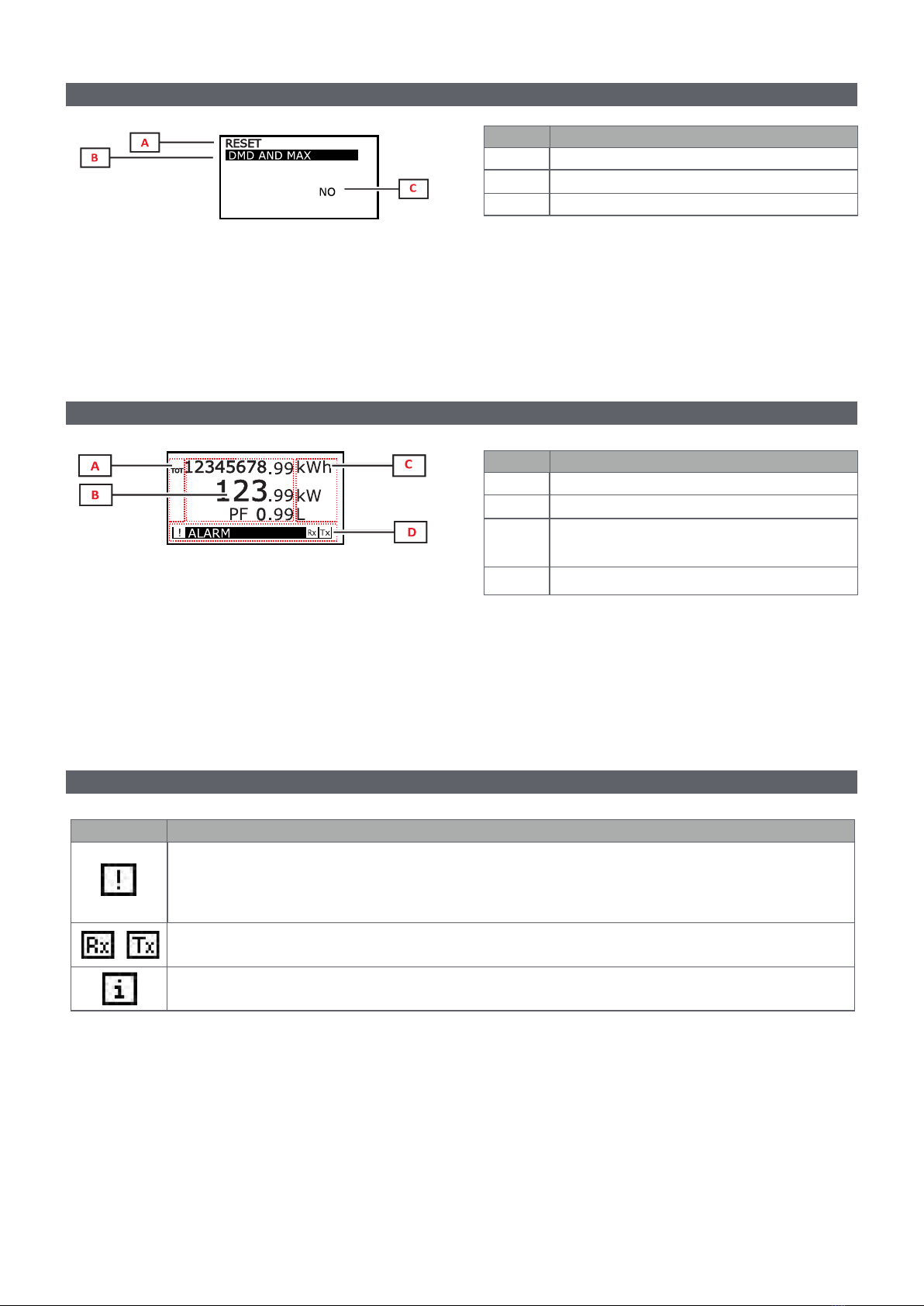

Measurement page display

RESET menu display

Part Description

AMenu title

BSub-menu title, see “RESET menu” on page 17

CParameter

Part Description

AVariable type

Bmeasured values/data

Cunit of measurement

Note: for the “power factor” the unit indicates whether the

value is inductive (L) or capacitive (C)

Dinformation and diagnostics

Information and warnings

Symbol Description

Alarm icon:

• blinking icon + ALARM ON: alarm active

• steadily ON icon + WIRING: wiring error

Serial or optical communication state (reception / transmission)

Virtual wiring correction: the terminal-phase association was modified by UCS

10 WM15 - User manual | CARLO GAVAZZI Controls SpAWM15 - User manual | CARLO GAVAZZI Controls SpA

Commissioning

Preliminary settings

At switch-on, the device displays three preliminary setting menus:

• MID SETTINGS, for MID models only

• QUICK SETUP

• CHECK WIRING

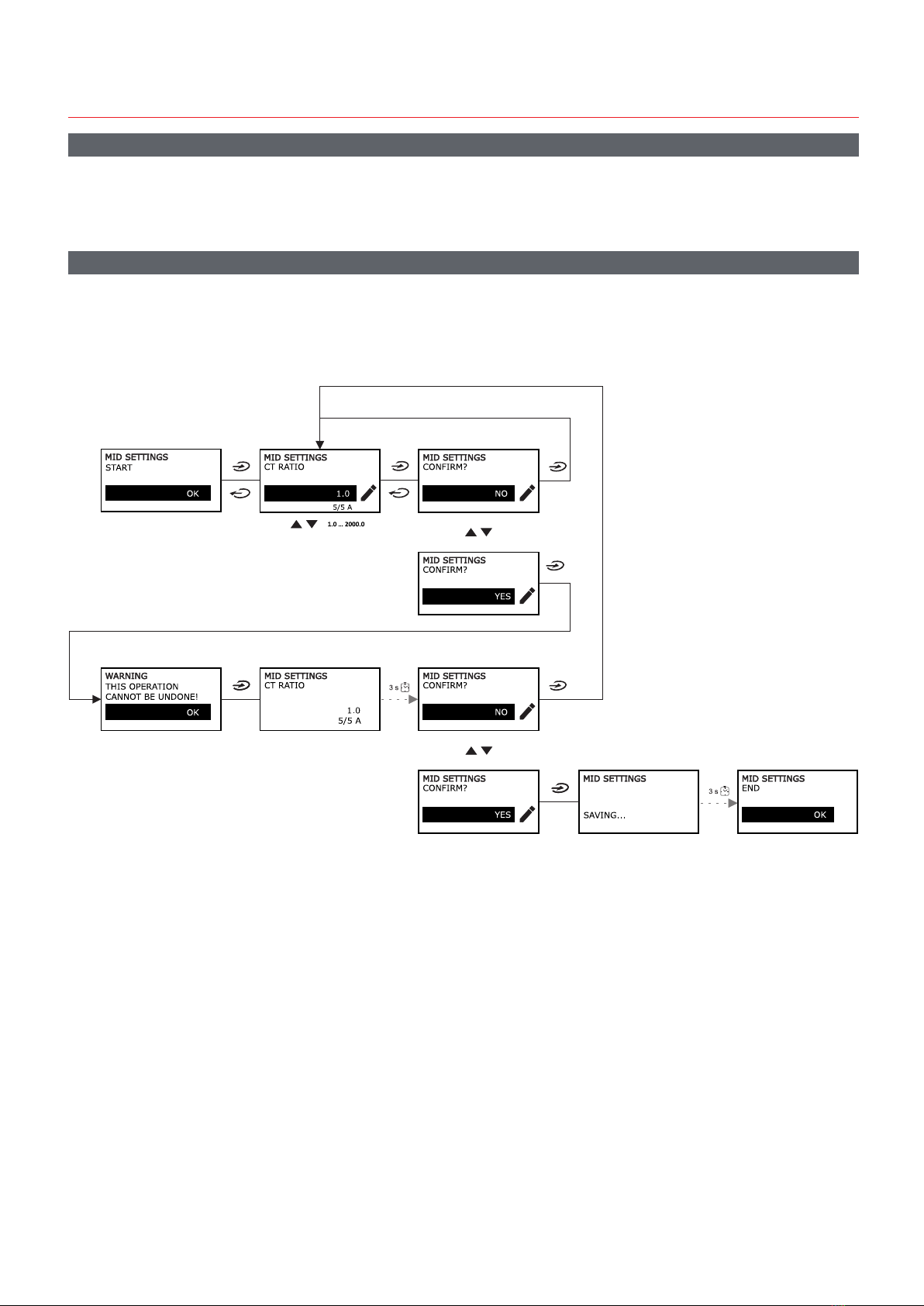

MID SETTINGS menu

This procedure, only available in MID models, allows to program the current transformer ratio (CT ratio).
