90°
NO.2 NO.1 NO.3
NO.4
+
-
SW5
65
°
★NO.3 Delayed action
(Optional)
NO.4 Back Check
NO.1 Closing
NO.2 Latching
IMPORTANT INSTALLATION NOTES:
AFTER INSTALLATION, PLEASE CHECK AND TEST:
1.Open the door leaf to its maximum opening angle and release. The door leaf should close fully into the door frame and overcome the latch.
2.Open the door leaf and rest the latch bolt on the striker plate. Release the door leaf. The door closer should have sufficient power to latch the door leaf closed.
3.Back-check provides a cushioning effect when the door is forcibly thrown open but does not serve as substitiure for a door stop.
WARNING:
1.Due to door closer power sizes 1&2 are NOT considered suitable for use fire/smoke door assemblies. Therefore , the minimum spring strength allowed for fire/smoke door assemblies is spring strength 3.
2.The mechanical hold open devices must NOT be installed on fire/smoke door.
3.Door closer should NOT be opened beyond the max. opening angle of the power size you selected.
4.This door closer contains a prowerful spring, which is inserted into the body under pressure. Under circumstances should not attempt to dismantle the door closer.
MAINTENANCE:
1.Check the door closer every three months to ensure all fixings are secure and adjust, if necessary, adjust the closing and latching speed
and make the door operating both functionally and smoothly.
2.Apply light oil to arm knuckle joint and door hinges.

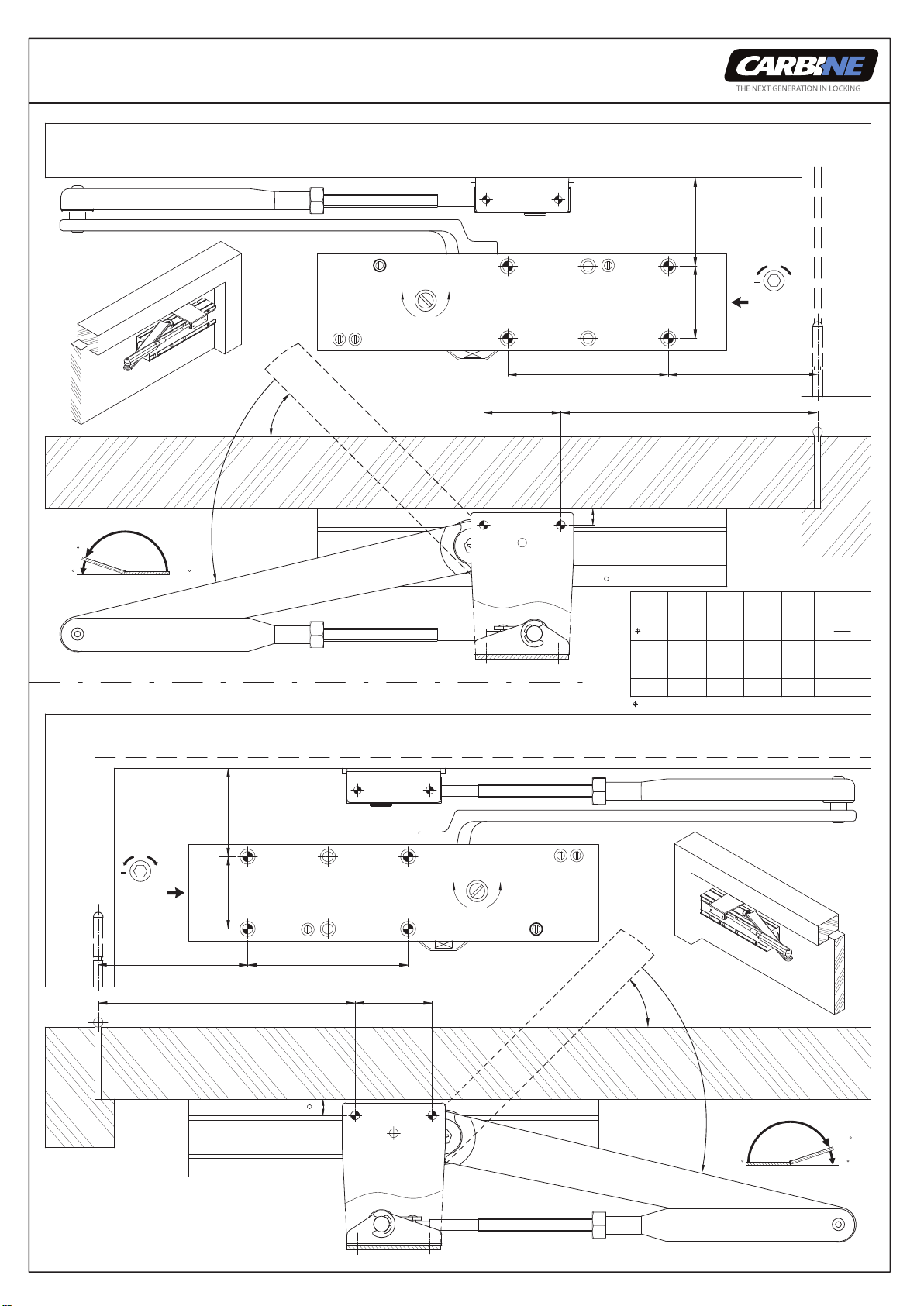

INSTALLATION INSTRUCTION:
1 2 3 4 5 6
Closing force
CDC-5 Power Adjustable size 2~6
Force
Max. door
width
Max. door
weight
Max.
opening
angle
Number
of turns Direction
FACTORY PRE-SET
0
0~+3
+3~+6
+6~+9
+9~+12
Clockwise
Clockwise
Clockwise
180°
180°
180°
180°
180°
850mm
950mm
1100mm
1250mm
1400mm
40kg
60kg
80kg
100kg
120kg
SIZE2
SIZE3
SIZE4
SIZE5
SIZE6
14 John Hines Ave
Minchinbury NSW 2770
www.carbine.com.au
Baber Lock & Key New Zealand
16 Parkhead Pl Albany 0632 NZ
www.baberlocknkey.co.nz
Rack & Pinion Door Closer
Door closer SIZE 2-6 120kg Del action backcheck
Instructions
CDC-5
Carbine Radius
11006 ZINS-FA1321-8Z
