Car-Interface TV-Free CI-TF-C20 Manuel utilisateur

Version 20.09.2017 CI-TF-C20

TV-Free

Video-in-motion Interface

CI-TF-C20

Compatible with Mercedes Benz

Comand 2.0

Comand APS CD

Comand APS 220

navigation systems

Legal Information

By law, watching moving pictures while driving is prohibited, the driver must not be

distracted. We do not accept any liability for material damage or personal injury resulting,

directly or indirectly, from installation or operation of this product. This product should only

be used while standing or to display fixed menus or rear-view-camera video when the

vehicle is moving, for example the MP3 menu for DVD upgrades.

Changes/updates of the vehicle’s software can cause malfunctions of the interface. We

offer free software-updates for our interfaces for one year after purchase. To receive a free

update, the interface must be sent in at own cost. Labor cost for and other expenses

involved with the software-updates will not be refunded.

Version 20.09.2017 CI-TF-C20

Page1

Contents

1. Prior to installation

1.1. Delivery contents

1.2. Check compatibility of vehicle and accessories

1.3. Setting the Dip-switches of the CAN-Box TV-500

1.4. Pin-assignments

2. Installation

3. Activation of the video-in-motion function

4. Specifications

1. Prior to installation

Read the manual prior to installation. Technical knowledge is necessary for installation. The

place of installation must be free of moisture and away from heat sources.

1.1. Delivery contents

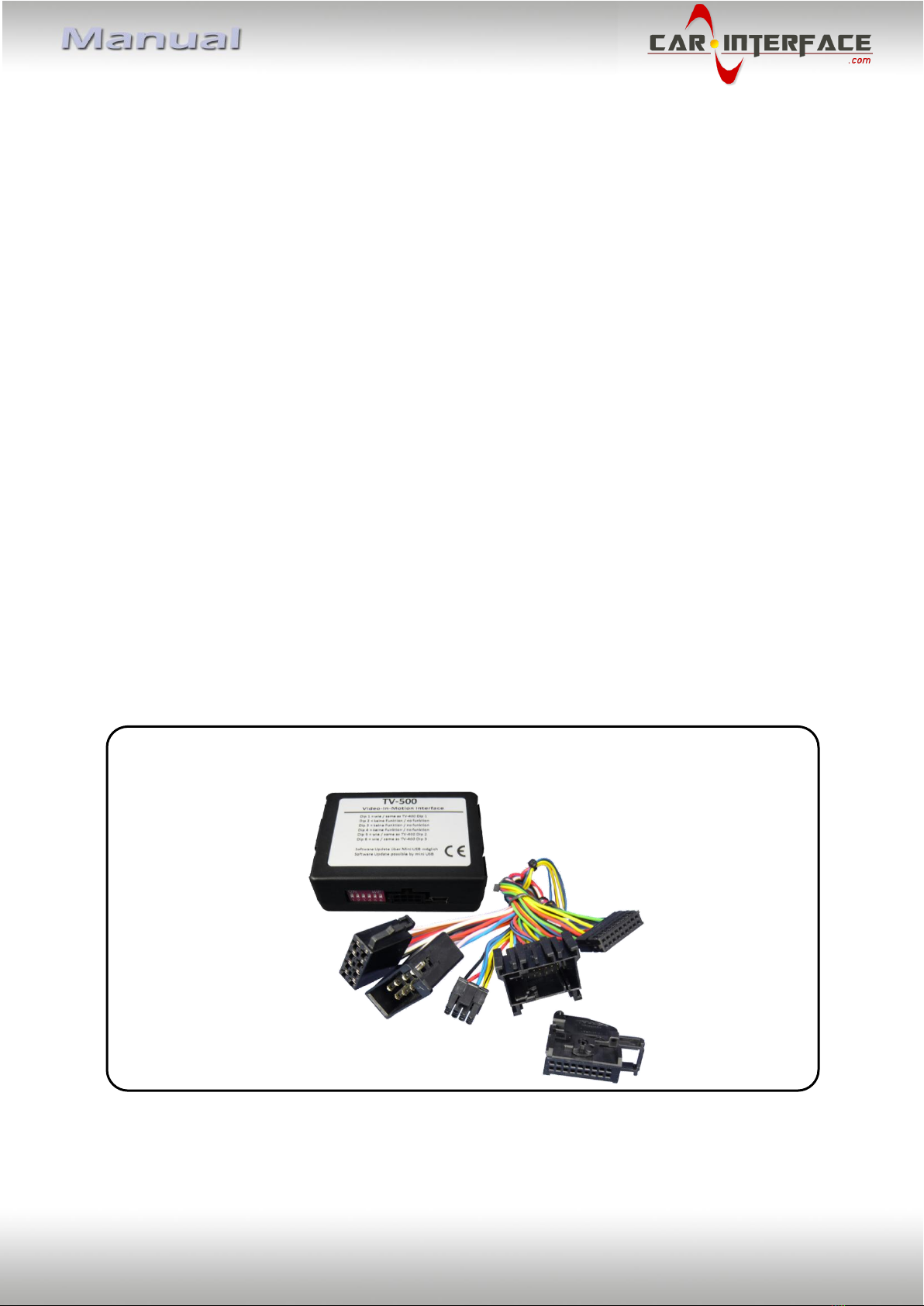

CAN-box TV-500

HW_____ SW_____

Harness

TV-ME20

Take down the SW-version and HW-version of the interface boxes, and store this

manual for support purposes.

Version 20.09.2017 CI-TF-C20

Page2

1.2. Check compatibility of vehicle and accessories

1.3. Setting the Dip-switches of the Can-Box TV-500

Vehicle/ navigation

Dip 1

Dip 2

Dip 3

Dip 4

Dip 5

Dip 6

Video-in-motion permanent

OFF

Video-in-motion selective*

OFF

* With dip1 to OFF the included green cable is used to activate the video-in-motion function.

Note: Dip switch functions of the TV-500

Dip 1 –activation TV-free

Dip 2 –no function

Dip 3 –no function

Dip 4 –no function

Dip 5 –CAN-bus termination resistor on the vehicle side

Dip 6 –CAN-bus termination resistor on the head-unit side

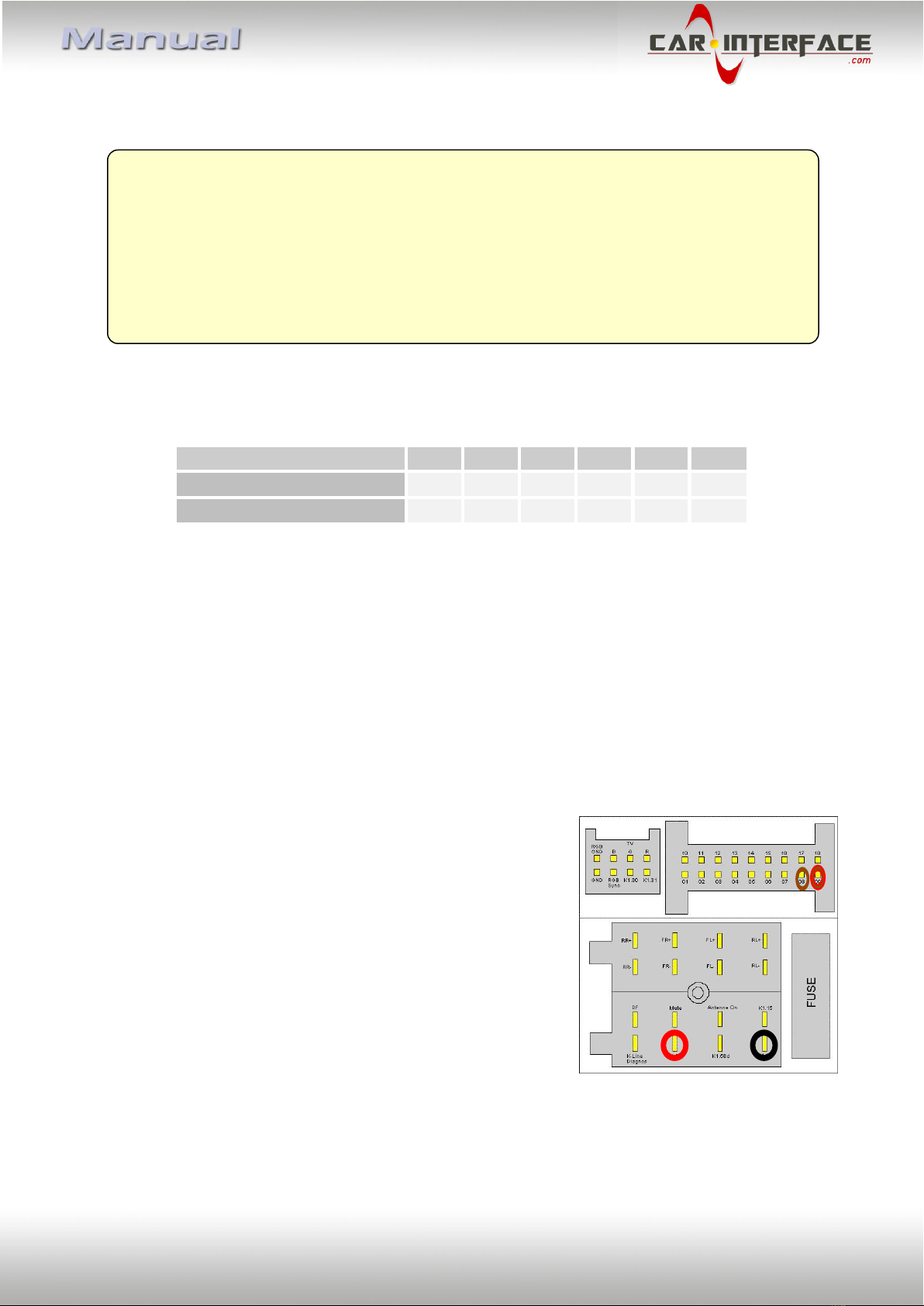

1.4. Pin-assignments

Pin-assignment vehicle connector

●Red +12V battery power A Pin 4

● Black Ground A Pin 8

●●Brown/red CAN High C2 Pin 9

●Brown CAN Low C2 Pin 8

Requirements

Vehicle Mercedes Benz C-Class (W203) til 04/2004, CL-Class (C215) from

09/2002 til 09/2003, CLK-Class (C208 W208) all years, CLK-Class

(C209 W209) til 05/2004 , E-Class (W210) all years , G-Modell

(W463) til 03/2007, ML-Class (W163) all jears, S-Class (W220) from

09/2002 til 09/2003, SL-Class (R230) til 06/2004

Navigation Comand 2.0, Comand APS CD

Version 20.09.2017 CI-TF-C20

Page3

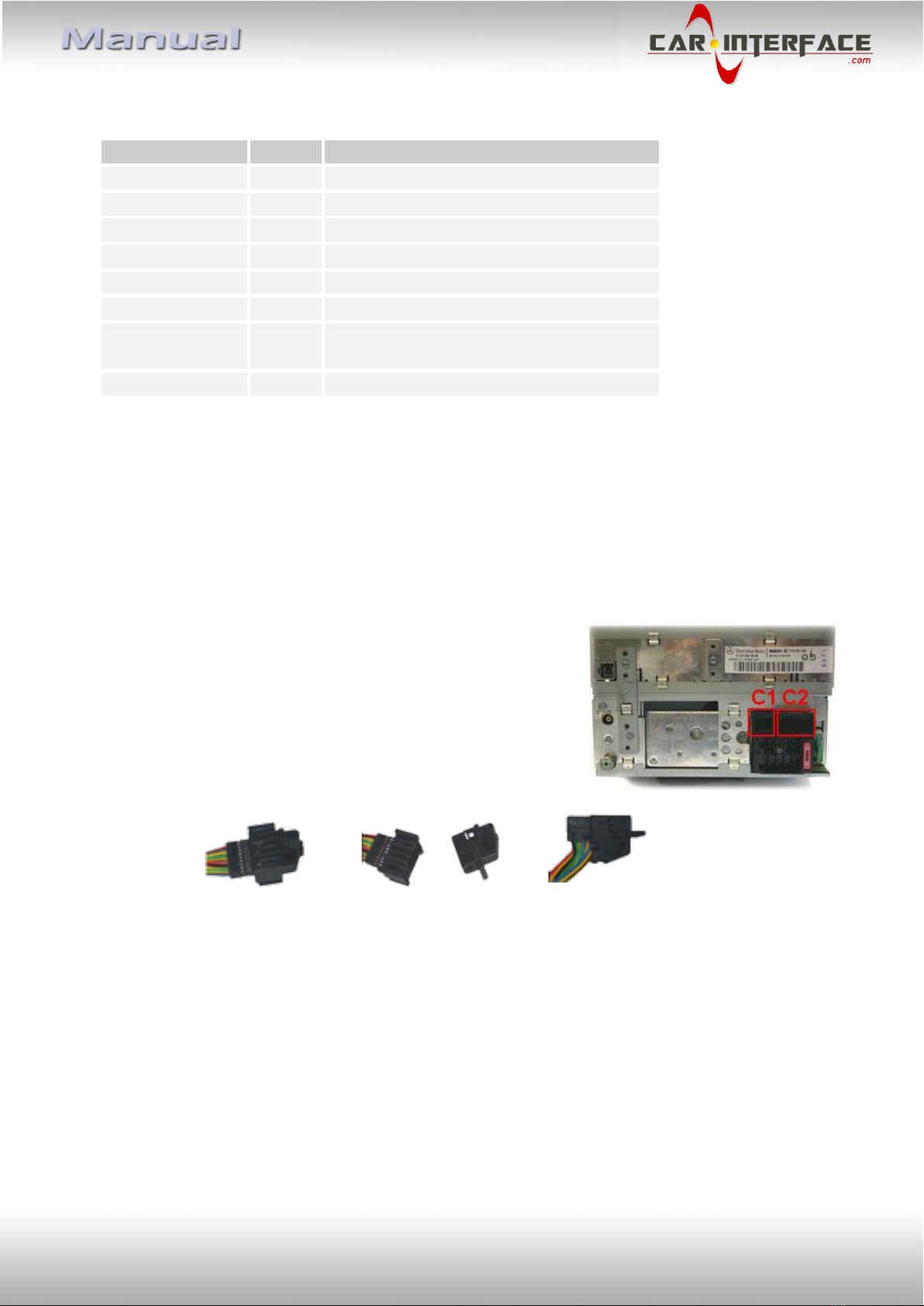

Pin-assignment of the CAN-Box TV-500 (Molex 8pin)

Cable colour

Pin-No.

Assignment

●Yellow

Pin 4

CAN-HIGH –connection to the head-unit

●Blue

Pin 3

CAN-LOW –connection to the head-unit

●●Yellow/Black

Pin 8

CAN-HIGH –connection to the vehicle

●●Blue/Black

Pin 7

CAN-LOW –connection to the vehicle

●Red

Pin 1

+12V permanent

●Black

Pin 5

Ground

●Green

Pin 6

Activation of the video-in-motion function

(+12V = TV-free activated)

●White

Pin 2

Trigger output (+12V DC 500mA)

2. Installation

Switch off ignition and disconnect the vehicle’s battery! If according to factory rules

disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle is

sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a

resistor lead.

-Remove the Comand from the center console

-Unplug the female 18pin AMP connector of the

vehicle harness from the comand

-Change the sleeves of the female 18pin AMP

connector from the vehicle harness (coloured) and

the harness TV-ME20 (black)

-Connect TV-ME20 to 18pin AMP and connect 8pin Power ISO connection between

Comand and vehicle harness

Version 20.09.2017 CI-TF-C20

Page4

3. Activation of the video-in-motion function

The video-in-motion can be activated and deactivated by Dip 1 or alternatively by the

included loose green cable in connection with a switch (not included in delivery).

Video-in-motion permanent

With dip1 to ON the video-in-motion function is activated permanently without disturbing

the navigation performance.

Video-in-motion selective

With dip1 to OFF the included green cable is used to activate the video-in-motion function.

Connect a switch to the green cable and connect the green cable to +12V ACC.

●+12V = TV-Free is activated

●0V = TV-Free is not activated

Note: The loose white cable is not required and must be isolated.

4. Specifications

Operation voltage 10.5 –14.8V

Stand-by power drain <2mA

Operation power drain ~60mA

Power consumption ~0,08W

Temperature range -30°C to +80°C

Weight 44g

Measurements (box only) W x H x D 76 x 27 x 54 mm

Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered

trademarks ® of their corresponding legal owners.
