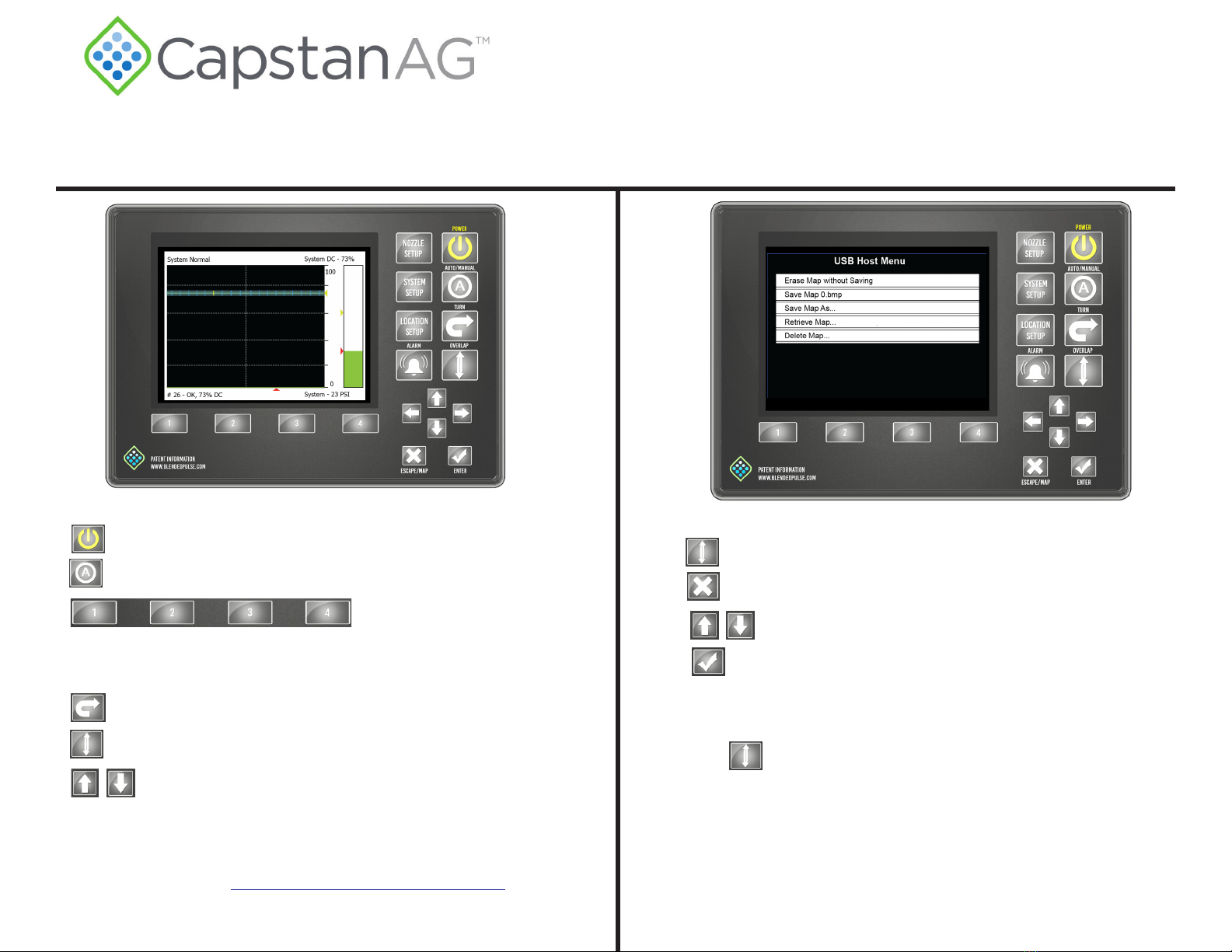

How to Start a Field
1. Press the POWER button.
2. Press the AUTO/MANUAL button.
3. Make sure that the
correct Preset button is
selected to match your nozzle size.
NOTE: An LED will lluminate in the bottom right corner of
each button when that feature is selected/enabled.
4. Once in the field, press the TURN button.
5. Press the OVERLAP button.
6. Make sure that the correct pressure is set. Adjust as
necessary with the UP or DOWN arrow buttons.
7. Start to spray.
Videos at: www.youtube.com\user\CapstanAG/playlists
How to Finish a Field
1. When you are done spraying a field, press the OVERLAP button.
2. To open the map menu, press the ESCAPE/MAP button.
3. Use the UP or DOWN arrow buttons to select the
desired menu option.
4. Press ENTER button.
NOTE: It is recommended to select Erase Map Without Saving...
ifyouhavesprayedtheentireeld.
5. If you are going to spray another field, go to that field.
a. Once in that field, press the OVERLAP button.
b. Start to spray.
6. If you are done spraying, turn o the CapView display and shut
down the sprayer normally.
7. If you save a map and return to finish the field, remember to
select Retrieve Map... to load the map again.
PinPoint™ II
Quick Reference Information
How to Test a Coil
1. Turn your multimeter to Ohms Ω.
2. Unplug the coil from the VCM and put
the multimeter leads into each side of the
2-pin plug.
a. A good coil should show a reading
between 21 & 23.5 Ohms Ω.
3. If it tests outside of this range the coil
needs to be replaced.
4. If the valve is not working, but the coil tests good, you can
take the valve assembly apart and clean it.
Callout Description Callout Description
1Coil 5Valve Body
2Plunger 6 O-ring
3 O-ring 7 O-ring
4Flynut All Parts Available Separately
Operator Manual Page References
Pg 58 and 61—Do the Key Fob Boom Shuto Test (Dry/Wet)
Pg 92—Reset the Counters
Pg 105—Winterize for Storage
Pg 108—Clean the Nozzle Valve(s)
Pg 113-130—Troubleshooting
* These references are for the Manual P/N 122200-210 Rev. D b
How to Set the Presets
1. Press the NOZZLE SETUP button.
2. Use the UP or DOWN arrow buttons to go to the Nozzle Size.
3. Press the ENTER button.
4. Use the UP or DOWN arrow buttons to change the value to
match the desired tip size.
5. Press the ENTER button.
a. A message screen will show... You are about to change the
default tip size for all nozzles. Are you sure you wish to do this?
6. Use the LEFT or RIGHT arrow buttons to go to Save.
7. Press the ENTER button.
8. Press the ESCAPE/MAP button to show the Save menu.
9.
Use the LEFT or RIGHT arrow buttons to select the
preset you would like to save this profile to.
10. Press that Preset button
.
NOTE: When you change the nozzles, you must select the
corresponding preset. Press and hold the Preset button until the
light turns on.
©2020 Capstan Ag Systems, Inc. 122200-216 Rev. C
