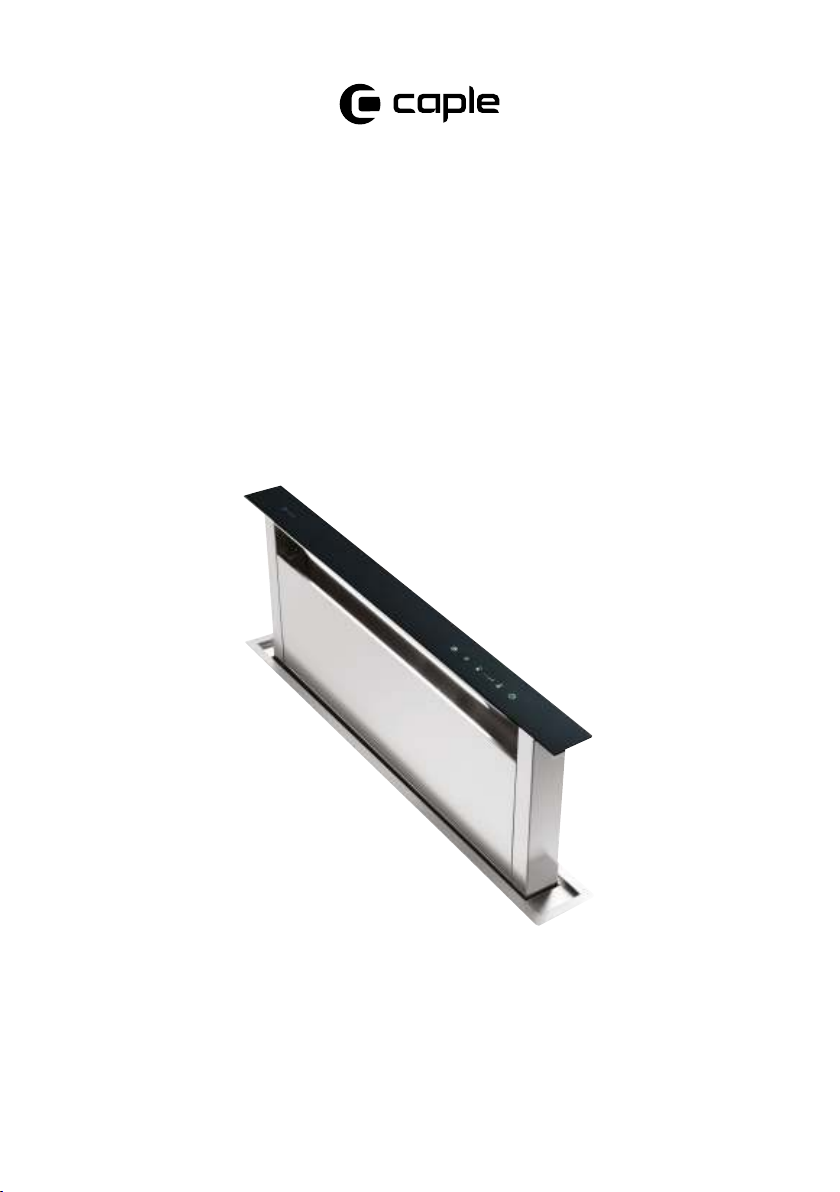

Caple DD912BK Manuel utilisateur

Downdraft Hood

Instruction Manual

DD912BK

Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk

Instruction manual DD912BK

2Please keep this instruction manual for future reference

CONTENTS

Introduction 3

Safety Instructions 4

Dimensions 8

Installing the Extractor 9

Grease Filter Removal, Installing the Activated Charcoal Filter 13

Electrical Connection 14

Operating the Downdraft Extractor 16

Cleaning the Extractor 19

Troubleshooting 21

Aftersales Service 22

Caple Contact Details 24

Instruction manual DD912BK 3

Please keep this instruction manual for future reference

INTRODUCTION

This product is designed to work in both ducted and

recirculated mode, which ever is preferred for your

installation.

WARNING

Keep these instructions for use with the appliance. If the

appliance should be sold or passed on to others, make

sure that the instructions are passed on with it. We thank

you for taking note of these suggestions before installing

and using the appliance. They have been written for your

personal safety and the safety of others.

Instruction manual DD912BK

4Please keep this instruction manual for future reference

SAFTEY INSTRUCTIONS

These hoods have been designed for personal use in the

home. The appliance must be used by adults. Make sure

that the appliance is out of reach of children and that they

do not use it to play with. Make sure that children do not

operate the controls.

-When the appliance is delivered, check the overall

appearance of the packaging.

-Any remarks should be written on the delivery note, of

which you keep a copy. Your appliance is designed for

normal domestic use. It is not designed for commercial or

industrial use, or for purposes other than those for which

it was designed.

-Any consequences of or damage from incorrect

installation or incorrect use of the appliance will not be

covered by the manufacturer’s guarantee.

-Do not ever change or try to change the characteristics

of this appliance. This would be a danger. Repairs must

be performed only by a Caple approved engineer.

-Always disconnect the hood before carrying out cleaning

or maintenance operations.

-Adequately ventilate the room when a cooker hood

and other appliances, powered by energy other than

electricity, are used simultaneously, so that the hood

does not suck any-combustion fumes.

Instruction manual DD912BK 5

Please keep this instruction manual for future reference

-Do not cook food over open ﬂames (ﬂambé) or operate

gas hobs without pots or pans on them while using the

hood (the ﬂames may get sucked into the hood causing

damage to the appliance).

-Frying under the appliance must be done under constant

supervision as hot oils and fats may ignite.

-Respect the guidelines for cleaning and replacement of

grease ﬁlters. Accumulated deposits of grease are a

ﬁre hazard.

-This appliance must not be with over cook tops powered

by wood or coal or in any case, with cook tops with

power levels that could damage the appliance.

-Never use steam or high pressure devices for cleaning

your hood (regulations regarding electrical safety).

-Never use the cooker hood without the grease

ﬁlters ﬁtted.

-The minimum distance between the Down-draft (closed)

and the surface above it must be at least 400 mm.

-When handling the downdraft, never put your hands

in the ﬁeld of action of the extractable unit. Keep your

hands clear of moving parts.

-There must be a minimum space of 50mm between the

edge of a gas hob and the downdraft frame.

Instruction manual DD912BK

6Please keep this instruction manual for future reference

-This appliance is intended to be used in household and

similar applications such as:

› Staff kitchen areas in shops, ofﬁces and other

working environments.

› Farm Houses.

› By clients in hotels, motels and other residential

type environments.

› Bed and breakfast type environments.

We are constantly seeking to improve our products, we

reserve the right to modify their technical, functional, or

aesthetic characteristics deriving from their upgrading. In

the case of the version with external motor, for normal

downdraft operation, it is necessary to use an external

motor made by Caple.

The air collected must not be conveyed into a ﬂue used

for smoke or fumes from appliances powered by anything

other than electricity (central heating systems, etc.). As far

as discharging exhaust air is concerned, please follow the

guidelines given by competent authorities.

Instruction manual DD912BK 7

Please keep this instruction manual for future reference

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where

facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is

marked according to the European directive on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative

consequences for the environment and human health, which could otherwise be caused by

inappropriate waste handling of this product. The symbol on the product indicates that this

product may not be treated as household waste. Instead it shall be handed over to the applicable

collection point for the recycling of electrical and electronic equipment. Disposal must be carried

out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please

contact your local council, your household waste disposal service or the retailer where you

purchased the product.

WARRANTY

Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you

must provide the following information to your retailer in order to receive a replacement: date of

purchase, model and serial number. Registration can also be completed online by visiting

www.caple.co.uk.

Ensure you keep your warranty card safe, you may need to show it to Caple Service together with

proof of purchase. If you fail to show your warranty card you will incur all repair charges.

Spare parts are only available from Caple Service and spare parts authorised centres.

CE DECLARATIONS OF CONFORMITY

This appliance has been manufactured to the strictest standards and complies with all applicable

legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).

UKCA DECLARATIONS OF CONFORMITY

This appliance has been manufactured to the strictest standards and complies with all

applicable legislation.

TECHNICAL FICHE

This appliance conforms to all current and applicable energy regulations. To view the Technical

Fiche that supports the energy labelling data, please visit the product page on our website

www.caple.co.uk.

Instruction manual DD912BK

8Please keep this instruction manual for future reference

DIMENSIONS

NOTE:

The Downdraft worktop cutout can be connected to the hob cutout, but only for electric hobs.

For gas hobs, a minimum 50mm gap must be left between the edge of the gas hob and the

downdraft frame.

The minimum distance between the Down-draft (closed) and the surface above it must be at

least 400mm. It is the manufacturer of the hob who determines the clearance required and the

clearance quoted by the hob manufacturer must be followed.

In the absence of any instructions supplied with a gas hob, there must be a minimum space of

50mm between the edge of a gas hob and the downdraft frame.

Dimensions

INC

Note: The Downdraft worktop cutout can be connected to the hob cutout,

but only for electric hobs.

For gas hobs, a minimum 50mm gap must be left beetween the edge of

the gas hob and the downdraft frame

Instruction manual DD912BK 9

Please keep this instruction manual for future reference

INSTALLING THE EXTRACTOR

Before carrying out the appliance installation, please check that all components are not damaged,

in such a case contact your retailer and do not carry out any installation operation.

› Before the installation of the Downdraft, please remove the safety piece you can see in the

picture (Fig. 1). Furthermore, please read carefully all of the following

installation instructions.

› Use an air exhausting pipe whose maximum length

does not exceed 5 metres.

› Limit the number of elbows in the piping, since each

elbow reduces the air capacity of 1 linear metre. (eg.

if you use no. 2 x 90° elbows, the length of piping

should not exceed 3 metres).

› Avoid abrupt direction changes.

› Use a 150mm constant diametre rigid ducting pipe for

the whole length.

› Use piping approved by standards in force.

The manufacturer shall not be deemed responsible for air capacity or noise problems caused by

failure to comply with the above instructions and no warranty on the product shall be provided.

› Before making the hole, check that there are no

structural or other parts inside the cabinet, where

the appliance is to be placed, which could hinder a

proper installation. Check that the dimensions of the

Downdraft and the ones of the cook top are compatible

with the cabinet so that the installation can be carried

out properly.

› Make a rectangular opening, 842 x 100mm in size, in

the back of the cook top for the 90cm model, 1142 x

100mm for the 1200cm model and 542 x 100mm for

the 60cm model.

› Put the Downdraft in the opening, inserting it from above as shown in (Fig. 2).

Instruction manual DD912BK

10 Please keep this instruction manual for future reference

› Fix the downdraft inside the cabinet, using the

special fixing brackets supplied with the product

(Fig. 3). Insert the brackets in the lower side

of the downdraft (Fig. 3), in such a way that

there is a 2mm distance between the lower side

of bracket and the bottom of the cabinet (Fig. 3).

This distance will allow the traction to be positioned

downwards of the product, at the moment of fixing,

in order to have the stainless steel trim perfectly

adhering with the work surface. Before inserting

the screws, please make sure that the appliance is

perfectly perpendicular with the work surface.

› Once the installation is complete and after connecting the appliance to the mains power, lift

up the downdraft and remove the door block (Fig. 4); then open the door (Fig. 5) and fit the

filters in place (Fig. 6).

In the version of the Downdraft equipped with internal motor, install the power unit

orienting the air outlet to the desired position, either downwards or upwards (Fig. 7).

The motor can be installed either on the front or rear side of the downdraft. After installing

the motor, connect the air ducts.

2 mm
