High-performance Monitoring Software

User’s Manual

Requests to Customers

(1) The content of this manual may not be reproduced in its entirety or in part without prior

permission.

(2) The content of this manual is subject to change without notice.

(3) All possible measures have been taken to ensure that the content of this manual is accurate. If

you happen to notice errors, omissions or other faults, please contact Canon.

(4) Irrespective of items above, Canon cannot bear responsibility for any effects that results from

operation.

Icons Used in This Manual

Indicates notes of caution or limitations that must be kept in mind concerning operation. Be sure to

read these notes.

Indicates supplemental explanations or references that are useful for operation.

Indicates functions and specifications that are only available to VB150 users.

Please note that copyright laws prohibit the customer from using recorded videos and still pictures for any purpose

other than personal enjoyment without permission from the copyright holder.

Trademarks

● Canon and Canon logo are registered trademarks of Canon Inc.

● Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the United States and

other countries.

● Windows is legally recognized as Microsoft Windows Operating System.

● All other company or product names used in this manual are trademarks or registered trademarks of their respective

holders.

Note

Tip

Introduction

Thank you for purchasing WebView Livescope MVVer. 2.1. Please read this manual

prior to use to ensure that you will be able to use this software effectively.

When you finish reading this manual, please store it in a safe place.

The latest product information is available at the following Web site.

http://www.canon.com/webview/

VB150

Introduction

Contents

Introduction

Introduction............................................................................ 2

Overview................................................................................. 5

System Configuration ........................................................... 6

Tasks To Perform Prior To Monitoring................................. 8

Operating Environment......................................................... 10

Chapter 1 Installing

Prior to Installation................................................................ 12

Check the System Configuration .................................. 12

Preparing the Computers .............................................. 14

Installing the Camera Servers....................................... 14

Installation Procedures ......................................................... 15

Starting Up the Installer................................................. 15

Installing MV Manager .................................................. 16

Installing MV Station ..................................................... 17

Chapter 2 Registering Camera Servers

Registering Camera Servers ................................................ 20

Camera Server Registration Wizards .................................. 22

Registering a Camera Server........................................ 22

Step 1: Start up the Register Camera Server Wizard ............................ 22

Step 2: Enter a network address for the camera server ........................ 22

Step 3: Enter a name and comment for the camera server................... 23

Step 4: Complete the settings................................................................. 23

Searching/Registering Camera Servers ....................... 25

Step 1: Start up the Serch/Register Camera Server Wizard ................. 25

Step 2: Search for and register the camera server ................................ 25

Step 3: Complete the settings................................................................. 26

Chapter 3 Creating Monitoring Screens

Creating Monitoring Screens ............................................... 28

Create Monitoring Screen Wizard ....................................... 30

Step 1: Start up the Create Monitoring Screen Wizard.......................... 30

Step 2: Select a monitoring screen......................................................... 30

Step 3: Select cameras ........................................................................... 31

Step 4: Enter monitoring screen name and comments.......................... 31

Step 5: Complete the settings................................................................. 32

Editing Maps .......................................................................... 40

Starting up Map Editor .................................................. 40

Loading and Changing Background Bitmaps................ 41

Allocating Icons ............................................................. 42

Saving the Edited Screen.............................................. 44

Chapter 4 Exporting MV Data

Exporting ................................................................................ 46

Operation Restriction............................................................ 48

Chapter 5 Monitoring

Starting up MV Station.......................................................... 50

Operating the Monitoring Screen ........................................ 54

Opening the Monitoring Screen .................................... 54

Allocating a Camera...................................................... 55

Deleting an Image ......................................................... 55

Reloading MV Data Again ............................................. 56

Switching Camera Source Windows............................. 56

Displaying and Switching the Camera Control Panel ... 57

Operating a Camera...................................................... 58

Full Screen Display ....................................................... 61

Video Pause/Resume.................................................... 61

Taking a Snapshot......................................................... 61

To Reconnect ................................................................ 62

Viewing Network Information ........................................ 62

Chapter 6 Managing the Camera Servers

Setting and Managing Camera Servers .............................. 64

Upgrading the Firmware ....................................................... 65

Chapter 7 Advanced Operations

Automatic Operation Functions of MV Station .................. 68

Auto Preset Tour............................................................ 68

Auto Switch ................................................................... 70

Video Relay ................................................................... 73

Examples of Using Automatic Operation ...................... 75

External Devices Input/Output............................................. 78

Notification of External Device Input ............................. 78

External Device Output Control .................................... 79

Motion Detection ................................................................... 80

Notification of Motion Detection .................................... 80

Recording and Viewing Pictures.......................................... 84

Picture Recording Settings............................................ 84

Using VBImageBrowser ................................................ 85

Downloading All Recorded Pictures ....................................................... 88

Comparing Images .................................................................................. 92

Sorting Images in Order of Similarity...................................................... 93

External Device Input/Motion Detection

and Picture Recording.................................................. 98

Other Advanced Settings...................................................... 99

MV Manager and its Other Functions and Settings ...... 99

MV Station and its Other Functions and Settings ......... 107

Appendix

Troubleshooting ..................................................................... 112

Error Messages...................................................................... 113

MV Manager Error Messages ....................................... 113

MV Station Error Messages .......................................... 116

Introduction

Overview

WebView Livescope MV Ver. 2.1 is software that allows you to use an Intranet or the Internet to

monitor images distributed from the Network Camera Server VB150/VB101 or the Network Camera

VB-C10/VB-C10R (hereafter referred to in this manual as "camera server").

This software consists of two packages: WebView Livescope MV Manager, that lets you create

monitoring screens or have centralized control of several camera servers; and WebView Livescope

MV Station, that lets you monitor images from cameras in multiple locations and easily download,

view, save, and manage pictures recorded in the camera server.

Since MV Manager uses the wizard format for registering camera servers or creating monitoring

screens, there is no need to learn complex operations. You can also have centralized control

(changing settings or confirming operating conditions) of camera servers installed in multiple

locations.

Monitoring screens can be created by selecting from a rich variety of screen styles to best suit the

size of the monitor, the number of camera servers and cameras, and monitoring objectives. It is

also possible to perform such tasks as editing maps, changing the allocation of camera servers on

the maps, or making settings for automatic operation based on schedules.

MV Station lets you access MV data created in MV Manager, freely remote control cameras, and

simultaneously view images from camera servers installed in multiple locations (up to 16 locations),

providing an efficient monitoring environment.

In MV Station, you can easily view and manage still pictures recorded by the camera server’s

picture recording function and automatically download them. Smoother and more accurate

monitoring is possible due to functions that simplify access procedures for downloading recorded

pictures or that display only the images that have been changed.

* When using VB101, upgrade the firmware to version 3.0.

Changes from MV Ver. 2.0 to Ver. 2.1 are as follows:

Added support for the Network Camera Server VB150

Canon Remote Control Pan-tilt Head NU-700 (see p. 59)

The VB150 with the Video Input set to Multiple (see p. 77)

Motion detection function (see p. 80)

Tip

Router

Distributes video and

picture data.

Records pictures

according to

schedules

Video Sender

VC-C4R

VB101

VC-C4

VB-C10

Monitoring via Internet

is also possible

Monitoring via ISDN line

MV Station

Monitoring

Router

Transmits settings

data such as camera

direction, zoom, etc.

VC-C4

VB150

NU-700

ISDN Line

INTERNET

System Configuration

MV Manager and MV Station connect to camera servers via TCP/IP. Connections can also

be made over the Internet or an Intranet.

Introduction

MV Station

Monitoring

MV Manager

Creating monitoring screens/

Remote maintenance

Application Function

WebView Livescope

MV Manager

■ Application Types and Functions

WebView Livescope

MV Station

Lets users monitor images from several cameras from monitoring screens

created in MV Manager. Downloading, viewing and saving of pictures recorded

in the camera servers are also possible.

Transmits settings data such

as camera direction, zoom, etc.

Transmits camera

server settings and changes

ETHERNET

Lets users create and edit monitoring screens (MV data) to be used in MV

Station. Remote centralized control of several camera servers is also possible.

LAN

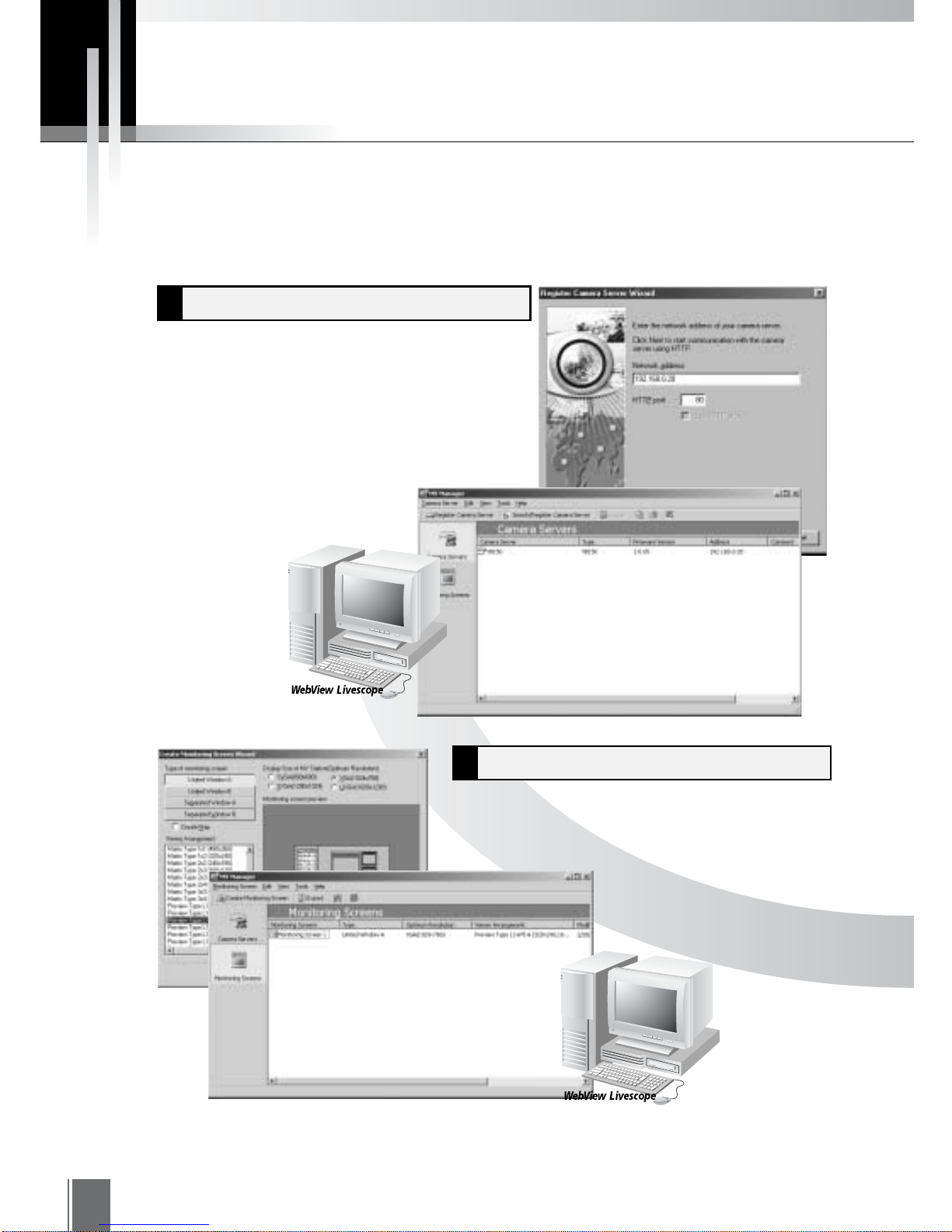

Tasks To Perform Prior To Monitoring

Registering Camera Servers1

Creating Monitoring Screens2

MV Manager

The first step is to register the camera servers.

The procedures in the wizard-style format

make the registration process very easy.

The wizard-style format is also used for creating

monitoring screens. Creating screens that suit your

application is very easy.

Before you can start monitoring, you need to perform the required settings as described in "Registering

Camera Servers" (Chapter 2), "Creating Monitoring Screens" (Chapter 3), and "Exporting MV Data"

(Chapter 4).

Introduction

Monitoring4

Exporting MV Data3

MV Station

MV Manager

MV Data

folder

You must create an MV Data folder and

perform a task known as Exporting in order to

view images on the monitoring screen.

Monitoring is possible by accessing this MV

Data folder.

WebView Livescope MV Manager

WebView Livescope MV Station

CPU Pentium III 600 MHz or better

Windows Me/ Windows 2000 (Service Pack 1 or later)/ Windows XP

Internet Explorer 5.0 or later required

Operating System

Web Browser 128 MB or better

Memory Available space of 50 MB or better

Hard Disk XGA (1024 ×768) or better with high-resolution 16-bit color display or better

Monitor

CPU

Pentium III 600 MHz or better

Windows Me/ Windows 2000 (Service Pack 1 or later)/ Windows XP

Internet Explorer 5.0 or later required

Operating System

Web Browser

128 MB or better

Memory

Available space of 50 MB or better

Hard Disk

SVGA (800 ×600) or better with high-resolution 16-bit color display or better

Monitor

When using VB101, upgrade the firmware to version 3.0. The firmware is

available for free at the following Web site:

http://www.canon.com/webview/

Note

Operating Environment

Autres manuels pour WebView LivescopeMV

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Canon Logiciel

Canon

Canon UFR II Driver Manuel d'installation et d'exploitation

Canon

Canon PowerShot SD100 Instructions de montage

Canon

Canon PowerShot S95 Guide de démarrage rapide

Canon

Canon Selphy CP600 Instructions de montage

Canon

Canon PowerShot A520 Manuel utilisateur

Canon

Canon PowerShot SD10 Digital ELPH Instructions de montage

Canon

Canon EOS 20Da Manuel utilisateur

Canon

Canon 9540A003 - Optura 400 Camcorder Manuel utilisateur

Canon

Canon D1250U2F - CanoScan USB Flatbed Scanner Manuel utilisateur

Canon

Canon PowerShot SD880 IS Digital ELPH Instructions de montage

Canon

Canon CanoScan FS4000US Manuel utilisateur

Canon

Canon N1240U - CanoScan Flatbed Scanner Manuel utilisateur

Canon

Canon FS10 Manuel utilisateur

Canon

Canon 3211B001 - PowerShot E1 Digital Camera Guide de sécurité

Canon

Canon PowerShot SX1 IS Guide de démarrage rapide

Canon

Canon REALiS SX80 Mark II D Mode d’emploi

Canon

Canon CanoScan D1230UF Manuel utilisateur

Canon

Canon EOS 10D Digital Manuel utilisateur

Canon

Canon REALiS SX80 Mark II D Manuel utilisateur

Canon

Canon CanoScan D646U Manuel utilisateur

Canon

Canon PowerShot A520 Manuel utilisateur

Canon

Canon POWERSHOT A75 Guide de sécurité

Canon

Canon VB-M40 Manuel d'utilisation et d'entretien

Canon

Canon CanoScan FB 1200S Manuel utilisateur

Manuels Logiciel populaires d'autres marques

COMPRO

COMPRO COMPROFM Manuel utilisateur

Muratec

Muratec OFFICEBRIDGE ONLINE Manuel utilisateur

Oracle

Oracle Contact Center Anywhere 8.1 Manuel utilisateur

Adobe

Adobe 65007312 - Photoshop Lightroom Manuel

Avaya

Avaya NULL One-X for RIM Blackberry Manuel utilisateur

HP ProLiant BL420c Manuel utilisateur

PS Audio

PS Audio PowerPlay Manuel du propriétaire

Brady

Brady LOCKOUT PRO 3.0 Manuel de service

Avaya

Avaya Interaction Center Manuel utilisateur

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manuel

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manuel utilisateur

Oracle

Oracle Application 9i Manuel utilisateur

Acer

Acer RDM Manuel utilisateur

Samsung

Samsung Auto Backup Manuel utilisateur

Polycom

Polycom Vortex EF2201 Instructions d'installation et d'utilisation

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manuel utilisateur

Novell

Novell SP2 - S Mode d’emploi

Lexmark

Lexmark Apps Manuel de service
