Versatile Monitoring Software

User’s Manual

Introduction

Thank you for purchasing WebView Livescope MVVer. 2.1 LE.

To take best advantage of this software, please first read this manual thoroughly.

After reading this manual, please store it in a safe place for future reference.

The latest product information is available at the following Website.

http://www.canon.com/webview/

Requests to Customers

The content of this manual may not be reproduced in its entirety or in part without prior

permission.

The content of this manual is subject to change without notice.

All possible measures have been taken to ensure that the content of this manual is accurate. If

you happen to notice errors, omissions or other faults, please contact Canon.

Irrespective of items above, Canon accepts no liability for any results arising from the operation

of this product.

Trademarks

● Canon and Canon logo are registered trademarks of Canon Inc.

● Microsoft,Windows,Windows NT, and Microsoft Internet Explorer are trademarks or registered trademarks of

Microsoft Corporation in the United States and other countries.

● Windows is legally recognized as Microsoft Windows Operating System.

● All other company or product names used in this manual are trademarks or registered trademarks of their

respective holders.

Icons Used in This Manual

Indicates notes of caution or limitations that must be kept in mind concerning operation. Be sure to

read these notes.

Indicates supplemental explanations or references that are useful for operation.

Please note that copyright laws prohibit the customer from using recorded videos and still pictures for any purpose

other than personal enjoyment without permission from the copyright holder.

Tip

Note

ENGLISH

Contents

Introduction ..........................................................2

1. Overview..........................................................4

2. System Configuration.....................................5

Example of System Configuration ..................................... 5

Operating Environment ....................................................... 5

3. Installing ..........................................................6

Prior to Installation... ........................................................... 6

Preparing the PC ...............................................................................6

Installing the Camera Servers ...........................................................6

Installation ............................................................................ 7

4. Registering the Cameras ...............................8

Registering Cameras Using “Register Camera” .............. 8

Registering Cameras Using “Search Camera”................. 9

5. Operating from the Menus...........................10

Detailed Settings................................................................ 11

Changing the Registration Order of Cameras ................................ 11

Setting Connection Protocols .......................................................... 11

6. Operating from the Toolbar..........................12

Main Operations................................................................. 13

Switching Viewer Display Methods .................................................13

Switching Cameras being Viewed...................................................14

Reconnecting ...................................................................................14

Taking/Saving Snapshots ................................................................14

Pausing Videos ................................................................................14

Displaying Full Screens ...................................................................15

Viewing Connection Information .....................................................15

7. Operating the Cameras................................16

Operating Cameras from the Camera Control Panel..... 16

Operating a Camera with the Control Buttons ................................16

Controlling the Camera with Panorama ..........................................17

Operating Cameras from the Viewer ............................... 17

8. Options ..........................................................18

Setting the Video Relay ..................................................... 18

Setting HTTP ...................................................................... 18

9. Troubleshooting ............................................19

10. Error Messages.............................................20

1Overview

WebView Livescope MV Ver. 2.1 LE (hereafter referred to as MV LE) is software that allows you to use an

Intranet or the Internet to monitor video distributed from the Network Camera Server VB150/VB101 or the

Network Camera VB-C10/VB-C10R (hereafter referred to as “camera server”).

Since MV LE uses the wizard format for registering camera servers, there is no need to learn complex

operations. MV LE lets you access camera servers, freely remote control cameras, and simultaneously

view images from camera servers installed in more than one location (up to 4 locations), providing an

efficient monitoring environment.

*When using VB101, upgrade the firmware to version 3.0.

MV LE is a limited edition of WebView Livescope MV Ver. 2.1. WebView Livescope MV Ver. 2.1 provides

you with a wide variety of functions such as creating versatile monitoring screens to suit specific

applications, viewing and managing recorded pictures, and notification of input events from external

devices and controlling output, to enable more efficient and reliable monitoring. Please use WebView

Livescope MV Ver. 2.1 if you wish to use more advanced monitoring functions.

Monitoring via the Internet

Monitoring on an Intranet

VC-C4

COMMUNICATIONCAMERA

f:4-64mm1:1.4-2.8

Network Camera Server

Network Camera

Tip

Changes from MV Ver. 2.0 LE are as follows:

●Added support for the Network Camera Server VB150 (→→

→→

→ P.5, 13, 18).

●Added “Control on Side” to the View menu that displays the camera control

panel on the right hand side of the window (→→

→→

→ P.13).

ENGLISH

MV LE

VC-C4R VB101

VC-C4

VB150

ETHERNET

INTERNET

ISDN Line

LAN

MV LE

Router

Distributes

video and

picture data

Monitoring

Controls camera angle,

zoom, etc., and monitors

camera images

Monitoring

via Internet is

also possible

Monitoring via ISDN line

Router

Controls camera angle,

zoom, etc., and monitors

camera images

Monitoring

VB-C10

VC-C4

NU-700

2System Configuration

MV LE connects to camera servers using TCP/IP protocol. Connections can be made via the Internet or an

Intranet.

Example of System Configuration

Operating Environment

CPU

Pentium III 600 MHz or better

Internet Explorer 5.0 or later required

Operating System

Web Browser

128 MB or better

Memory

Available space of 20 MB or better

Hard Disk

XGA (1024 ×768) or better with high-resolution 16-bit color display or better

Monitor

Windows Me/Windows 2000 (Service Pack 1 or later)/Windows XP

3Installing

Prior to Installation...

Before installing MV LE, be sure that the PC in which it is to be installed and the camera servers satisfy

the conditions described below.

Preparing the PC

Check that the PC where MV LE is to be installed satisfies

the operating environment of MV LE(→→

→→

→ P.5). Be sure to set

the screen resolution to XGA (1024 ×768) or higher.

Display Properties

Note

If your screen resolution is set to XGA, use the “Control on Side” mode for the

camera control panel display (→→

→→

→ P.13).

Installing the Camera Servers

If the VB-C10/VB-C10R or VB150 is being used, there is no need to upgrade the firmware.

However, if the VB101 is being used, check to be sure that the firmware version is 3.0 or later. The

firmware is available for free at the following.

URL:http://www.canon.com/webview/

Check to be sure the camera server has been correctly installed and that the initial settings

(network settings) have been made. Then connect to the network.

Please refer to the manual supplied with the camera server for procedures on how to install and set

the camera server.

Note

The camera server’s “Maximum Number of Clients” setting must be set to 4

or more for the VB150 (or VB101). To make settings, use the setting page on

the camera server. While factory default settings meet the above

requirements, the settings must be checked if any changes are made.

ENGLISH

Installation

When you load the WebView Livescope MV LE installer

CD-ROM, the installer automatically starts and the

installation process begins. If it does not start, in

Explorer, double-click “Setup.exe” on the CD-ROM and

click Next to proceed with the installation.

Enter the Serial number and click Next. The Serial

number is indicated on the seal attached outside the

software package.

A screen appears where you can specify a folder in which

MV LE is to be installed.

To specify a folder other than the one indicated, click

Browse and select the folder you want.

When the folder has been specified, click Next.

Specify a name to be registered in the Program menu

under the Start menu, then click Next.

Check the items you have specified and selected thus far,

then click Next. The installation will be performed by

copying files and setting the registry.

When installation is complete, click Finish to exit the

installer.

Tip

If you are upgrading MV from Ver. 2.0 LE, the information on registered

cameras can be used with Ver. 2.1.

Click the Register Camera button to start up the Register Camera

Wizard.

In the Camera server address field, enter the IP address or the

host name of the camera server.

The default HTTP port No. that was set as an option (→P.18)

appears in the HTTP port field. The HTTP port No. is usually 80,

but if another value is preferred, enter that in the HTTP port field.

Click Next.

When the Administration Account dialog box appears, enter the

Administrator ID and Password that were set in the camera

server.

Click OK.

Communication with the camera server occurs, and cameras that

can be registered are displayed. Select the cameras you want to

Cameras must be registered in order to monitor images from them with MV LE. There are two ways to

manually, and “Search Camera” in which camera servers connected to the network are automatically

searched and detected cameras are registered.

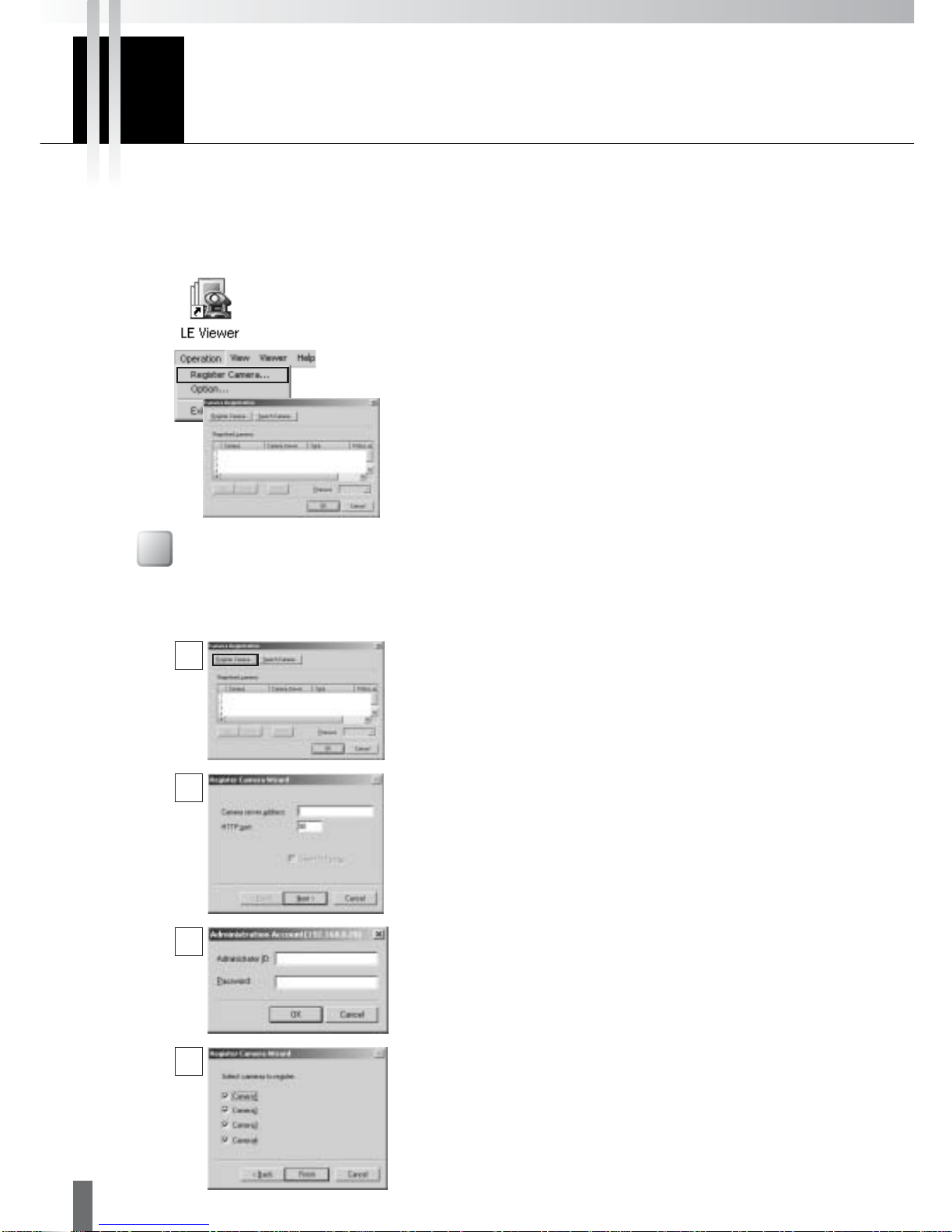

First, double-click the desktop icon, or in the Start menu, choose

[Program]-[WebView Livescope]-[MV 2.1]-[LE Viewer], to start up

MV LE.

Choose Register Camera in the Operation menu. The Camera

Registration dialog box appears.

Up to 4 cameras can be registered. Registration is possible from

more than one camera server.

4Registering the Cameras

Registering Cameras Using “Register Camera”

If you know the IP address or the host name of the camera server, you can register the cameras which are

connected to the camera server by entering these items.

ENGLISH

Make sure that the camera you just registered appears in the

Registered cameras list.

To register more than one camera from a different camera server,

repeat the procedure from step 1 .

When you click OK, images from the registered camera can be

viewed.

Registering Cameras Using “Search Camera”

If you do not know the IP address of the camera server, you can search camera servers connected to

the network and register a camera from among the camera servers that are detected. Since it is

possible to detect only camera servers on the same LAN, for other camera servers, please use the

Click the Search Camera button.

Click Next. The camera servers connected to the network are

automatically detected.

*If HTTP port other than 80 is used, the Search Camera feature

will only be available with the VB150. For other camera servers,

please use the Register Camera registration procedure

described on page 8.

The detected camera servers and the cameras that can be

registered are displayed. Select the camera to be registered. If

you select a camera server, all cameras connected to that server

are selected. When a selection is made, the Administration

Account dialog box appears where you must enter the

Administrator ID and Password that are set in the camera server.

Then click Finish.

Make sure that the camera you just registered appears in the

Registered cameras list.

When you click OK, images from the registered camera can be

viewed.

5Operating from the Menus

This chapter describes operating procedures

using the menus.

Menu Bar

Operation menu

“Register Camera”

Lets you register camera servers or change camera orders.

“Option”

Lets you set Video Relay or set the HTTP Port and HTTP Proxy.

“Exit”

Exits MV LE.

View menu

“Toolbar”

Shows/Hides the toolbar.

“4 Viewers/1 Viewer (Large)/1 Viewer (Normal)”

Switches the viewer display among 3 options: 4 viewers, 1 viewer (large),

and 1 viewer (normal).

“Control at Bottom/Control on Side”

Switches the camera control panel display between “Control at Bottom” and

“Control on Side”.

Viewer menu

“Camera Control Right”

Acquires camera control privileges.

“Reconnect”

Reconnects to the camera server when the connection is cut.

“Release Selection”

Releases a viewer selection.

“Snapshot”

Takes a snapshot.

“Pause/Resume”

Pauses and resumes a video.

“Full Screen”

Displays the full screen of an image. Press ESC to return to the original

screen display.

“Network Information”

Shows information about the connection to the camera server.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Canon Logiciel

Canon

Canon 1629B001 - XH G1 Camcorder Manuel utilisateur

Canon

Canon 9320A010 - EOS Rebel XSi Starter Manuel utilisateur

Canon

Canon EOS-1D Manuel utilisateur

Canon

Canon 40D - EOS 40D DSLR Manuel utilisateur

Canon

Canon DV-PC Instructions de montage

Canon

Canon Capture Perfect 3.0 Manuel utilisateur

Canon

Canon PowerShot ELPH 100 HS IXUS 115 HS Guide de démarrage rapide

Canon

Canon PowerShot SD10 Digital ELPH Instructions de montage

Canon

Canon 3508B001 - PowerShot D10 Digital Camera Instructions de montage

Canon

Canon Pull Print Service Provider Version 1.0... Manuel utilisateur

Canon

Canon 70 MC - ZR70MC MiniDV Digital Camcorder Manuel utilisateur

Canon

Canon EOS 5D - Focusing Screen Ee-A Manuel utilisateur

Canon

Canon Optura Pi Manuel utilisateur

Canon

Canon CP-100 Manuel utilisateur

Canon

Canon HV20 - VIXIA Camcorder - 1080i Manuel utilisateur

Canon

Canon VIXIA HF11 Manuel utilisateur

Canon

Canon LEGRIA FS36 Manuel utilisateur

Canon

Canon DV Nerwork Manuel utilisateur

Canon

Canon ZR200 Instructions de montage

Canon

Canon WEBVIEW LIVESCOPE 3.2 Manuel utilisateur

Canon

Canon 2MC - Elura 2MC MiniDV Digital Camcorder Manuel utilisateur

Canon

Canon EOS Rebel T3 18-55mm IS II Kit Manuel utilisateur

Canon

Canon EOS 10D Digital Manuel utilisateur

Canon

Canon FAXPHONE L80 Guide de sécurité

Manuels Logiciel populaires d'autres marques

COMPRO

COMPRO COMPROFM Manuel utilisateur

Muratec

Muratec OFFICEBRIDGE ONLINE Manuel utilisateur

Oracle

Oracle Contact Center Anywhere 8.1 Manuel utilisateur

Adobe

Adobe 65007312 - Photoshop Lightroom Manuel

Avaya

Avaya NULL One-X for RIM Blackberry Manuel utilisateur

HP ProLiant BL420c Manuel utilisateur

PS Audio

PS Audio PowerPlay Manuel du propriétaire

Brady

Brady LOCKOUT PRO 3.0 Manuel de service

Avaya

Avaya Interaction Center Manuel utilisateur

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manuel

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manuel utilisateur

Oracle

Oracle Application 9i Manuel utilisateur

Acer

Acer RDM Manuel utilisateur

Samsung

Samsung Auto Backup Manuel utilisateur

Polycom

Polycom Vortex EF2201 Instructions d'installation et d'utilisation

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manuel utilisateur

Novell

Novell SP2 - S Mode d’emploi

Lexmark

Lexmark Apps Manuel de service
