Canon 600F - CanoScan LiDE Manuel utilisateur

QT5-0612-V01 ©CANON INC. 2007 PRINTED IN VIETNAM

English

Please read this guide before operating this scanner. After you finish reading this guide, store it in

a safe place for future reference.

Package Contents

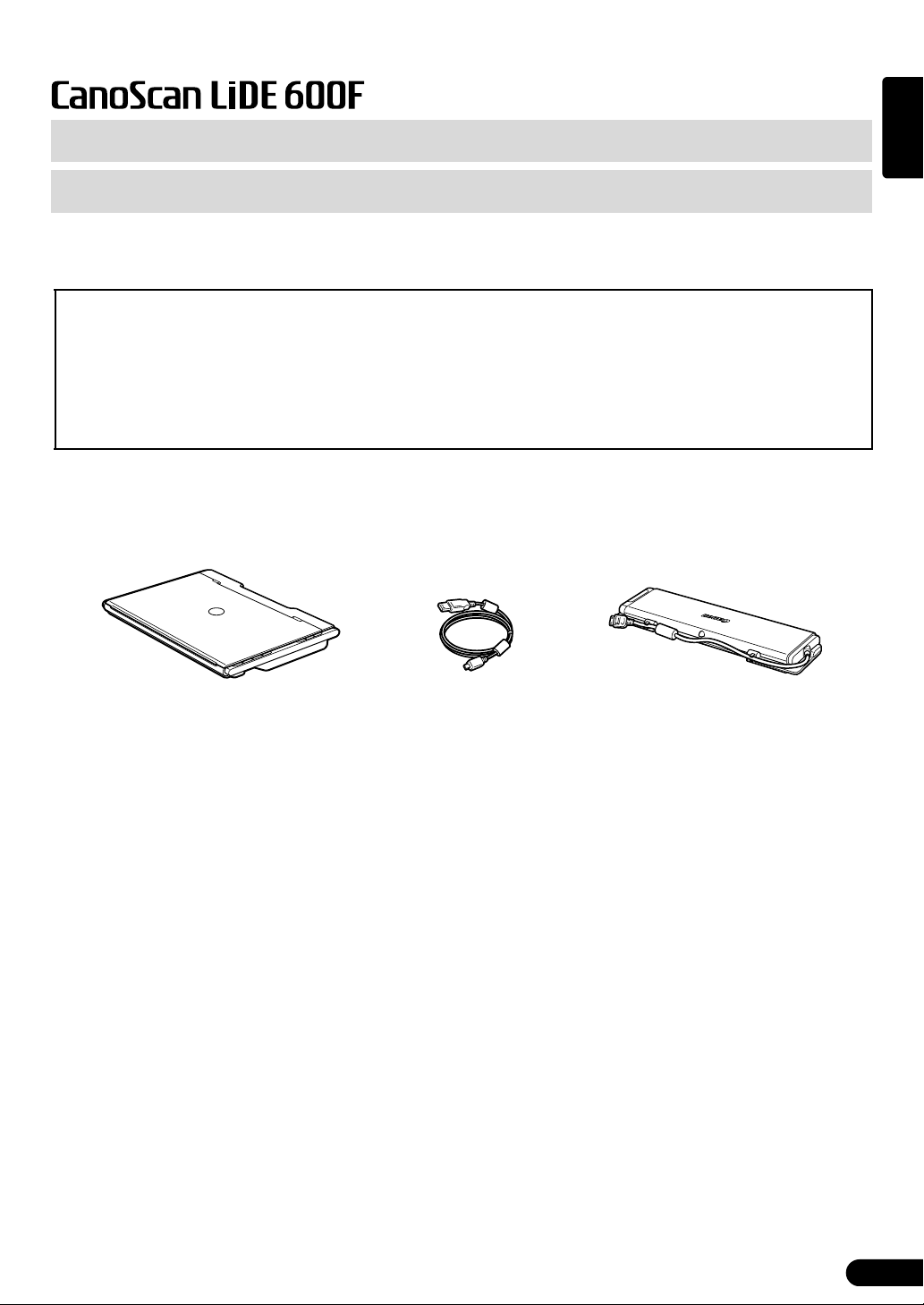

Scanner and Accessories

Documentation

• Quick Start Guide (this document)

• Additional Documents

CanoScan Setup Utility CD-ROM

• Software Programs

- ScanGear (scanner driver)

- CanoScan Toolbox

- ArcSoft PhotoStudio

- Presto! PageManager (Windows only)

- ScanSoft OmniPage SE (not supported for Windows 98 First Edition)

- Adobe RGB (1998) (Windows only)

• On-screen Manuals

- Scanning Guide (for ScanGear, CanoScan Toolbox, and troubleshooting)

- Manuals for bundled application programs

*In this guide, Windows XP screenshots are used to illustrate explanations common to all

operating systems.

Table of Contents

Package Contents ........................................ 1 Using the Scanner Buttons .......................... 5

Installing the Software ................................ 2 Scanning Film ............................................... 6

Preparing the Scanner ................................. 3 Positioning the Scanner............................... 8

Try Scanning ................................................. 4 Specifications ............................................... 9

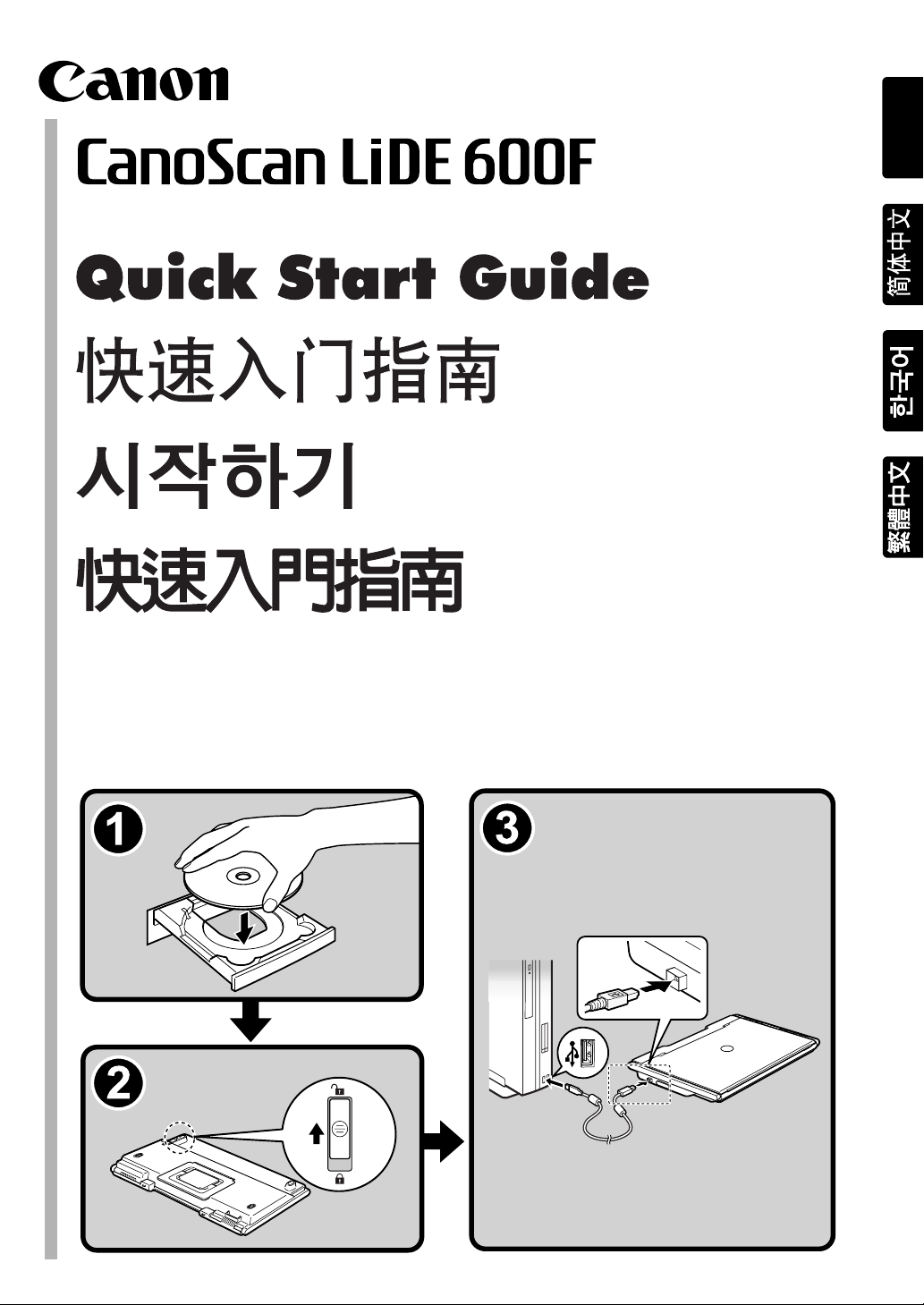

Quick Start Guide

Scanner USB Cable

Film Adapter Unit

(with protective cloth)

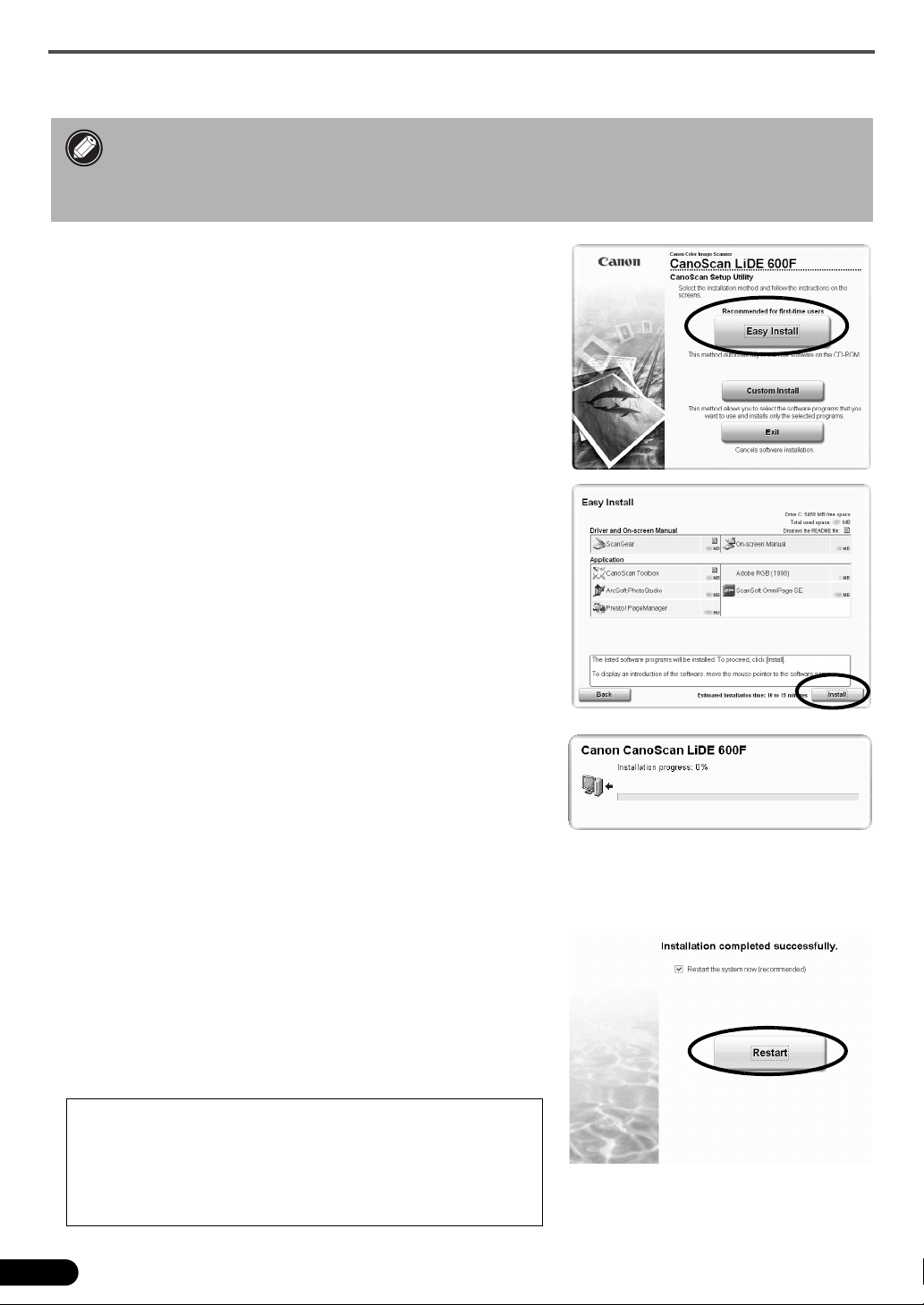

Installing the Software

1Place the CanoScan Setup Utility CD-ROM in the

drive.

If prompted, select your language and place of residence.

CanoScan Setup Utility program starts.

• For Macintosh: Double-click the [Setup] icon. Enter the

administrator ID and password on the authentication dialog

box.

2Click [Easy Install] on the main menu.

3Click [Install] to start installation.

Carefully read the License Agreement, and then click [Yes] to

proceed. All the software programs and on-screen manuals will

be installed on your computer.

4For the bundled applications, follow the on-screen

instructions to perform the installation.

5When the installation is complete, click [Restart] to

restart your computer.

• Do NOT connect the scanner to a computer before installing the software. If you

connect the scanner and the Found New Hardware Wizard appears, click [Cancel].

• Quit all running applications before installation, including anti-virus software.

• For Windows 2000/XP, log in as an administrator to install the software.

• Make sure to remove the CD-ROM from the drive and store it in a

safe place.

• If you encounter a problem during installation, see

"Troubleshooting" in the Scanning Guide.

• If you later upgrade your OS to Windows XP, reinstall the software.

Preparing the Scanner

English

Preparing the Scanner

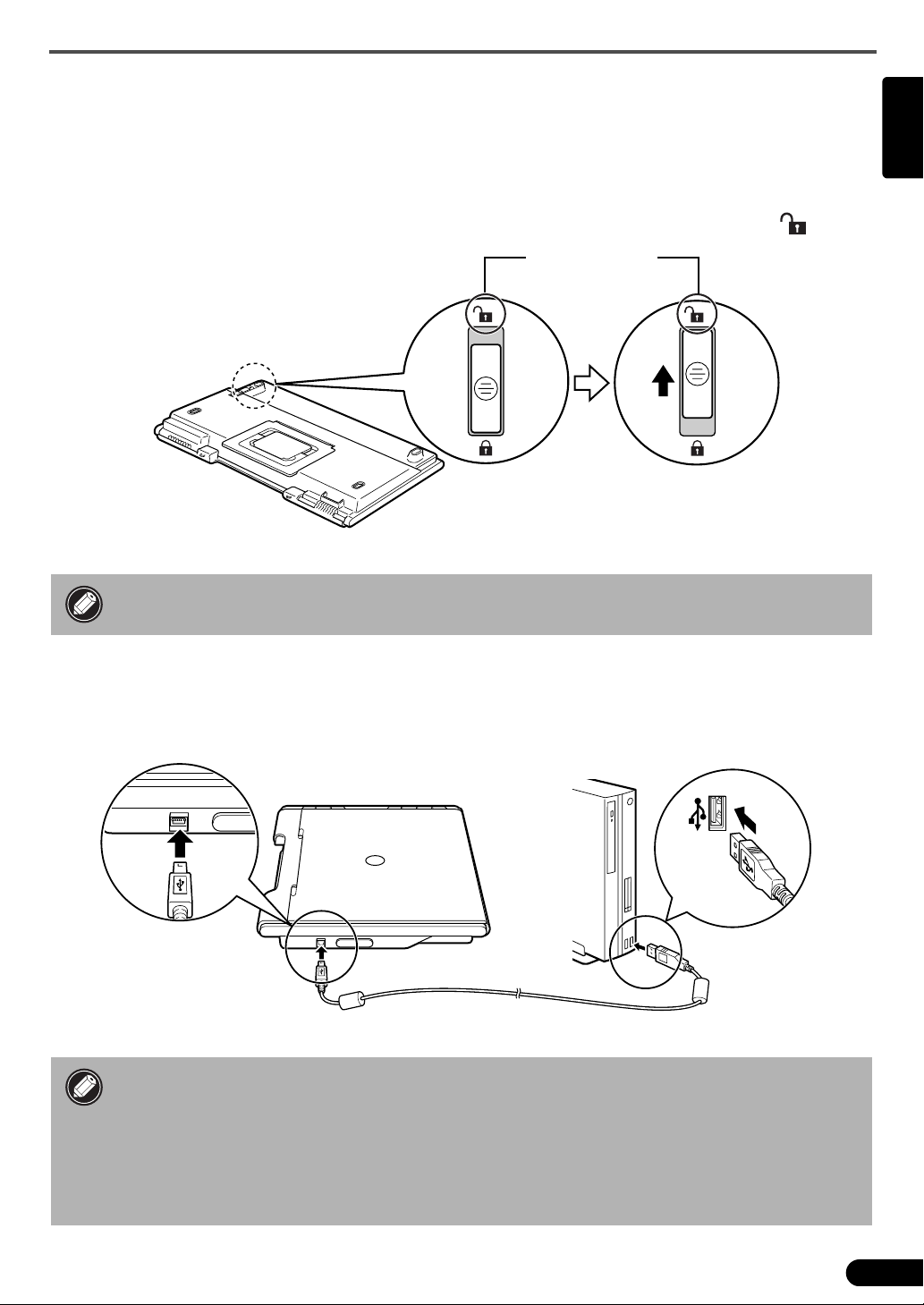

Unlocking the Scanner

1Peel the seals off the scanner.

2Slide the lock switch on the bottom of the scanner toward the unlock mark ( ).

Connecting the Scanner

1Connect the scanner to your computer with the supplied USB cable.

• Handle the scanner with both hands. Be careful not to drop the scanner.

• Always lock the scanner when carrying or transporting it.

• Only use the USB cable provided with the scanner. Use of other cables may lead to a

malfunction.

• When the scanner is connected to the USB 1.1 port on Windows XP and "HI-SPEED USB

Device Plugged into non-HI-SPEED USB Hub" message appears, ignore the message. The

scanner operates in this condition without problems.

• The scanner does not have a power switch. The power is activated as soon as the

computer is turned on.

Unlock Mark

Try Scanning

This section explains the basic scanning procedures using the image editing program, ArcSoft PhotoStudio,

and the scanner driver, ScanGear.

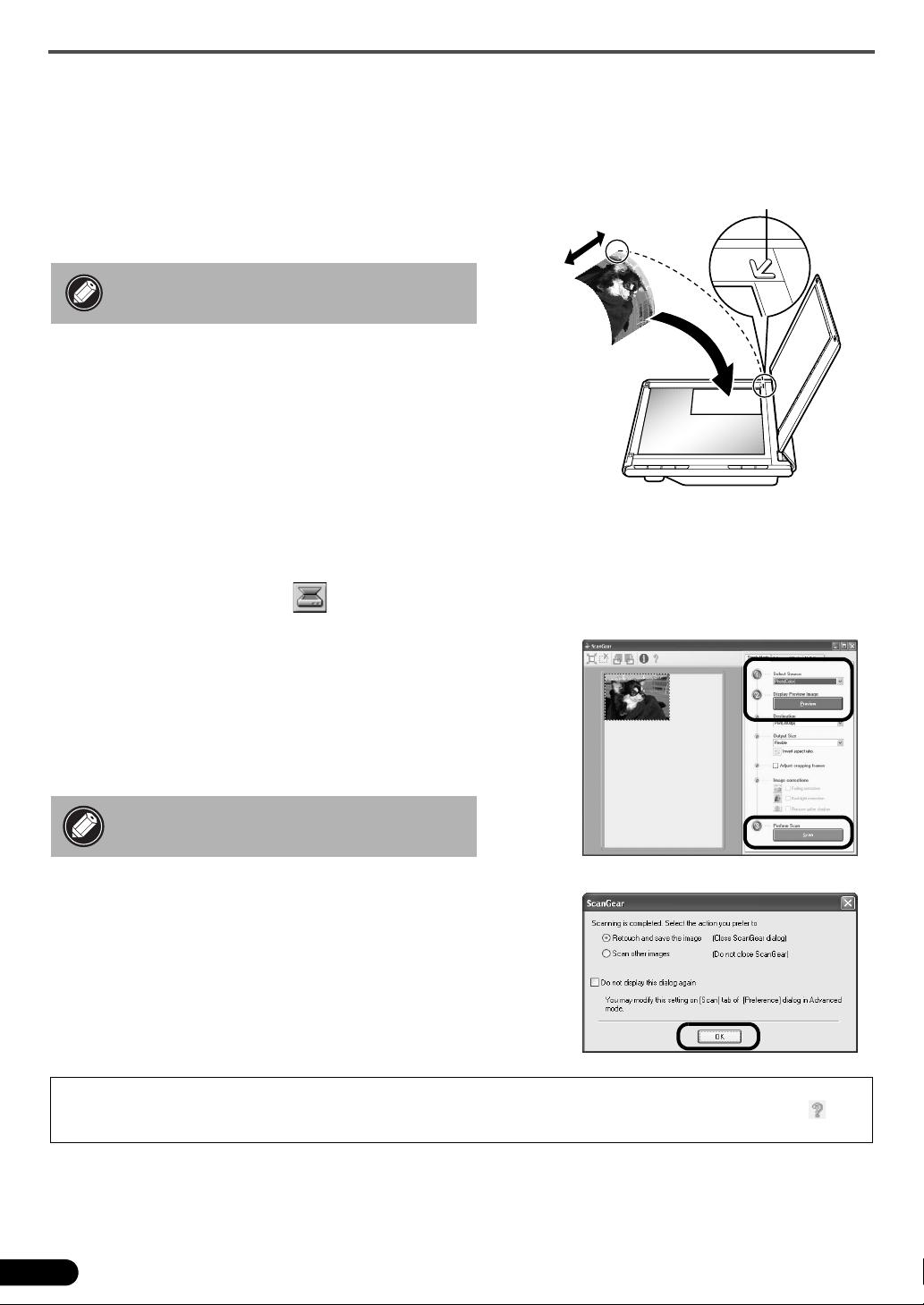

1Place a document on the document

glass and close the document cover.

2Start ArcSoft PhotoStudio.

• For Windows: Select [start] - [(All) Programs] -

[ArcSoft PhotoStudio 5.5], then click

[PhotoStudio 5.5].

• For Macintosh: Open [Applications] -

[PhotoStudio] folders, then double-click the

[PhotoStudio] icon.

3From the [File] menu, click [Select Source] and select the scanner model.

For Windows: Do not select the one that includes [WIA] in the model name.

4Click the [Acquire] icon to start ScanGear.

5Select the type of document you are scanning in

[Select Source] and click [Preview].

6Set [Destination] and/or [Output Size] as needed.

7Click [Scan] to start scanning.

8When prompted to close ScanGear, click [OK].

9Save the scanned image in ArcSoft PhotoStudio and

close the window.

When opening the document cover,

support it with your hand until it stops.

Do not touch the scanner while it is

operating.

For more information on scanning using ScanGear, bundled applications, and troubleshooting, see the on-screen

manual Scanning Guide. To open the Scanning Guide, double-click the manual icon on the desktop, or click in

ScanGear or CanoScan Toolbox.

Alignment Mark

Top

Bottom

Using the Scanner Buttons

English

Using the Scanner Buttons

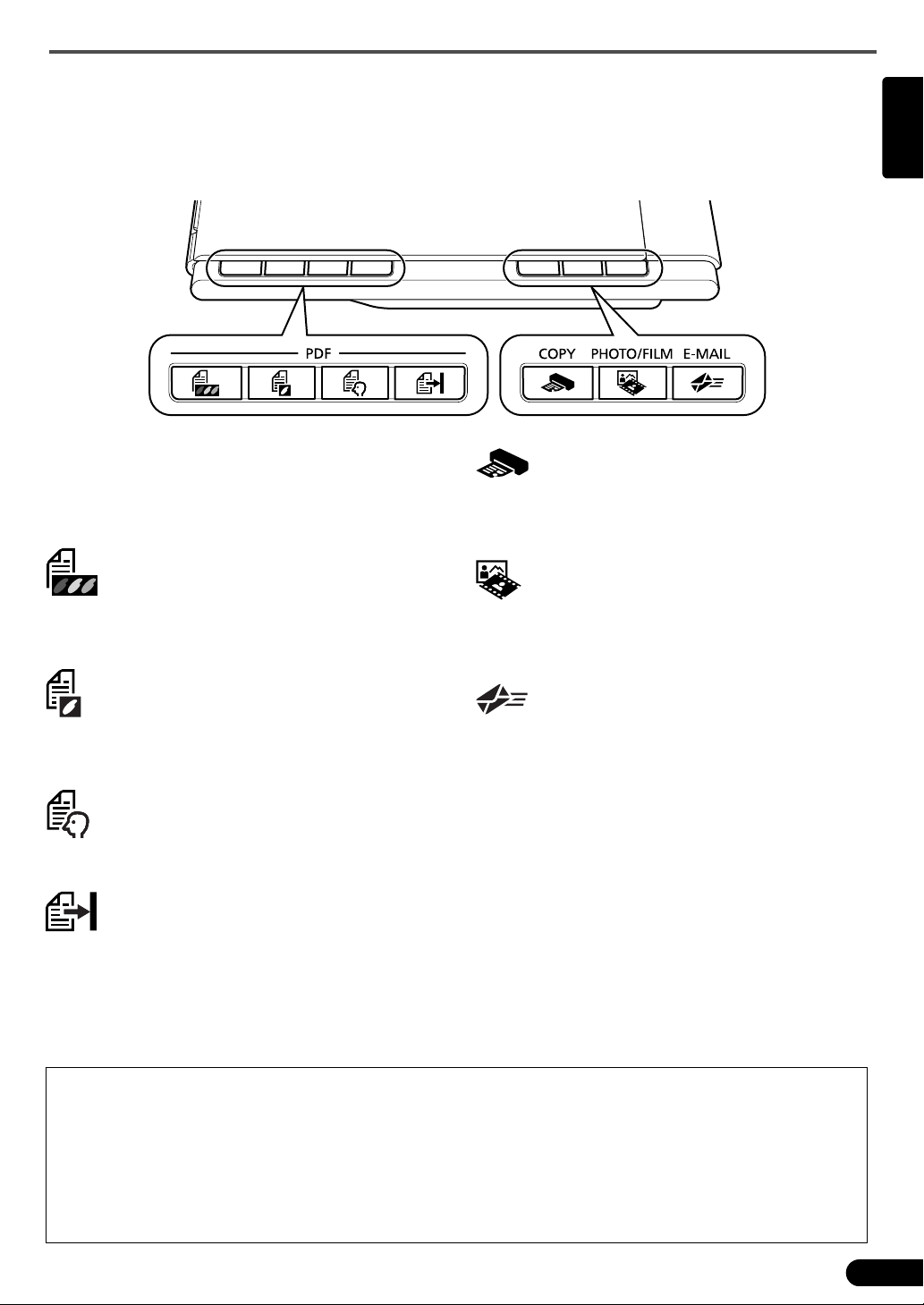

Scanner buttons allow you to copy, scan, e-mail, and save scanned images in PDF format with a press of a

button. Simply place your document on the scanner, and then press the scanner button for the required

function. For more information, see the Scanning Guide.

*The size may differ depending on your system environment.

• Before using scanner buttons, make sure that all the software programs are installed on your computer using the [Easy

Install] option of the CanoScan Setup Utility program. See "Installing the Software" on page 2.

•For Mac OS X 10.3 and 10.2.8: Before using the scanner buttons, you need to set Image Capture (in [Applications]

folder) to open CanoScan Toolbox automatically when a scanner button is pressed.

Start Image Capture, and then perform the following:

- Mac OS X 10.3: Click [Options] and select CanoScan Toolbox in [When a scanner button is pressed, open:].

- Mac OS X 10.2.8: Select [Other] in [When a scanner button is pressed, open:]. Select CanoScan Toolbox and click [Open].

Click [OK] and quit Image Capture. For more information, see "Troubleshooting" in the Scanning Guide.

PDF Buttons

PDF buttons allow you to easily create PDF

iles according to your needs. Note that these

buttons are not labeled on the scanner.

COLOR Button

Scans color images in A4 or Letter size*at 300

pi.

BLACK & WHITE Button

Scans black and white images in A4 or Letter

ize*at 300 dpi.

CUSTOM Button

Scans images in user-specified settings.

FINISH Button

Saves the scanned image as a PDF file and

ompletes the operation.

COPY Button

Prints (copies) the scanned image with a

printer.

PHOTO/FILM Button

Opens the scanned image in the bundled

application program, ArcSoft PhotoStudio.

E-MAIL Button

Attaches the scanned image to a new e-mail

message.

The first time you press this button, you will be

prompted to select the e-mail program to use with

this function.

Scanning Film

This scanner can scan 35 mm film strips (6 frames at a time). Follow the procedure below when scanning

film.

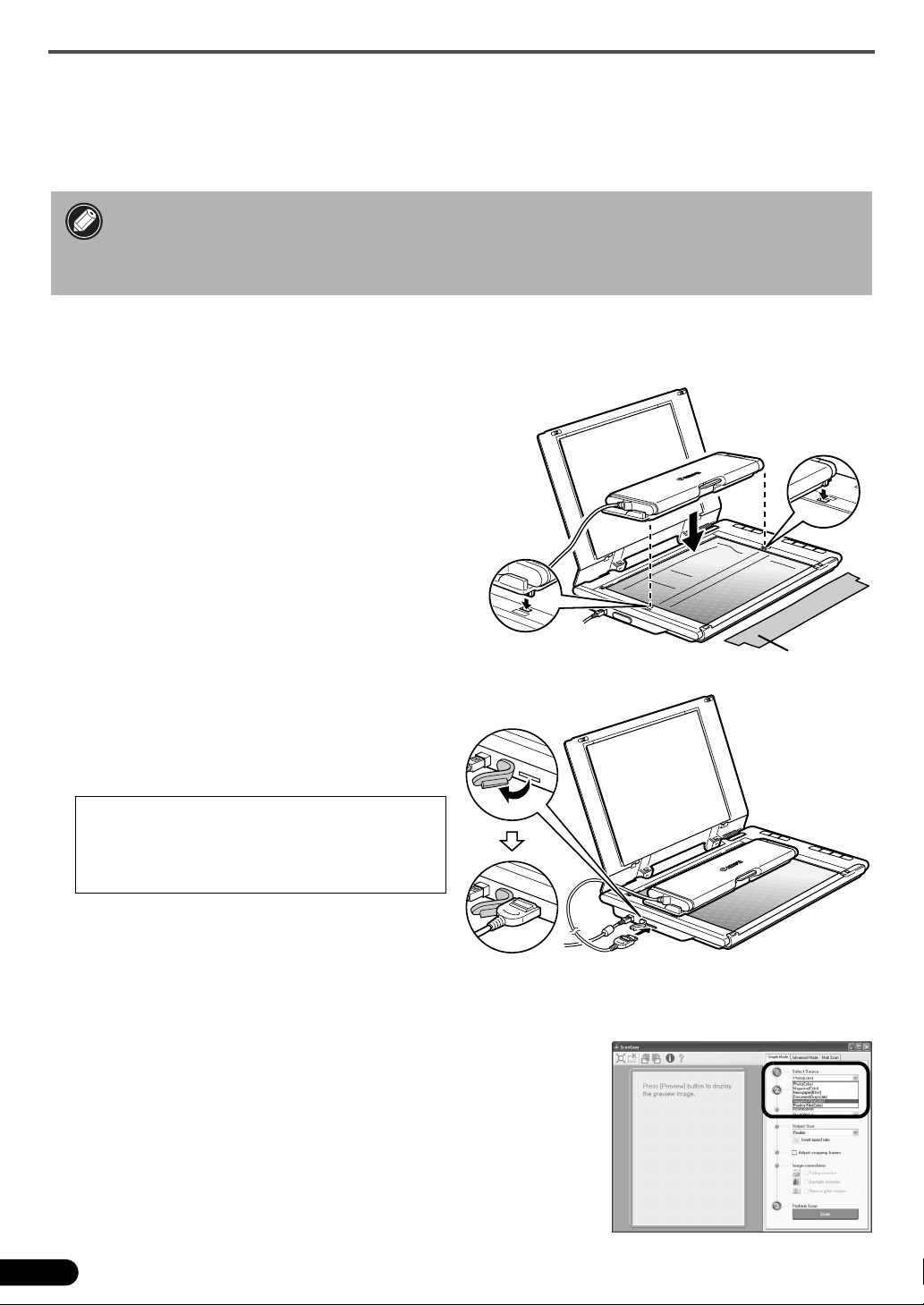

1Open the film adapter unit by the center latch and remove the protective cloth. Detach

the cable from the retainers on the side of the film adapter unit.

2Open the document cover and set the film

adapter unit on the document glass.

Align the dots on the film adapter unit and the dots

on the scanner (labeled [FAU]) to set the unit in

place.

3Connect the cable to the connector on

the side panel of the scanner, then

gently close the document cover.

4Start ArcSoft PhotoStudio, then start ScanGear.

Follow the steps 2 to 4 in "Try Scanning" on page 4.

5Select [Negative Film (Color)] or [Positive Film

(Color)] in [Select Source] to match the type of film

you are scanning, and then click [Preview].

• Make sure the document glass is wiped clean before placing the film adapter unit on the

scanner.

• Handle the film adapter unit carefully to avoid damaging the glass panel.

• Handle film strips carefully to avoid scratching or leaving fingerprints on them.

You need to calibrate the scanner before

scanning film for the first time. Do not place a

film strip in the film adapter unit at this point

as it is not required for calibration.

Protective

Cloth

Scanning Film

English

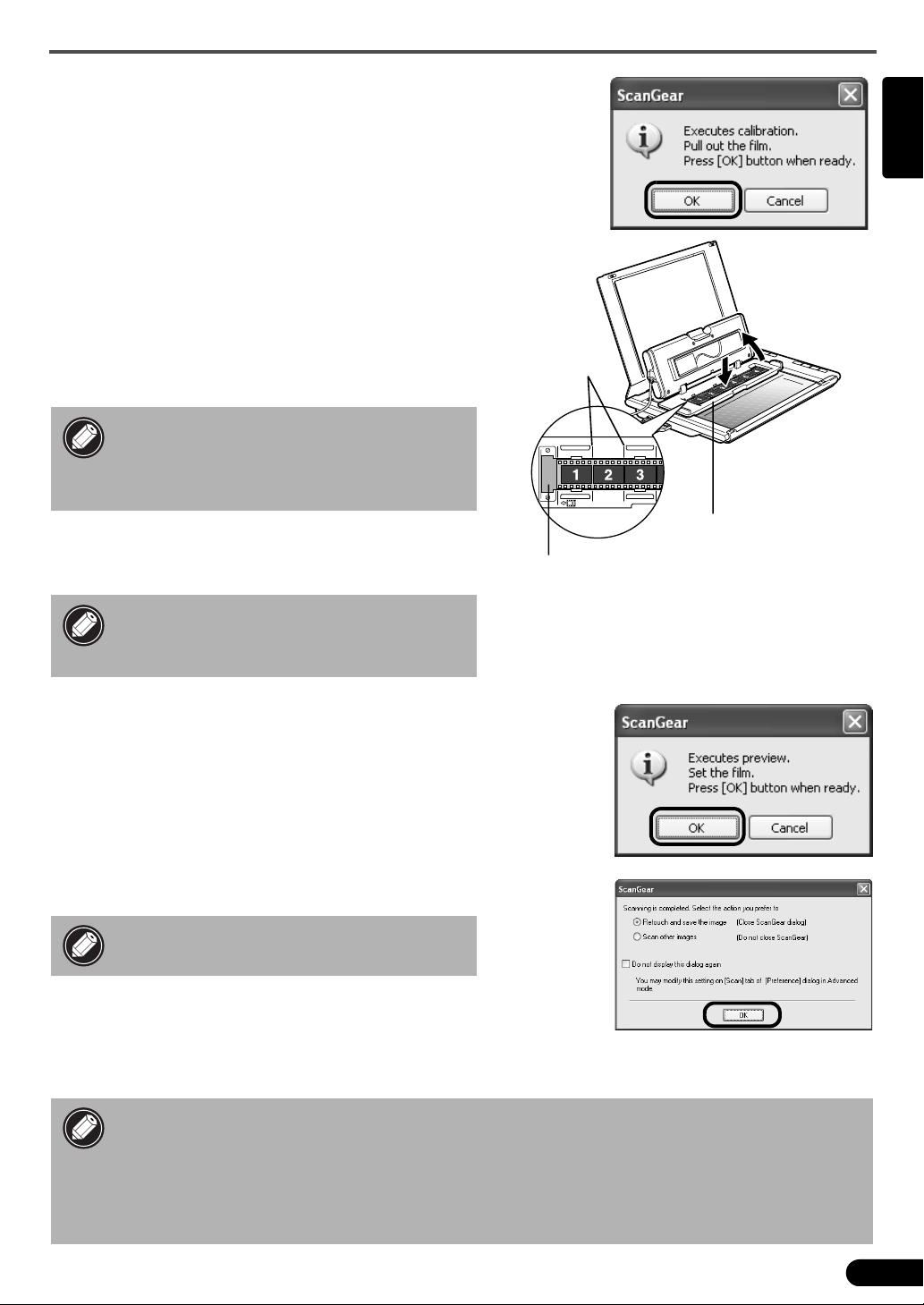

6Click [OK] on the calibration message window.

The calibration process is finished when the message disappears.

7Open the document cover, and then the film

adapter unit.

8Place a film strip in the film guide of the film

adapter unit, so that the borderlines

between frames are aligned with the

guidelines on the film guide.

9Close the film adapter unit until it clicks, and

then gently close the document cover.

10 Click [OK] on the preview message window.

The scanned image is displayed in the preview area.

11 Check the frames you want to scan. Perform

image corrections as needed.

12 Click [Scan] to start scanning.

13 When prompted to close ScanGear, click

[OK].

14 Save the scanned image in ArcSoft PhotoStudio and close the window.

Do not block the calibration slot on the

film guide when scanning film. Colors

will not be scanned correctly if the

calibration slot is obstructed.

The document cover does not touch the

document glass. Be careful not to force

the document cover down.

Do not touch the scanner while it is

operating.

• After the scanning is finished, disconnect the film adaper unit. Make sure to use the

supplied protective cloth to protect the glass panel from scratches. Keep the protective

cloth in a safe place for future use.

• Do not leave the film strip in the film adapter unit for an extended period of time as

heat from the unit may damage the film.

• For more information on scanning film, see "Scanning Film" in the Scanning Guide.

Guidelines

Calibration Slot

Film Guide

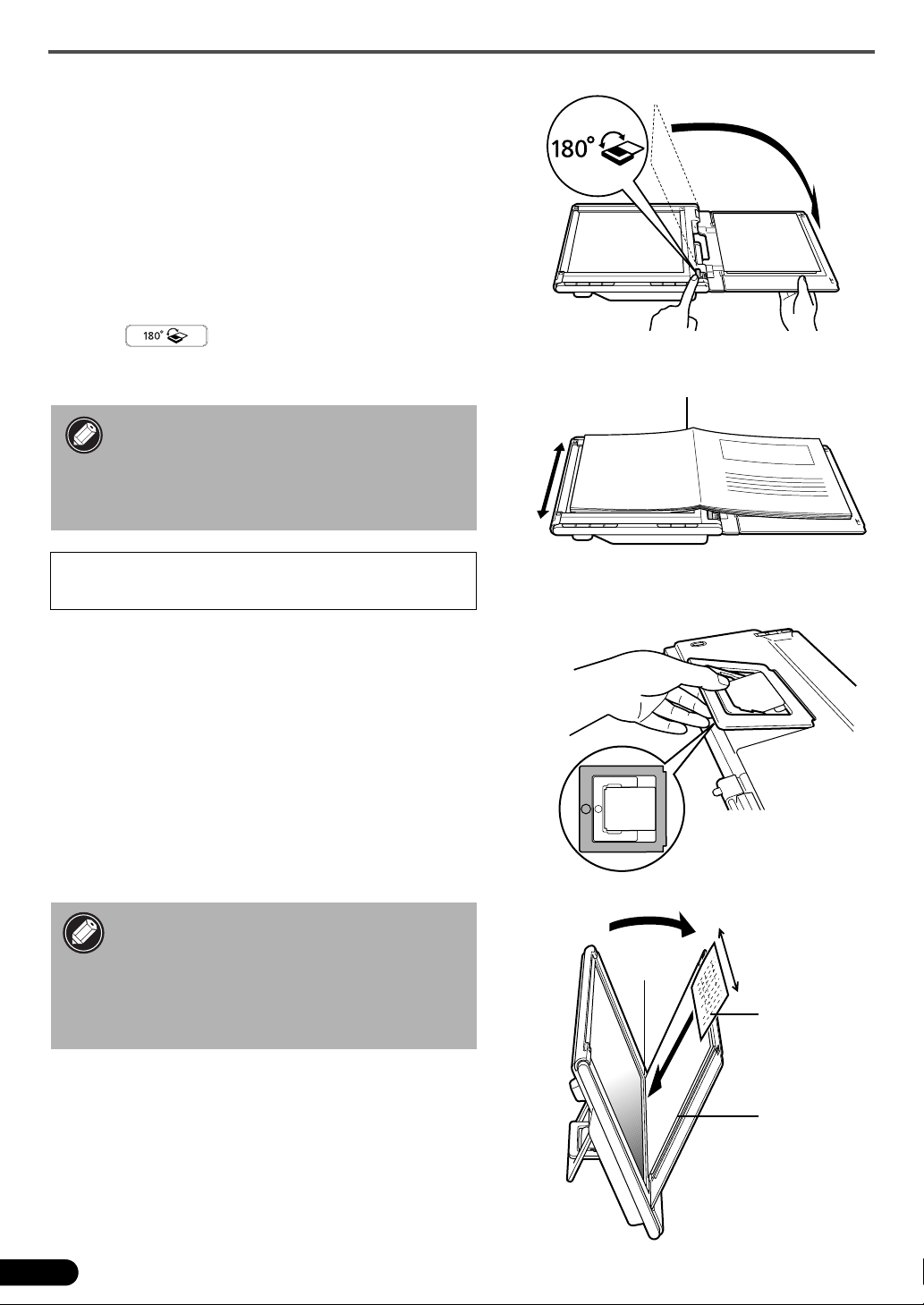

Positioning the Scanner

Horizontal Position

The document cover fully opens to allow easy scanning

of large or bound documents. An oversized document

can be scanned section by section into a single image

using the stitch-assist function of CanoScan Toolbox.

For details, see the Scanning Guide.

Hold the document cover with one hand, and press

and hold at the base hinge as you carefully

lower the cover all the way down.

Upright Position

If you are scanning thin documents (i.e., a single sheet

or double-folded sheet), this position saves the most

space. Thick documents or film cannot be scanned in

this position.

Pull out the stand on the bottom of the scanner until it

clicks, and set the scanner upright on a flat stable

surface. Gently open the document cover as far as it

goes (stops at approximately 40q) and slide down the

document along the document cover.

Do not place items that weigh 2.0 kg or
