BRIGHTER THINKING

Large Use

Small Use

Projection Solutions

BRIGHTER THINKING

Make an Impact.

For professionals who understand the importance of visual impact, a

XEED projector is the natural choice. Canon’s combination of award-

winning optics and LCOS technology delivers outstanding images – and

with most models projecting at SXGA+ resolution or higher, presentations

can be supercharged with High Denition content.

Designed for Versatility.

The high resolution and precision optics of the XEED range allow for a broad

range of applications - including technical or medical uses where ultra-ne

detail is essential. For designers, printers and other graphics professionals,

selected models support the Adobe RGB colour space.

Quiet and Compact.

Thanks to the light path efciency of AISYS, XEED projectors deliver

heavyweight performance from a compact, lightweight form.

Complemented by whisper-quiet operation with minimal fan noise, XEED

helps keep the audience focused on your presentation.

BRIGHTER THINKING

THE LCOS ADVANTAGE

To overcome the unsightly ‘lattice’ and ‘rainbow’

effects, the XEED range uses superior LCOS

panels. These combine the best of LCD and DLP

projection technologies, to produce smooth,

awless images with faithful colour reproduction

and exceptionally fast response, making them

ideal for both still and moving images.

XEED LCOS technology

Dual-sided aspherical lens

GENUINE CANON OPTICS

Every XEED projector incorporates a wide-angle Canon projection lens with

power-driven zoom. The XEED WUX10, XEED SX80 and XEED SX800 all

feature a 1.5x zoom lens, which virtually eliminates image distortion by

using a special double-sided aspherical element.

Also included is 10:0 image offset, which matches the lower edge of

the projected image to the optical axis of the lens - making installation

straightforward, and reducing the need for Keystone Correction. Other XEED

models offer an increased range of throw distances for a given image size,

via a 1.7x powered zoom lens.

The XEED Formula.

Total Optical Excellence.

BRILLIANT AISYS IMAGING

Canon AISYS (Aspectual Illumination System)

features a compact

optical array, capable of highly efcient light control. This works with LCOS

technology to deliver a previously impossible combination: simultaneous

high brightness and high contrast from a compact projector.

With brightness levels of up to 4000 lumens and contrast ratios of up to

1000:1, every XEED delivers vivid images with striking colours and deep,

pure blacks.

Inside the XEED Projector

AISYS (Aspectual Illumination System)

LCD technology

Projection Lens

AISYS Optical SystemLCOS Reective LCD

Projection Lamp

Illumination Optical System

Colour Separation /

Recombination System

SXGA+ (1400 x 1050 pixels) 4:3

WUXGA (1920 x 1200 pixels) 16:10

SVGA (800 x 600 pixels) 4:3

XGA (1024 x 768 pixels) 4:3

WXGA (1280 x 768 pixels) 5:3

SXGA (1280 x 1024 pixels) 5:4

BRIGHTER THINKING

COMPATIBLE WITH MORE

Whatever the source, the XEED high resolution range of projectors ensures exceptional image quality.

PC - As native resolution on computer monitors continues to expand – with many new desktops and laptops offering SXGA+ resolution

or above - the XEED range ensures that the audience sees exactly what’s on your screen.

VIDEO - Display High Denition video as it should be seen. SXGA+ resolution allows most XEED models to reproduce 720p images

without compression. And for stunning Full HD (1080p) image display, the XEED WUX10 features native WUXGA resolution (1920 x

1200 pixels).

HIGH RESOLUTION, HIGH QUALITY

Because quality presentations call for quality

detail, XEED reproduces high resolution content

with extra precision. Fine lines are rendered

with pin-sharp accuracy, text remains legible at

smaller font sizes, and multiple windows can be

displayed without loss of image clarity.

RESOLUTIONS COMPARED

COMPARATIVE RESOLUTION CHART

Future Proof.

From television to computing, High Denition is changing the face of visual

content. That’s why most XEED projectors offer native SXGA+ resolution (1400

x 1050 pixels)*. These models are HD Ready and give top quality results with

HD sources - ensuring that you won’t be left behind in the future.

*All models operate at SXGA+ resolution, except XEED WUX10 (WUXGA) and XEED X700 (XGA).

LCD projector - XGA resolution

LCOS projector - SXGA+ resolution

Projector

Resolution

Professional

Image Quality

XGA

1024 x 768

WXGA

1280 x 800

SXGA

1280 x 1024

WXGA+

1440 x 900

WSXGA+

1680 x 1050

WUXGA

1920 x 1200

HD Ready

(720p)

Full HD

(1080p)

Video Compatibility

PC Compatibility

*Not available on XEED SX800.

PC PC

Controller

Projector 1

Screen

Document

scanner

Video recorder

DVD player

Dimmer

control

Video camera

Touch panel

Get Connected.

Connect instantly to all standard image sources, via a comprehensive range of analogue and digital connectivity options – plus

dedicated audio and control ports. Selected XEED models expand your presentation options with network connectivity, digital links to

High Denition sources, and direct connections to USB ash drives or PictBridge-enabled digital cameras.

Automatic Intelligence.

Auto Input Selection detects the active input terminal and congures itself

accordingly.

Auto Screen Colour Correction* automatically compensates for the colour

of the projection surface to deliver perfect images with natural looking

colours.

Auto Focus* automatically sets the projector focus to the optimum

position, taking into account throw distance and projection angle.

Auto Vertical Keystone Correction compensates for projector tilt up to +/-

20 degrees, to deliver perfectly square images with parallel edges.

NO PC REQUIRED

With the new “PC-Free Presentation” feature found on the XEED SX80, you

can project images straight from USB ash drives or PictBridge-enabled

digital cameras - perfect for spontaneous presentations, or occasions when

carrying a computer is impractical.

Without Auto Focus and

Keystone Correction

Focus and Keystone are

adjusted automatically, in

a matter of seconds

Screen Colour

Correction Off

Screen Colour

Correction On

NETWORK READY

For easy, centralised control and monitoring, the

XEED WUX10 and XEED SX80 both feature a built-in

RJ-45 port. An optional Network Adaptor is available

as an optional accessory for most other XEED

models.

Projector 1

Centralized

management

Example: Corporate LAN

Projector 2

Projector 3

NETWORK CONNECTIVITY

INTEGRATION OPTIONS

LOSSLESS DETAIL

Both the XEED SX80 and XEED WUX10 include

DVI and HDMI™ terminals, giving exacting image

reproduction from High Denition sources like

personal computers and set-top boxes.

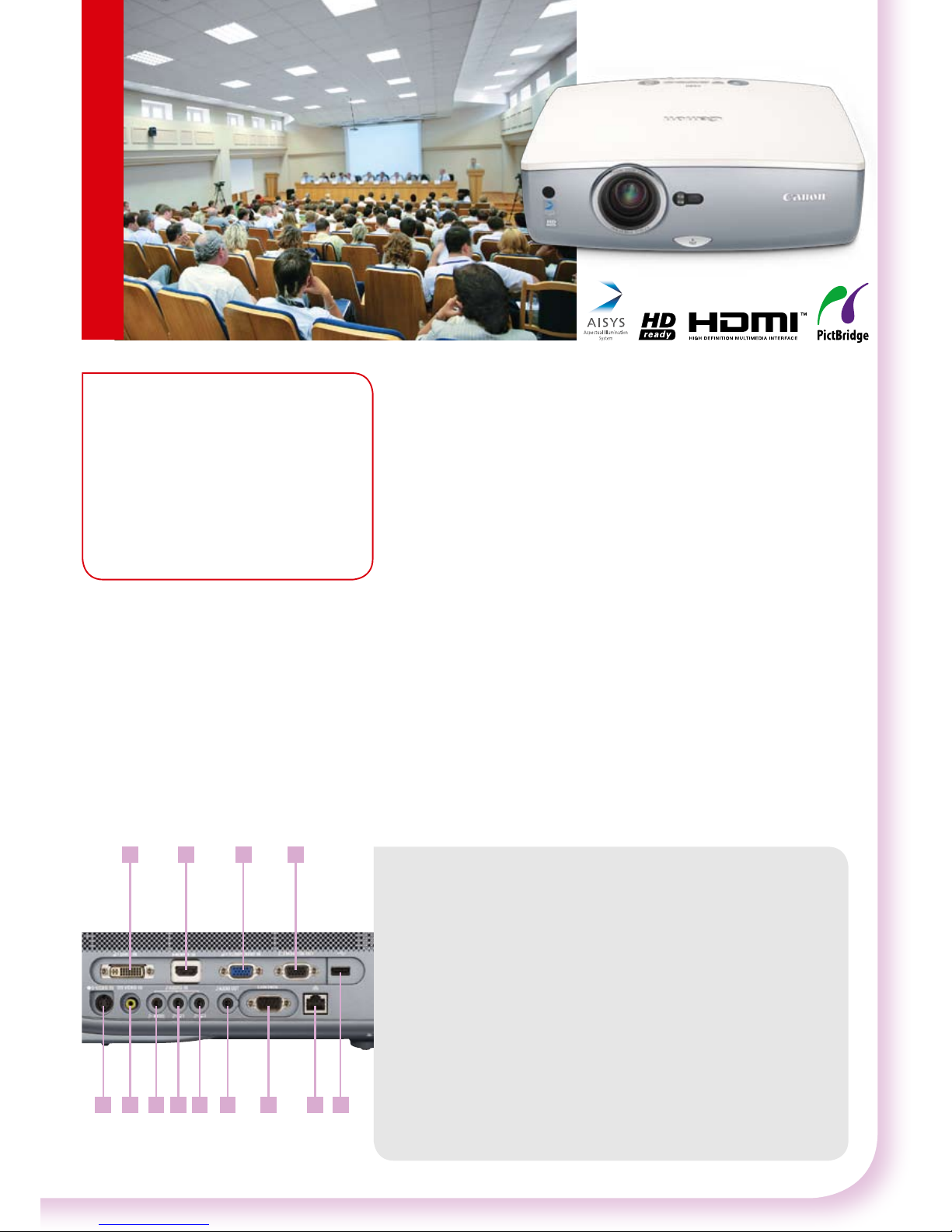

XEED WUX10

5 94 6 7 8 10

WUXGA and Full HD -

the Best of Both Worlds.

With industry-leading WUXGA resolution (1920 x 1200), the agship XEED

WUX10 redenes the capabilities of a portable projector. Projecting widescreen

computer images and Full HD Video (1080p) at a powerful 3200 lumens, it is

ideal for business and specialist AV use.

• Native WUXGA resolution (1920 x 1200

pixels) also handles Full HD (1080p)

• Canon AISYS Optical System yields bright

3200 lumens and 1000:1 contrast - for

clear images and vivid colours, even in

adverse lighting conditions

• Canon 1.5x powered zoom lens with 10:0

lens offset for exible placement

• Fully automatic setup: Auto Focus, Keystone

Correction, Screen Colour Correction and

Input Selection

• DVI port and HDMI™ Connector for perfect

reproduction of digital sources

• Quiet operation: runs at just 31dBA in Quiet

Mode, to minimise audience distraction

• RJ-45 terminal for control and monitoring

via a network

• Compact, lightweight design –

weighs just 4.9kg

TARGET MARKETS

Business & Education:

Boardrooms; Lecture Theatres

Specialist Applications: Publishing, Printing &

Pro Photo Applications; CAD & CAE; Simulation

& Virtual Reality; Sports & Media Bars

VIDEO INPUT AND

OUTPUT

1. DVI-I 29-pin

Digital RGB / Analogue RGB

Input

2. HDMI™ v. 1.3

(with Deep Colour)

Digital Video and Digital

Audio Input

3. Mini D-sub 15-pin

Analogue RGB Input 2 /

Analogue RGB (Monitor)

Output (Component input via

adaptor cable)

4. RCA x 1

Composite Video Input

IN BOX ACCESSORIES

Remote Control (with batteries)

DVI-I Computer Connection Cable

Component Video Cable

Soft case

AC Mains Power Cable

USB Cable

Lens Cap

OPTIONAL ACCESSORIES

DVI cable: LV-CA29

Replacement Lamp: RS-LP04

Ceiling Mounting Bracket: RS-CL07

Ceiling Pipe 400-600mm: RS-CL08

Ceiling Pipe 600-1000mm: RS-CL09

AUDIO INPUT AND

OUTPUT

5. 3.5mm mini-jack

Stereo Audio Input 1

6. 3.5mm mini-jack

Stereo Audio Input 2

7. 3.5mm mini-jack

Stereo Audio Input 3

8. 3.5mm mini-jack

Stereo Audio Output (Variable

level)

PROJECTOR CONTROL

9. Mini D-Sub 9-pin

Control Port (RS-232C)

10. RJ-45

Network Connection

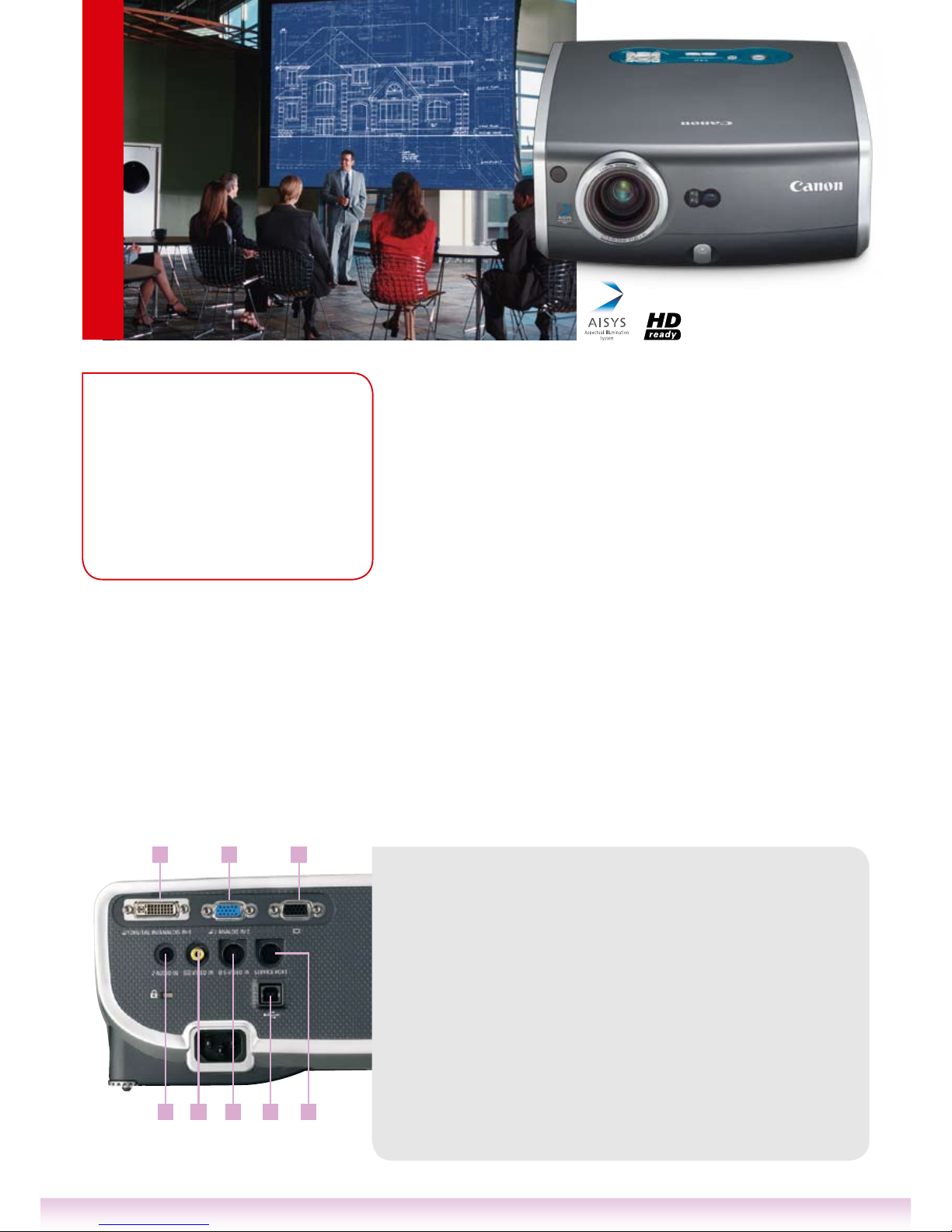

XEED SX7

6 7 8 11 4 5 10 9

2 3

Superior Brightness.

Perfect Detail.

The XEED SX7 is ideal for boardrooms, large venues and AV installations.

Delivering an ultra-bright 4000 lumens projection at SXGA+ resolution,

the XEED SX7 incorporates Canon’s unique AISYS optical system for high

brightness.

• Native SXGA+ resolution and LCOS

technology for seamless, lattice-free images

• Canon Advanced AISYS Optical System

delivers an ultra-bright 4000 lumens and

1000:1 contrast, for clear projection and

vivid colours

• Fully automatic setup: Auto Focus, Auto

Keystone Correction, Auto Screen Colour

Correction and Auto Input Selection

• Canon powered wide-angle 1.7x zoom lens

for exible projector placement

• HD Ready, with HDCP-enabled DVI port

• Support for Adobe RGB and sRGB colour

spaces, with bright sRGB mode

• Quiet operation: runs at just 31dBA in Quiet

Mode, to minimise audience distraction

• Compact, lightweight design –

weighs just 4.8kg

TARGET MARKETS

Business & Education: Boardrooms; Lecture

Theatres; Conference Centres

Specialist Applications: Photo Enthusiasts;

Publishing, Printing & Pro Photo Applications;

Museums; CAD & CAE; Simulation

VIDEO INPUT AND

OUTPUT

1. DVI-I 29-pin

Digital RGB / Digital Video /

Analogue RGB Input 1

2. Mini D-sub 15-pin

Analogue RGB Input 2

(Component/SCART via

adaptor cable)

3. Mini D-sub 15-pin

Analogue RGB (Monitor)

Output

4. Mini DIN 4-pin

S-Video Input

5. RCA x 1

Composite Video Input

IN BOX ACCESSORIES

Remote Control (with batteries)

Soft Case

DVI-I Computer Connection Cable

Component Video Cable

AC Mains Power Cable

USB Cable

Lens Cap

OPTIONAL ACCESSORIES

Replacement Lamp: RS-LP04

Ceiling Mounting Bracket: RS-CL07

Ceiling Pipe 400-600mm: RS-CL08

Ceiling Pipe 600-1000mm: RS-CL09

SCART cable: LV-CA31

RS-232C control cable: RS-CA01

Network Adaptor: RS-NA01

AUDIO INPUT AND

OUTPUT

6. 3.5mm mini-jack

Stereo Audio Input 1

7. 3.5mm mini-jack

Stereo Audio Input 2

8. 3.5mm mini-jack

Stereo Audio Input 3

9. 3.5mm mini-jack

Stereo Audio Output (Variable

level)

PROJECTOR CONTROL

10. USB Type ‘B’

USB Mouse Control

11. Mini-DIN 8-pin

Service Port

56 7 8

XEED SX6

Superior Projection for

Enhanced Presentations.

Packed with powerful technology, the XEED SX6 is the ideal projector for

maximum impact, high quality presentations. LCOS technology combines

with SXGA+ resolution and Canon’s unique AISYS optical system to provide

detailed, seamless projection. The XEED SX6 offers advanced colour

reproduction for graphics specialists.

• Native SXGA+ resolution and LCOS

technology for seamless, lattice-free images

• Canon’s Advanced AISYS Optical System

delivers a bright 3500 lumens and 1000:1

contrast ratio, for clear projection and vivid

colours

• Fully automatic setup: Auto Focus, Auto

Keystone Correction, Auto Screen Colour

Correction and Auto Input Selection

• Canon powered wide-angle 1.7x zoom lens

for exible projector placement

• HD Ready, with HDCP-enabled DVI port

• Support for Adobe RGB and sRGB colour

spaces

• Quiet operation: runs at just 31dBA in Quiet

Mode, to minimise audience distraction

TARGET MARKETS

Business & Education:

Boardrooms; Lecture Theatres

Specialist Applications: Publishing, Printing &

Pro Photo Applications; CAD & CAE; Medical

VIDEO INPUT AND

OUTPUT

1. DVI-I 29-pin

Digital RGB / Digital Video /

Analogue RGB Input 1

2. Mini D-sub 15-pin

Analogue RGB Input 2

(Component SCART via

adaptor cable)

3. Mini D-sub 15-pin

Analogue RGB (Monitor)

Output

4. Mini DIN 4-pin

S-Video Input

5. RCA x 1

Composite Video Input

IN BOX ACCESSORIES

Remote Control (with batteries)

Soft Case

DVI-I Computer Connection Cable

Component Video Cable

AC Mains Power Cable

USB Cable

Lens Cap

OPTIONAL ACCESSORIES

Replacement Lamp: RS-LP02

Ceiling Mounting Bracket: RS-CL07

Ceiling Pipe 400-600mm: RS-CL08

Ceiling Pipe 600-1000mm: RS-CL09

SCART cable: LV-CA31

RS-232C control cable: RS-CA34

Network Adaptor: RS-NA01

AUDIO INPUT AND

OUTPUT

6. 3.5mm mini-jack

Stereo Audio Input

PROJECTOR CONTROL

7. USB Type ‘B’

USB Mouse Control

8. Mini-DIN 8-pin

Service Port

XEED SX80

Unrivalled Clarity.

Complete Connectivity.

With native SXGA+ resolution and a 1.5x zoom lens, the XEED SX80 offers

superb image quality and connectivity. DVI and HDMI™ terminals provide

direct digital connections to High Denition sources, while PC-free operation

allows image display straight from USB ash drives or PictBridge-enabled

digital cameras.

• Native SXGA+ resolution and Canon LCOS

panel technology for outstanding image

quality

• Third Generation AISYS Optical System

delivers 3000 lumens and 900:1 contrast

ratio, for powerful images with vivid colours

• New Canon 1.5x powered zoom lens with

10:0 lens offset for easy installation

• Fully automatic setup: Auto Focus, Keystone

Correction, Screen Colour Correction and

Input Selection

• PC-Free Presentation from USB ash drive or

digital camera

• HD Ready, with DVI and HDMI™ terminals

• Integrated RJ-45 Port for control and

monitoring via a network

• Quiet operation: runs at just 31dBA in Quiet

Mode, to minimise audience distraction

• Compact, stylish design

TARGET MARKETS

Business & Education: Boardrooms; Lecture

Theatres; Conference Centres

Specialist Applications: Design Applications,

Medical; Simulation; Photo Enthusiasts

VIDEO INPUT AND

OUTPUT

1. DVI-I 29-pin

Digital RGB / Digital Video /

Analogue RGB Input

2. HDMI™ v. 1.3

(with Deep Colour)

Digital Video and Digital

Audio Input

3. Mini D-sub 15-pin

Analogue RGB Input 2

(Component input via

optional adaptor cable)

4. Mini D-sub 15-pin

Analogue RGB (monitor) output

5. Min-DIN 4 Pin

S video input

6. RCA x 1

Composite Video Input

7. USB Type A

USB Connection, PictBridge

input

IN BOX ACCESSORIES

Remote Control (with batteries)

Soft Case

DVI-I Computer Connection Cable

Component Video Cable

AC Mains Power Cable

USB Cable

Lens Cap

OPTIONAL ACCESSORIES

DVI cable: LV-CA29

Replacement Lamp: RS-LP05

Ceiling Mounting Bracket: RS-CL10

Ceiling Pipe 400-600mm: RS-CL08

Ceiling Pipe 600-1000mm: RS-CL09

AUDIO INPUT AND

OUTPUT

8. 3.5mm mini-jack

Stereo Audio Input 1

9. 3.5mm mini-jack

Stereo Audio Input 2

10. 3.5mm mini-jack

Stereo Audio Input 3

11. 3.5mm mini-jack

Stereo Audio Output (Variable level)

PROJECTOR CONTROL

12. Mini D-Sub 9-pin

Control Port (RS-232C)

13. RJ-45

Network connection

1 2 3 4

5 6 8 9 710 11 12 13

XEED SX800

3 6 4 5 7

2 81

The affordable way to SXGA+ quality.

With Canon LCOS technology and a bright 3000 lumens output, the XEED

SX800 offers top-quality SXGA+ imaging at a price point more often associated

with XGA models. The addition of Canon’s 1.5x zoom lens ensures exible

placement and perfect image geometry.

• Native SXGA+ resolution with Canon LCOS

panel technology for outstanding image

quality

• Canon AISYS Optical System delivers 3000

lumens brightness

• 900:1 contrast ratio for vivid colours and

deep blacks

• Canon 1.5x powered zoom lens with 10:0

lens shift for easy installation

• Automatic Setup: Auto Keystone Correction

and Auto Input Selection

• Near-silent operation: just 31dBA in

Quiet Mode

• Body and ceiling bracket designed for easy

installation and maintenance

TARGET MARKETS

Business & Education:

Hotels - Conference Facilities, General Business

Use, (Meetings, Presentations), Higher Education,

Medical Imaging

VIDEO INPUT AND

OUTPUT

1. Mini D-sub 15-pin

Analogue RGB Input 1

(Component via optional

adaptor cable)

2. Mini D-sub 15-pin

Analogue RGB Input 2

3. RCA x 1

Composite Video Input

IN BOX ACCESSORIES

Remote Control (with batteries)

AC Mains Power Cable

Computer Connection Cable

Component Video Adaptor Cable

Carrying Case

Warranty Card

Instruction Book

Quick Operation Guide

OPTIONAL ACCESSORIES

Lamp Assembly RS-LP05

Ceiling Attachment RS-CL10

Ceiling Pipe 400 - 600mm RS-CL08

Ceiling Pipe 600 - 1000mm RS-CL09

AUDIO INPUT AND

OUTPUT

4. 3.5mm mini-jack

Stereo Audio Input 1

5. 3.5mm mini-jack

Stereo Audio Input 2

6. 3.5mm mini-jack

Stereo Audio Input 3

7. 3.5mm mini-jack

Stereo Audio Output

(Variable level)

PROJECTOR CONTROL

8. Mini D-Sub 9-pin

Control Port (RS-232C)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Canon Projecteur

Canon

Canon REALiS SX80 Mark II D Manuel d'installation et d'exploitation

Canon

Canon LV-7345 Manuel utilisateur

Canon

Canon LV 7490 Manuel utilisateur

Canon

Canon WUX5800 Manuel utilisateur

Canon

Canon LV-S4 Manuel utilisateur

Canon

Canon RealIS SX6 Manuel utilisateur

Canon

Canon LV-8225 Manuel utilisateur

Canon

Canon LV-S4 Manuel utilisateur

Canon

Canon WUX6000 Manuel utilisateur

Canon

Canon LV-7545 Manuel utilisateur

Canon

Canon LV-5200U Manuel utilisateur

Canon

Canon LV-7290 Manuel utilisateur

Canon

Canon REALiS SX6000 Pro AV Manuel utilisateur

Canon

Canon RE-350 Manuel utilisateur

Canon

Canon WX6000 Manuel utilisateur

Canon

Canon LV-5220 - Multimedia Projector SVGA Manuel utilisateur

Canon

Canon REALiS SX80 Mark II D Manuel utilisateur

Canon

Canon 2105B002AA Manuel utilisateur

Canon

Canon LV-7105 Manuel utilisateur

Canon

Canon LV 7490 Manuel utilisateur

Canon

Canon LV-7575 Manuel utilisateur

Canon

Canon 4K500ST Manuel utilisateur

Canon

Canon LV-7290 Manuel utilisateur

Canon

Canon LV-X4 Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
