Setup Guide

Introductory Information

ENGLISH

QT6-1322-V01 PRINTED IN XXXXXXXXXXXXXXXX © CANON INC. 2016

479

Before setting up the printer, check the completed image of the printer you purchased and make sure you have enough space to install the printer.

It is recommended that you reserve space of the following dimensions to allow you to work around the printer.

Introduction

Read this manual before attempting to operate the printer.

Keep this manual in a handy location for future reference.

Set up the printer using the following procedure.

* Refer to the separate manual

• Windows is a trademark or registered trademark of Microsoft Corporation in the

U.S. and/or other countries.

PRO-2000

Installation space (W x D x H)

• When not using the stand

59.5 x 56.5 x 40.2 inches

(1510 x 1434 x 1020 mm)

• When using the stand

59.5 x 66.3 x 61.5 inches

(1510 x 1684 x 1560 mm)

PRO-4000

Installation space (W x D x H)

78.5 x 66.3 x 61.5 inches

(1993 x 1684 x 1560 mm)

PRO-4000S

Installation space (W x D x H)

78.5 x 66.3 x 61.5 inches

(1993 x 1684 x 1560 mm)

PRO-6000S

Installation space (W x D x H)

94.5 x 66.3 x 61.5 inches

(2399 x 1684 x 1560 mm)

Before Setting Up the Printer

Overview of Setup

Important

• The printer stand and roll unit may be options depending on the model. Care is required because the required space may differ depending on whether or not the

options are used.

• The space required in front of the printer differs on how the basket supplied with the printer stand is used. This shows the installation space when used in the

position in the illustration.

Caution

• Instructions in this Setup Guide show the PRO-4000 printer. Note that your printer may look different from these illustrations in some cases. However,

the basic operations are the same.

Note

• Some items are included with the printer but not described in

this manual.

Keep these items in a safe place after setup because they

are used invarious printing applications.

• For instructions on the included items not described in this

manual, refer to the Online Manual. ("How to Display the

Online Manuals" on p.14)

• A cable to connect the printer to a computer is not provided

with the printer.

RMC (Regulatory Model Code): K10441

RMC (Regulatory Model Code): K10440

RMC (Regulatory Model Code): K10439

RMC (Regulatory Model Code): K10438

If an error message appears during setup or other problems occur,

refer to "Responding to Messages" on p.14.

Assemble the Stand (P.3)

(P.3)

Attach the Roll Unit (P.4)

Attach the Basket (P.4)

Turn On the Printer (P.4)

Install the Ink Tanks (P.6)

Install the Print Head (P.8)

Load the Paper (P.9)

(P.10)

(P.11)

Perform Print Head Adjustment and Select the Connection

Method on the PRO-2000

Select the Connection Method and Perform Print Head

Adjustment on the PRO-4000, PRO-4000S, and PRO-6000S

Connect to the Printer (P.12)

Store Accessories in the Pockets (P.13)

How to Display the Online

Manuals (P.14)

Install the Printer

3.9 inches (100 mm)

5.9 inches (150 mm)

7.9 inches (200 mm)

23.6 inches

(600 mm)

7.9 inches

(200 mm)

3.9 inches (100 mm)

5.9 inches (150 mm)

7.9 inches (200 mm)

23.6 inches

(600 mm)

7.9 inches

(200 mm)

3.9 inches

(100 mm)

(When not using

the stand)

23.6 inches

(600 mm)

(When not

using the stand)

23.6 inches

(600 mm)

(When using the stand)

3.9 inches (100 mm)

(When using the

stand)

5.9 inches (150 mm)

7.9 inches

(200 mm)

7.9 inches

(200 mm)

3.9 inches (100 mm)

5.9 inches (150 mm)

7.9 inches (200 mm)

23.6 inches

(600 mm)

7.9 inches

(200 mm)

Package Contents

A. Printer

B. Basket rod / Basket cloth (*1)

C. Paper for adjustment

D. Setup Guide (this manual)

E. Starter ink tanks (x 2) (*2)

F. Set of CD-ROMs

G. Set of printer documentation

H. Rod holder (x 2) (*1)

I. Print head

J. Stand leg L (*1)

K. Stand leg R (*1)

L. Stand stay (*1)

M. Basket arm (x 2) (*1)

N. 3-inch paper core attachment (x 2)

O. M4 hex screw (x 9) (*1)

P. M8 hex screw (x 4) (*1)

Q. M4 Hex screw for basket arm (x 4) (*1)

R. M8 Allen wrench (*1)

S. M4 Allen wrench (*1)

T. Accessory pocket (*1)

U. Power cord

V. Holder stopper (*3)

● Roll Unit

*1 Only included with models where the stand is included as standard. Furthermore, it may be packaged in a separate box

depending on the region where you purchased the printer.

*2 The number and types of ink tanks differ between models.

For the PRO-2000 and PRO-4000 :

MBK, PBK, C, M, Y, PC, PM, R, CO, B, GY, PGY

For the PRO-4000S and PRO-6000S :

MBK, PBK, C, M, Y, PC, PM, GY

*3 The holder stopper is used when loading roll paper. For details, refer to the Online Manual.

● Printer

On the PRO-6000S, this is included as standard.

On the PRO-2000, PRO-4000, and PRO-4000S, this is an option.

Refer to the "Roll Unit Setup Guide" for details on the products included in the boxes.

The Manuals Supplied with This Printer

Printed Manuals

Quick Guide

The Quick Guide contains information related to warnings for using this

product safely and information related to replacing paper, ink tanks, and

the print head.

Electronic Manuals

Online Manual

This manual describes advanced usage of the printer such as paper saving tips,

how to print a poster and banner with the supplied software and print quality

adjusting method, in addition to the basic instructions for printing on roll paper or

cut sheet.

To view the electronic manuals, refer to "How to Display the Online Manuals"

(p.14).

After installing the printer as shown in this Setup Guide, refer to the manuals for instructions on operation and maintenance.

G F

O, P, Q, R, S N

Caution

• Models That Use a Stand

Assemble the stand on which you will install the printer.

-> Refer to "Assemble the Stand" to "Prepare to Install the Printer" in the Printer Stand Setup Guide (separate manual).

• Models That Do Not Use a Stand

Proceed to "Install the Printer".

Remove the packaging material.

Remove all of the tape and other packaging material. Open the top

cover (A) and output guide (B), and then remove the tape afxed to

the roll holder.

With 3 people holding the carrying handles under the printer on both ends, lift the printer.

• The printer alone weighs differently depending on

the model. PRO-2000 is approx. 185 lb (84 kg),

PRO-4000 is approx. 231 lb (105 kg), PRO-4000S

is approx. 227 lb (103 kg), and PRO-6000S is

approx. 260 lb (118 kg). Moving the printer requires

at least 6 people, 3 on either side. Be careful to

avoid back strain and other injuries.

• When moving the printer, rmly grasp the carrying

handles (A) under each side. Holding the printer at

other positions is dangerous and cause injury and

damage if the printer is dropped.

• When setting the printer down temporarily make

sure to put the printer on a at, stable place.

• When standing the printer up, make sure the side

with the control panel is up, and place cardboard

or other material underneath to prevent scratching.

Furthermore, make sure that the weight of the

printer is taken by the corner of the printer. If the

weight is taken by any other part of the printer, the

printer may become damaged.

• When standing up the printer or supporting the

printer, hold the metal parts of the printer. If

you hold a plastic part, the printer may become

damaged.

• The way to set the printer down or to carry with the

load only to the center of the printer, may cause

damage to the printer.

Assemble the Stand

Install the Printer

• Models That Use the Roll Unit

Attach the roll unit to the stand.

-> Refer to the Roll Unit Setup Guide (separate manual).

• Models That Do Not Use the Roll Unit

Proceed to "Attach the Basket".

• Models That Use a Stand

Attach the basket to the stand.

-> Refer to "Attach the Basket" in the Printer Stand Setup Guide (separate manual).

• Models That Do Not Use a Stand

Proceed to "Turn On the Printer".

Place the printer on the stand such that the protrusion (A) for aligning

the position of the printer under the rear side of the printer is aligned

with the position of the black marker on the basket rod attached to

the supporting plate.

Important

• If you are not using a stand, place the printer in the installation

location and proceed to "Turn On the Printer".

Afx the printer to the stand.

Remove the basket rod.

Use an M4 Allen wrench to securely afx by using three M4

hex screws each on the left and right from the bottom of the

supporting plate.

Open the top cover.

Pull up and remove the belt stopper (A).

Note

• Keep the belt stopper you removed for future use. You

will need them in case you move the printer to another

location.

• When you open the top cover, a cleaning brush is

stored on the right side. Take it out and use it when

cleaning inside the top cover.

Attach the Basket

Turn On the Printer

Attach the Roll Unit

Peel off the tape afxed to the carriage, and then pull the protective

material (A) towards you and remove it. Remove the protective sheet

if there is one attached.

Close the top cover.

Plug the power cord into the power supply connector on the back of the printer.

PRO-2000 PRO-4000 / PRO-4000S / PRO-6000S

Plug the power cord into the outlet.

Turn on the printer.

When the language selection screen appears on the touch screen,

select and tap a language (lightly with your nger, and then move

your nger away). Then, if the screen for selecting a time zone

appears, select and tap your region.

When a message prompting you to start the setup appears on the

touch screen, tap OK.

Shake each ink tank gently 7 or 8 times

before opening its pouch.

Important

• Failure to shake the ink tanks may result

in reduced print quality because ink

ingredients have settled on the bottom

of the tank.

Note

• If the ink tank is cold, allow it to adjust to

room temperature before attaching it to

the printer.

Open the pouch and remove the ink tank.

Important

• Never touch the ink holes (A)

or metal contacts (B). Touching

these parts may cause stains,

damage the ink tank, and

affect print quality.

• Avoid dropping the ink tank

after removing it from the

pouch. Otherwise, ink may

leak and cause stains.

• Do not remove ink tanks to shake them

after they have been mounted. Doing so

may cause ink to spill.

Orient the ink tanks and mount them in

the holders with ink holes down and metal

contacts on the bottom.

Important

• An ink tank cannot be mounted in the

holder if it is not oriented correctly for the

color.

• Do not try to force an ink tank into the

holder if it does not go in normally.

Check the color indicated on the label

and the ink tank orientation, and then try

mounting the tank into the holder again.

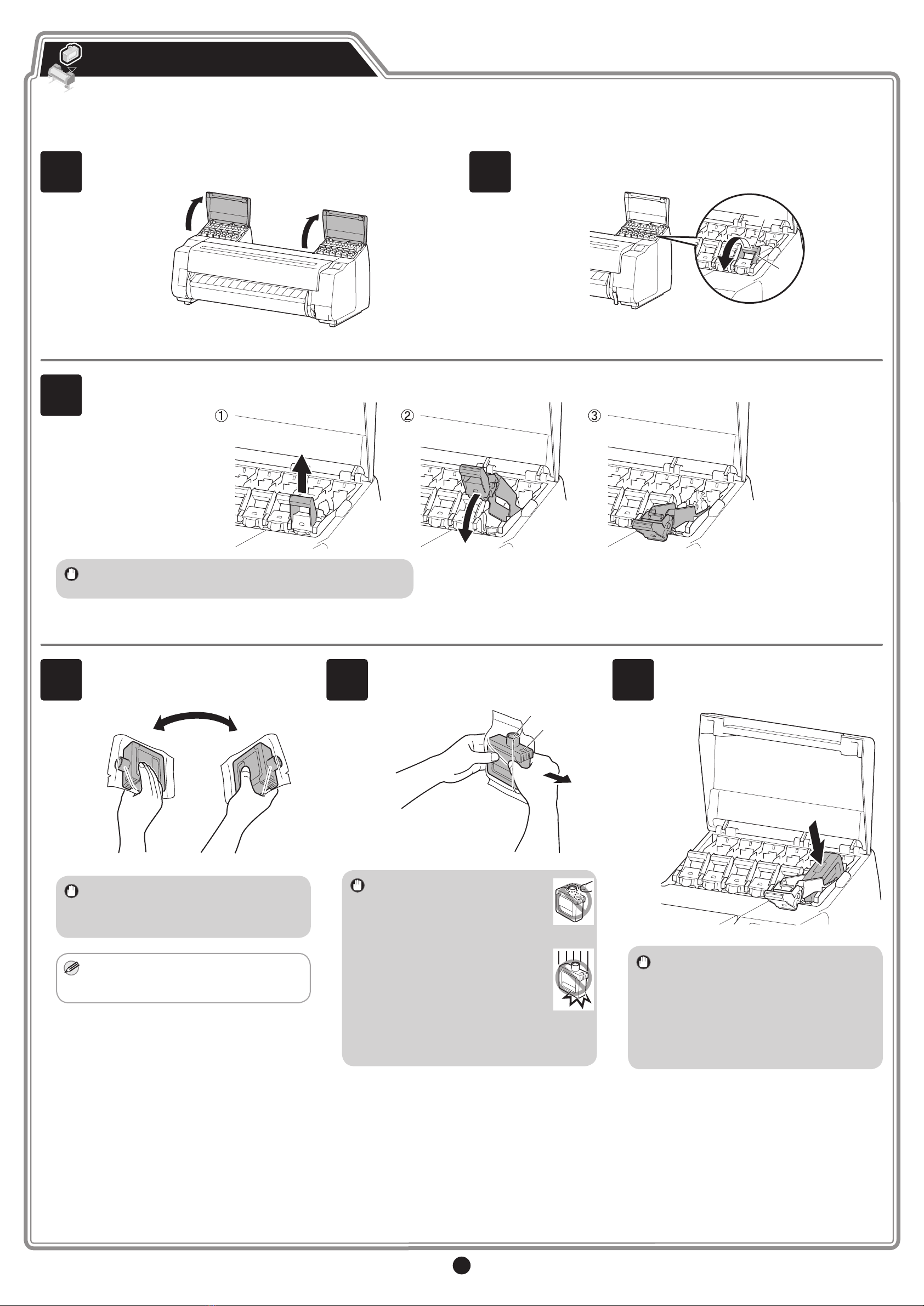

Instructions on ink tank installation are shown on the screen. Open

the ink tank covers as instructed.

Pull out the handle part (A) of the ink tank lock lever for the color of

ink to install while pressing the button at position (B).

Install the ink tanks. The PRO-2000 and PRO-4000 use 12 ink tanks, and the PRO-4000S and PRO-6000S use 8 ink tanks.

Install the Ink Tanks

Lift up the ink tank lock lever until it stops, and then pull it towards you.

Important

• Make sure the ink tank lock lever stays in the locked position.

Lift up the ink tank lock lever once and

then push it down.

Firmly push down the handle part of the

ink tank lock lever all the way in.

Make sure the ink lamp lights red.

Important

• If the ink lamp does not light, repeat

steps 2, 3, 7, and 8.

Repeat steps 2 to 9 to install each of the

ink tanks.

Close the ink tank covers.

When the instruction to open the top

cover appears on the screen, open the

top cover.

Instructions are now shown on the screen

regarding print head installation.

Tilt the print head lock lever towards

you while pressing the button in the

middle. Remove the protective sheet if

there is one attached.

Grasp the grip in the center of the print

head locking cover and open it. Do not

touch the contacts (A) on the carriage.

Remove the print head from the box

and bag, and peel off the xing tape.

Grasp the blue handle and remove the

print head.

Remove the orange protective caps (2

pieces).

Important

• Do not touch any part other than the

handle or put down the unit.

• The print head contains ink, so be

careful not to spill it once the protective

caps are removed.

• Do not reattach the protective caps

after removing them. Dispose of them

according to local regulations.

Insert the print head into the carriage with the ink holes (A) on the upper side and facing

towards you as shown in the gure. Carefully push the print head rmly into the carriage,

ensuring that the part covered by the protective caps does not touch the carriage.

Pull the print head locking cover down

toward the front to lock the print head in

place.

Push the print head lock lever all the

way in until it makes a click sound.

Close the top cover.

Note

• If the roll unit is installed, the roll unit

calibration starts automatically after the

print head is attached.

If the roll holder is mounted on the roll

unit at this time, calibration cannot be

executed. Do not mount the roll holder

on the roll unit until the setup has

nished.

Install the Print Head

Tap OK.

Tap Manual.

Open the top cover and lift the release

lever.

Important

• Do not touch the linear scale (A),

carriage shaft (B), or ink tube stabilizer

(C). Touching them may cause damage.

Insert the paper for adjustment between

the platen (A) and paper retainer (B) in

portrait orientation with the printed side of

the paper facing up.

Load the paper aligned with the paper

alignment lines (A) to ensure that the

paper is not crooked, and align the

leading edge of the paper with the front

side of the line (B).

Lower the release lever to lock the paper

and close the top cover.

The screen for selecting the paper type

appears. Tap the type of paper you

loaded.

In this case, tap Coated papers then HW

Coated HG.

Note

• If The paper is loaded askew. appears,

repeat steps 2 to 5.

Load the paper for adjustment.

The remainder of this procedure differs depending on the model you are using.

Check the name of the model you are using, and proceed to the following page.

For the PRO-2000: Go to p.10

For the PRO-4000, PRO-4000S, and PRO-6000S: Go to p.11

Load the Paper

The paper starts feeding, and then the

printer automatically starts charging the

system with ink and adjusting the print

head. Charging the system with ink

and adjusting the print head for the rst

time takes about 50 minutes and uses 5

sheets of paper for adjustment.

Important

• Do not open the covers of the printer

or turn the power off while the ink is

charging for the rst time and the print

head adjustment is executing.

Note

• Charging the system with ink lls the

system from the ink tanks to the print

head. In addition, cleaning is performed

to keep the printer in optimal condition.

This may cause the remaining ink

indicator and maintenance cartridge

capacity indicator to drop some amount.

The starter ink tank is for rst-time

installation. It is recommended that you

purchase replacement ink tanks quickly.

Once a single sheet of the adjustment

pattern has nished printing, lift up the

release lever and remove the paper for

adjustment.

Load the next paper by referring to steps

2 to 5 on p.9. Print head adjustment uses

5 sheets of paper. Repeat steps 2 and 3

until the printing has nished.

Once the print head adjustment has

nished, the screen below appears.

Tap the connection method to use.

Check the message about the connection

method and tap Yes if there are no

problems.

Wireless LAN connection

USB connection

This is the method for connecting the printer to the network without using a cable.

This is the method for connecting the printer to a computer using a USB cable.

Only 1 printer can be connected.

Do not connect the USB cable yet.

Wired LAN connection

This is the method for connecting the printer to the network using a LAN cable.

If you selected USB connection

Proceed to "Connect to the Printer" on

p.12.

If you selected Wired LAN connection

Use the LAN cable to connect the

wired LAN connector on the back of

the printer to the hub port.

Tap OK, and then proceed to "Connect

to the Printer" on p.12.

If you selected Wireless LAN connection

To congure the wireless LAN settings using a computer, tap Yes, or to congure the wireless

LAN settings on the printer, tap No, and proceed to "Connect to the Printer" on p.12.

If you selected Do not connect

Setup has nished at this point.

However, the connection settings and

software installation will need to be

performed separately in order to use the

printer from a computer.

(Refer to "Connect to the Printer" on p.12)

Perform Print Head Adjustment and Select the Connection Method on the

PRO-2000

To load roll paper after setup, tap the paper settings display area from the home screen, then (roll paper icon), then Replace paper, and follow the

instructions on the screen.

For details, refer to the Online Manual that can be accessed by the procedure in "How to Display the Online Manuals" (p.14).

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Canon Imprimante

Canon

Canon C5000 - MultiPASS Color Inkjet Printer Manuel utilisateur

Canon

Canon mageRUNNER ADVANCE C355iF Guide d'installation

Canon

Canon PIXMA TS3160 Guide de configuration

Canon

Canon i9900 Series Manuel utilisateur

Canon

Canon imageCLASS MF6500 Series Manuel utilisateur

Canon

Canon iPF500 - imagePROGRAF Color Inkjet Printer Manuel

Canon

Canon MP21D III Manuel utilisateur

Canon

Canon imageCLASS X MF1643iF II Manuel utilisateur

Canon

Canon BJ-10E Manuel utilisateur

Canon

Canon Laser Shot LBP6750dn Manuel utilisateur

Canon

Canon PIXMA TS5340a Manuel utilisateur

Canon

Canon GX3050 Manuel utilisateur

Canon

Canon g3000 series Guide de configuration

Canon

Canon imagePROGRAF iPF760 Manuel utilisateur

Canon

Canon Pixma Pro9500 Series Manuel utilisateur

Canon

Canon BJC-S9000 Manuel utilisateur

Canon

Canon imageCLASS MF221d Manuel utilisateur

Canon

Canon LBP-3260 Instructions d'installation

Canon

Canon BJC-70 Manuel utilisateur

Canon

Canon iP3500 - PIXMA Color Inkjet Printer Manuel utilisateur

Canon

Canon Color image RUNNER LBP5360 Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon Pixma iP110 series Guide de configuration

Canon

Canon i475D Series Guide de configuration

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

IRA3D

IRA3D POETRY4 Manuel utilisateur

Ricoh

Ricoh Aficio AP400 Manuel utilisateur

BIXOLON

BIXOLON SRP-352plusV Manuel utilisateur

Epson

Epson Stylus Photo PX700W Instructions de montage

Ricoh

Ricoh SP204SF Manuel utilisateur

Star Micronics

Star Micronics futurePRNT TSP100 Manuel utilisateur

Epson

Epson TM-TM88V-i Manuel d'utilisation et d'entretien
