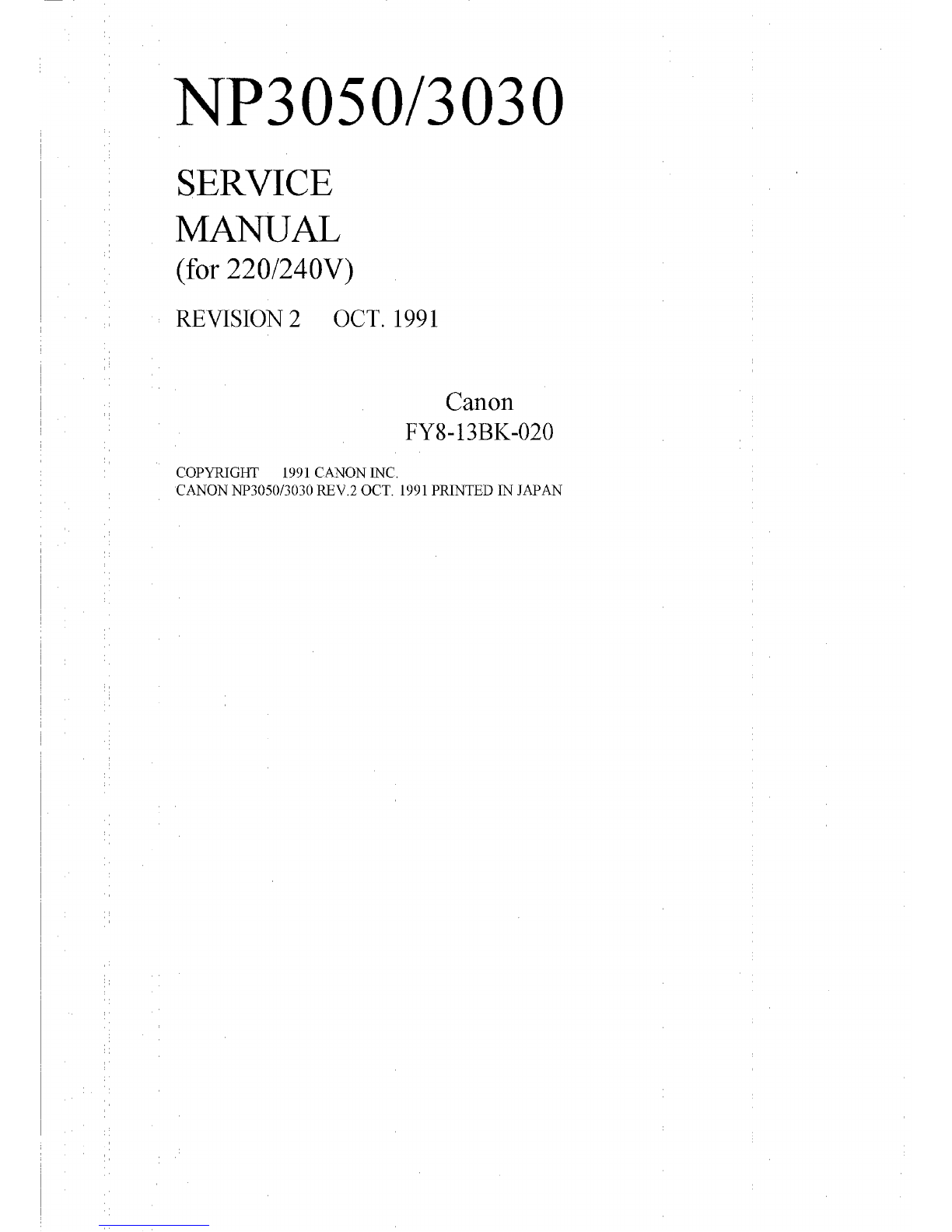

NP3050/3030

SERVICE

MANUAL

(for220124OV)

REVISION 2 OCT. 1991

Canon

FY8-13BK-020

CANON NP3050/3030 REV.2 OCT. 1991 PRINTED IN JAPAN

GENERAL DESCRlPTlONl

I. FEATURES

1. Front loading and minimal machine space.

The copier is constructed so that paper is loaded into the cassettes and the deck from the’front,

enabling a compact design.

2. Super fine toner (single-component) for high resolution.

Development of images by the single-component projection method promises stable copy quality, and

super fine panicles give enhanced resolution.

3. Full range of basic features.

.The copies may be reduced /enlarged between 50% and 200% in the zoom mode: in addition, they

may be reduced / enlarged at four fixed reproduction ratios each.

.The copies may be as large as A3 / Ledger or as small as a postcard in size; further, a wide variety of

paper materials may be used including tracing paper and OHP.

.The copies may be either of four colors: i.e., red, blue, green, or brown. (NP3050 only)

Although compact in design, the copier has a duplexing unit, thanks to its set-back mechanism. (NP305g only)

. In addition to the above, the copier is equipped with mechanisms that enable automated copying work:

i.e., auto paper selection, auto reproduction, ratio selection, and auto exposure control (AE).

COPYRIGHT0 1991 CANON INC. CANON NP305013030REV.2OCT. 1931 PRINTEDINJAPAN(IMPRIMEAUJAPGN) l-1

II. SPECIFICATIONS

A. Construction

330 W (230V model)

Copying

Charging

Exposure

Copy density adjustment

Development

Transfer

Seoaration

Indirect electrostatic

Corona

Slit (moving light source)

Automatic (AE) or Manual

Dry (projection)

2 cassettes + 2 cassettes (option ) or paper decks (option)

Manual feed tray

Corona

Corona felectrostaticl

ICleanina 1Blade

Fixing Heat roller (91OW,23OV)

1-2 COPYRIGHT0 1991CANONINC. CANONNP9050flWOREVIOCT.1941PRINTEDINJAPAN(IMPRIMEAUJAPON)d

GENERAL DESCRIPTION -

C. Performance

Document type

Document size (max.)

Reproduction ratio

Sheet, Book, 3-D object (2 kgi4.4 lb.. max.)

A3 (297 x 420 mm)/LDG (11” x 17”)

DIRECT, Fixed (Table l-l), ZOOM (50% to 200%)

Wait time 3 min or less (2O’C/68~F); if warm-up is set to 175’C

2 min 10 set or less (2O’C/68’F); if warm-up is set to 145’C

First copy 7 set or less (A4/LTFi)

Continuous copying

Copy speed

99 max.

See Table 1-2.

Copy size A3 (292 x 420 mm)/LDG (11” x17”) max.

Postcard (100 x 148 mm/3.9” x 5.8”) min.

Cassette Plain paper (64 to 80 g/ma), Tracing paper (SMl), Colored

paper

Plain paper (64 to 128 g/ma), Tracing paper (SMI , GNT80),

Manual feed tray

COPY Colored paper, OHP film, Postcard, Label sheet

paper Plain pa er (64 to 128 g/mz), Tracing paper

type Up to 2 B ”copres /f A4, 85, or Letter; 1 copy if A3, 64, LDG

Two-sided/Overlay Automatic etc. (from 128.5mm to 297mm in feeding direction from

copy 297mm to 431.8mm in crossfeeding direction)

(NP3050 only) Manual Plain paper (64 to 128 gims), Colored paper, OHP film (overlay

onlv). Postcard

Cassette

wi Claw, Front loading, 25 mm deep (about 250 sheets of

80 g/ma)

Copy tray 100 sheets (approx.; 80 g/me)

Non-image width 2.5? 1.5mm / 0.1 * 0.06 in. (leading edge)

2.0 + 1.O mm / 0.08 ? 0.04 in. (left/right)

Auto clear Available (2 min standard; may be varied in asterisk mode

between 1 to 9 min in 1-min increment; may also be disabled)

Auto shut-off Available (2 hr. standard; may be disabled in service mode)

Stapler Sorter-Al, Stapler Sorter-El, Sorter-81, Finisher 3,

ADF-Al, RDF-Bl, RDF-Bl Editor (I), Image Editing Unit-Al,

Cassette Feedino Unit-El, Paper Deck PedestaCDl, Paper

1 Deck Pedestal-E?, Control Card V, CD Unit

COPVAIGNT0 1991CANONINC. CANONNP3050RWOREV.2OCT.1991PRINTEDINJAPAN(IMPRIHE AU JAPON] l-3

D. Others

Dperating conditions Humidity

fizzzz

Power supply 230V 50 Hz

{Maximum

Ozone (average over 8 hr.)

Weight

(2R2E)

NP3050

15’C to 3O’C/59-F to 89’F NP3030

5% to 80%

0.6 to 1 atm

Serial No.

PCE xxxxx, PCF xxxxx

PCG xxxxx

RCH xxxxx, RCJxxxxx

RCK xxxxx

UCL xxxxx, UCM xxxxx

UCN xxxxx

1.5kW or less

PEQ xxxxx

REQ xxxxx

UEQ xxxxx

PFC xxxxx_

RFC xxxxx

UFC xxxxx

0.693 kW/h (ref. only)

0.168 kW/h (ref. only)

71dBorless(‘POWERSOUNDLEVEL’measurement;SD)

50dBorless(‘POWERSOUNDLEVEL’measurement;ISQ)

0.1 ppm or less

775 mm130.5 in.

665 mm/ 26.2 in.

623 mm/ 24.6 in.

90 kg / 198 lb (approx.) 825kg/182 lb (approx.)

Keep wrapped to protect against humidity.

Keep away from sunlight and keep at 4O’C,85%

or less.

Keep in box or pedestal; avoid sunlight, and keep at

30°C)85% or less

(4R4E)

Table 1-l Fixed Reproduction Ratios

l-4 COPVAK;tllO1591CMONINC. CANONNP305013030REVi20CT.1931PRINTEDINJAbIN(IYPRIMEAUJAPON)d

Reproduction ratio Copy size copies/min

A3 (297 x 420mm) 17

DIRECT 1 : 1 @0.5%) ,A4 (210 x 297mm) 31

64 (257 x 364mm) 19

85 (162 x 257mm) 30

1 :0.707 (f 1.O%) A3 + A4R 22

B4 --t B5R 24

REDUCE 1 :0.616 (+ 1.O%) 84 - A4R 22

1 : 0.665 (t 1.O%) ;: ---f 84+ 85 ::

1 : 1.414(*1.0%) $2; + A3

- 04 1:

ENLARGE 1 : 1.224 (C 1.O%) A4R ---) 84 20

1 :1.154(*1.0%) :z + A3 16

- A4 24

Table 1-2 Copying Speed

cDPwGtl10 198CANONINC. CANON NP305013WOREV1 OCT. 1991 PMED INJAPAN(lMPRlME AUJMON)d 1-5

IGENERAL DESCRIPTION

E. Editor (NP3050 only)

Area specification size (effective) 297 x 432 mm

Area specification accuracy ?l .Omm (editor only; excludes input error by pen or others)

I Input 1 Pen; input confirmed by beep. I

Area specification

Image editing

3 areas max. by diagonal points

Framing, Blanking, 2-Color

Power supply 5 V (from copier)

Weight 3kg i 6.61 lb.

Dimension 555 (W) x490 (D) x 43 (t-i) mm / 219 (W) x 193 (D) x 1.7(H)in

F. Cassette Feeding Unit-El

Paper size Same as copier.

Power supply

Dimensions

Weight

24 VDC (from copier)

705 (W) x 576 (D) x 334 (H).mm / 27.8 (W) x 22.3 (D) x 13.2 (H) in

34.5 kg / 76.06lb. (including 2 cassettes)

G. Paper Deck Pedestal-D1

Paper size

Power supply

Dimensions

A4, 85 Letter

24 DC (from copier)

702.5 (W) x 575 (D) x 335.4 (H) mm./27.7 (W) x 22.6 (D) x 13.2 (H) in

1 Weight 1 42 kg 192.60 lb.

H. Paper Deck Pedestal-El

Paper size A4, 85 ,Letter

Power supply

Dimensions

Weight

24 DC (from copier)

705 (W) x 578 (D) x 334 (H) mm / 27.8 (W) x 22.3 (D) x 13.1 (H) in

31 kg/ 6834 lb.

1-6 COPYRIGHT0 1981CANC#INC. CANONNP3OSOflWOREV.2OCT.1991PRINTEDINJAPAN(IMPRHIEAUJAPUN)

,_-- \

GENERALDESCRIPTIONI,

III. NAME OF PARTS

A. External View a %,

0 Control panel @ Front door

0 Copyboard cover @ Manual feed tray

@ Power switch 8 Cassettes

Figure l-l

0 Feeder assembly Q Hopper

release lever @ Right door

0 Fixing assembly @ Lower feeder

knob assembly (NP3050 only)

Figure I-2

COPYRIGHT0 1991 CANON INC. ‘CANON NP3050flD30REVi AUG.1991PAlNTEDINJAPAN(IMPAIMEAUJAPON) l-7’

B. Cross Section

1. Copier Body (NP3050)

0 No. 3 mirror

0 No. 2 mirror

@ No. 1 mirror

@I Scanning lamp

@ Cleaning belt

8 Cleaning assembly

0 Pre-exposure lamp

@ Zoom lens

@ Primary corona

assembly

@ Blank exposure lamp

I D

0jI No. 6 mirror

0 Photosensitive drum @ Vertical path roller 2

@I Cassette 2 pick-up

@JCD unit roller

@ No. 4 mirror 0 Cassette 1 pick-up

@ No. 5 mirror roller

@ Developing assembly @I Registration roller

(black) @ Pre-transfer corona

0 Manual feed pick-up assembly

roller @ Transfer corona

@ Vertical path roller 1 assembly

@$Separation corona

assembly

Q$ Set-back roller

@I Feeder assembly

@ Cassette 1

@ Cassette 2

@ Fixing roller

@ Delivery roller 1

@ Deflector plate

@ Delivery roller 2

Figure 1-3a (NP3050)

l-8 COPYRIGHT0 19% CANON INC. CANON NF305013CGOREY.1 AUG. 1991 PRINTED INJAPAN(IMPRIME AUJAPON)

Copier Body (NP3030)

.,-

0 No. 3 mirror 0 No. 6 mirror

@ No. 2 mirror @ Photosensitive drum

@ No. 1 mirror 0 No. 4 mirror

@I Scanning lamp @ No. 5 mirror

@ Cleaning belt

8 Cleaning assembly 8 Developing assembly

0 Pre-exposure lamp (black)

@I Zoom lens @ Manual feed pick-up

roller

@I Primary corona @ Vertical path roller 1

assembly

@.IBlank exposure lamp @ Vertical path roller 2

@ Cassette 2 pick-up

roller

@ Cassette 1 pick-up

roller

0 Registration roller

@ Pre-transfer corona

assembly

@ Transfer corona

assembly

@ Separation corona

assembly

Figure l-3b (NP3030)

8 Feeder-assembly

8 Cassette 1

8 Cassette 2

@ Fixing roller

@ Delivery roller 1

@ Delivery roller 2

1-m

COPYAffiM@1991CANONINC. CANON NF305013WOREV1 AUG. 1991 PRMED INJAPAN(IMPRlUE AU JAFON)
