Canon Image Prograf iPF 685 Series Guide de l'utilisateur

Large Format Printer

Series

Basic Guide Preface

Safety Precautions......................................................2

Manuals for this printer................................................... 6

Handling Paper

Handling rolls................................................................ 12

Handling sheets............................................................ 21

Consumables and Maintenance

Ink Tanks...................................................................... 25

Printheads.................................................................... 30

Maintenance Cartridge................................................. 36

Cleaning the Printer...................................................... 41

Printer Parts

Operations and Display Screen.................................... 45

Printer parts.................................................................. 57

Printer Relocation

Preparing to Transfer the Printer.................................. 62

Software Installation

Installing the Printer Driver (Windows)......................... 69

Installing the Printer Driver (Mac OS)........................... 71

Convenient Printer Driver Features.............................. 73

Adjustments for Better Print Quality

Adjusting the Printhead................................................ 79

Adjusting the feed amount............................................ 81

Troubleshooting

Problems Regarding Paper.......................................... 84

Printing does not start................................................... 94

The printer stops during a print job............................... 95

Problems with the printing quality................................. 96

Cannot print over a network........................................ 103

Installation problems................................................... 104

HP-GL/2 problems...................................................... 106

Other problems........................................................... 108

Error Message

Messages regarding paper......................................... 112

Messages regarding ink.............................................. 121

Messages regarding printing or adjustment................ 123

Messages regarding printheads................................. 124

Messages regarding the maintenance cartridge......... 126

Messages regarding the hard disk.............................. 127

Messages regarding HP-GL/2.................................... 129

Other Messages......................................................... 130

Error Messages.......................................................... 132

Manuals for this printer

Setup Guide

Quick Guide

Basic Guide Electronic manual

User's Guide Electronic manual

Paper Reference Guide Electronic manual

ENG

Read this manual before attempting to operate the printer.

Keep this manual in a handy location for future referencing.

ver1.00 2013-11-28

Preface

Safety Precautions

Safety Precautions ........................................................................................................................................................... 2

Legal Notices ...................................................................................................................................................................... 4

Safety Precautions

Follow the warnings and precautions below to use the printer safely. Do not perform any operations or procedures

other than as described in this manual. Doing so may result in unexpected accidents and can cause a fire or elec-

trical shocks.

Printer location

Warning

•Do not set up the printer in any location exposed to alcohol, thinner, or other volatile liquids. If these substances

come into contact with electrical components inside the printer, there is a risk of fire or electrical shock.

Caution

•Never install the printer on an unstable or vibrating surface. If it falls over, this could cause personal injury.

•Never set up the printer in a location that is exposed to high humidity or large amounts of dust, or exposed to

direct sunlight, high temperature, or open flame. This could cause a fire or electrical shock. Use the printer loca-

tion in an environment where temperature and humidity are within the ranges of 15 °C to 30 °C (59 °F to 86 °F)

and 10 to 80% RH (with no condensation).

•Never place the printer on a heavy wool or shag carpet. The fibers may enter the printer and cause a fire.

•Keep the area around the power outlet clear of items so that you can disconnect the power cable immediately if

the printer starts operating abnormally. In the event of a printer malfunction, remove the power cable from the

outlet as soon as possible to prevent fire and electrical shocks.

•Do not install the printer near sources of strong electromagnetic fields, whether equipment that generates such

fields or places where such fields occur. This could damage the printer or cause malfunction.

Power Supply

Warning

•Never handle the power cable with wet hands. Doing so may cause electrical shock.

•Insert the power cable securely and completely into the power source. If the power cable is not inserted complete-

ly, this could cause a fire or electrical shock.

•Do not use any power cable other than the one provided. This could cause a fire or electrical shock. Never use

the power cable with any other electrical device.

•Never cut the power cable or attempt to modify it, and never stretch it or bend it forcefully. Never place a heavy

object on the power cable. Damaged sections of the power cable could cause a short circuit and may cause a fire

or electrical shock.

•Never connect the power cable to a power strip or any power source shared by other electrical devices. This could

cause a fire or electrical shock.

•Never knot the power cable or wrap it around itself. This could cause a fire or electrical shock.

•Periodically disconnect the power cable and use a dry cloth to wipe away dust that has collected on the plug and

the area around the power outlet. Leaving the power cable plugged in and not cleaned for a long period, especial-

ly in an area subject to dust, oil, and humidity, could cause the insulation material to deteriorate and lead to a fire.

Safety Precautions

iPF685 Series

Basic Guide

Preface Safety Precautions

Caution

•Always grip the plug to remove the power cable from the power outlet. Pulling on the power cable could damage

the cable and lead to a fire or electrical shock.

•Never use an extension cord. This could cause a fire or electrical shock.

•Never use any power source other than 100–120 / 220–240 V AC. This could cause a fire or electrical shock. The

printer operating conditions are described below. Use the printer under the following conditions.

Power supply voltage: 100–120 / 220–240 V AC

Power supply frequency: 50/60 Hz

In an Emergency

Warning

•If the printer emits smoke or strange odors, continuing to use the printer may cause a fire or electrical shock.

Switch the printer off immediately and remove the power plug from the power outlet. Contact your Canon dealer or

support center.

Cleaning the Printer

Warning

•For cleaning, use a cloth dampened in water. Never use flammable solvents such as alcohol, benzene, or thinner.

If these substances come into contact with electrical components inside the printer, there is a risk of fire or electri-

cal shock.

Caution

•Always disconnect the power cable from the outlet before cleaning the printer. If the printer is switched on acci-

dentally, moving parts inside the printer may cause personal injuries.

Pacemakers

Warning

•This printer generates a low-level magnetic field. Anyone wearing a pacemaker who experiences discomfort while

working around the printer should leave the area. Consult a physician before continuing to work around the print-

er.

Moving the Printer

Caution

•Moving the printer requires at least three people, holding it on both sides and from behind. Be careful to avoid

back strain and other injuries.

•When moving the printer, firmly grasp the Carrying Handles under each side and in back. The printer may be

unsteady if you hold it at other positions, which poses a risk of injury from dropping the printer.

Printhead, Ink Tanks, and Maintenance Cartridge

Caution

•Always store consumables in a safe location out of the reach of small children. If a child licks or ingests ink acci-

dentally, seek medical assistance immediately.

•If ink accidentally gets in your eyes, immediately rinse with water.

If ink gets on your skin, immediately clean it off with soap and water.

If irritation persists in your eyes or on your skin, contact a physician immediately.

•Avoid dropping or shaking printheads, ink tanks, and maintenance cartridges. Spilled ink can stain clothing and

the work area.

•Never touch the electrical contacts of the Printhead after printing. The contacts become extremely hot and can

cause minor burns.

iPF685 Series

Safety Precautions

Basic Guide

Preface Safety Precautions

Other

Warning

•Never disassemble the printer or attempt repairs. There are high voltage parts inside the printer that can cause a

fire or electrical shock.

•Never use flammable sprays around the printer. The gas of flammable sprays can cause a fire or electrical shock,

if it contacts high voltage points inside the printer.

•Never touch the cutting edge of Cutter Unit (a). This could cause personal injury.

Caution

•Never insert your hand into the printer while it is printing. Moving parts inside the printer can cause injuries.

•Never place anything on the printer such as small metal objects (paper clips, staples), liquids, any type of liquid

container that contains flammable liquids (alcohol, benzene, etc.). If such objects fall into the printer, this could

cause a fire or electrical shock.

•To prevent a fire hazard or dangerous electric shock, if a foreign object falls into or a liquid spills into the printer,

press the Power button immediately to switch the printer off, unplug the printer power cable from the outlet, and

then contact your Canon dealer or support center. If you continue to use the printer, this could cause a fire or

electrical shock.

Important

•Connect the interface cable correctly. To avoid damage, before connection make sure that the shape of the cable

connector matches the connection point on the printer.

•During printing, turn on the ventilation system in the room.

•We recommend ensuring ample space for installation.

Legal Notices

FCC Regulations (U.S.A)

Canon Large Format Printer iPF685

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference

in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accord-

ance with the instructions, may cause harmful interference to radio communications.However, there is no guaran-

tee that interference will not occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

Legal Notices

iPF685 Series

Basic Guide

Preface Safety Precautions

•

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of FCC Rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the manual.

If such changes or modifications should be made, you could be required to stop operation of the equipment.

Canon U.S.A. Inc.

One Canon Park Melville, NY 11747 , U.S.A.

Tel No. 1-800-652-2666

For CA, USA Only

Included battery contains Perchlorate Material - special handling may apply.

See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/ for detail.

Trademarks

•

Canon, the Canon logo, and imagePROGRAF are trademarks or registered trademarks of CANON INC.

•

Microsoft is a registered trademark of Microsoft Corporation.

•

Windows is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.

•

Mac, Mac OS, Bonjour and OS X are trademarks of Apple Inc., registered in the U.S. and other countries.

•

Adobe RGB, a trademark of Adobe Systems Incorporated, is color space proposed by Adobe Systems Incor-

porated.

•

Unauthorized reproduction of this user manual in whole or part is prohibited.

Legal Notice

•

It is illegal to reproduce currency, bills, negotiable securities and other documents prohibited by law. Repro-

duction of such items may be subject to criminal prosecution.

•

It is illegal to reproduce legal certificates, licenses, travel tickets, and certain public and private documents pro-

hibited from reproduction by law. Reproduction of such items may be subject to criminal prosecution.

•

Please note that intellectual property protected by copyright may not be reproduced without the express per-

mission of the copyright holder except for personal or household use under limited circumstances.

iPF685 Series

Legal Notices

Basic Guide

Preface Safety Precautions

Manuals for this printer

Manuals for this printer ................................................................................................................................................. 6

To view the User's Guide or Paper Reference Guide ........................................................................................ 6

About This User Manual .............................................................................................................................................. 10

Manuals for this printer

This printer has the following manuals.

Name Contents Medium

Setup Guide Instructions for unpacking and setting up the printer, and for

installing the software and electronic manuals.

Printed Manuals

Quick Guide Contains information such as a guide to exchanging paper,

Ink Tank, and Printhead, and cautions for using the product

safely.

Basic Guide Descriptions of basic printer operations. Electronic manuals

User's Guide Detailed instructions for using the printer.

Paper Reference Guide This guide describes about the types and specifications of the

available media on the printer.

Setup Guide Quick Guide Basic Guide User's Guide Paper Reference Guide

To view the User's Guide or Paper Reference Guide

To view the User's Guide or Paper Reference Guide, display the various manuals on the website from the links in

the software installed on your computer.

•

Windows

The basic instructions for displaying the User's Guide or Paper Reference Guide from the printer driver are as

follows.

Install the software.

Note that the driver installation procedure varies depending on the type of connection.

(See "Installing the Software (Windows).") ➔P.69

Click start > Printers and Faxes (or Printer, Devices and Printers).

Manuals for this printer

iPF685 Series

Basic Guide

Preface Manuals for this printer

Right-click the printer, and then click Properties (or

Printer Properties).

Click Preferences (or Printing Preferences) to

display the Printing Preferences dialog box with

the printer name added to the title.

Select the Support sheet and click the User Man-

ual button.

iPF685 Series

To view the User's Guide or Paper Reference Guide

Basic Guide

Preface Manuals for this printer

To display User's Guide, click User's Guide.

Alternately, to display Paper Reference Guide, click

Paper Reference Guide.

•

Mac OS

The basic instructions for displaying the User's Guide or Paper Reference Guide from imagePROGRAF Print-

monitor are as follows.

Install the software.

(See "Installing the Software (Mac OS).") ➔P.71

Click System Preferences icon in the Dock.

Click Printers & Scanners (Print & Scan or Print &

Fax).

To view the User's Guide or Paper Reference Guide

iPF685 Series

Basic Guide

Preface Manuals for this printer

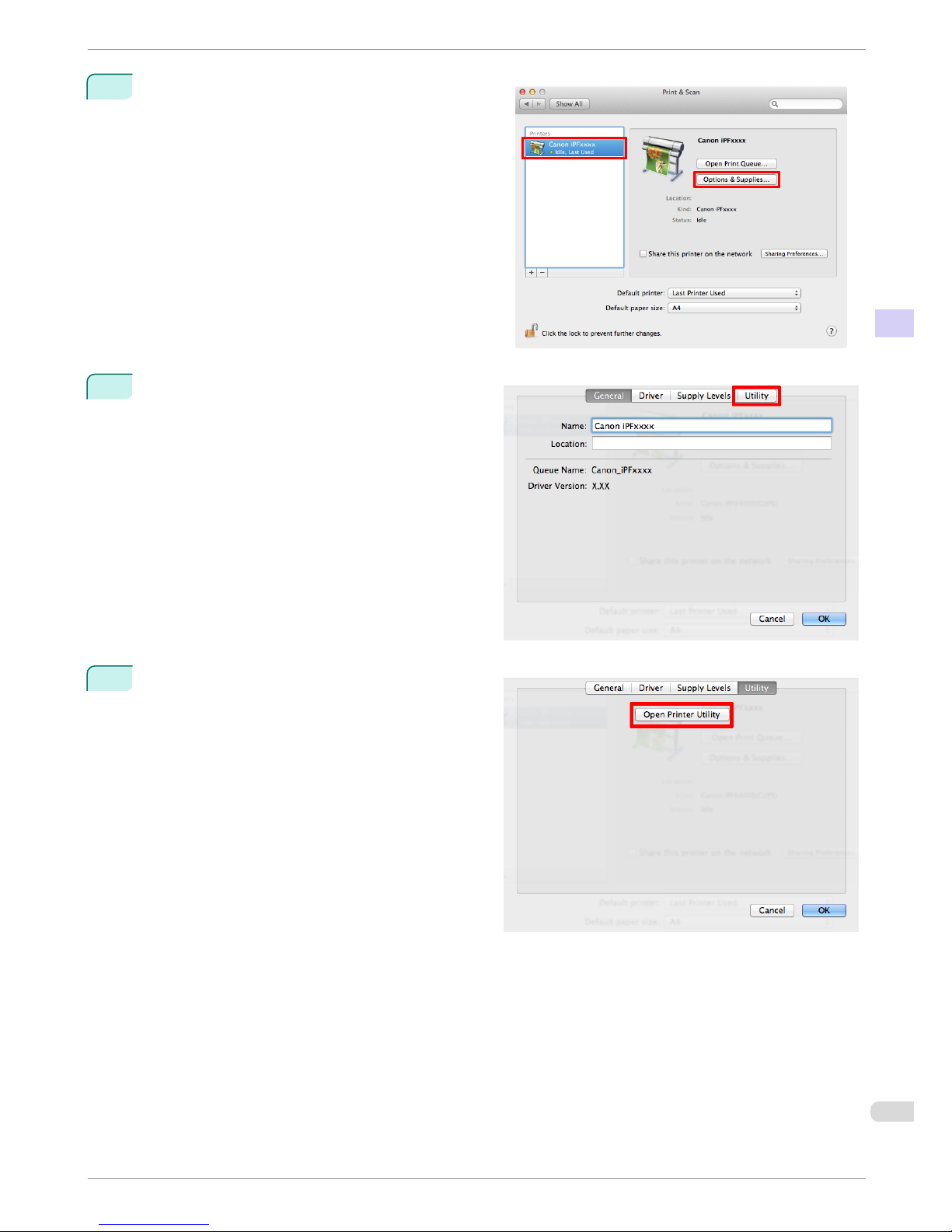

Select the printer in the Printer list and click Options

& Supplies.

Click Utility.

Click Open Printer Utility.

iPF685 Series

To view the User's Guide or Paper Reference Guide

Basic Guide

Preface Manuals for this printer

Click Support.

Click the User Manual button.

To display User's Guide, click User's Guide.

Alternately, to display Paper Reference Guide, click

Paper Reference Guide.

About This User Manual

•

Symbols

The following symbols are used in this user manual to indicate safety information and explanations on restric-

tions or precautions in use.

Warning Indicates warning items for which operating error poses a risk of death or serious injury. To ensure safe

use, always follow these warnings.

About This User Manual

iPF685 Series

Basic Guide

Preface Manuals for this printer

Autres manuels pour image Prograf iPF 685 Series

Table des matières

Autres manuels Canon Imprimante

Canon

Canon imageRUNNER ADVANCE DX 8700 Series Manuel utilisateur

Canon

Canon PIXMA IP1000 Instructions d'utilisation

Canon

Canon MG2900 Series Manuel utilisateur

Canon

Canon imageCLASS LBP6780x Manuel utilisateur

Canon

Canon BJC-8500 Manuel utilisateur

Canon

Canon imageRUNNER 2320 Manuel utilisateur

Canon

Canon ImageRUNNER ADVANCE DX C5760i Manuel utilisateur

Canon

Canon imagePRESS C8000VP Manuel utilisateur

Canon

Canon imageRUNNER ADVANCE DX C478iZ Guide d'installation

Canon

Canon GX5070 Guide de configuration

Canon

Canon Pixma G3110 Series Manuel utilisateur

Canon

Canon imageRUNNER ADVANCE DX C5870i Manuel utilisateur

Canon

Canon iPF500 - imagePROGRAF Color Inkjet Printer Manuel

Canon

Canon imagePROGRAF TA-30 Guide de configuration

Canon

Canon iP4500 - PIXMA Color Inkjet Printer Manuel utilisateur

Canon

Canon Laser Shot LBP-1120 Manuel utilisateur

Canon

Canon iPF8400S Series Manuel utilisateur

Canon

Canon G3620 Guide de configuration

Canon

Canon PIXMA G2411 Manuel utilisateur

Canon

Canon ImageRUNNER C1538iF Manuel utilisateur

Canon

Canon imagePRESS C850 Manuel utilisateur

Canon

Canon TS9000 series Manuel utilisateur

Canon

Canon imagePROGRAF iPF750 MFP M40 Manuel utilisateur

Canon

Canon PIXMA Inkjet MP230 Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

IRA3D

IRA3D POETRY4 Manuel utilisateur

Ricoh

Ricoh Aficio AP400 Manuel utilisateur

BIXOLON

BIXOLON SRP-352plusV Manuel utilisateur

Epson

Epson Stylus Photo PX700W Instructions de montage

Ricoh

Ricoh SP204SF Manuel utilisateur

Star Micronics

Star Micronics futurePRNT TSP100 Manuel utilisateur

Epson

Epson TM-TM88V-i Manuel d'utilisation et d'entretien

Canon image Prograf iPF 685 Series Guide de l'utilisateur

Manuels Imprimante populaires d'autres marques
