Preface

Introduction

This CD-R Print Guide uses the following symbols to indicate important information. Always observe the

instructions indicated by these symbols.

Instructions that, if ignored, could result in death or serious personal injury caused by incorrect

operation of the equipment. These must be observed for safe operation.

Instructions that, if ignored, could result in personal injury or material damage caused by incorrect

operation of the equipment. These must be observed for safe operation.

Important

The printing quality on CD-R/DVD-R may vary depending on the media you use.

Also read the Safety Precautions in the

User’s Guide

. Observe the warnings and cautions to avoid

personal injury or damage to the printer.

Trademark Notices

• Canon

is a registered trademark of Canon Inc.

• BJ is a trademark of Canon Inc.

• PXIMA is a trademark of Canon Inc.

• Microsoft

and Windows

are registered trademarks of Microsoft Corporation in the U.S. and other

countries.

• Apple, Mac, Macintosh are trademarks of Apple Computer, Inc., registered in the U.S. and other

countries.

• All other trademarks and registered trademarks appearing in this CD-R Print Guide are the property of

their respective owners.

without the express written permission.

Printing on CD-Rs/DVD-Rs

(CD-R Direct Print)

The CD-R Tray (supplied) allows the printing of images on CD-Rs or DVD-Rs (printable discs). The “CD-

LabelPrint” software provided on the

Setup Software & User’s Guide CD-ROM

edits and further processes the

images for printing.

Items to Prepare

The following items will be needed to print on CD-Rs or DVD-Rs:

CD-Rs or DVD-Rs (Printable Discs)

Prepare a 12 cm/8 cm size CD-R/DVD-R having a label surface that is compatible with ink-jet printing.

A “printable disc” differs from regular CD-Rs or DVD-Rs in that its printing surface has been specially

processed to be printed on by an ink-jet printer.

Cautions When Printing on CD-Rs/DVD-Rs

Read the following cautions and instructions when printing on CD-Rs or DVD-Rs:

• Be sure to use the CD-R Tray which is supplied with this printer, and has a “B” on the upper side.

• Do not print on CD-Rs/DVD-Rs that are not compatible with ink-jet printing. The ink may not dry

and will prevent subsequent use.

• Do not print on the CD-Rs/DVD-Rs’ recording surface. Doing so might prevent the reading of data

recorded on CD-Rs/DVD-Rs.

• Hold CD-Rs/DVD-Rs by their edges. Take care not to touch either the label surface (printing

surface) or recording surface.

• Be sure to remove any dirt from the CD-R Tray before placing CD-Rs/DVD-Rs on the CD-R Tray.

Use of the CD-R Tray in this state may scratch the recording surface of CD-Rs/DVD-Rs.

• Only print on CD-Rs/DVD-Rs after having recorded data. Printing before recording data may result

in fingerprints, dirt or scratches on the CD-R/DVD-R causing recording errors.

• After printing, allow the printing surface to dry naturally. Avoid using hairdryers or direct sunlight to

dry the ink. Also, do not touch the printing surface until the ink has dried.

• Do not attach the CD-R Tray while the printer is in operation (POWER lamp is blinking).

• Do not remove the CD-R Tray while printing on CD-Rs/DVD-Rs. Doing so may damage the printer,

the CD-R Tray or CD-R/DVD-R.

• Do not get dirt on, or scratch the reflectors on the CD-R Tray. If the reflectors on the CD-R Tray

become dirty, wipe the reflector plate clean with a soft, dry cloth taking care not to scratch the plate.

CD-R Tray

(“B” is molded on the upper side)

8 cm CD-R Adapter

(when printing on only

8 cm CD-Rs)

• The CD-R may become dirty if software other than CD-LabelPrint or Easy-PhotoPrint is used.

• Be sure to use the supplied 8 cm CD-R Adapter when printing on 8 cm CD-Rs.

Attaching the CD-R Tray

Preparing the CD-R Tray Feeder

Push the upper center ( ) of the

Front Cover to open the Paper Output

Tray.

Pull down the Inner Cover forward to

open.

The Inner Cover functions as the CD-R Tray Feeder.

Paper Output Tray

Inner Cover

Placing the CD-R/DVD-R on the CD-R Tray

Place the disc on the CD-R Tray with

the printable surface facing up.

When placing the CD-R/DVD-R on the CD-R Tray, do not touch the printing surface of the disc or

the reflectors on the CD-R Tray.

Reflector

When printing on an 8 cm CD-R, attach the 8 cm CD-R

Adapter (supplied). Otherwise, printing quality will be

reduced and the CD-R might be damaged.

Align the protrusions on both edges of the 8 cm

CD-R Adapter with indentations on the CD-R

Tray.

Place the 8 cm CD-R on the CD-R Tray with the

printing surface facing up.

Placing the CD-R Tray

Place the CD-R Tray on the CD-R Tray

Feeder.

Insert the CD-R Tray until the arrow

( ) on the CD-R Tray Feeder is almost

aligned with the arrow ( ) on the CD-R

Tray.

When printing on the CD-R, see “Printing on CD-Rs/

DVD-Rs.” (See page 7 for Windows and page 10 for

Macintosh.)

• When printing on the CD-R with the bundled application, do not place the CD-R Tray until a

message asking you to insert the CD-R Tray appears on your PC.

• If the CD-R Tray is inserted before the printer is ready, it may be ejected. If this happens, insert it

again according to the on-screen instructions.

Ensure that the CD-R Tray does not exceed this

point.

CD-R Tray Feeder

Align these two

arrows ( ).

Insert the CD-R Tray straightly.

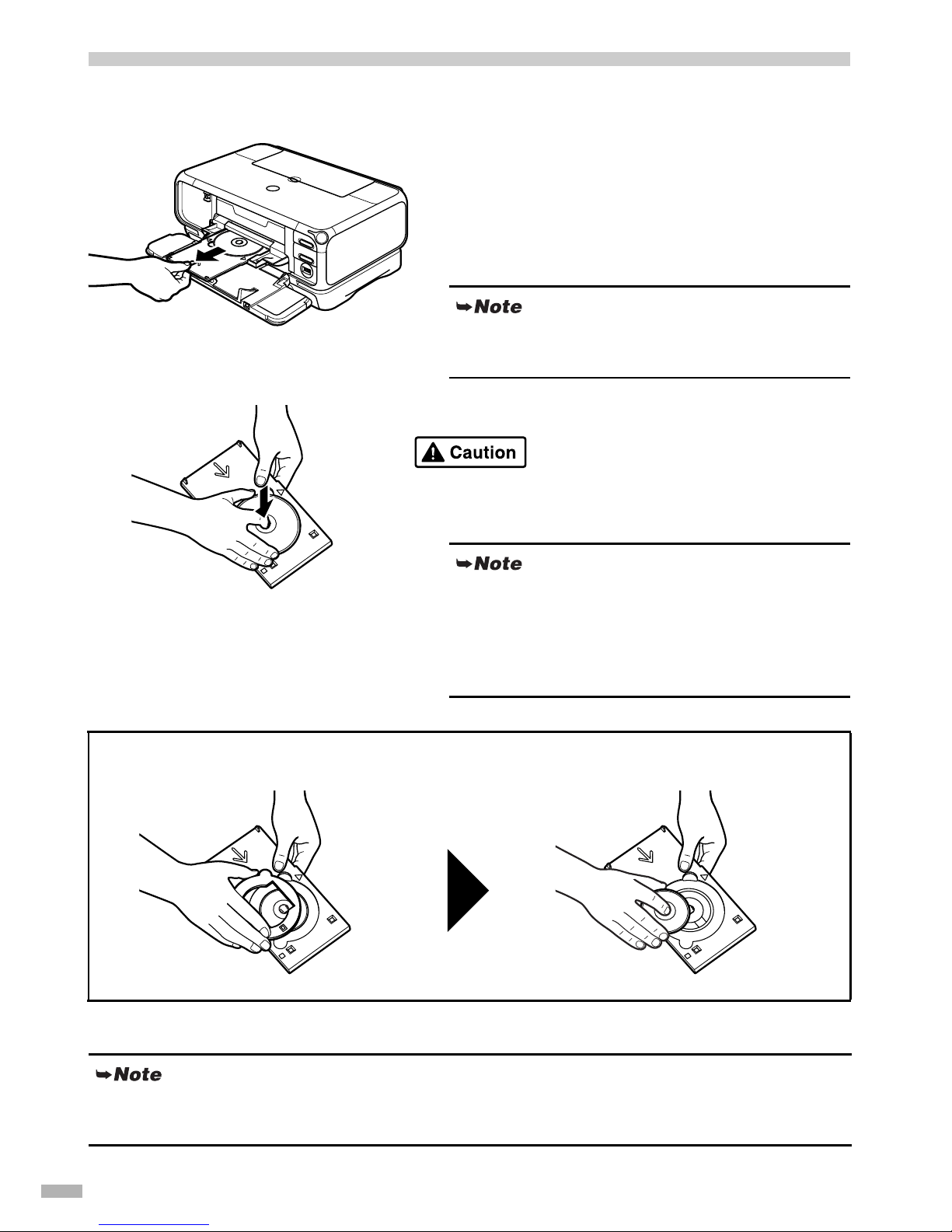

Removing the CD-R Tray

Removing the CD-R Tray

Pull out the CD-R Tray to remove it.

Push the CD-R Tray Feeder back in

position.

Remove the CD-R/DVD-R.

Do not touch the printable surface when removing the disc

from the tray.

Ensure that the CD-R Tray Feeder is closed. If not,

you cannot print on paper.

Dry the printing surface sufficiently before

removing the disc. If printing on the CD-R Tray, or

on the transparent sections on the inside and outside

of the CD-R/DVD-R, dry the printing surface before

wiping.

When removing the 8 cm CD-R, remove the adapter first, and then remove the disc from the tray.

When you don’t use the CD-D Tray, keep it in a place where it won’t be bent. Or, it may not function

properly.

Printing on CD-Rs/DVD-Rs - Windows

This section describes how to use CD-LabelPrint to print directly on 12 cm CD-Rs and DVD-Rs. Refer to

the CD-LabelPrint’s manual for more information about this procedure.

To access the manual from the

Start

menu, click

All Programs

(or

Programs

for Windows Me/Windows

2000/Windows 98/Windows 95),

CD-LabelPrint

, and select

Manual

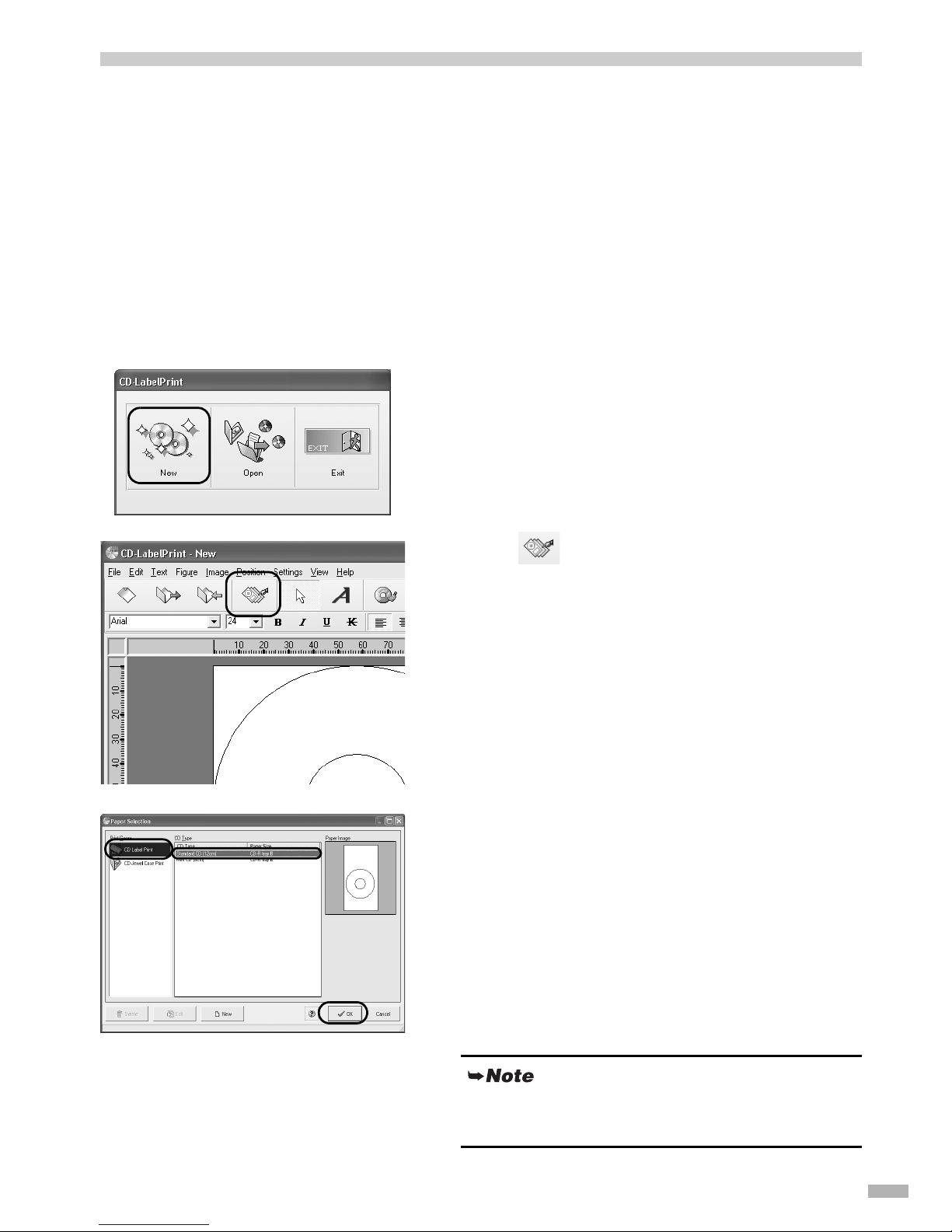

Importing the image to print on the CD-R/DVD-R

Click Start, select All Programs (or

Programs), CD-LabelPrint, and then

CD-LabelPrint to start CD-LabelPrint.

Click New on the CD-LabelPrint menu.

Click (Select Paper).

The

Paper Selection

dialog box opens.

Select CD Label Print from Print

Genre, and then select Standard CD

(12cm) from CD Type.

Click OK.

Edit the label image.

Refer to the CD-LabelPrint’s manual for more

information about how to edit the label image.

Printing on the CD-R/DVD-R

Click Print.

The

Print CD Labels

dialog box opens.

Click Printer.

Set these items to correspond with the

CD-R/DVD-R and printing data.

BJ Cartridge: Color

Media Type: Printable disc

(recommended) or

Printable disc (others)

Print Quality: High, Standard, or Draft

Click OK.

Click Print in the Print CD Labels

dialog box.

• The Printable Label image on the Print CD

Labels dialog box shows the print image of the

CD-R Tray (rectangle) and the CD-R (circles).

The leading edge of the CD-R Tray is at the

bottom of the image.

•Ifthe“Dark” setting produces unsatisfactory

results (e.g., if images are too dark or characters

appear blurred), select Light. Print quality on CD-

R/DVD-R may vary depending on the media you

use.

If the CD-R Tray is previously inserted, it may be

ejected. In such a case, wait until the message in step 6

appears.
