CHAPTER 4. PARTS CATALOG

CONTENTS

PowerShot SD100/DIGITAL IXUS II/IXY DIGITAL 30

Casing Parts ----------------------------------------------------------------------------------------------------------------------- Pg1

Internal Parts-1 ------------------------------------------------------------------------------------------------------------------- Pg2

Internal Parts-2 ------------------------------------------------------------------------------------------------------------------- Pg3

Optical Unit ----------------------------------------------------------------------------------------------------------------------- Pg4

Fuse -------------------------------------------------------------------------------------------------------------------------------- Pg5

Accessories-1 ------------------------------------------------------------------------------------------------------------------------- Pg6

Accessories-2 ------------------------------------------------------------------------------------------------------------------------- Pg7

Accessories-3 ------------------------------------------------------------------------------------------------------------------------- Pg8

Service Tools-1 ----------------------------------------------------------------------------------------------------------------------- Pg9

Service Tools-2 ---------------------------------------------------------------------------------------------------------------------- Pg10

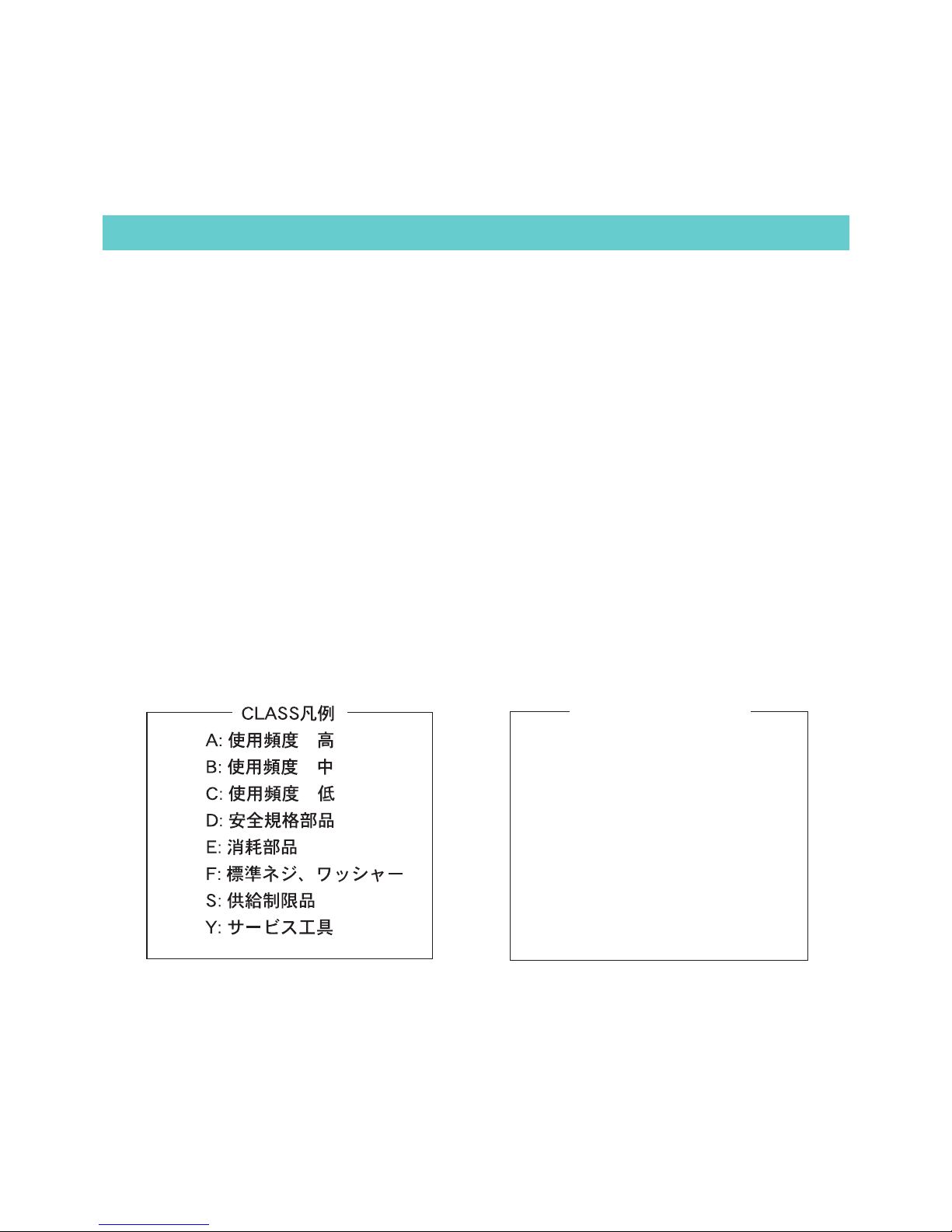

Category of CLASS

A: Frequency of use: High

B: Frequency of use: Middle

C: Frequency of use: Low

D: Safety-related critical parts

E: Consumable parts

F: Standard screws and washers

S: Supply of the parts is limited

Y: Service Tools

PowerShot SD100

DIGITAL IXUS II

IXY DIGITAL 30

Pg1 Casing Parts

PARTS LIST

SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS

PowerShot SD100

DIGITAL IXUS II

IXY DIGITAL 30

Pg1

1 CD1-4691-000 B 1 COVER, DC COUPLER

2 CD1-4683-000 B 1 COVER, BATTERY

3 CM1-1506-000 B 1 FRONT COVER UNIT IXY DIGITAL 30

CM1-1507-000 B 1 FRONT COVER UNIT PowerShot SD100

CM1-1508-000 B 1 FRONT COVER UNIT DIGITAL IXUS II

4 CD1-4665-000 B 1 RING, STRAP

5 CD1-4653-000 C 1 RUBBER, FINDER

6 CM1-1513-000 B 1 REAR COVER UNIT

7 CD1-4710-000 C 1 BRUSH, MODE

8 XG8-1500-551 C 1 BALL, MODE DIAL

9 CD1-4708-000 B 1 DIAL, MODE

10 CD1-4705-000 B 1 BUTTON, KEY (+)

11 CD1-4727-000 C 1 CUSHION, KEY (+)

12 CD1-4711-000 C 1 SPACER, LCD

13 CD1-4690-000 B 1 COVER, JACK

14 CY1-6289-000 B 1 PLATE, BODY NUMBER #13011 xxxxx

CY1-6293-000 B 1 PLATE, BODY NUMBER (CH), CHINA #13651 xxxxx

15 CD1-4706-000 C 1 SCREW

16 CD1-4729-000 C 1 SCREW

17 XA1-7140-167 F 1 SCREW

18 CD1-4248-000 C 10 SCREW

19 CD1-4731-000 C 1 SCREW

PowerShot SD100

DIGITAL IXUS II

IXY DIGITAL 30

Pg2

Internal Parts-1

PARTS LIST

SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS

PowerShot SD100

DIGITAL IXUS II

IXY DIGITAL 30

Pg2

1 CM1-1496-000 C 1 PCB ASS’Y, MAIN

2 WK1-5140-000 C 1 BATTERY, LITHIUM (2ND)

3 CD1-4241-000 C 1 HOLDER, MICROPHONE

4 WR1-5084-000 C 1 MICROPHONE UNIT

5 CL1-1115-000 C 1 SHIELD SHEET UNIT

6 CD1-4712-000 C 1 PLATE, OPERATION

7 CD1-4726-000 C 1 TAPE, MODE DIAL

8 CM1-1498-000 C 1 OPERATION KEY UNIT

9 CM1-1512-000 B 1 SHUTTER BUTTON UNIT

10 CM1-2112-000 C 1 SPEAKER SHEET UNIT

11 CM1-1511-000 C 1 SPEAKER UNIT

12 XA1-7170-409 F 2 SCREW

13 XA1-7140-257 F 2 SCREW

14 XA1-7170-307 F 4 SCREW

15 XA1-7170-167 F 1 SCREW

PowerShot SD100

DIGITAL IXUS II

IXY DIGITAL 30

Pg3

See Pg4

Internal Parts-2

PARTS LIST

SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS

PowerShot SD100

DIGITAL IXUS II

IXY DIGITAL 30

Pg3

1 CD1-4686-000 C 1 SOCKET, TRIPOD

2 CD1-4685-000 C 1 PLATE, TRIPOD

3 CD1-4684-000 C 1 FRAME, MAIN

4 CM1-1502-000 C 1 FINDER UNIT

5 CM1-1503-000 C 1 BATTERY BOX UNIT

6 CD1-4682-000 C 1 SHEET, DC

7 CM1-1497-000 C 1 PCB ASS’Y DC/SD

8 CM1-1499-000 C 1 FLASH UNIT

9 WG2-5242-000 C 1 PANEL, LCD

WG2-5242-001 C 1 PANEL, LCD (SELECTION)

10 CD1-4689-000 C 1 FRAME, LCD

11 CD1-4687-000 C 1 BASE, RSW

12 XA4-5170-309 F 6 SCREW

13 CD1-4694-000 C 2 SCREW

14 XA4-9170-359 F 2 SCREW

15 XA4-9140-359 F 1 SCREW

16 XA1-7170-167 F 1 SCREW

17 XA1-7170-307 F 1 SCREW

18 XA1-7170-357 F 4 SCREW

PowerShot SD100

DIGITAL IXUS II

IXY DIGITAL 30

Pg4

Optical Unit

PARTS LIST

SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS

PowerShot SD100

DIGITAL IXUS II

IXY DIGITAL 30

Pg4

1 CD1-4607-000 C 1 CAP, BASE BARREL

2 CD1-4622-000 C 1 SHEET, LENS BARREL

3 CM1-1284-000 B 1 FRONT CAP UNIT

4 CD1-4637-000 C 2 PLATE, BARRIER

5 CS8-5282-000 C 2 SPRING, BARRIER CLOSE

6 CD1-4634-000 C 1 BASE, BARRIER

7 CD1-4635-000 C 1 RING, BARRIER DRIVE

8 CS8-5283-000 C 1 SPRING, BARRIER OPEN

9 CM1-1283-000 C 1 OPTICAL UNIT

PowerShot SD100

DIGITAL IXUS II

IXY DIGITAL 30

Fuse

Pg5

DC/SD PCB ASS'Y
