Canon Digital IXUS 850 IS Manuel utilisateur

The Components Guide

Preparations

Shooting

Playback/Erasing

Menus and Settings

CDI-E295-010 XX06XXX

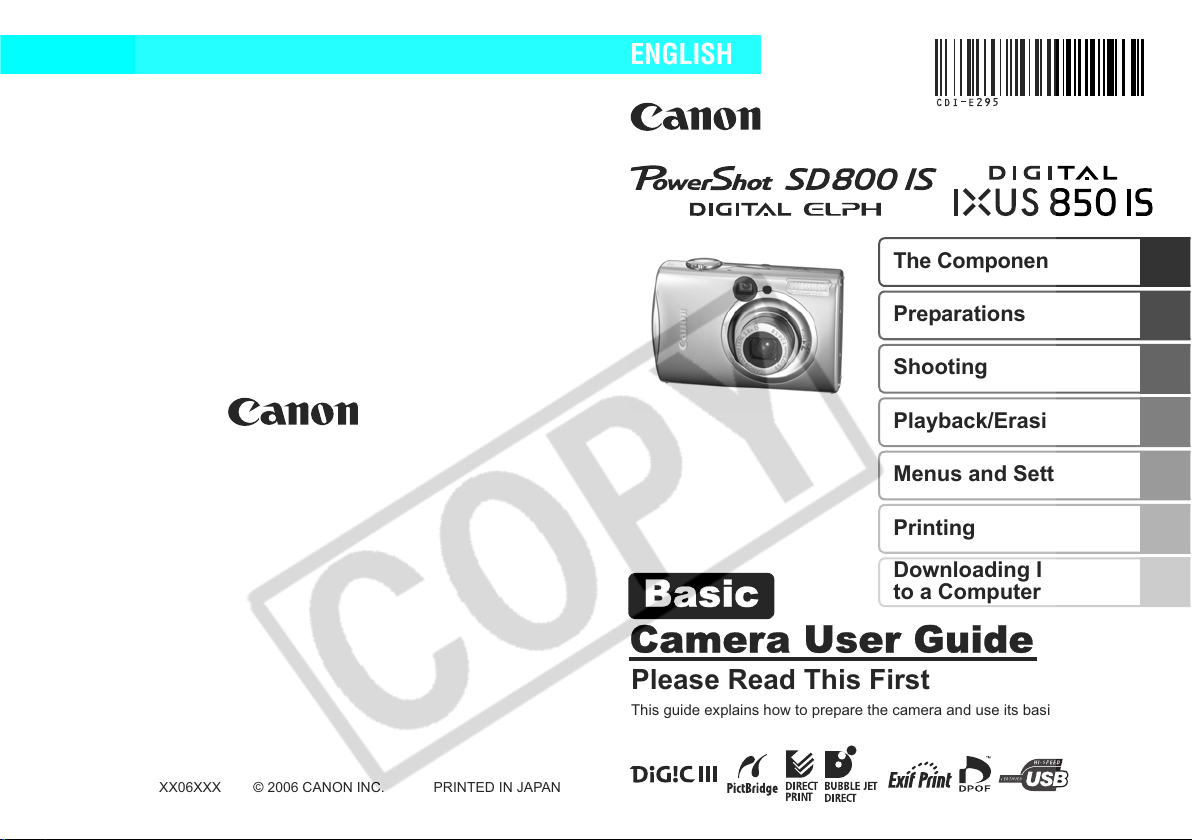

Camera User Guide

Please Read This First

This guide explains how to prepare the camera and use its basic features.

ENGLISH

Basic

Downloading Images

to a Computer

Printing

The following guides are available. Refer to them as necessary according

to the flowchart below.

Flowchart and Reference Guides

System Map

Basic Camera User

Guide (This Guide)

• Read this first.

Advanced Camera

User Guide

Direct Print User

Guide

Basic Camera User

Guide (This Guide)

Software Starter

Guide

ZoomBrowser EX/

ImageBrowser Software

User Guide

• PDF manuals available on

the Canon website.

http://web.canon.jp/

Imaging/information-e.html

For information on included items

and items sold separately

The Components Guide

Preparations

• Charging the battery

• Installing the battery and memory card

• Setting the date, time and language

Shooting

Playback/Erasing

Menus and Settings

Handling precautions, references

to the various shooting and

playback functions

Printing

• Installing the software

• Downloading images to a computer

• Using the software

In this guide, the Basic Camera User Guide is called the Basic Guide, and

the Advanced Camera User Guide is called the Advanced Guide. Also,

"battery" refers to the battery pack.

Front View

Wrist Strap Mount

Microphone (Advanced Guide pp. p. 42, 86)

Viewfinder Window (Advanced Guide p. 18)

AF-assist Beam (Advanced Guide p. 24)

Red-Eye Reduction Lamp (Advanced Guide p. 34)

Self-Timer Lamp (p. 16)

Flash (p. 14)

Lens

* When carrying the camera by the strap, be careful not to swing the camera or catch

it on other items.

The Components Guide

Attaching the Wrist Strap*

The Components Guide

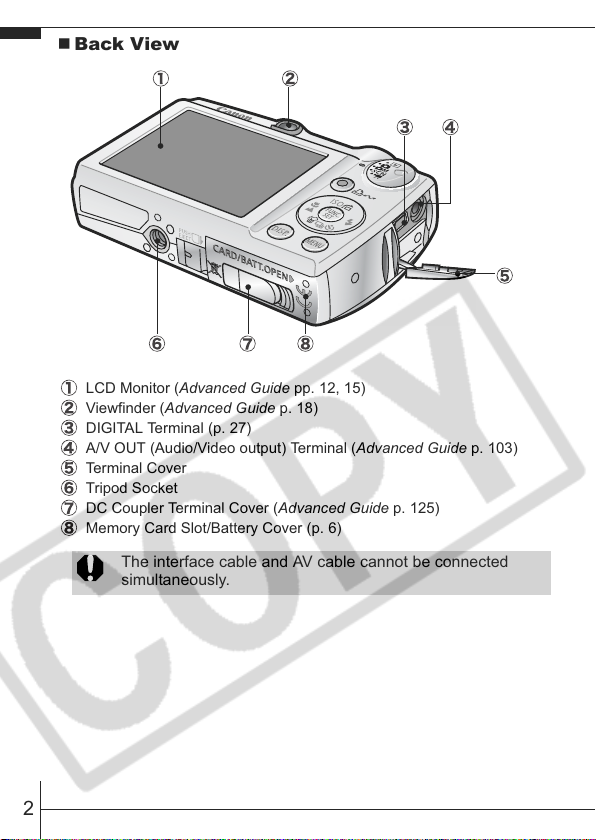

Back View

LCD Monitor (Advanced Guide pp. 12, 15)

Viewfinder (Advanced Guide p. 18)

DIGITAL Terminal (p. 27)

A/V OUT (Audio/Video output) Terminal (Advanced Guide p. 103)

Terminal Cover

Tripod Socket

DC Coupler Terminal Cover (Advanced Guide p. 125)

Memory Card Slot/Battery Cover (p. 6)

The interface cable and AV cable cannot be connected

simultaneously.

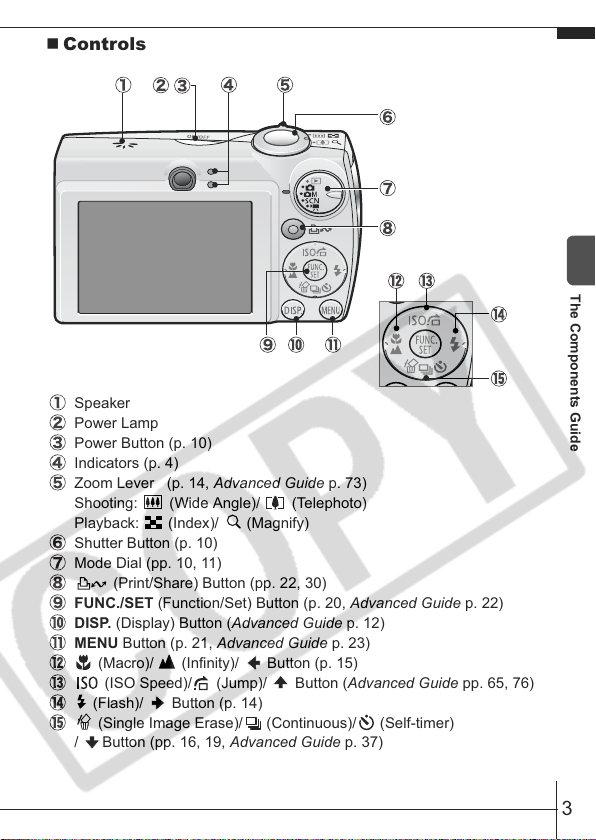

Controls

Speaker

Power Lamp

Power Button (p. 10)

Indicators (p. 4)

Zoom Lever (p. 14, Advanced Guide p. 73)

Shooting: (Wide Angle)/ (Telephoto)

Playback: (Index)/ (Magnify)

Shutter Button (p. 10)

Mode Dial (pp. 10, 11)

(Print/Share) Button (pp. 22, 30)

FUNC./SET (Function/Set) Button (p. 20, Advanced Guide p. 22)

DISP. (Display) Button (Advanced Guide p. 12)

MENU Button (p. 21, Advanced Guide p. 23)

(Macro)/ (Infinity)/ Button (p. 15)

(ISO Speed)/ (Jump)/ Button (Advanced Guide pp. 65, 76)

(Flash)/ Button (p. 14)

(Single Image Erase)/ (Continuous)/ (Self-timer)

/ Button (pp. 16, 19, Advanced Guide p. 37)

The Components Guide

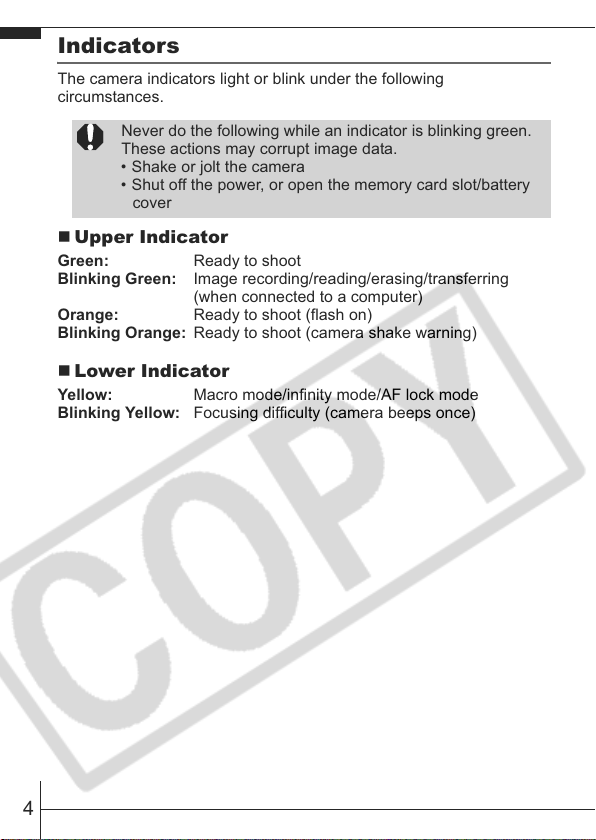

Indicators

The camera indicators light or blink under the following

circumstances.

Upper Indicator

Green: Ready to shoot

Blinking Green: Image recording/reading/erasing/transferring

(when connected to a computer)

Orange: Ready to shoot (flash on)

Blinking Orange: Ready to shoot (camera shake warning)

Lower Indicator

Yellow: Macro mode/infinity mode/AF lock mode

Blinking Yellow: Focusing difficulty (camera beeps once)

Never do the following while an indicator is blinking green.

These actions may corrupt image data.

• Shake or jolt the camera

• Shut off the power, or open the memory card slot/battery

cover

Charging the Battery.

Charge the battery before use under the following circumstances.

• When using the battery for the first time.

• When the "Change the battery pack." message displays.

1. Insert the battery into the battery charger.

2. Plug the battery charger (CB-2LX) into a power outlet, or

attach the power cord to the battery charger (CB-2LXE) and

plug it into a power outlet.

• Battery charger model names and types vary by region.

The charge indicator will light orange while the battery is

charging. It will change to green when the charge is complete.

Charging takes approximately 2 hours 5 minutes.

Preparations

To protect the battery and prolong its life, do not charge it

for longer than 24 hours continuously.

ÎSee the Advanced Guide: Battery Handling (p. 121).

Charge Indicator

For CB-2LX For CB-2LXE

Align these symbols

Preparations

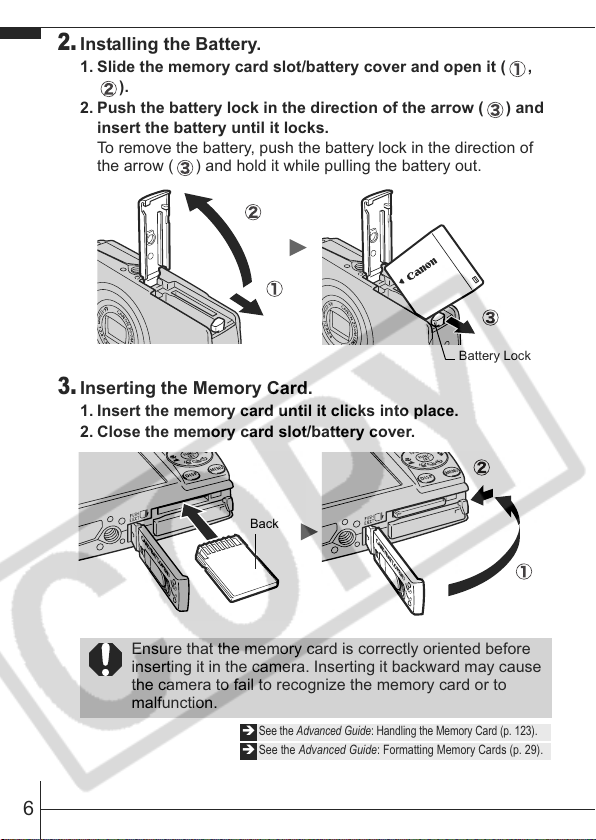

Installing the Battery.

1. Slide the memory card slot/battery cover and open it ( ,

2. Push the battery lock in the direction of the arrow ( ) and

insert the battery until it locks.

To remove the battery, push the battery lock in the direction of

the arrow ( ) and hold it while pulling the battery out.

Inserting the Memory Card.

1. Insert the memory card until it clicks into place.

2. Close the memory card slot/battery cover.

Ensure that the memory card is correctly oriented before

inserting it in the camera. Inserting it backward may cause

the camera to fail to recognize the memory card or to

malfunction.

See the Advanced Guide: Handling the Memory Card (p. 123).

ÎSee the Advanced Guide: Formatting Memory Cards (p. 29).

Battery Lock

Back

To Remove the Memory Card

Use a finger to push the memory card in until you hear a click, then

release it.

You can use SD memory cards, SDHC memory cards and MultiMediaCards

with this camera.

These cards are collectively called memory cards in this guide.

Preparations

First Time Settings

Setting the Date/Time

1. Press the power button ( ).

2. Use the or button to select an item and the or

button to change its value ( ).

To set the daylight saving option, select the icon and use the

or button to configure the setting.

3. Confirm that the correct time is displayed and press the

FUNC./SET button ( ).

The date and time can also be set in the Set up menu (p. 21).

• A rechargeable lithium battery is built into the camera to

save such settings as the date/time. This battery charges

when the main battery is in the camera. When you pur-

chase the camera, place the main battery in it for approx-

imately four hours or use AC Adapter Kit ACK-DC30

(sold separately) to charge the lithium battery. It will

charge even if the camera is turned off.

• The date/time settings may be lost after approximately

three weeks if you remove the main battery. Reset the

date/time settings if this occurs.

ÎSee the Advanced Guide: Setting the World Clock (p. 20).
