Service Information

Copier Color

Office Imaging Products Quality Assurance Center Hardware

Ref No.: F00188-EN-2.00

Date: November 6, 2015

Approved by: Ito Kenji

Revised: Addition of Detail and Service work. Correction of Service parts and Factory measures.

Model:

iR_ADV C351IF

iR_ADV C350

iR_ADV C350F

iR_ADV C350I

iR_ADV C350IF

iR_ADV C250IF

iR_ADV C250

iR_ADV C250I

Subject:

Points to note when replacing Inter Transfer Belt Assembly

[Detail]

To replace Inter. Transfer Belt Assembly, take either of the following measures depending upon the service part to be replaced

with.

Measure A:

To replace Inter Transfer Belt Assembly, prepare 1 Inter Transfer Belt Kit (FM1-K059-000) and follow the directions below. Only

replacing Inter Transfer Belt Assembly in the old type Right Cover Unit without following the proper procedures may cause the

right cover not to open once closed.

Measure B:

To replace Inter. Transfer Belt Assembly with the new type Inter. Transfer Belt Assembly (FM1-A153-020), there is no need to

check if the Right Cover Unit is the old type or the new type.

[Service work]

Choose and perform between the directions A) and B) according to the service part to be replaced with.

A) To replace with Inter. Transfer Belt Kit (FM1-K059-000)

When replacing Inter Transfer Belt Assembly, prepare 1 Inter. Transfer Belt Kit (FM1-K059-000) and follow the directions below.

1) Open the right door and check whether the right door unit is the new type or the old type.

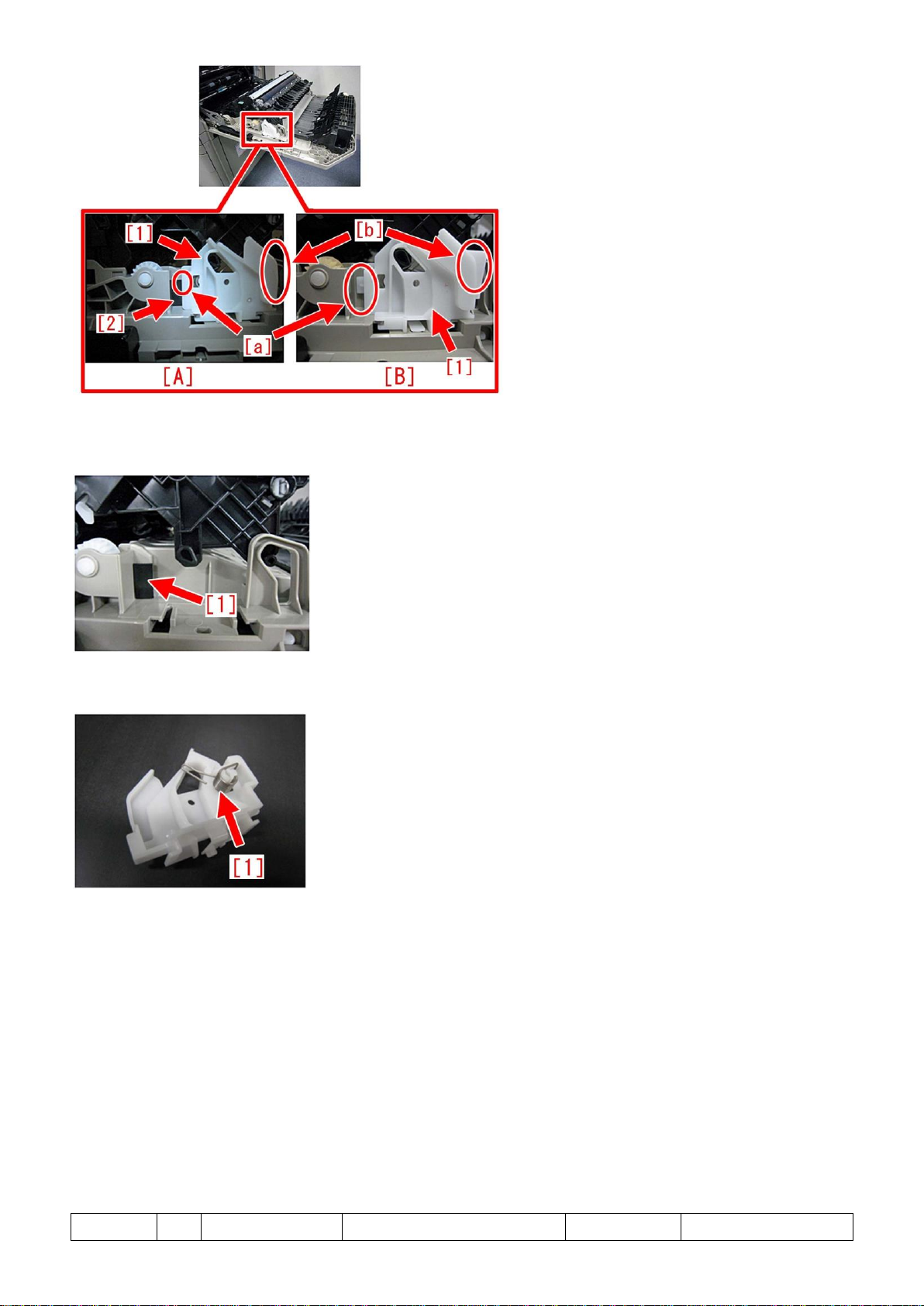

•Old type right cover unit [A]: Sheet [2] is attached. Also, it has the old type Lock Guide [1]. (Rib[a] and rib[b] are NOT

available.)

•New type right cover unit [B]: No sheet is available. Also, it has the new type Lock Guide [1]. (with Rib[a] and rib[b])

2 of 3

Points to note when replacing Inter Transfer Belt Assembly F00188-EN-2.00

If the Right Cover Unit is the old type [A]: Proceed to 2) below.

If the Right Cover Unit is the new type [B]: Proceed to 4) below.

2) Remove the Lock Guide and then remove the sheet [1] from the Right Cover Unit.

3) Replace the Lock Guide to the new type included in the Inter Transfer Belt Kit. When replacing, remove the torsion spring [1]

from the old type and attach it to the new lock guide.

4) Replace the Inter Transfer Belt Assembly.

[Caution]

- If the Right Cover Unit is the new type, the lock guide does not need to be replaced.

- If the Right Cover Unit is the old type, the right cover may not open in some cases when replacing Inter Transfer Belt Assembly

only without replacing the lock guide with the new type.

B) To replace with Inter. Transfer Belt Assembly (FM1-A153-020)

Prepare 1 of the new type Inter. Transfer Belt Assembly (FM1-A153-020) and follow the directions below to replace with it.

[Countermeasure cut-in serial numbers in factory]

To be informed as soon as identified.

F00188-EN-2.00

[Service parts]

No.

Part number

Description

Q'ty

Fig No.

3 of 3

Old

FM1-A153-010

INTER. TRANSFER BELT ASS'Y

1->0

530

New

FM1-K059-000

INTER. TRANSFER BELT KIT

0->1

Old

FM1-K059-000

INTER. TRANSFER BELT KIT

1->0

530

New

FM1-A153-020

INTER. TRANSFER BELT ASS'Y

0->1

[Factory measures]

The Right Cover Unit will be changed to the new type.

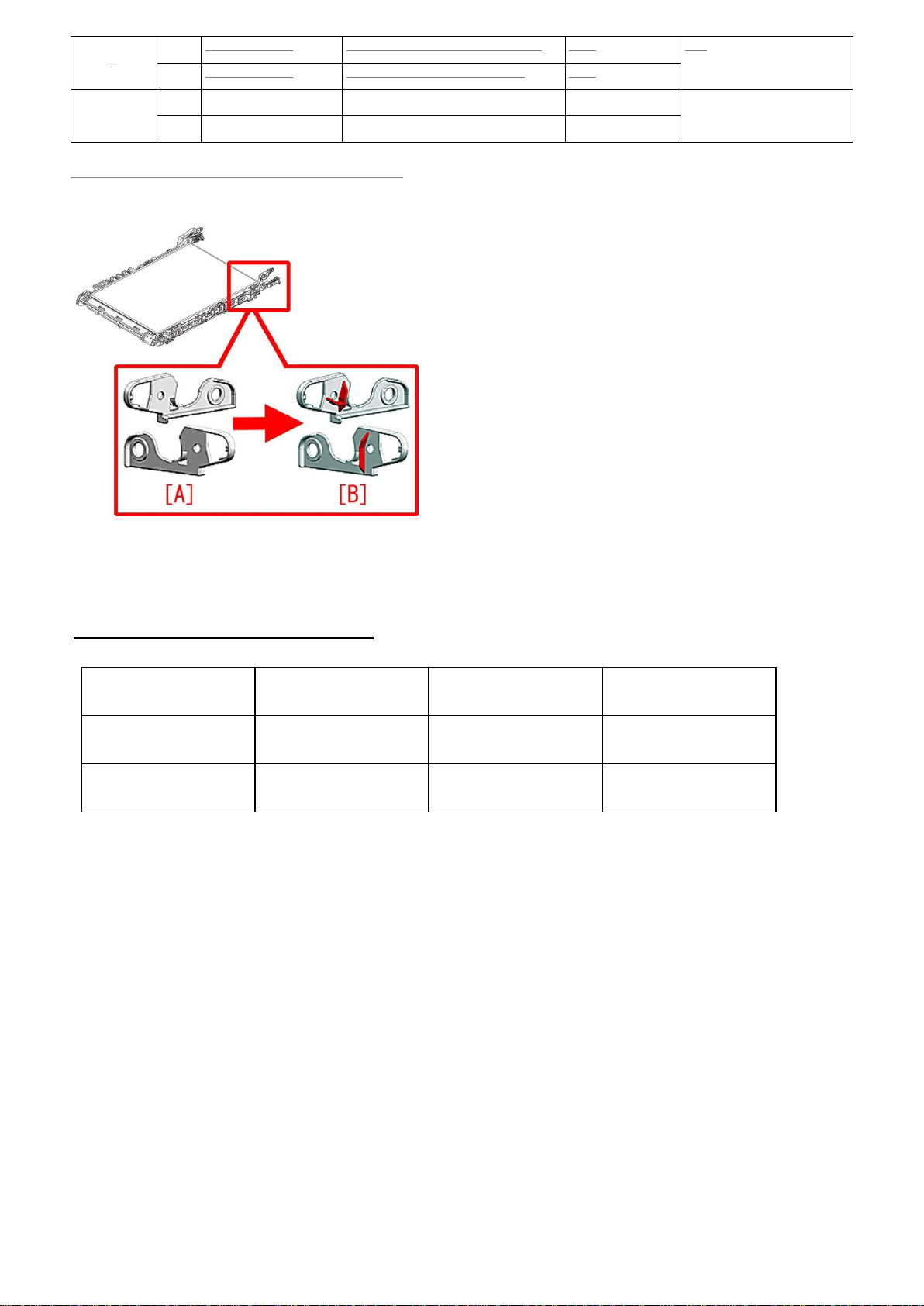

The shape of the front/rear sides of the lock arm of Inter. Transfer Belt Assembly has been altered.

[A] is the old type lock arm, and [B], the new type.

Summary of compatibility

Part No

Description

Old type Lock Guide

New Type Lock Guide

FM1-K059-000

ITB KIT

yes*

yes

FM1-A153-020

ITB ASSY

yes

* fit new Lock guide from ITB KIT
