A Higher Standard in Field Lenses

That Will Not Compromise Your Budget

SUPER E47

HIGH MTF PERFORMANCE

The next generation of 16:9 format has

become more widespread world-wide.

The height of the 16:9 format is 20%

shorter than that of the current 4:3

format, thus the scanning lines are 20%

greater(Fig.1). As a result, higher

resolution is required for the 16:9

format. In order to achieve this, the

SUPER E47 provides minimum

aberrations by Hi-UD glasse (High

Index Ultra Low Dispersion glass) and

Canon's unique fluorite. The SUPER

E47 succeeds in having the higher

MTF performance, correspondent to

6MHz, necessary for the 16:9 format.

CANON "CROSSOVER" SYSTEM

All the Super series of lenses, including

the new SUPER E47 are now option-

ally available with "CROSSOVER"

compatibility for most 16:9/4:3

switchable cameras. The 4 position

extender turret incorporates a 0.8x

"CROSSOVER" unit in addition to

the normal extenders i.e. 1.0x, 1.5x, or

2.0x (Fig.2). When the camera switches

to the 4:3 mode, the extender turret

rotates to the 0.8x position. The 0.8x

"CROSSOVER" unitreducesthediam-

eter of the image from 11mm to 9mm

thus shortening the focal length to

produce an identical picture angle of

view.Inessence,the0.8x"CROSSOVER"

unit acts as a 1.0x extender for the

switched 4:3 aspect ratio. Fig.3 shows

the relation between focal length and

the magnification of the extenders.

E47x9.5B IE 9.5-450mm 1:1.4

120.5 120.5

123.515083.5

530.9 F.B.=48 in air

166

DIMENSIONS

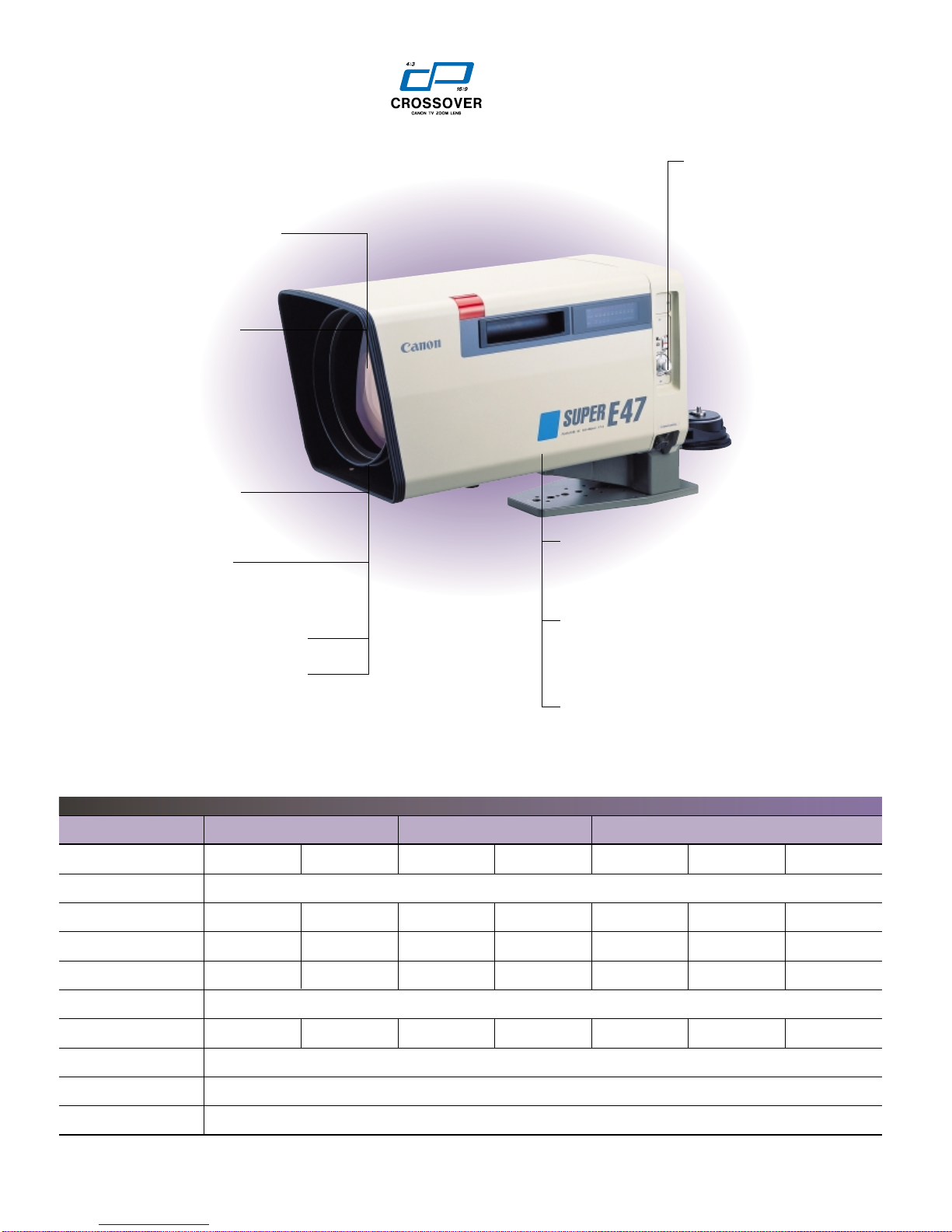

Canon proudly announces the latest addition to our line of economical yet high quality field lenses, “SUPER E47”. The “SUPER

E47”, also known as the E47X9.5BIE, incorporates many of the same features and functions as the industry standard Super Series of

field lenses. Those features include the optional “CROSSOVER” System for seamless 4X3 and 16X9 production on switchable

cameras.

When used in conjunction with portable cameras, the “SUPER E47” features a unique Built In Supporter for the lens and camera

combination.

Fig.1

0.8X

1.5X

or Spare

(Option)

Crossover

(optional)

Fig.2

CROSSOVER SYSTEM

16:9 Scanning Lines

16:9 (dia 11mm) 4:3 (dia 9mm)

Extender

Focal Length

F stop Extender

Focal Length

F stop

0.8X 1.0X

7.8-370mm

1.4

1.0X

9.5-450mm

1.4 1.2X

9.5-450mm

1.4

2.0X

19-900mm

2.8 2.4X

19-900mm

2.8

Fig.3

A Higher Standard in Field Lenses

That Will Not Compromise Your Budget

4:3

16:9

80%

100%

VERSATILE

ZOOM/FOCUS

CONTROLLERS

(See figure on the next page )

•New ergonomic design.

•Countermeasures against

dust, rain, and radio

interference.

SWITCHABLE 4 : 3 (with crossover unit)16 : 9

Zoom Ratio

Built-in Extender

Range of Focal Length

Maximum Relative

Aperture

Angular Field of View

Minimum Object

Distance (M.O.D.)

Object Dimensions

at M.O.D.

Size

Weight (Approx)

Built-in Pattern Projector

NORMAL 4 : 3

1.02.01.02.01.01.22.4

47

9.5450mm 19900mm 9.5450mm 19900mm 7.8370mm 9.5450mm 19900mm

1:1.4 at 9.5202mm

1:2.5 at 450mm 1:2.8 at 19404mm

1:5.0 at 900mm 1:1.4 at 9.5202mm

1:2.5 at 450mm 1:2.8 at 19404mm

1:5.0 at 900mm 1:1.4 at 7.8216mm

1:2.15 at 370mm 1:1.4 at 9.5202mm

1:2.5 at 450mm 1:2.8 at 19



404mm

1:5.0 at 900mm

49.7



38.3



at 9.5mm

1.12



0.84



at 450mm

26.1



17.7



at 19mm

0.56



0.42



at 900mm

53.6



31.7



at 9.5mm

1.12



0.69



at 450mm

28.4



16.2



at 19mm

0.61



0.34



at 900mm

49.6



38.2



at 7.8mm

1.11



0.84



at 370mm

41.5



31.7



at 9.5mm

0.92



0.69



at 450mm 21.5



16.2



at 19mm

0.46



0.34



at 900mm

2.2m from front lens vertex

(with macro M.O.D:0.5m)

183



137cm at 9.5mm

3.9



2.9cm at 450mm 91.5



68.6cm at 19mm

2.0



1.5cm at 900mm

200



112cm at 9.5mm

4.3



2.4cm at 450mm 99.8



56.1cm at 19mm

2.2



1.2cm at 900mm

183



137cm at 7.8mm

3.9



2.9cm at 370mm 150



112cm at 9.5mm

3.2



2.4cm at 450mm 74.9



56.1cm at 19mm

1.6



1.2cm at 900mm

244(W)273.5(H)530.9(L)mm Excluding Supporter

18kg (39.7lbs)

optionally available

SPECIFICATIONS

EXCELLENT SERVO SYSTEM

•Faster and quieter servo system

•••maximum speed zoom:0.8 sec

focus:0.8 sec

•Low power consumption

WIDE ANGLE OF 9.5MM

WITH REDUCED

DISTORTION

(ZOOM RATIO:47X)

LATERAL CHROMATIC

ABERRATION

•Full zoom range•••••maximum=6 microns

HIGH AND FLAT MTF

•Realization of high contrast in all areas of the

picture (center and corner)

PROTECTION FILTER (Optional)

COUNTERMEASURES AGAINST

"GHOSTING" AND "FLARES"

•New coatings and anti-reflection paint achieve

the elimination of "ghosting" and "flares"

COUNTERMEASURES AGAINST RADIO

FREQUENCY NOISE

(INTERFERENCE)

SERVO SYSTEM MATCHING ROBOTIC

REQUIREMENTS

•High resolution zoom and focus servo - 12 bit repeatability

10 BIT IRIS COMPATIBILITY

•High resolution iris control

4-POSITION TURRET

(built in extender, pattern projector,

master lens, crossover unit).

•Micro Computer Controlled

Turret.

*Built in Effect Filter available as

option e.g Cross, Sunny, etc.

CROSSOVER COMPATIBILITY (Optional)

•For use with 16:9/4:3 switchable cameras.

MACRO FUNCTION-M.O.D.=0.4M

ZOOM FOCUS

OPERATION SYSTEM

NO. DESCRIPTION CODE

3 Servo Module SMJ-N02

Flexible Zoom Controller FZP-T61

Flexible Focus Controller FFP-T61

Flexible Cable 30"

Flexible Module FMJ-452

BG2-5205

BG2-1558

BG2-1557

BG2-5305

LENS SYSTEM

1-b

1-a

Switch Box

(Optional)

2-a

2-b

2-c

Lens Supporter

(optional)

APPLICATION

Manual Flexible Cable Drive Flexible Cable Drive 4, 6, 7 5, 6, 7

Semi-Servo Servo Flexible Cable Drive 1, 3 5, 6, 7

Full-Servo Servo Servo 1, 3 2, 3

OPERATION

ZOOM FOCUS

COMPOSITION

NO. DESCRIPTION CODE

1-a Zoom Demand ZDJ-A01

Zoom Demand W/Shot Box ZPJ-A01

Focus Demand FDJ-I01

Focus Demand FDJ-H01

Focus Demand W/Shot Box FPJ-K02

BG2-5122

BG2-5529

BG2-5001

BG2-5003

BG2-5506

1-b

2-a

2-b

2-c

PUB. BE00-221 0300D5 PRINTED IN JAPAN

North & South America

Canon USA, Inc.

Broadcast Equipment Div. (Headquarters)

400 Sylvan Avenue Englewood Cliffs, NJ 07632

Tel:(201)816-2900

(800)321-4388

Fax:(201)816-2909

http://www.canonbroadcast.com/

Chicago

100 Park Blvd. Itasca, IL 60143

Tel:(630)250-6231 Fax:(630)250-0399

Atlanta

5625 Oakbrook Pkwy. Norcross, GA 30093

Tel:(770)849-7895 Fax:(770)849-7888

Los Angeles

15955 Alton Parkway lrvine, CA 92618

Tel:(949)753-4330 Fax:(949)753-4337

Dallas

3200 Regent Blvd. lrving, TX 75063

Tel:(972)409-8871 Fax:(972)409-8879

Latin America

Tel:(954)349-6975 Fax:(201)816-2909

Canada

Canon Canada, Inc.

Optics Division 6390 Dixie Road Mississauga,

Ontario Canada, L5T 1P7

Tel:(905)795-2012 Fax:(905)795-2140

Brasil

Canon Do Brasil Industiria

Comercio Ltda Av. Do Caf, 277 6-Andar Torreé

B Vila Guarani, Sao Paulo Cep:04311-000

Tel:55-11-5070-7103 Fax:55-11-5070-7301

Europe/Africa/Middle East

The Netherlands Headquarters

Canon Europa N.V.

TV Products Department Bovenkerkerweg 59-61

1185 XB Amstelveen

Tel:+31(0)20-5458905 Fax:+31(0)20-5458203

Email:[email protected]

http://www.canon-europa.com/tv-products/

Australia

Canon Australia Pty. Ltd.

Optical Products Division 1 Thomas Holt Drive North

Ryde, NSW 2113

Tel:+61(0)2-9805-2000 Fax:+61(0)2-9805-2444

Asia

Canon Singapore Pte. Ltd.

No.1 Jalan Kilang Timor #03-01Pacific Tech Centre

Singapore 159303

Tel:(65)276-6864 Fax:(65)271-4226

Japan

Canon Inc.

20-2, Kiyohara-Kogyo-Danchi, Utsunomiya-shi,

Tochigi-ken, 321-3292

Tel:+81(0)28-667-8669 Fax:+81(0)28-667-8672

Specifications subject to change without notice.

Distributed by

Broadcast Equipment Group home page address

http://www.canon.com/bctv/
