EF-S10-18mm f/4.5-5.6 IS STM

Instructions

ENG

COPY

ENG-1

Thank you for purchasing a Canon product.

The Canon EF-S10-18mm f/4.5-5.6 IS STM is

a high-performance ultra-wide angle zoom

lens that makes movie shooting comfortable.

The lens is equipped with an Image Stabilizer

and has been developed for EOS cameras

compatible with EF-S lenses*.

 "IS" stands for Image Stabilizer.

 "STM" stands for stepping motor.

Features

1. Improved Movie Shooting Functions

• Stepping motor with lead screws achieves quiet,

smooth Movie Servo AF. *2

2. High-speed, quiet Autofocusing achieved during

viewnder shooting.

* Only the following EOS cameras are compatible

with EF-S lenses (as of March 2014):

EOS 7D, EOS 70D, EOS 60D, EOS 60Da, EOS

50D, EOS 40D, EOS 30D, EOS 20D, EOS 20Da,

EOS REBEL T5i/700D, EOS REBEL SL1/100D,

EOS REBEL T4i/650D, EOS REBEL T3i/600D,

EOS REBEL T2i/550D, EOS REBEL T1i/500D,

EOS REBEL XSi/450D, EOS REBEL T3/1100D,

EOS REBEL XS/1000D, EOS DIGITAL REBEL

XTi/400D DIGITAL, EOS DIGITAL REBEL XT/350D

DIGITAL, EOS DIGITAL REBEL/300D DIGITAL

EOS M2*1 and EOS M when used together with

Mount Adapter EF-EOS M

3. Aspherical and UD lens elements result in

outstanding image delineation.

Equipped with an Image Stabilizer that provides

an image stabilization effect equivalent to a shutter

speed 4 stops*3 faster (when the focal length is

set to 18 mm, equivalent to 29 mm in the 35mm

lm format, and when used with the EOS 7D).

The Image Stabilizer also provides optimal image

stabilization that responds to shooting conditions

(such as shooting still subjects and following shots).

Electronic manual focusing (MF) made possible by

electronically detecting the rotation of the focusing ring.

Manual focusing is available after the subject comes

into focus in autofocus mode (ONE SHOT AF).

*1: Not available in certain countries and regions.

*2: Function compatible with the following camera (as

of March 2014):

EOS 70D, EOS REBEL T5i/700D, EOS REBEL

SL1/100D, EOS REBEL T4i/650D

EOS M2*1 and EOS M when used together with

Mount Adapter EF-EOS M

*3: Image stabilization performance based on

CIPA (Camera & Imaging Products Association)

Standards. During actual shooting, image

stabilization performance varies depending on the

amount of camera shake, shooting conditions, and

other factors.

COPY

ENG-2

Safety Precautions

 Do not look at the sun or a bright light source

through the lens or camera. Doing so could result in

loss of vision. Looking at the sun directly through the

lens is especially hazardous.

 Whether it is attached to the camera or not, do not

leave the lens under the sun without the lens cap

attached. This is to prevent the lens from concentrating

the sun’s rays, which could cause a re.

Conventions used in this instruction

Warning to prevent lens or camera malfunction

or damage.

Supplementary notes on using the lens and

taking pictures.

Handling Cautions

 If the lens is taken from a cold environment into a

warm one, condensation may develop on the lens

surface and internal parts. To prevent condensation

in this case, rst put the lens into an airtight plastic bag

before taking it from a cold to warm environment. Then

take out the lens after it has warmed gradually. Do the

same when taking the lens from a warm environment

into a cold one.

 Do not leave the lens in excessive heat such as in a car

in direct sunlight. High temperatures can cause the

lens to malfunction.

Usage Precautions

 When using this lens with an EOS REBEL T4i/650D

camera, please be sure to update the camera’s

rmware to version 1.0.4 or later.

 If the EOS REBEL T4i/650D rmware is an earlier

version than 1.0.4, there is a slight chance that the

camera will stop operating. If this occurs, please remove

the battery temporarily and insert it again for correct

camera operation.

 For information on rmware updates, please check the

Canon website.

COPY

ENG-3

Safety Precautions

This device complies with Part

15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this

device must accept any interference received, including

interference that may cause undesired operation.

Do not make any changes or modications to the equipment

unless otherwise specied in the instructions. If such

changes or modications should be made, you could be

required to stop operation of the equipment.

This equipment has been tested and found to comply with

the limits for a class B digital device, pursuant to part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications.

However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference

by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

• Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician

for help.

CAN ICES-3 (B) / NMB-3 (B)

COPY

ENG-4

Shooting Precautions

The EF-S10-18mm f/4.5-5.6 IS STM utilizes a stepping motor that drives the focus lens. The motor

also controls the focus lens during zooming.

1. When the camera is OFF

The motor does not operate while the camera is OFF or when the camera is OFF due to the use of the auto power

off function. Therefore, users must be aware of the following points.

 Manual focus adjustments are not possible.

 During zooming, delayed focus will occur.

2. When the lens is in sleep mode

If not operated for a certain period of time, this lens will enter sleep mode in order to save power. Sleep mode

differs from when the camera is OFF due to the use of the auto power off function. In this state, the motor will not

operate even if the camera is ON. Therefore, users must be aware of the following points.

 Manual focus adjustments are not possible.

 During zooming, delayed focus will occur.

 To exit sleep mode, press the shutter button halfway.

3. During initial reset

When the camera is ON or when the camera is turned ON by pressing the shutter button halfway down when the

camera is OFF due to the use of the auto power off function*1, the lens performs an initial reset of the focus lens.

 Although the image in the viewnder will appear out of focus during the initial reset, this does not mean that the

lens has malfunctioned.

 Although the shutter can be released during the initial reset, users must wait approximately 1 second*2 after the

initial reset has completed before shooting.

*1: Applicable to the following EF-S lens compatible EOS cameras:

EOS 7D, EOS 60D, EOS 60Da, EOS 50D, EOS 40D, EOS 30D, EOS 20D, EOS 20Da, EOS REBEL T3i/600D, EOS

REBEL T2i/550D, EOS REBEL T1i/500D, EOS REBEL XSi/450D, EOS REBEL T3/1100D, EOS REBEL XS/1000D, EOS

DIGITAL REBEL XTi/400D DIGITAL, EOS DIGITAL REBEL XT/350D DIGITAL, EOS DIGITAL REBEL/300D DIGITAL

*2: The initial reset time varies depending on camera being used.

COPY

ENG-5

 For detailed information, reference page numbers are provided in parentheses (→ **).

Nomenclature

Contacts (→ 6)

Image stabilizer

switch (→ 8)

Hood mount

(→ 7)

Lens mount index (→ 6)

Filter mounting

thread (→ 10)

Zoom ring (→ 7)

Focusing ring (→ 6)

Zoom position

index (→ 7)

Focus mode switch (→ 6)

COPY

ENG-6

See your camera’s instructions for details on

mounting and detaching the lens.

 After detaching the lens, place the lens with

the rear end up to prevent the lens surface and

contacts from getting scratched.

 If the contacts get soiled, scratched, or have

ngerprints on them, corrosion or faulty

connections can result. The camera and lens

may not operate properly.

 If the contacts get soiled or have ngerprints on

them, clean them with a soft cloth.

 If you remove the lens, cover it with the dust

cap. To attach it properly, align the lens mount

index and the  index of the dust cap as shown

in the diagram, and turn clockwise. To remove it,

reverse the order.

Mounting and

Detaching the Lens

Setting the Focus

Mode

After autofocusing in ONE SHOT AF mode, focus

manually by pressing the shutter button halfway

and turning the focusing ring. (Full-time manual

focus)

To shoot in autofocus (AF) mode, set the focus

mode switch to AF.

To use only manual focusing (MF), set the focus

mode switch to MF, and focus by turning the

focusing ring.

 Quickly rotating the focusing ring may result in

delayed focus.

 Manual focus adjustments are not possible when

the camera is OFF.

COPY

ENG-7

Hood (sold separately)

Zooming

To zoom, turn the lens’ zoom ring.

 Be sure to nish zooming before focusing.

Zooming after focusing can affect the focus.

 Blurring may temporarily occur if the zoom ring is

quickly rotated.

 Zooming when the camera is OFF will result in

delayed focus.

 Zooming during still image exposure will result in

delayed focus. This causes any streaks of light

that are captured during exposure to be blurred.

The EW-73C hood cuts out unwanted light and

protects the front of the lens from rain, snow,

and dust.

To attach the hood, align the hood’s attachment

position mark with the red dot on the front of the

lens, then turn the hood as shown by the arrow

until the lens’ red dot is aligned with the hood’s

stop position mark.

The hood can be reverse-mounted on the lens

for storage.

 If the hood is not attached properly, vignetting

(darkening of the perimeter of the picture) may

occur.

 When attaching or detaching the hood, grasp the

base of the hood to turn it. To prevent deformation,

do not grasp the rim of the hood to turn it.

COPY

ENG-8

You can use the image stabilizer in AF or MF

mode.

This function provides optimal image stabilization

depending on shooting conditions (such as

shooting still subjects and following shots).

1 Set the STABILIZER switch to ON.

 If you are not going to use the image stabilizer

function, set the switch to OFF.

When you press the shutter button halfway,

the Image Stabilizer will start operating.

 Make sure the image in the viewnder is stable,

then press the shutter button the rest of the way

down to take the picture.

Image Stabilizer

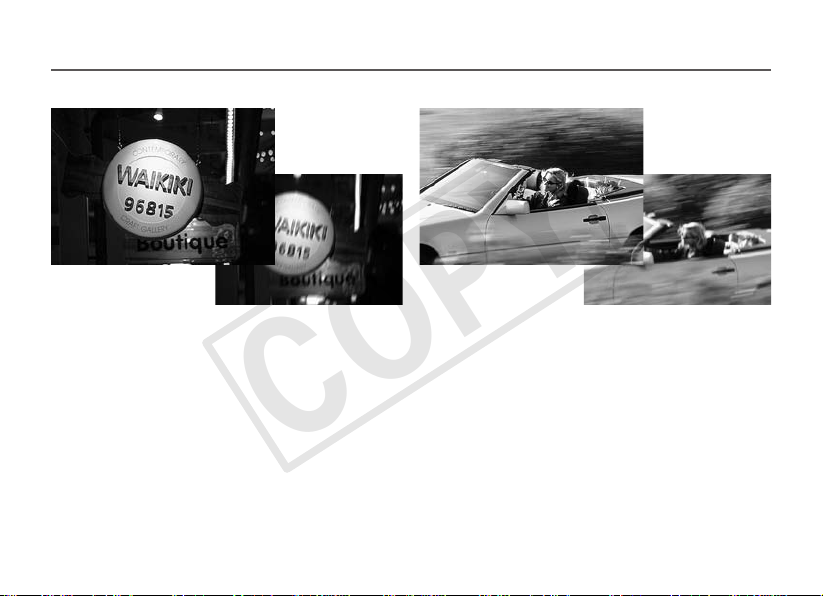

 When shooting a still subject, it compensates for

camera shake in all directions.

 It compensates for vertical camera shake during

following shots in a horizontal direction, and

compensates for horizontal camera shake during

following shots in a vertical direction.

 When you use a tripod, the Image Stabilizer

should be turned off to save battery power.

 Even with a monopod, the Image Stabilizer will

be as effective as during hand-held shooting.

However, depending on the shooting environment,

the Image Stabilizer effect may be less effective.

 The image stabilizer function also operates when

the lens is used with an Extension Tube EF12 II.

 If you set the camera’s Custom Function to

change the assigned button to operate the AF,

the Image Stabilizer will operate when you press

the newly assigned AF button.

 The Image Stabilizer cannot compensate for a

blurred shot caused by a subject that moved.

 The Image Stabilizer may not be fully effective

if you shoot from a violently shaking vehicle or

other transportation.

 The Image Stabilizer consumes more power

than normal shooting, resulting in fewer shots

and a shorter movie shooting time.

COPY

ENG-9

Image Stabilizer

 In semi-darkened areas such as indoors or

outdoors at night.

 In locations where ash photography is

prohibited, such as art museums and theater

stages.

 In situations where your footing is uncertain.

 In situations where fast shutter settings

cannot be used.

 When panning subjects in motion.

OFF

The image stabilizer for this lens is effective for hand-held shots in the following conditions.

COPY

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Canon Objectif de l'appareil photo

Canon

Canon KJ10EX4.5B IRSE Manuel utilisateur

Canon

Canon XJ27x6.5B AF Manuel utilisateur

Canon

Canon EF-S18-200mm f/3.5-5.6 IS Manuel utilisateur

Canon

Canon EF 200mm 1:2.8 L Mode d’emploi

Canon

Canon HJ21ex7.5B Manuel utilisateur

Canon

Canon EF 50mm 1:1.8 II Mode d’emploi

Canon

Canon EF-S15-85mm f/3.5-5.6 IS USM Manuel utilisateur

Canon

Canon TS-E17MM F/4L Manuel utilisateur

Canon

Canon EF-S 18-13Smm f Manuel utilisateur

Canon

Canon EF-S 10-22mm f/3.5-4.5 USM Manuel utilisateur

Canon

Canon CN7x17 KAS S/E1 Manuel utilisateur

Canon

Canon RF100mm F2.8 L MACRO IS USM Manuel utilisateur

Canon

Canon EF-S17-85mm f/4-5.6 IS USM Manuel utilisateur

Canon

Canon High Resolution Lenses Manuel utilisateur

Canon

Canon EF 17-40mm f/4L USM Manuel utilisateur

Canon

Canon EF 70-300mm f/4.5-5.6 IS USM Manuel utilisateur

Canon

Canon 4573C002 Manuel utilisateur

Canon

Canon RF600mm F11 IS STM Manuel utilisateur

Canon

Canon EF 800mm f/5.6L IS USM Manuel utilisateur

Canon

Canon EF24-105MM F/4L IS USM Manuel utilisateur

Canon

Canon EF 24mm f/1.4L II USM Mode d’emploi

Canon

Canon EF24-105MM Manuel utilisateur

Canon

Canon EF-M 55-200mm f/4.5-6.3 IS STM Manuel utilisateur

Canon

Canon EF 400mm f/2.8L IS II USM Manuel utilisateur

Manuels Objectif de l'appareil photo populaires d'autres marques

THORLABS

THORLABS ELL15 Manuel utilisateur

FUJICA

FUJICA ZC1000 Manuel utilisateur

Tamron

Tamron A09 Manuel

Sony

Sony SEL-55210 Manuel utilisateur

Sony

Sony VCL-HG2037 Manuel utilisateur

Honeywell

Honeywell HLM25V6F12 Manuel utilisateur

Sony

Sony VCL-ST30 Manuel utilisateur

Sony

Sony SAL-85F14Z - 85mm f1.4 Carl Zeiss Planar T Coated Telephoto... Manuel utilisateur

ARRI

ARRI Lenses Manuel utilisateur

Panasonic

Panasonic LUMIX G X Vario 45-175mm f/4.0-5.6 Manuel utilisateur

Nikon

Nikon AF-S VR 24-120 f/3.5-5.6G IF-ED Manuel utilisateur

Rokinon

Rokinon DS50M-C Manuel utilisateur

Olympus

Olympus M.Zuiko Digital ES 300mm f4.0 IS PRO Manuel utilisateur

Sony

Sony VCL-DE07T Manuel utilisateur

Tamron

Tamron A036 Manuel utilisateur

Samsung

Samsung 20-50mm F3.5-5.6 ED II Manuel utilisateur

Tamron

Tamron 272E Manuel utilisateur

Sinar

Sinar Rolleiflex 6008 AF Manuel utilisateur
