English

COPY

Thank you for purchasing a Canon product.

The Canon Speedlite 90EX is a compact flash unit for Canon EOS cameras, and works with

the E-TTL II and E-TTL autoflash systems. All control is performed on the camera side,

letting you easily enjoy flash shooting in the same manner as a built-in flash.

Use with an EOS DIGITAL camera

• The 90EX is designed for optimum use with an EOS DIGITAL camera.

Be sure to also read the description of flash shooting in the camera’s instruction

manual.

* The menu screens used in this instruction manual are the EOS M menu screens.

COPY

Nomenclature ............................................................................................................4

Installing the Batteries .............................................................................................5

Attaching the Flash ..................................................................................................7

Flash Shooting ..........................................................................................................8

Flash Shooting in Each Camera Mode ...................................................................9

Other Functions ......................................................................................................12

Setting the Flash Functions by Camera Operation .............................................13

About Wireless Flash .............................................................................................15

Wireless Settings ....................................................................................................15

Fully Automatic Wireless Flash .............................................................................18

Flash Ratio with E-TTL II ........................................................................................22

Wireless Multiple Speedlite Shooting with Manual Flash Output ......................27

Troubleshooting Guide ..........................................................................................28

Specifications .........................................................................................................30

Contents

COPY

Nomenclature

"Flash head/AF-assist beam emitter (p.12)

#Flash output detection sensor

$Locking pin

%Contacts

&Mounting foot (p.7)

'<Q> lamp (p.8)

(Battery compartment cover (p.5)

)Mounting foot lock lever (p.7)

*Power button (p.8)

+Power lamp

(

COPY

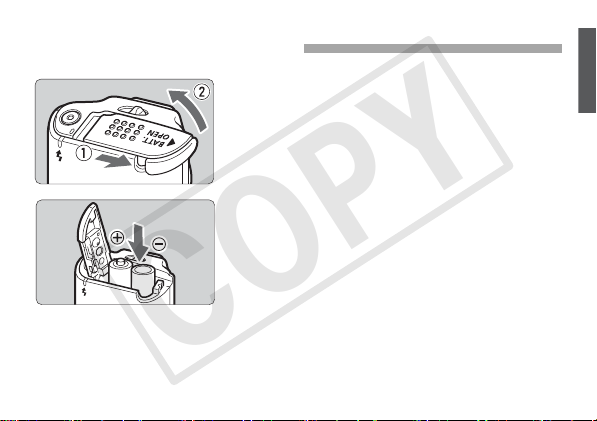

1Slide the battery compartment cover

and open it as shown by the arrows.

2Install two batteries.

Make sure the + and - battery contacts are correctly

oriented.

Return the cover to its original position.

Recycling Time and Flash Count

Recycling Time: Approx. 0.1 - 5.5 sec.

Flash Count: Approx. 100 flashes or more

Based on new size-AAA/LR03 alkaline batteries and Canon’s testing standards.

Installing the Batteries

COPY

Be sure to use a new set of two batteries of the same brand. When replacing the

batteries, replace both batteries at once.

Do not fire more than 20 continuous flashes in a short time.

If you change the batteries after firing flashes continuously, be aware that the batteries

might be hot.

Using size-AAA/LR03 batteries other than the alkaline type may cause improper battery

contact due to the irregular shape of the battery contacts.

COPY

Be sure to turn off the Speedlite before attaching or detaching it.

1Slide the lock lever to the left and

attach the Speedlite to the camera.

Slip the Speedlite’s mounting foot firmly all the way

into the camera’s hot shoe.

2Secure the Speedlite.

Slide the lock lever to the right.

To remove the Speedlite, slide the lock lever to the

left and detach it from the camera.

Attaching the Flash

COPY

1Press and hold the power button for at

least 1 second to turn on the flash.

BThe power lamp turns on and flash recycling starts.

2Check that the <Q> lamp is lit.

When the <Q> lamp lights, you can shoot with the

flash.

See p.32 for guidelines about the flash shooting

range.

3Take the picture.

Flash Shooting

COPY
