Canon PIXMA MX870 Series Manuel utilisateur
Make sure to read this manual before using the machine. Please keep it in hand for future reference.
Getting Started
Read Me First
Ofce All-In-One
series
Model Number: K10348 (MX870)
Symbols Used in This Document■
Informational notes.
Instructions including important information.
Operations that take some time to complete.
Indicates operations in Windows.
Indicates operations in Macintosh.
Prohibited actions.
Microsoft is a registered trademark of Microsoft Corporation.
Windows is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.
Windows Vista is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.
Internet Explorer is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.
Macintosh, Mac, and AirPort are trademarks of Apple Inc., registered in the U.S. and other countries.
Bonjour is a trademark of Apple Inc., registered in the U.S. and other countries.
•
•
•
•
•
•
In this guide, Windows 7 operating system is referred to as Windows 7 and Windows Vista operating system as Windows Vista.
1

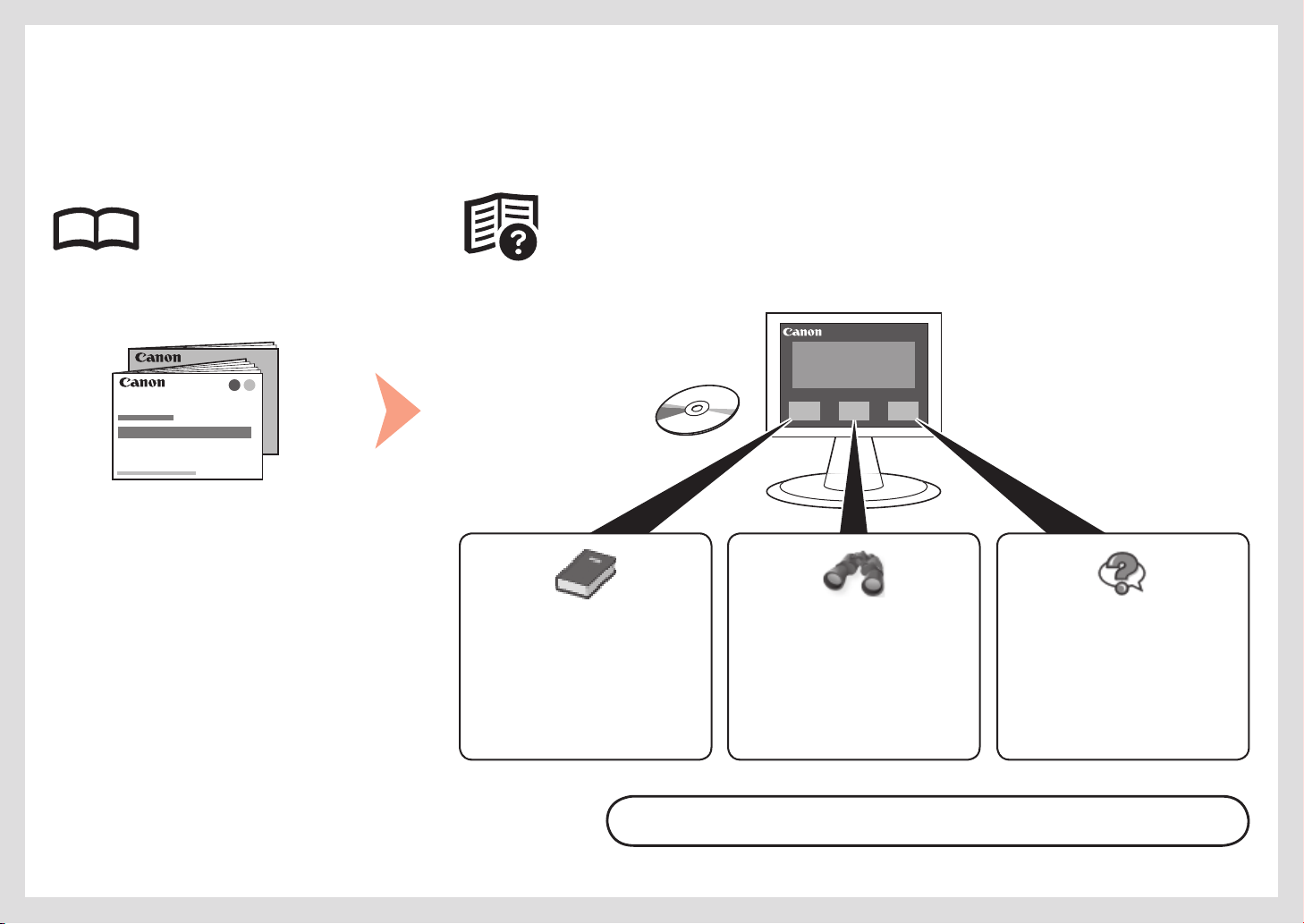

This machine contains both printed manuals and on-screen manuals to be viewed on a computer.
The on-screen manuals are included on the Setup CD-ROM and are installed during the software installation.
Describes how to set up and use
your machine. Introduces the
machine and its functions, the
included manuals and application
software.
Getting Started
(this manual)
•
Network Setup
Troubleshooting
•
Describes basic operations
and media, and gives
an introduction to other
functions available.
Describes various operating
procedures to make full use
of machine.
Describes troubleshooting
tips for problems you may
encounter when using the
machine.
Basic Guide Advanced Guide Troubleshooting
For details on opening the on-screen manuals, refer to page 57.
On-Screen Manuals
Printed Manuals
2
Contents■
9 Install the Software (USB Connection)..................................
8 Select Connection Method ....................................................P.21
6 Load Paper............................................................................
4 Install the Print Head .............................................................
3 Turn the Power On ................................................................
2 Connect the Telephone Line..................................................
1 Check the Included Items......................................................P.5
P.6
P.7
P.9
P.15
P.22
P.28
P.29
P.33
P.36
7 Set Up for Fax Reception ......................................................P.18
Wireless Setup Using Easy Setup...................................................
Wireless Setup Using WPS (Wi-Fi Protected Setup) ......................
Wireless Setup Using WCN (Windows Connect Now)....................
10 Wireless Setup ......................................................................
13 Use from Additional Computers.............................................
Try Copying .....................................................................................
Print Photos from a Computer.........................................................
Send Faxes .....................................................................................
14 Try Using the Machine...........................................................
P.56
P.58
P.60
P.61
P.57
15 Specications ........................................................................P.63
5 Install the Ink Tanks...............................................................P.12
P.41 11 Wired Setup...........................................................................
P.45 12 Install the Software (Network Connection) ............................
P.45
P.50
P.54
Install the Software..........................................................................
Install the Software (Registration) ...................................................
Install the Software (Information) ....................................................
3
Network Connection
Wireless Connection
USB Connection Using from Additional
Computers
Machine Preparation
Fax Reception Setup
Machine Installation Flow■
P.4 - 17
P.18 - 20
Software Installation
P.56
P.45 - 55
Software Installation
P.21 - 27
Machine Wireless
Setup
P.21, 28 - 40
Software Installation
P.45 - 55
Machine Wired
Setup
P.21, 41 - 44
Installation Complete
Try Using the Machine P.57 - 62
Wired Connection
(when the machine is already
connected to the network and
you want to add computers
from which to use the machine)
4

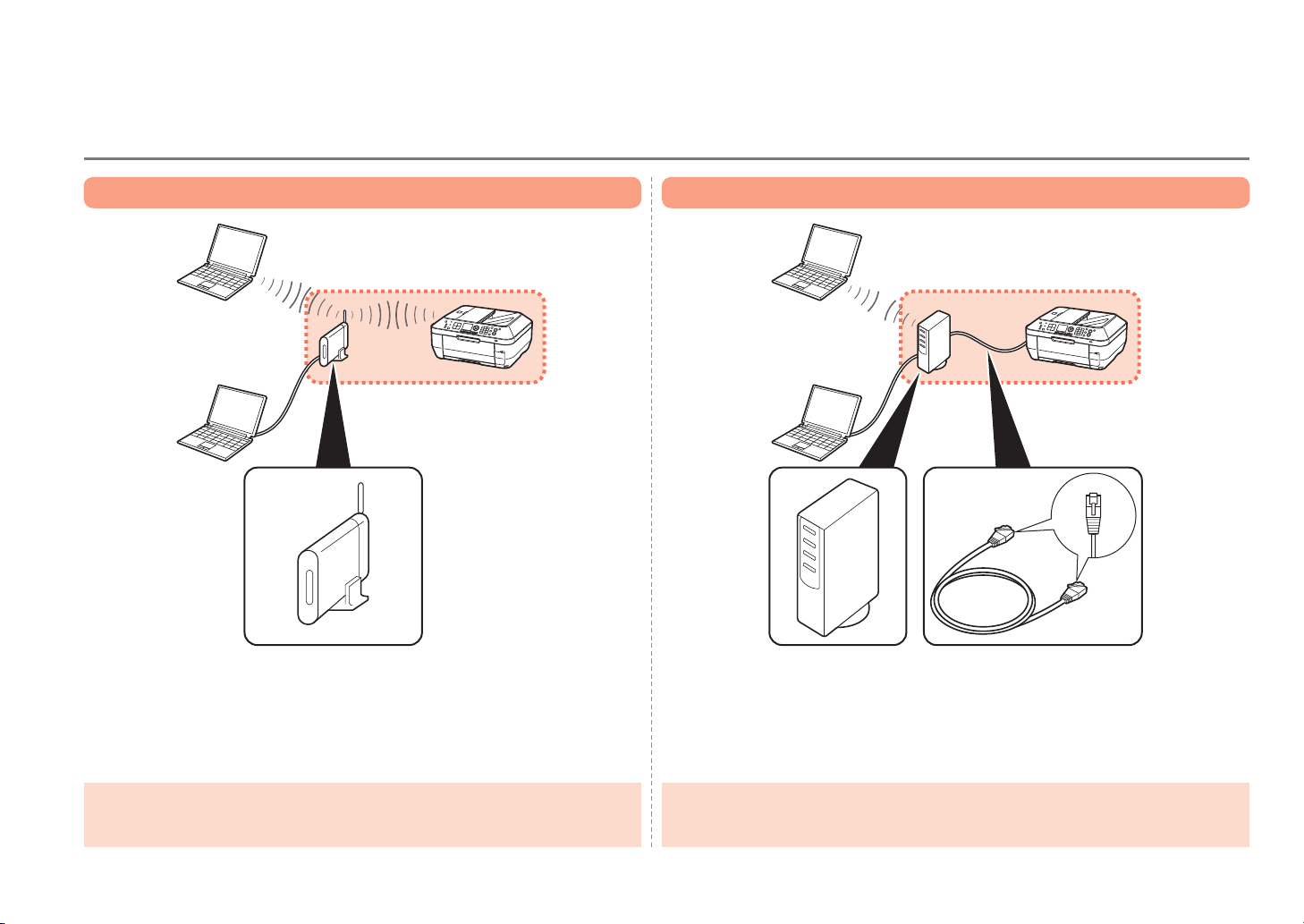

Devices Required for Wireless/Wired Connection■
Wireless Connection
When using the machine over a wireless/wired connection, the following devices are required depending on the connection method.
Wired Connection
Router, etc.
A commercial access point or router that supports IEEE802.11b/g is required. A commercial network device (router, etc.) and Ethernet cable are required.
Ethernet cableAccess point or wireless
router
1
A
5

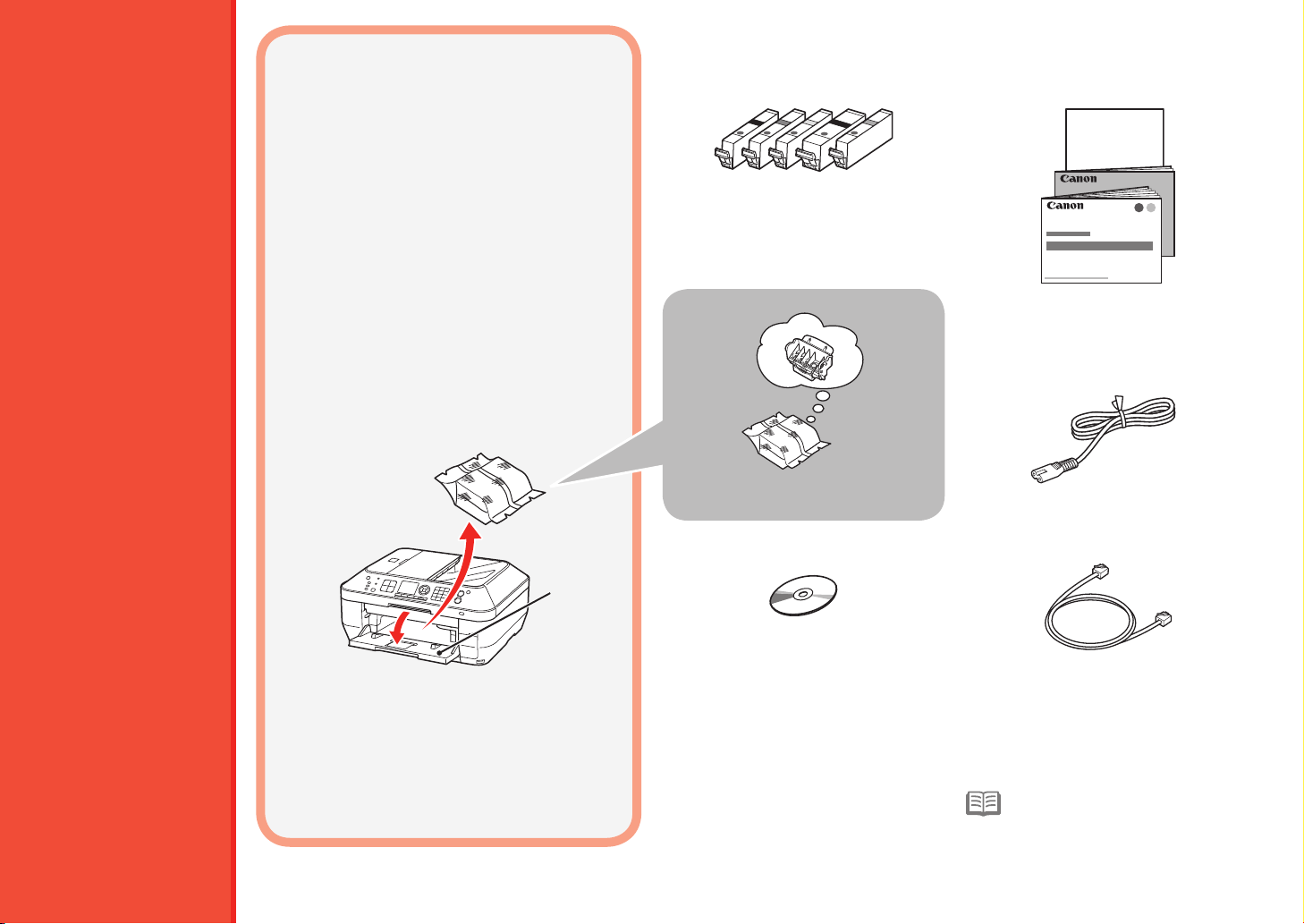

Remove all orange tape and
protective materials from the inside
and outside of the machine.
Preparation□
1
The Print Head is placed inside of
the Paper Output Tray (A). Open the
Paper Output Tray and take it out.
2
Ink tanks
(5: BK, M, Y, PGBK, C)
Print Head Power cord
Other documents
Manuals
Telephone line cable
Setup CD-ROM (containing the
drivers, applications and on-screen
manuals)
Check that all the items shown below are included in the box.
Check the Included Items
A USB cable is necessary to
connect the machine with your
computer (USB connection only).
•
2
A
2
1
B
21
6
To use the machine as a fax,
a telephone line needs to be
connected.
This section describes the
basic method of telephone line
connection.
When using as both a fax and
telephone:
When using as a fax only:
When not using as a fax:
Go to "3 Turn the Power
On" on page 7.
only

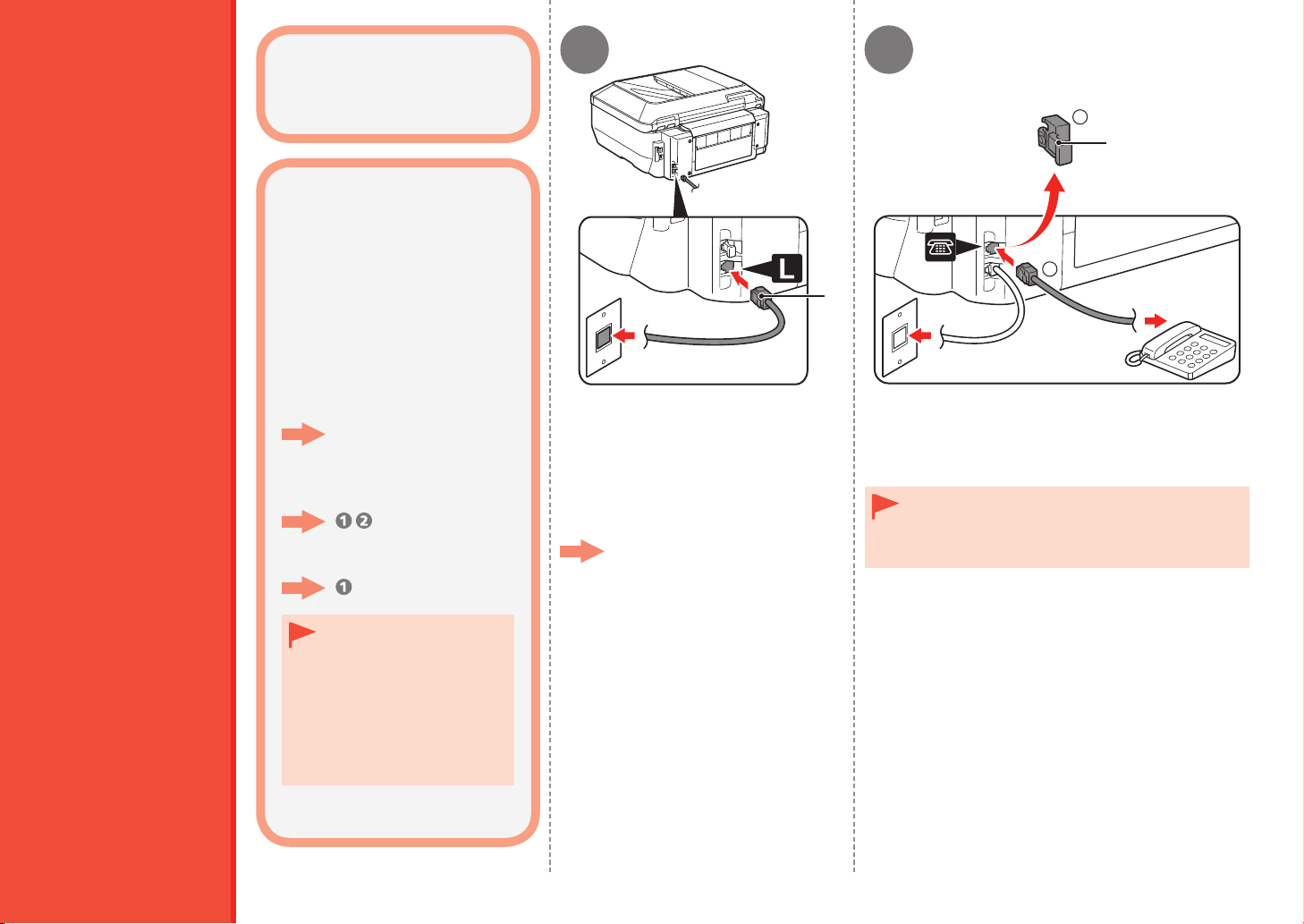

Connect the machine with a
telephone line using the supplied
telephone line cable (A).
Remove the Cap (B) (1), then connect a telephone
with the telephone line cable (2).
When using as a fax only:
Go to "3 Turn the Power On" on
page 7.
Do not connect the machine and a telephone
in parallel to the same telephone line using a
distribution adapter. The machine may not operate
properly.
•
Only when connecting a telephone:
For other connection methods,
refer to the on-screen manual:
Basic Guide.
Connect the Telephone Line
If you cannot send
faxes after installing
the machine, check the
telephone line type.
For details, refer to
"Conrming the Telephone
Line Connection" in the
on-screen manual: Basic
Guide.
•
Do not turn the
power on yet.
31 2
A
B
7
Turn the Power On
Do not install the machine
where an object may fall
on it. The object may
fall inside the machine,
resulting in malfunction.
Do not place any object on
top of the machine. It may
fall into the machine when
opening covers, resulting
in malfunction.
•
•

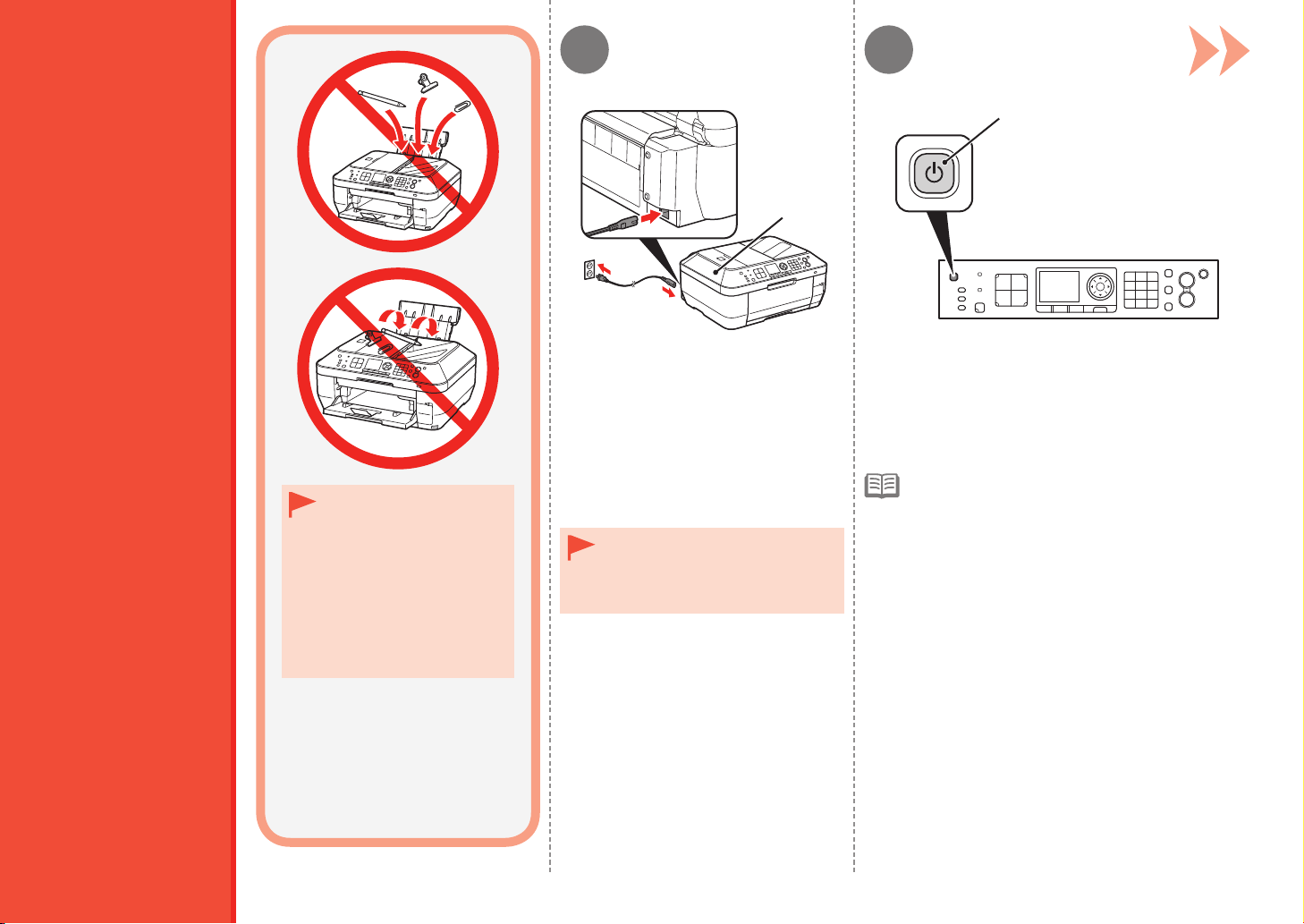

Insert the power cord into the
connector on the left side at the back
of the machine and into the wall
outlet.
Press the ON button (B) to turn on the machine.
Do NOT connect the USB cable or
Ethernet cable at this stage.
Make sure that the Document
Cover (A) is closed.
•
•
The machine may make some operating noises.
This is normal operation.
•
3 4
C
D
E
1 2
A
8
Turning the power off□
1. Press the ON button (A) to turn off the machine.
2. Make sure that all the lamps on the Operation Panel
are not lit.
Operating noise may continue for up to 30 seconds until the
machine turns off.
3 Turn the Power On

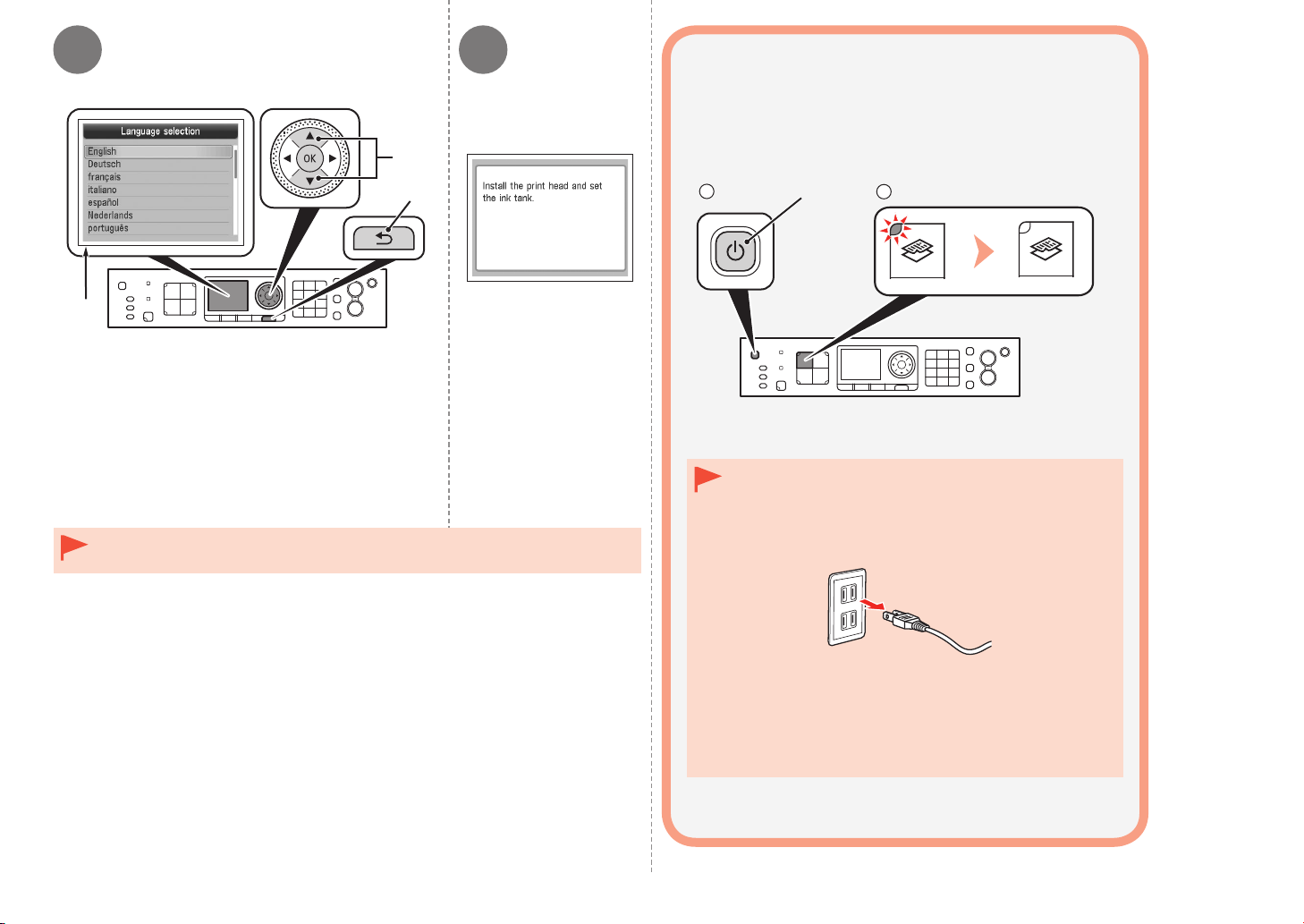

Use the {or }button (C) on the Operation Panel
to select the language for the LCD (Liquid Crystal
Display) (D), then press the OK button.
If an unintended language is displayed on the LCD, press the Back button (E) to
return to the Language selection screen.
•
Make sure that the
above screen is
displayed and go to the
next step.
When removing the power plug, make sure that all the
lamps on the Operation Panel are not lit before removing
the plug. Removing the power plug while all the lamps on
the Operation Panel light up or ash may cause drying and
clogging of the Print Head, resulting in poor printing.
•
If your machine is used as fax
Removing the power plug deletes all faxes stored
in memory. Send or print faxes as necessary before
removing the power plug.
•
Be sure to follow the procedure below.
