Canon PIXMA MP228 Manuel utilisateur

Quick Start Guide

Table of Contents

Introduction 1

How to Use the Documentation Provided 3

Preparing the Machine 4

Installing the MP Drivers 6

Reading the On-screen Manuals 8

Loading Paper 9

Operation Panel 10

Menu Items 11

Copying 13

Printing from a Memory Card 14

Printing from Your Computer 18

Scanning Images 20

Printing Photographs Directly from a Compliant Device 21

Replacing a FINE Cartridge 26

Specifications 28

QT5-1235-V01 XXXXXXXX © CANON INC. 2007 PRINTED IN VIETNAM

The following FINE Cartridges are compatible with this product.

QT51235V01

www.canon-asia.com

Model Number: K10308 (MP228)

1Introduction

Introduction

This Quick Start Guide uses the following symbols to indicate important information. Always observe

the instructions indicated by these symbols.

Warning

Instructions that, if ignored, could result in death or serious personal injury caused by incorrect

operation of the equipment. These must be observed for safe operation.

Caution

Instructions that, if ignored, could result in personal injury or material damage caused by incorrect

operation of the equipment. These must be observed for safe operation.

Important

Instructions that must be observed for safe operation.

Trademark Notices

z“Microsoft” is a registered trademark of Microsoft Corporation.

z“Windows” is a trademark of Microsoft Corporation, registered in the U.S. and other countries.

z“Windows Vista” is a trademark of Microsoft Corporation.

z“Macintosh” and “Mac” are trademarks of Apple Inc., registered in the U.S. and other countries.

z“MEMORY STICK”, “Memory Stick PRO”, “MEMORY STICK Duo” and “Memory Stick PRO

Duo” are trademarks of Sony Corporation.

z“xD-Picture Card” is a trademark of Fuji Film Co. Ltd.

z“MultiMediaCard” is a trademark of the MultiMediaCard Association.

z“SD Card”, “miniSD Card”, and “microSD Card” are trademarks of SD Association.

whatsoever without the express written permission.

2Introduction

Exif Print

This machine supports ExifPrint.

Exif Print is a standard for enhancing the communication between digital cameras and

printers. By connecting to an Exif Print-compliant digital camera, the camera’s image

data at the time of shooting is used and optimized, yielding extremely high quality

prints.

International ENERGY STAR®Program

As an ENERGY STAR®Partner, Canon Inc. has determined that this

product meets the ENERGY STAR®guidelines for energy efficiency.

Power Requirements

Never use a power supply voltage other than that supplied in the country of purchase.

Using the incorrect voltage could cause a fire or electric shock. The correct power

supply voltages and frequencies are as follows:

AC 100-240V, 50/60Hz

About Consumables

Consumables (ink tanks / FINE Cartridges) are available for 5 years after production

has stopped.

Safety Precautions

Warning

zNever attempt to plug the power cord into the power outlet or unplug the power cord when your hands

are wet.

zNever damage, modify, stretch, or excessively bend or twist the power cord. Do not place heavy objects

on the power cord.

zNever use any power supply other than the standard power supply available in the country of purchase.

Using the incorrect voltage and frequency could cause a fire or electric shock.

zAlways push the plug all the way into the power outlet.

Caution

zFor safety reasons, store FINE Cartridges out of the reach of small children.

zDo not drop or shake FINE Cartridges as this may cause the ink to leak out and stain your clothes and

hands.

Also read the Safety Precautions in the User’s Guide on-screen manual. Observe the warnings

and cautions to avoid personal injury or damage to the machine.

3How to Use the Documentation Provided

How to Use the Documentation Provided

Printed Documentation

Setup Sheet

Be sure to read this sheet first.

This sheet includes instructions for setting up your machine and getting it ready

for use.

Quick Start Guide (This guide)

Read this guide when starting to use the machine.

After following instructions in your setup sheet, we recommend you read this

guide to familiarize yourself with the basic operation of some of the main

functions that can be performed on your machine.

On-screen Manuals

User’s Guide

Read this guide when starting to use the machine.

If the Quick Start Guide does not provide you enough information please refer to

the User’s Guide which can be installed from the Setup CD-ROM. This guide

provides detailed instructions for:

zcopying

zprinting from a memory card

zprinting from your computer

zscanning

Additional guides are also available for advanced features.

Scanning Guide

Refer to this guide for full instructions on scanning operation and settings.

PC Printing Guide

Refer to this guide for full instructions on printer driver setting.

PC Photo Printing Guide

Refer to this guide for instructions on using the various application software

included on the Setup CD-ROM.

4Preparing the Machine

Preparing the Machine

Be sure to read your setup sheet first for setting up your machine and getting it ready for use.

Unpack the machine

Please confirm the included items against the illustration printed on the lid of the packing box.

1Turn on the machine.

2Prepare the FINE Cartridges.

3Install the FINE Cartridges.

Be sure to use the machine with both Black and Color FINE Cartridges.

Otherwise, the machine cannot print. When either of ink runs out while printing, you can

select to use either Color or Black ink as a printer driver setting. However you must use the

machine with both Black and Color FINE Cartridges installed regardless of the printer driver

setting.

Important

A USB cable is necessary to connect the machine with your computer.

Caution

Be sure to remove the tapes and protective material before you turn on the machine.

Note

zThe tape or the protective material position is subject to change.

zIf an unintended language is displayed on the LCD, press the Back button to return to the

LANGUAGE SETTING screen.

Caution

zDo not touch internal parts other than the FINE Cartridge Holder.

zDo not drop or shake FINE Cartridges as this may cause the ink to leak out and stain your

clothes and hands.

Important

zIf the Scanning Unit (Printer Cover) is left open for more than 10 minutes, the FINE Cartridge

Holder moves to the right side. Close and reopen the Scanning Unit (Printer Cover) to return the

holder to the left.

zDo not touch the electrical contacts or Print Head Nozzles on a FINE Cartridge. The machine

may not print out properly if you touch it.

zDo not reattach the protective tape once it has been removed.

zHandle the removed protective tape carefully to avoid getting your hands dirty or staining

surrounding work area.

Important

zMake sure that all the FINE Cartridges are installed in the correct position. The machine cannot

be used unless all the FINE Cartridges are installed.

zOnce you have installed the FINE Cartridges, the message “CART. RETURN” is displayed on

the LCD. Wait until the copy standby screen is displayed before proceeding. It takes about one

to two minutes.

Note

An error message will be displayed on the LCD if a FINE Cartridge is not installed properly. Open

the Scanning Unit (Printer Cover) and make sure that position of all the FINE Cartridges is

appropriate.

5Preparing the Machine

Selecting the Language for the LCD

1Press the ON/OFF button to turn on the machine.

2Press the Menu button seven times.

3Press the ]button twice, then press the OK button.

4Press the ]button twice, then press the OK button.

5Press the [button repeatedly to select the leftmost language.

6Press the ]button the number of times in the following table according to your

desired language.

7Press the OK button.

The desired language is displayed on the LCD.

8Press the Stop/Reset button.

Language Time(s) Language Time(s)

JAPANESE 0 SWEDISH 9

ENGLISH 1 DANISH 10

GERMAN 2 FINNISH 11

FRENCH 3 RUSSIAN 12

ITALIAN 4 CZECH 13

SPANISH 5 HUNGARIAN 14

DUTCH 6 POLISH 15

PORTUGUESE 7 SLOVENE 16

NORWEGIAN 8 TURKISH 17

6Installing the MP Drivers

Installing the MP Drivers

Information Common to Windows®and Macintosh®

Notes on the Installation Process

zIf the Select Language screen appears, select a language, then click Next.

zIf the Select Your Place of Residence screen appears, select your place of residence, then

click Next.

zThere are two ways of installing the MP Drivers and other software*:

Easy Install: the items included on the Setup CD-ROM are installed automatically

Custom Install: you can select particular items to install

* The available software programs included on the Setup CD-ROM may vary depending on

the country or region of purchase.

zWhen the User Registration screen appears, click Next. If your computer is connected to the

Internet, the on-screen instructions to register your product will appear.

Registration can also be performed from the icon on the desktop after installation is completed.

The User Registration screen will only be displayed when Europe, Middle East, Africa is

selected on the Select Your Place of Residence screen.

Notes on the Print Head Alignment

zIf the straight line is misaligned or print quality is not satisfactory after installing the MP

Drivers, you may need to align the Print Head. Refer to “Aligning Print Head on the Machine”

in the User’s Guide on-screen manual.

Information for Windows

zLog into a user account with the administrator privilege.

zBefore installing the MP Drivers, disable all anti-virus programs and automatically loading

programs.

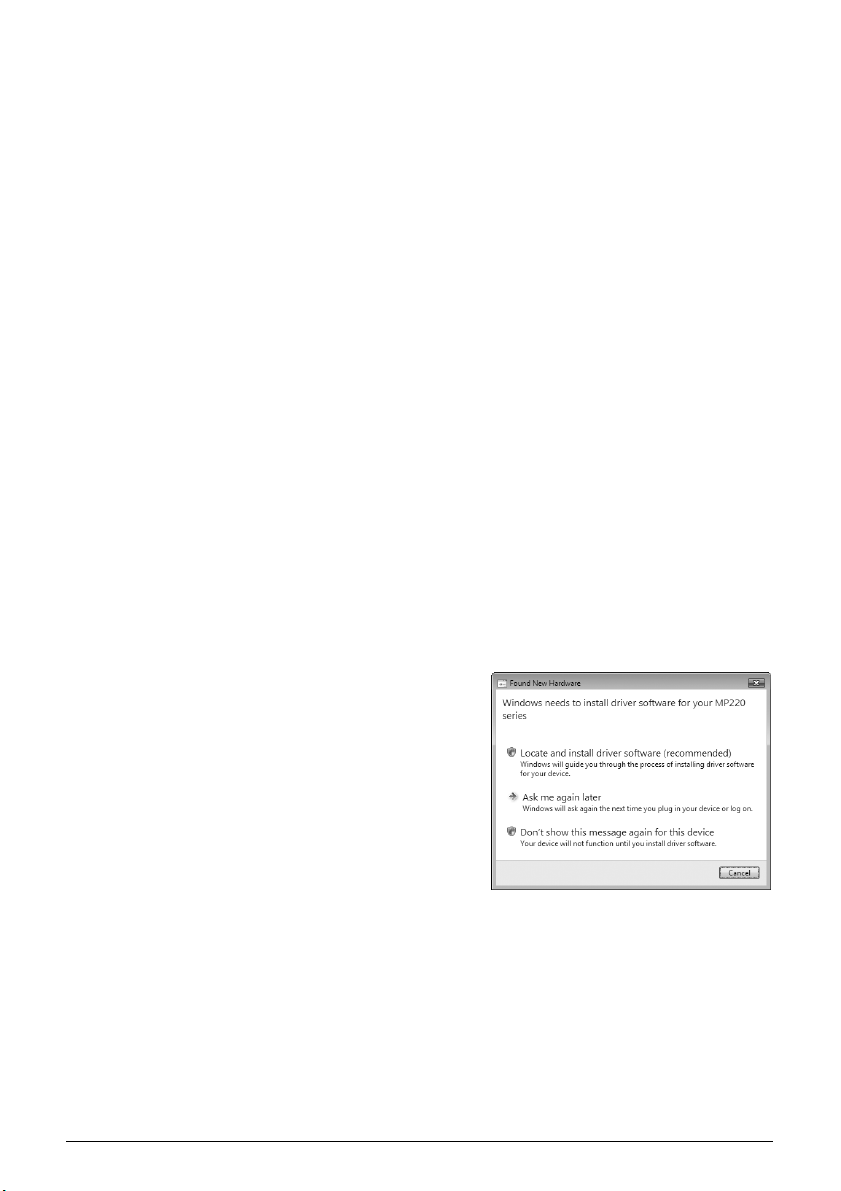

zIf the Found New Hardware or Found New

Hardware Wizard screen appears automatically,

remove the USB cable connected to your

computer. Click Cancel to quit the screen. In

Windows Vista™ operating system (hereafter

referred to as “Windows Vista”), the screen may

close automatically when the USB cable is

unplugged. Then turn off the machine and start the

installation process again. For details on the

installation process, refer to your setup sheet.

zIf the AutoPlay screen appears, click Run

Msetup4.exe. In Windows XP and Windows 2000,

this screen will not appear.

zIf the User Account Control screen appears, click Continue. In Windows XP and Windows

2000, this screen will not appear.

zA message asking for your confirmation to restart your computer may appear during the

installation process. If this message is displayed, follow the on-screen instructions and click OK.

The installation resumes from where it left off when your computer has been restarted.

zWe would appreciate it if you would take part in the PIXMA Extended Survey Program

regarding the use of Canon printers. For details, refer to the on-screen instructions.

zIf the connection is not recognized, refer to “Cannot Install the MP Drivers” in the User’s

Guide on-screen manual.

7Installing the MP Drivers

Users in Asia

zScan Soft OmniPage SE can be installed only on an English operating system.

Information for Macintosh

zSince Mac®OS 9, Mac OS X Classic environments, or Mac OS X v.10.2.7 or earlier are not

supported, do not connect the machine to these.

zDo not remove or insert the USB cable during installation, as this may result in the computer

or machine not operating normally.

zBefore installing the MP Drivers, disable all anti-virus programs and automatically loading

programs or remove them from your system folder.

When using Mac OS X v.10.2.8 to v.10.3.x:

zBefore using the Operation Panel on the machine to save originals scanned from the Platen

Glass to the computer, it is necessary to select MP Navigator EX 1.0 or MP Navigator EX 1

as the launch application on Image Capture under Applications. For details, refer to

“Scanning Images” in the User’s Guide on-screen manual.

When using Mac OS X v.10.2.8 to v.10.3.3:

zRestarting the computer while connected to the machine may cause the machine not to be

detected. To resolve this, either unplug the USB cable then plug it back in again, or turn the

machine off then back on again.

Users in Asia

zTo install the User’s Guide on-screen manual in a language other than the installed one,

double-click the Manual folder in the Setup CD-ROM, Canon folder, and then copy a

language folder to your hard disk.

8Reading the On-screen Manuals

Reading the On-screen Manuals

For detailed instructions on installing the on-screen manuals, refer to your setup sheet.

You can view the on-screen manuals in the following way:

To view the on-screen manual, double-click the XXX On-screen Manual shortcut icon on the

desktop, or click Start > All Programs (or Programs) > Canon XXX Manual > XXX On-screen

Manual (where “XXX” is your machine’s name).

System Requirements

Browser: Windows HTML Help Viewer

To view the on-screen manual, double-click the XXX On-screen Manual alias (where “XXX” is your

machine’s name) on the desktop.

System Requirements

Browser: Help Viewer

Note

zMicrosoft®Internet Explorer 5.0 or later must be installed.

zThe on-screen manual may not be displayed properly depending on your operating system or

Internet Explorer version. We recommend that you keep your system up to date with Windows

Update.

Note

Users in Asia

If you installed the User’s Guide from the Manual folder in the Setup CD-ROM, open the folder in which

you copied the User’s Guide and double-click top.htm.

Note

zThe on-screen manual may not be displayed properly depending on your operating system. We

recommend that you keep your system up to date.

zWe recommend using Safari as your Web browser to view the HTML format on-screen

manuals. If Safari is not installed on your computer, download it from Apple Inc. website and

install it.

Table des matières

Autres manuels Canon Imprimante tout-en-un

Canon

Canon IMAGE RUNNER C9065 PRO Manuel utilisateur

Canon

Canon PIXMA MX860 series Manuel utilisateur

Canon

Canon PIXMA MX7600 Manuel utilisateur

Canon

Canon MultiPASS MP390 Manuel utilisateur

Canon

Canon ImageRunner iR8500 Series Manuel utilisateur

Canon

Canon imageRUNNER C3125i Manuel utilisateur

Canon

Canon 1238P Fiche technique

Canon

Canon ImageCLASS MF5730 Guide de démarrage rapide

Canon

Canon MF754Cdw Manuel utilisateur

Canon

Canon imageRUNNER ADVANCE C2020 Manuel utilisateur

Canon

Canon PIXMA MP130 Manuel utilisateur

Canon

Canon IMAGERUNNER 2020 Manuel utilisateur

Canon

Canon IMAGERUNNER ADVANCE C5051 Manuel utilisateur

Canon

Canon PIXMA MG6220 Installing Manuel utilisateur

Canon

Canon PIXMA MG5320 Series Manuel utilisateur

Canon

Canon imageRUNNER 8500 Manuel utilisateur

Canon

Canon ImageRunner C2550 Manuel utilisateur

Canon

Canon imageCLASS MF6540 Manuel utilisateur

Canon

Canon imageRunner Advance 6255 Manuel utilisateur

Canon

Canon PIXMA MP810 Manuel utilisateur

Canon

Canon IMAGERUNNER 7095 PRINTER Manuel utilisateur

Canon

Canon PIXMA MP600 Manuel utilisateur

Canon

Canon PIXMA MG6420 Manuel utilisateur

Canon

Canon ImageCLASS MF4690 Manuel utilisateur

Manuels Imprimante tout-en-un populaires d'autres marques

Triumph Adler

Triumph Adler DC 2016 Manuel

Epson

Epson WorkForce WF-2510 Guide de l'utilisateur

Epson

Epson Stylus Scan 2000 Manuel d'installation et d'exploitation

Epson

Epson PictureMate Snap PM 240 Mode d’emploi

Konica Minolta

Konica Minolta bizhub C35 Manuel utilisateur

Brother

Brother MFC-J430w Manuel utilisateur

Konica Minolta

Konica Minolta BIZHUB 558 Manuel utilisateur

Lexmark

Lexmark MX710 Series Manuel

Brother

Brother MFC-9760 Manuel utilisateur

Lexmark

Lexmark XC8155 Manuel utilisateur

Lexmark

Lexmark X642E Manuel utilisateur

Sharp

Sharp MX-2310U Mode d’emploi

Aficio

Aficio 200 Manuel utilisateur

Ricoh

Ricoh Pro C900 Manuel utilisateur

Lexmark

Lexmark X925 Manuel utilisateur

Brother

Brother Business Smart MFC-J4510dw Manuel utilisateur

Epson

Epson Stylus CX8400 Series Manuel utilisateur

Oce

Oce VarioLink 5022 Manuel utilisateur
