CS106

Barometric

Pressure Sensor

User Manual

Issued 5.12.12

Printed under licence by Campbell Scientific Ltd.

CSL 713

Guarantee

This equipment is guaranteed against defects in materials and workmanship.

This guarantee applies for twelve months from date of delivery. We will

repair or replace products which prove to be defective during the guarantee

period provided they are returned to us prepaid. The guarantee will not apply

to:

•Equipment which has been modified or altered in any way without the

written permission of Campbell Scientific

•Batteries

•Any product which has been subjected to misuse, neglect, acts of God or

damage in transit.

Campbell Scientific will return guaranteed equipment by surface carrier

prepaid. Campbell Scientific will not reimburse the claimant for costs incurred

in removing and/or reinstalling equipment. This guarantee and the Company’s

obligation thereunder is in lieu of all other guarantees, expressed or implied,

including those of suitability and fitness for a particular purpose. Campbell

Scientific is not liable for consequential damage.

Please inform us before returning equipment and obtain a Repair Reference

Number whether the repair is under guarantee or not. Please state the faults as

clearly as possible, and if the product is out of the guarantee period it should

be accompanied by a purchase order. Quotations for repairs can be given on

request. It is the policy of Campbell Scientific to protect the health of its

employees and provide a safe working environment, in support of this policy a

“Declaration of Hazardous Material and Decontamination” form will be

issued for completion.

When returning equipment, the Repair Reference Number must be clearly

marked on the outside of the package. Complete the “Declaration of

Hazardous Material and Decontamination” form and ensure a completed copy

is returned with your goods. Please note your Repair may not be processed if

you do not include a copy of this form and Campbell Scientific Ltd reserves

the right to return goods at the customers’ expense.

Note that goods sent air freight are subject to Customs clearance fees which

Campbell Scientific will charge to customers. In many cases, these charges are

greater than the cost of the repair.

Campbell Scientific Ltd,

Campbell Park, 80 Hathern Road,

Shepshed, Loughborough, LE12 9GX, UK

Tel: +44 (0) 1509 601141

Fax: +44 (0) 1509 601091

Email: [email protected]

www.campbellsci.co.uk

PLEASE READ FIRST

About this manual

Please note that this manual was originally produced by Campbell Scientific Inc. primarily for the

North American market. Some spellings, weights and measures may reflect this origin.

Some useful conversion factors:

Area: 1 in2(square inch) = 645 mm2

Length: 1 in. (inch) = 25.4 mm

1 ft (foot) = 304.8 mm

1 yard = 0.914 m

1 mile = 1.609 km

Mass: 1 oz. (ounce) = 28.35 g

1 lb (pound weight) = 0.454 kg

Pressure: 1 psi (lb/in2) = 68.95 mb

Volume: 1 UK pint = 568.3 ml

1 UK gallon = 4.546 litres

1 US gallon = 3.785 litres

In addition, while most of the information in the manual is correct for all countries, certain information

is specific to the North American market and so may not be applicable to European users.

Differences include the U.S standard external power supply details where some information (for

example the AC transformer input voltage) will not be applicable for British/European use. Please

note, however, that when a power supply adapter is ordered it will be suitable for use in your country.

Reference to some radio transmitters, digital cell phones and aerials may also not be applicable

according to your locality.

Some brackets, shields and enclosure options, including wiring, are not sold as standard items in the

European market; in some cases alternatives are offered. Details of the alternatives will be covered in

separate manuals.

Part numbers prefixed with a “#” symbol are special order parts for use with non-EU variants or for

special installations. Please quote the full part number with the # when ordering.

Recycling information

At the end of this product’s life it should not be put in commercial or domestic refuse

but sent for recycling. Any batteries contained within the product or used during the

products life should be removed from the product and also be sent to an appropriate

recycling facility.

Campbell Scientific Ltd can advise on the recycling of the equipment and in some cases

arrange collection and the correct disposal of it, although charges may apply for some

items or territories.

For further advice or support, please contact Campbell Scientific Ltd, or your local agent.

Campbell Scientific Ltd, Campbell Park, 80 Hathern Road, Shepshed, Loughborough, LE12 9GX, UK

Tel: +44 (0) 1509 601141 Fax: +44 (0) 1509 601091

Email: [email protected]

www.campbellsci.co.uk

Contents

PDF viewers: These page numbers refer to the printed version of this document. Use the

PDF reader bookmarks tab for links to specific sections.

1. Introduction.................................................................1

2. Cautionary Statements...............................................1

3. Initial Inspection .........................................................1

4. Quickstart....................................................................1

4.1 Step 1 — Mount Sensor to an Enclosure Backplate .............................1

4.2 Step 2 — Use SCWin Short Cut to Program Datalogger and

Generate Wiring Diagram..................................................................2

5. Overview......................................................................5

6. Specifications .............................................................5

6.1 Operating Range.....................................................................................5

6.2 Accuracy.................................................................................................6

6.3 General ...................................................................................................6

7. Installation...................................................................7

7.1 Jumper Settings......................................................................................7

7.2 Enclosure Considerations.......................................................................8

7.3 Wiring.....................................................................................................9

7.3.1 Datalogger Connection...................................................................9

7.3.2 5-pin Screw Terminal Plug Connector.........................................10

7.4 Programming........................................................................................11

7.4.1 Conversion Factors.......................................................................11

7.4.2 Program Examples........................................................................11

7.4.2.1 CRBasic Example 1: CR1000 Program Using

Sequential Mode.............................................................11

7.4.2.2 CRBasic Example 2: CR1000 Program Using

Pipeline Mode ................................................................12

7.4.2.3 Edlog Example: CR10X Program.....................................13

7.4.3 Long Lead Lengths.......................................................................14

7.4.4 Output Resolution.........................................................................14

7.5 Correcting Pressure to Sea Level.........................................................15

8. Maintenance and Calibration...................................15

Figures

7-1. CS106 jumper set to shutdown mode....................................................7

7-2. ENC100 is a very small enclosure that can house one CS106..............8

7-3. CS106 wiring diagram...........................................................................9

7-4. Connector key attached to 5-pin screw terminal plug connector........10

Tables

7-1. Signal and Ground Connectors for CS106..........................................10

7-2. Conversion Factors for Alternative Pressure Units.............................11

CS106 Barometric Pressure Sensor

1. Introduction

The CS106 measures barometric pressure for the range of 500 to 1100 mb. This

range equates to from below sea level (as in a mine) to over 15,000 feet above sea

level. Designed for use in environmental applications, the CS106 is compatible

with all Campbell Scientific dataloggers.

Before using the CS106, please study

•Section 2, Cautionary Statements

•Section 3, Initial Inspection

•Section 4, Quickstart

More details are available in the remaining sections.

2. Cautionary Statements

•Warning: Failure to protect the sensor from condensation may result in

permanent damage.

•Warning: Improper wiring may damage the CS106 beyond repair.

•Care should be taken when opening the shipping package to not damage or

cut the cable jacket. If damage to the cable is suspected, consult with a

Campbell Scientific applications engineer.

•Although the CS106 is rugged, it should be handled as a precision scientific

instrument.

•The black outer jacket of the cable is Santoprene® rubber. This compound

was chosen for its resistance to temperature extremes, moisture, and UV

degradation. However, this jacket will support combustion in air. It is rated

as slow burning when tested according to U.L. 94 H.B. and will pass

FMVSS302. Local fire codes may preclude its use inside buildings.

3. Initial Inspection

•Upon receipt of the CS106, inspect the packaging and contents for damage.

File damage claims with the shipping company.

4. Quickstart

4.1 Step 1 — Mount Sensor to an Enclosure Backplate

The mounting holes for the sensor are one-inch-centred (three inches apart), and

will mount directly onto the holes on the backplate of Campbell Scientific

enclosures. Mount the sensor with the pneumatic connector pointing vertically

downwards to prevent condensation collecting in the pressure cavity, and also to

ensure that water cannot enter the sensor.

CS106 Barometric Pressure Sensor

4.2 Step 2 — Use SCWin Short Cut to Program Datalogger and

Generate Wiring Diagram

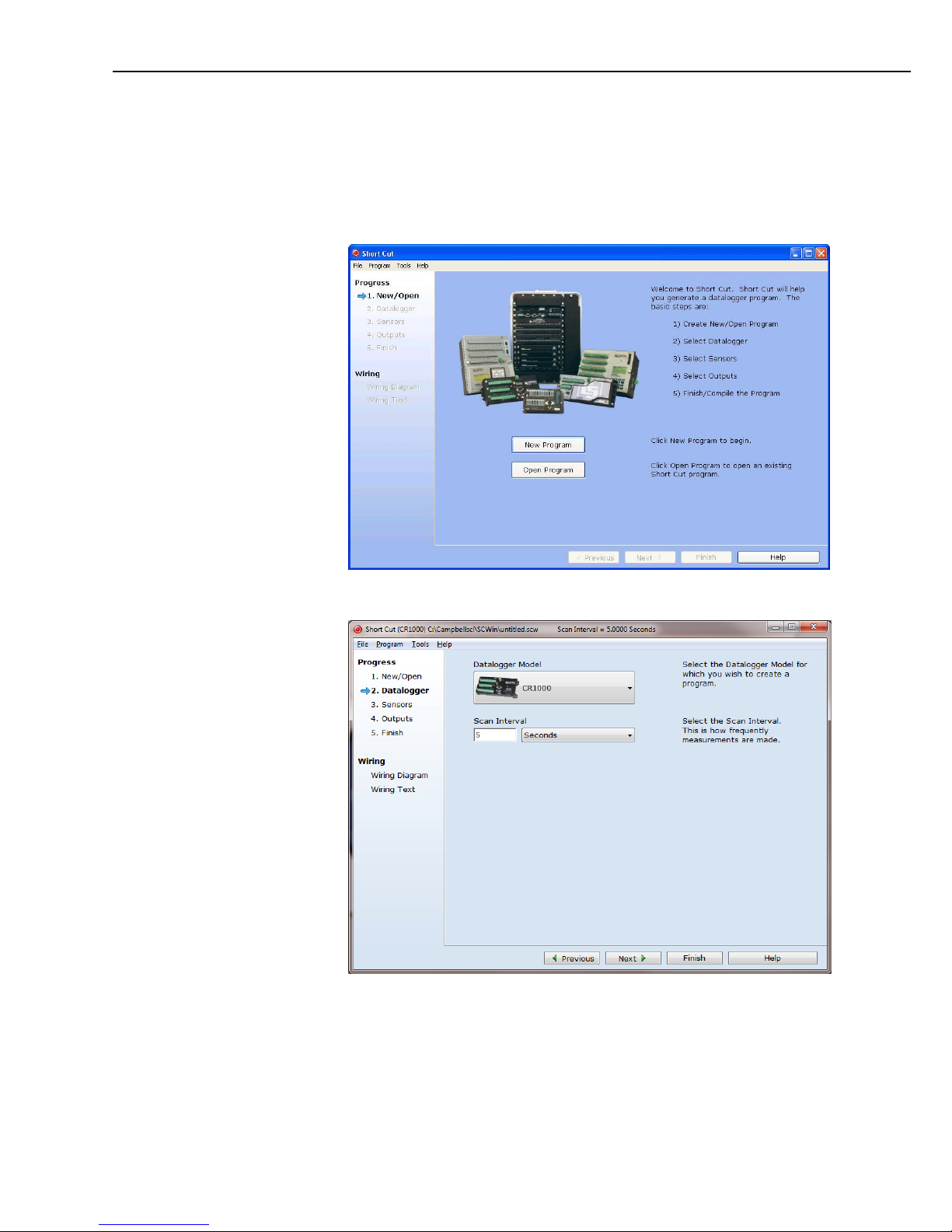

The simplest method for programming the datalogger to measure the CS106 is to

use Campbell Scientific's SCWin Short Cut Program Generator.

1. Open Short Cut and click on New Program.

2. Select a datalogger and scan interval.
