Campbell TE525 Manuel utilisateur

TE525 Tipping Bucket

Rain Gage

Revision: 10/13

Campbell Scientific, Inc.

Warranty

The TE525, TE525WS, and TE525MM are warranted for thirty-six (36)

months subject to this limited warranty:

“PRODUCTS MANUFACTURED BY CAMPBELL SCIENTIFIC, INC. are

warranted by Campbell Scientific, Inc. (“Campbell”) to be free from defects in

materials and workmanship under normal use and service for twelve (12)

months from date of shipment unless otherwise specified in the corresponding

Campbell pricelist or product manual. Products not manufactured, but that are

re-sold by Campbell, are warranted only to the limits extended by the original

manufacturer. Batteries, fine-wire thermocouples, desiccant, and other

consumables have no warranty. Campbell’s obligation under this warranty is

limited to repairing or replacing (at Campbell’s option) defective products,

which shall be the sole and exclusive remedy under this warranty. The

customer shall assume all costs of removing, reinstalling, and shipping

defective products to Campbell. Campbell will return such products by surface

carrier prepaid within the continental United States of America. To all other

locations, Campbell will return such products best way CIP (Port of Entry)

INCOTERM® 2010, prepaid. This warranty shall not apply to any products

which have been subjected to modification, misuse, neglect, improper service,

accidents of nature, or shipping damage. This warranty is in lieu of all other

warranties, expressed or implied. The warranty for installation services

performed by Campbell such as programming to customer specifications,

electrical connections to products manufactured by Campbell, and product

specific training, is part of Campbell’s product warranty. CAMPBELL

EXPRESSLY DISCLAIMS AND EXCLUDES ANY IMPLIED

WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. Campbell is not liable for any special, indirect,

incidental, and/or consequential damages.”

Assistance

Products may not be returned without prior authorization. The following

contact information is for US and international customers residing in countries

served by Campbell Scientific, Inc. directly. Affiliate companies handle

repairs for customers within their territories. Please visit

www.campbellsci.com to determine which Campbell Scientific company serves

your country.

To obtain a Returned Materials Authorization (RMA), contact CAMPBELL

SCIENTIFIC, INC., phone (435) 227-9000. After an application engineer

determines the nature of the problem, an RMA number will be issued. Please

write this number clearly on the outside of the shipping container. Campbell

Scientific’s shipping address is:

CAMPBELL SCIENTIFIC, INC.

RMA#_____

815 West 1800 North

Logan, Utah 84321-1784

For all returns, the customer must fill out a “Statement of Product Cleanliness

and Decontamination” form and comply with the requirements specified in it.

The form is available from our web site at www.campbellsci.com/repair. A

completed form must be either emailed to repair@campbellsci.com or faxed to

(435) 227-9106. Campbell Scientific is unable to process any returns until we

receive this form. If the form is not received within three days of product

receipt or is incomplete, the product will be returned to the customer at the

customer’s expense. Campbell Scientific reserves the right to refuse service on

products that were exposed to contaminants that may cause health or safety

concerns for our employees.

Table of Contents

PDF viewers: These page numbers refer to the printed version of this document. Use the

PDF reader bookmarks tab for links to specific sections.

1. Introduction.................................................................1

2. Cautionary Statements...............................................1

3. Initial Inspection .........................................................1

3.1 Ships With............................................................................................2

4. Quickstart ....................................................................2

4.1 Siting ....................................................................................................2

4.2 Mounting..............................................................................................2

4.3 Use SCWin to Program Datalogger and Generate Wiring Diagram ....4

5. Overview......................................................................7

5.1 Wind Screen.........................................................................................7

5.2 Snowfall Adapter .................................................................................7

6. Specifications .............................................................8

7. Operation.....................................................................9

7.1 Wiring ..................................................................................................9

7.2 Datalogger Programming ...................................................................10

7.2.1 Pulse Count Example Programs..................................................11

7.2.1.1 CR1000 Example Program...............................................11

7.2.1.2 CR200(X) Series Example Program ................................11

7.2.2 Control Port Example..................................................................12

7.2.2.1 CR1000 Example Program...............................................12

8. Troubleshooting........................................................12

9. Maintenance ..............................................................12

Appendix

A. Edlog Program Examples ...................................... A-1

A.1 CR10X Pulse Count Example Program .......................................... A-1

A.2 CR10X Control Port Example......................................................... A-2

Table of Contents

Figures

4-1. TE525 Tipping Bucket Rain Gage ...................................................... 3

4-2. Pedestal base options........................................................................... 3

7-1. Rain Gage Schematic ........................................................................ 10

Tables

7-1. Wiring for Pulse Channel Input........................................................... 9

7-2. Wiring for Control Port Input.............................................................. 9

7-3. Multipliers for Rain Measurement .................................................... 10

TE525 Tipping Bucket Rain Gage

1. Introduction

The TE525 is an adaptation of the standard National Weather Service tipping

bucket rain gage. Output is a switch closure for each bucket tip. Three models

are available:

•TE525 6 in. orifice 0.01 in. tip

•TE525WS 8 in. orifice 0.01 in. tip

•TE525MM 24.5 cm orifice 0.1 mm tip

Before installing the TE525, please study:

•Section 2, Cautionary Statements

•Section 3, Initial Inspection

•Section 4, Quickstart

2. Cautionary Statements

•The TE525-series tipping bucket rain gages are precision instruments.

Please handle them with care.

•Care should be taken when opening the package not to damage or cut the

cable jacket.

•Sensor is factory calibrated and should not require field calibration. Refer

to Section 9, Maintenance, for field calibration check and factory

calibration.

•Debris filters, funnel, and bucket reservoirs should be kept clean.

•The black outer jacket of the cable is Santoprene® rubber. This compound

was chosen for its resistance to temperature extremes, moisture, and UV

degradation. However, this jacket will support combustion in air. It is

rated as slow burning when tested according to U.L. 94 H.B. and will pass

FMVSS302. Local fire codes may preclude its use inside buildings.

3. Initial Inspection

•Upon receipt of the tipping bucket, inspect the packaging and contents for

damage. File damage claims with the shipping company.

•Immediately check package contents against the shipping documentation

(see Section 3.1, Ships With). Contact Campbell Scientific about any

discrepancies.

•The model number and cable length are printed on a label at the

connection end of the cable. Check this information against the shipping

documents to ensure the expected product and cable length are received.

TE525 Tipping Bucket Rain Gage

3.1 Ships With

The TE525 ships with:

(1) Calibration sheet

(2) Hose clamps from original manufacturer

(1) ResourceDVD

(3) Screws from original manufacturer

4. Quickstart

Please review Section 7, Operation, for wiring, CRBasic programming, and

Edlog programming.

4.1 Siting

The rain gage should be mounted in a relatively level spot which is

representative of the surrounding area. The lip of the funnel should be

horizontal and at least 30 cm above the ground. It should be high enough to be

above the average snow depth. The ground surface around the rain gage

should be natural vegetation or gravel. It should not be paved.

The rain gage should be placed away from objects that obstruct the wind. The

distance should be 2 to 4 times the height of the obstruction.

•The pipe used to mount the bucket must be vertical. Use a torpedo level or

something similar to get it as vertical as possible.

•Take the funnel off of the top of the bucket and look inside towards the

bottom of the bucket — notice the bubble level. Center the bubble level

while mounting the bucket to the pipe. Replace the funnel and seat it

completely when the installation is complete.

4.2 Mounting

The CM300-series mounting poles provide a stainless steel 1.5 IPS vertical

pole for mounting the TE525 rain gage. Pole length is 58 cm (23 in), 119 cm

(47 in), and 142 cm (53 in) for the CM300, CM305, and CM310 models

respectively. The CM300-series offers pedestal base options as well, as shown

in FIGURE 4-2.

Use the enclosed hose clamps to mount the gage as shown in FIGURE 4-1.

The lip of the gage should be at least 5 cm (2 in) above the post or pole. Level

the rain gage after mounting it.

Before final leveling, press either end of the bucket down against

its stop to make sure the bucket is NOT hung up in the center.

NOTE

TE525 Tipping Bucket Rain Gage

24”

8”

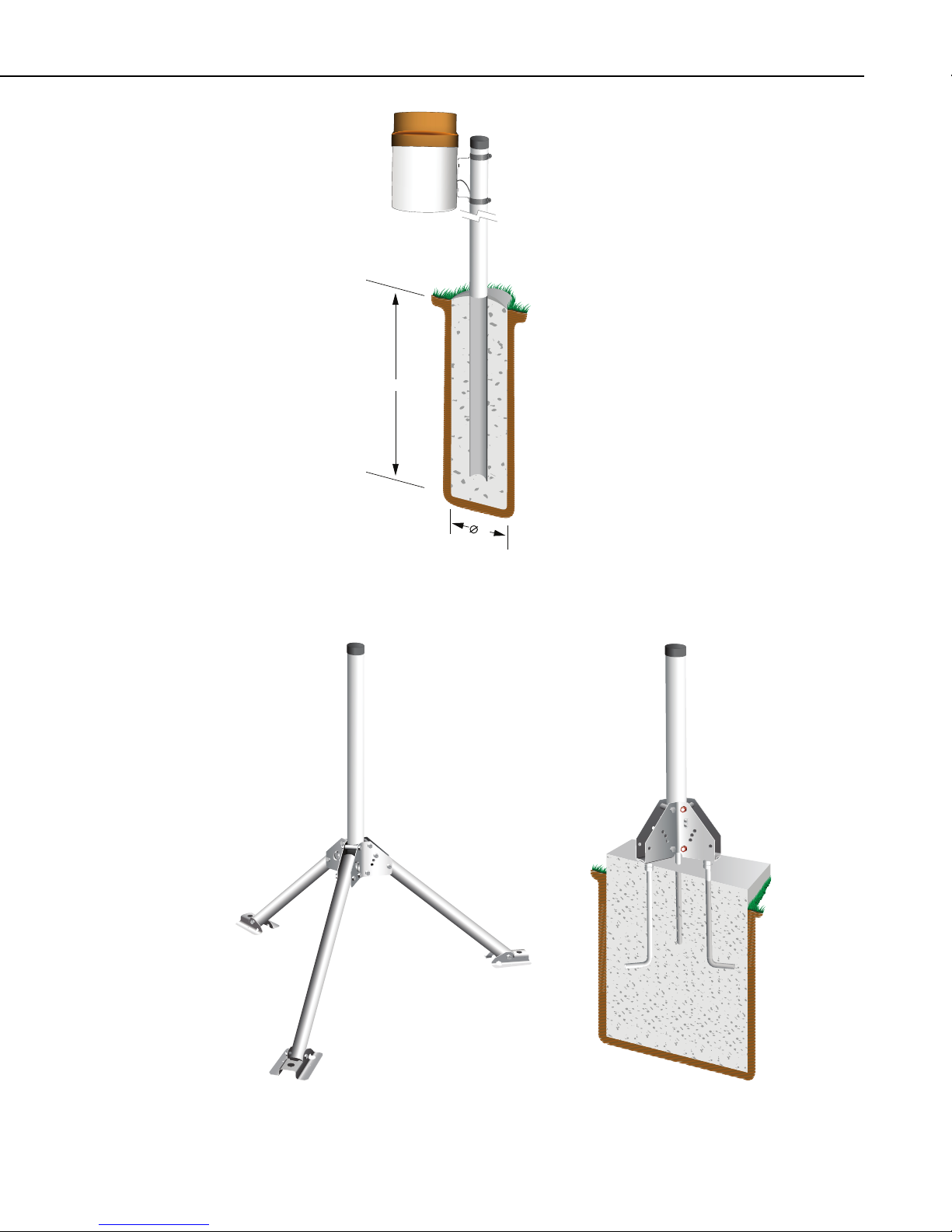

FIGURE 4-1. TE525 Tipping Bucket Rain Gage

FIGURE 4-2. Pedestal base options

TE525 Tipping Bucket Rain Gage

4.3 Use SCWin to Program Datalogger and Generate Wiring

Diagram

The simplest method for programming the datalogger to measure the tipping

bucket rain gages is to use Campbell Scientific’s SCWin Program Generator

(Short Cut).

This section shows Short Cut’s programming for the

TE525/TE525WS. The TE52MM is done similarly.

NOTE

1. Open Short Cut and click on New Program.

2. Select the Datalogger and enter the Scan Interval.
