CAME XTS 7IP WH WIFI Manuel utilisateur

Video intercoms for the IP360 system

XTS 7IP WH WIFI

XTS 7IP BK WIFI

XTS 7IP WH WFBF

USER MANUAL

English

FB01186-EN

All manuals and user guides at all-guides.com

all-guides.com

p. 2- Manual FB 0118 6 -EN - 06/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - This is a translation of the original instructions

GENERAL PRECAUTIONS

• Carefully read the instructions before using the device.

• The installation, programming, commissioning and maintenance of the product must only be carried out by

qualiﬁed technicians, properly trained in compliance with the regulations in force, including health and safety

measures and the disposal of packaging.

• The equipment must be destined solely for the use for which it was expressly designed.

• The manufacturer declines all liability for any damage as a result of improper, incorrect or unreasonable use.

Maintenance and precautions when using the device

• Do not expose the LCD screen to direct sunlight.

• To clean, only use soft, dry, or slightly-moistened cloth rags. Do not use any chemicals.

• Do not block the air vents.

DESCRIPTION

Full-touch video intercom for the IP360 system, with TFT seven-inch touch-screen, featuring WiFi and User Graph-

ic User Interface.

Description of parts

1Signaling LED

2Loudspeaker

3Touch screen display

4Microphone.

All manuals and user guides at all-guides.com

B C HGF I J

p. 3- Manual FB 0118 6 -EN - 06/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - This is a translation of the original instructions

HomeBackInfo

Call register

Contacts

Aux List

Entry panels

Video Recording

Favorites

19:02

Thursday

01 Feb 2018

Commands and notiﬁcations found on the home page

The appearance of the homepage may vary according to the system settings or the user interface.

ACommand to exclude call ringer; when the com-

mand is active, the red LED is lit.

BThe red LED means that the device's ringer is

turned off

CThe blinking blue LED, when the screen is stand-

ing by, means that there are unseen messages or

missed calls

DTurns the answering service off or on

ETurn the automatic door opener on or off

This icon appears only if the automatic door

opener function is properly set up.

FThe blinking icon means there is a programming

error

GThe blinking icon means there are unseen mes-

sages or missed calls

HThe grey icon means that the device is enabled

for connecting to CAMEConnect; The white icon

means the device is connected to CAMEConnect

IThe white icon means that the device is working

properly and is ready to take any calls

JThe icon means that the Wifi connection is active

and strong

Kthis button appears on all screens and is for re-

turning to the homepage

LThis button appears on all screens and is for re-

turning to the previous page

MThis button appears on all screens and is for ac-

cessing the information pages

NThis activates the preset auxiliary command

OPreset door opener command

PHELP button; It sends a "panic alarm" notiﬁcation

to the assigned concierge,and shows the exten-

sion number

This button is featured in systems that require

a concierge service.

All manuals and user guides at all-guides.com

p. 4- Manual FB 0118 6 -EN - 06/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - This is a translation of the original instructions

Call from Entry Panel

HOW TO USE THE DEVICE

Answering a call

An image of the caller appears on the screen. The audio from and towards the caller is turned o.

ATouch the button to answer the call and to turn on the audio communication.

BTouch the button to refute the call and to return to the homepage.

Options appearing on the screen during a conversation

CCall duration and state of the door

DCaller's ID.

Commands that are active during a conversation

EIt turns on the electric lock of the shown entry panel.

FThis opens the list of auxiliary commands conﬁgured for the shown entry panel; touch the name of the com-

mand that you want to send.

GTouch buttons + and - to adjust the audio volume.

HTurn o the microphone (mute function).

ITouch the button the start audio/video recording the current conversation.

A red light signal blinks next to the caller's ID during the recording.

The recording is automatically ended after 10 seconds.

J Touch and drag the image o the screen (or press the side arrows >) to view the entry panel or next/previous

analog video camera on the list, if any more are present; the current audio/video call is ended.

All manuals and user guides at all-guides.com

p. 5- Manual FB 0118 6 -EN - 06/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - This is a translation of the original instructions

Porter

Main Call

Intercom 2 Not home

Main Call

Intercom 1 Not home

App 01 Call Mario's phone

App 02 Lucy's Home

phone

App 01 Mario's Home

phone

Home

Back

Info

Call register

Contacts

Aux List

Entry panels

Video Recording

Favorites

19:02

Thursday

01 Feb 2018

19:02

Thursday

01 Feb 2018

Making a call

This device lets you call other indoor receivers (intercommunication), any devices connected over the Wiﬁ network

or, any entry panels.

Calling a contact on the

favorites list

ATouch the icon to access the list

of favorite contacts.

To ﬁll the list of favorite con-

tacts, see the chapter "Contacts"

on page 7.

Select one of the listed contacts to

initiate a call.

Touch the icon to view con-

tact's details.

Touch the icon to remove the

contact form the list of favorites.

When communication is underway,

certain commands and information

appear on the screen, as men-

tioned before in the "Answering a

call" on page 4.

All manuals and user guides at all-guides.com

p. 6- Manual FB 0118 6 -EN - 06/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - This is a translation of the original instructions

Secondary entry panel

Main entry panel

HomeBackInfo

19:02

Thursday

01 Feb 2018

Secondary entry panel

HomeBackInfo

Call register

Contacts

Aux List

Entry panels

Video Recording

Favorites

19:02

Thursday

01 Feb 2018

Select one of the entry panels on

the list to initiate the call.

This opens the door associated

to the entry panel without initiating

a call.

Opens a pop-up containing a

list of auxiliary commands associ-

ated to the entry panel.

Touch the icon to view con-

tact's details.

Touch the icon the remove the

contact from the list.

Turn on communication to

entry panel

BTouch the icon to access the list

of entry panels.

To ﬁll the list of entry panels,

see the "Contacts" on page 6.

When communication is underway,

certain commands and information

appear on the screen, as men-

tioned before in the "Answering a

call" on page 4.

All manuals and user guides at all-guides.com

all-guides.com

p. 7- Manual FB 0118 6 -EN - 06/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - This is a translation of the original instructions

NORTH entry panel

Home

EAST entry panel

Main entry panel

Porter

Home

Back

Info

Call register

Contacts

Aux List

Entry panels

Video Recording

Favorites

19:02

Thursday

01 Feb 2018

19:02

Thursday

01 Feb 2018

Commands associated with contacts

Opens the door associated to the entry panel.

Opens a pop-up containing a list of auxiliary commands associated to the entry panel.

Adds/removes the selected to and from the favorites list.

Adds/removes the selected to and from the entry panels list.

Types of contact

Household

Single User

Porter

Entry panel

Analog video camera

Touch one of the listed items to access the window for viewing details on the selected contact and to customize

his or her name.

Contacts

Touch the icon to access the con-

tacts list.

The list contains all the devices that

can be contacted.

All manuals and user guides at all-guides.com

p. 8- Manual FB 0118 6 -EN - 06/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - This is a translation of the original instructions

Home

Back

Info

XTS Receiver Basement

Mobile App 3

XTS Receiver Ac

Mobile App 1

EXTENSIONS

XTS receiver

Porter

Main entry panel

Home

19:02

Thursday

01 Feb 2018

19:02

Thursday

01 Feb 2018

19:02

Thursday

01 Feb 2018

Unit

AHousehold.

Bthe indoor receiver.

CDevices belonging to the house-

hold.

Touch the icon to add the con-

tact to the list of favorites.

Touch one of the contacts to initiate

a call.

Touch the button Back to return to

the previous screen.

Porter

FConcierge panel, if the system

features this.

Touch the contact to initiate the

call.

Entry panel

DEntry panel.

ECommands associated to an

entry panel.

Touch the contact to initiate the

call.

All manuals and user guides at all-guides.com

p. 9- Manual FB 0118 6 -EN - 06/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - This is a translation of the original instructions

Delete all

Entry panel

01 gen 2018 23:55

10s

03 gen 2018 17:33

10s

04 gen 2018 21:03

10s

Entry panel

Home

Back

Info

Call register

Contacts

Aux List

Entry panels

Video Recording

Favorites

19:02

Thursday

01 Feb 2018

19:02

Thursday

01 Feb 2018

Video Recording

ATouch the icon the turn the an-

swering service on or o.

To properly set up the an-

swering service, see "Video Re-

cording" on page 16.

BThe number with the red back-

ground is the number of unseen

video messages.

When the screen standing-by,

any unseen video messages, are

ﬂagged by the blinking, blue LED

ﬁtted on the frame.

Any unseen messages are high-

lighted.

Touch the wanted message to start

its playback.

Touch the icon to remove the

message from the list.

Touch the button Back to return to

the previous screen.

All manuals and user guides at all-guides.com

p. 10 - Manual FB 0118 6 -EN - 06/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - This is a translation of the original instructions

Light

Entry panel

Gate

Entry panel

HomeBackInfo

Call register

Contacts

Aux List

Entry panels

Video Recording

Favorites

Home

Back

Info

Call register

Contacts

Aux List

Entry panels

Video Recording

Favorites

19:02

Thursday

01 Feb 2018

19:02

Thursday

01 Feb 2018

19:02

Thursday

01 Feb 2018

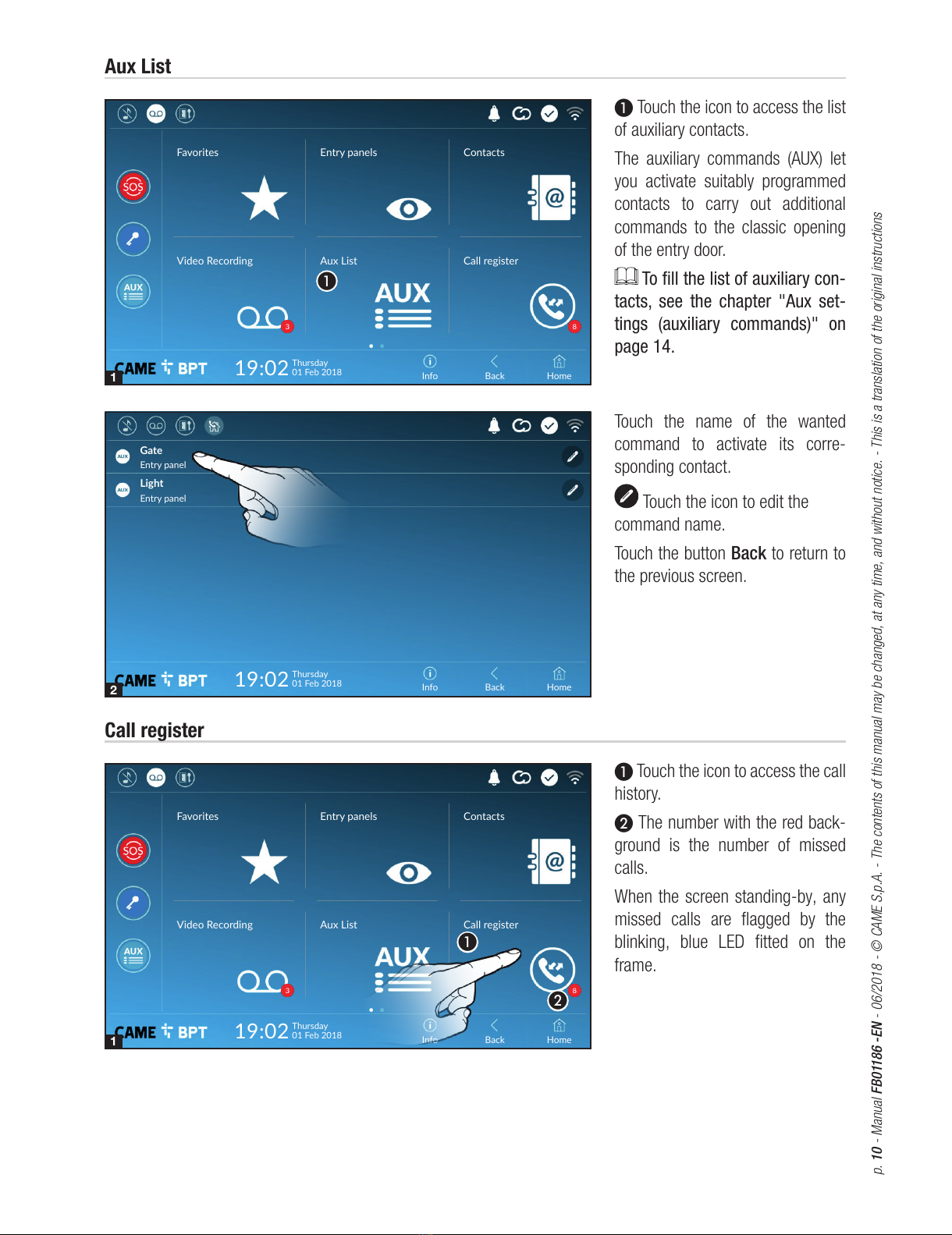

Aux List

ATouch the icon to access the list

of auxiliary contacts.

The auxiliary commands (AUX) let

you activate suitably programmed

contacts to carry out additional

commands to the classic opening

of the entry door.

To ﬁll the list of auxiliary con-

tacts, see the chapter "Aux set-

tings (auxiliary commands)" on

page 14.

Call register

ATouch the icon to access the call

history.

BThe number with the red back-

ground is the number of missed

calls.

When the screen standing-by, any

missed calls are ﬂagged by the

blinking, blue LED ﬁtted on the

frame.

Touch the name of the wanted

command to activate its corre-

sponding contact.

Touch the icon to edit the

command name.

Touch the button Back to return to

the previous screen.

All manuals and user guides at all-guides.com

Autres manuels pour XTS 7IP WH WIFI

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels CAME Système d'interphone

CAME

CAME Bpt TARGHA GSM VR1 Manuel utilisateur

CAME

CAME 001DC02EARY Manuel utilisateur

CAME

CAME VRK01 Manuel utilisateur

CAME

CAME AGT V Manuel utilisateur

CAME

CAME LVC/01 Manuel du propriétaire

CAME

CAME AGTMTMVKIT Manuel utilisateur

CAME

CAME BPT KIT FREE DVC Series Manuel utilisateur

CAME

CAME BPT KIT FREE LVC Manuel utilisateur

CAME

CAME 001CK0010 Manuel utilisateur

CAME

CAME DIR 10 Manuel utilisateur

CAME

CAME 001DC00EGMA11 Manuel utilisateur

CAME

CAME XTS 7IP BK WIFI Manuel

CAME

CAME AGT A200 Manuel utilisateur

CAME

CAME XVP S Feuille d'instructions

CAME

CAME ENTROTEC Entroview+ Manuel utilisateur

CAME

CAME 001DC01EARY Manuel utilisateur

CAME

CAME 001DC02ENIGMA Manuel utilisateur

CAME

CAME XTS 7 WH WIFI Manuel utilisateur

CAME

CAME PLACO-C Manuel utilisateur

CAME

CAME FUTURAKITVC04 Manuel utilisateur

CAME

CAME BPT DVC/01 Manuel du propriétaire

CAME

CAME AGT V EVO Manuel utilisateur

CAME

CAME ENTROTEC ED5 Manuel utilisateur

CAME

CAME BPT THANGRAM Manuel du propriétaire

Manuels Système d'interphone populaires d'autres marques

Bticino

Bticino LINEA 3000 Manuel utilisateur

MSI

MSI MSI-140 Manuel utilisateur

golmar

golmar Stadio Plus Manuel utilisateur

CyberData

CyberData 011211 series Manuel

Vidos

Vidos duo M1021 Manuel utilisateur

Vimar

Vimar ELVOX 7539/E Manuel utilisateur

SSS Siedle

SSS Siedle BTSV 850-03 Manuel utilisateur

Dahua

Dahua VTO Series Manuel utilisateur

Elvox

Elvox 5651 Manuel utilisateur

Videx

Videx VIDEOKIT Series Manuel utilisateur

Rocom

Rocom Doortello Business FW T2.05W2.04 Manuel utilisateur

Viking

Viking E-35-EWP Manuel utilisateur

Safeguard Supply

Safeguard Supply LRA-EX1000 Manuel utilisateur

SSS Siedle

SSS Siedle BFCV 850 Series Manuel utilisateur

GRD

GRD MAX V2 Manuel utilisateur

Alecto

Alecto ADI-250 Manuel utilisateur

Aiphone

Aiphone IE-8MD Manuel utilisateur

Perel

Perel EDB4 Manuel utilisateur
