Congratulations on the purchase

of your new Cal Flame barbecue island!

With a little preparation and care, your barbecue island will give you

many years of enjoyment. This booklet has been designed to provide you

with all the information you’ll need to ensure a safe and easy delivery

and installation.

Most cities and counties require permits for exterior construction and

electrical circuits. Your dealer can provide information on which permits

may be required and how to obtain them prior to the delivery of your

barbecue island.

Planning the Best Location

Here are some of the things that you will need to consider when

determining where to place your new barbecue island.

Safety First

Do not place your barbecue island near trees and shrubs.

Be certain that your installation will meet all city and local safety

codes and requirements.

Consider How You Will Use Your Barbecue Island

Your barbecue island is mainly used for family recreation. Be sure

to leave plenty of room around it for activity.

Ventilation and Access

If you place your barbecue island close to a wall or fence, make

sure you allow room for ventilation. Also, if you have storage areas

in your barbecue island, make sure they can be conveniently

accessed.

Enclosures and Awnings

Your barbecue island is for outdoor use ONLY.

You can locate your barbecue island any place where there is

adequate ventilation. The size and conguration of your house and

yard will determine how you should locate your barbecue island,

but as a general rule, do not place it under or near windows that

can be opened into your home.

Do not locate your barbecue island in an enclosed room such as a

garage, shed, or breezeway or under a sealed overhead structure.

You can place your barbecue island in your patio as long as there

is adequate ventilation and no re risk. We do not recommend

placing your barbecue island in any enclosed area, that is, any

covered area that is walled on two, three or four sides.

You can install an awning over your barbecue island, provided you

make sure it is high enough to prevent damage or re. Maintain

sufcient distance as to not overheat any overhead combustible

material. We recommend you check with local inspectors and your

homeowner’s association.

Plan for Your Environment

If you live in a region where it snows in the winter or rains

frequently, place the barbecue island near a house entry. Consider

adding a covered walkway from your barbecue island to your

house or patio.

Preparing a Good Foundation

Your barbecue island needs a solid and level foundation. Damage

caused by inadequate or improper foundation support is not

covered by the warranty. It is the responsibility of the owner to

provide a proper foundation for the barbecue island.

If you do not already have a location for your barbecue island, we

recommend you have a concrete slab prepared to accommodate

it. There are several advantages of having a permanent slab,

including stability, levelness, and it eliminates sagging.

As you prepare your slab, this is the best time to run gas,

electrical, and water lines and locate stub-ups for your barbecue

island to connect to. The size and shape of the base of the

barbecue island is called a footprint.

Footprint drawings show the actual dimensions of the base and

suggested locations for your stub-ups. Footprint drawings for each

model can be found at the Cal Spas Web site, www.calspas.com,

or your dealer can provide them to you.

Although a permanent slab is recommended, you can place your

barbecue island on a prepared surface with bricks or pavers. We

do not recommend you place your barbecue island on gravel,

sand, timbers, dirt or grass because these surfaces have the

potential to become unstable or uneven. Your barbecue island

should always be on a stable, at, level surface.

You can put your barbecue island on a deck provided it is rated

to support the full weight of your barbecue island, grill, and all

accessories. We recommend you have a contractor or structural

engineer examine your deck to determine whether it can bear the

load of your barbecue island.

Your Cal Flame retailer can help you with your foundation and

more. Your retailer has a wealth of information and experience

about how to get the most out of your barbecue island and can

provide you with a full line of accessories that are designed to

complement your barbecue island and increase your enjoyment.

Electrical Requirements

You do not need to hire a contractor to install your electrical

service, but you must ensure you have all required permits and the

installation complies with State and local code. We recommend

you hire a certied contractor if you do not wish to do the

installation yourself.

If your dealer is not a certied contractor, you will need to hire a

contractor for installation of your electrical service.

When installed in the United States, the electrical wiring must

meet the requirements of National Electric Code, ANSI/NFPA70-

1999 and any applicable state or local codes. The electrical circuit

must be installed by an electrical contractor and approved by a

local building / electrical inspector.

Supplying power to a barbecue island that is not in accordance

with these instructions will void both the independent testing

agency listing and the manufacturer’s warranty.

The power supplied to the barbecue island must be on a dedicated

circuit with no other appliances or lights sharing the power.

To determine the current, voltage, and wire size required for the

island conguration to be connected, refer to the following:

Wire size is determined by length of run from breaker box to

the barbecue island and maximum current draw.

We recommend copper wire with THHN insulation.

All wiring must be copper to ensure adequate connections. Do

not use aluminum wire.

When NEC requires the use of wires larger than #6 (10mm²),

install a junction box near the barbecue island and use #6

(10mm²) wire between the junction box and the barbecue

island.

•

120 Volt Electrical Installation

For 120V grills, you need a dedicated 120V 20 amp grounded

electrical service.

There will be a 110V power outlet inside the barbecue island.

Using romax or similar grounded, shielded wire, connect the outlet

to the electrical service in the stub-up.

If the circuit breaker trips while the barbecue island is in use, reset

it. If it does not reset, contact a licensed electrician for service. DO

NOT USE THE BARBECUE ISLAND!

240 Volt Electrical Installation

If you have an electric grill, you will also require a 240V 50 amp

grounded electrical service in addition to the 110V service.

The electric grill needs to be permanently wired to the 240V

service. Using romax or similar grounded shielded wire, connect

the wires from the grill to the 240V service in the stub-up.

Natural Gas Installation

You do not need to hire a contractor to install your natural gas

service, but you need to make sure you have all required permits

and ensure the installation complies with State and local code. We

recommend you hire a certied contractor if you do not wish to do

the installation yourself.

If your dealer is not a certied contractor, you will need to hire a

contractor for installation of your gas service.

The natural gas pipe from your house to the location of your

barbecue island needs to be ¾” and terminate with a shut-off

valve with a ½” male tting. Check with a contractor or your local

inspector for requirements.

Water and Drainage Installation

If you have a sink or ice maker installed, there are several ways

you can provide water and drainage to your barbecue island.

A contractor can help you decide on the best solution for your

needs. You are responsible for ensuring all plumbing and drainage

complies with State and local codes.

Water Sources

Garden hose -- This is by far the easiest way of getting water to

your barbecue island. You have two options:

You can bring the hose through the front access door and

attach it underneath the sink when you need it, or

You can bury the length of the hose and bring it up beneath

the barbecue island in the same manner as the gas and

electrical stub-ups. Once you connect it to your sink, you won’t

need to remove it.

½” cold water pipe -- Plumb a single ½” cold water pipe from your

house plumbing to a stub-up beneath the sink.

Hot water plumbing -- You have many options for plumbing

your sink for hot water, including tapping from your house’s hot

water tank, installing a tankless point-of-use water heater, and

installing a solar water heater. Consider several factors to nd

a solution that best addresses your needs, including your water

consumption, electrical power supply, and drainage.Acontractor

can help you best with this.

Drainage

Five gallon bucket -- Place a ve gallon bucket beneath the sink

drain. This solution has the advantage of being inexpensive and

the least trouble to maintain for winterizing your barbecue island.

Drain to your garden -- if your yard is on a slope, you can take

advantage of this feature by draining sink water to a place in your

garden where you can re-use the water.

Gray water drain -- Installing a line to drain to your house’s gray

water drainage may incur some cost and labor, but it may be your

best solution if you plan to locate your barbecue island in its place

permanently.

•

Getting Your New Barbecue Island

Into Your Yard

Check the Dimensions of Your New Barbecue

Island

Your dealer can provide you with the dimensions of your barbecue

island, or you can nd them at www.calspas.com.

During delivery, the barbecue island must remain on the delivery

cart at all times. Compare the dimensions to the width of the

gates, sidewalks, and doorways along the delivery route. It may

be necessary for you to remove a gate or partially remove a fence

in order to provide an unobstructed passageway to the installation

location.

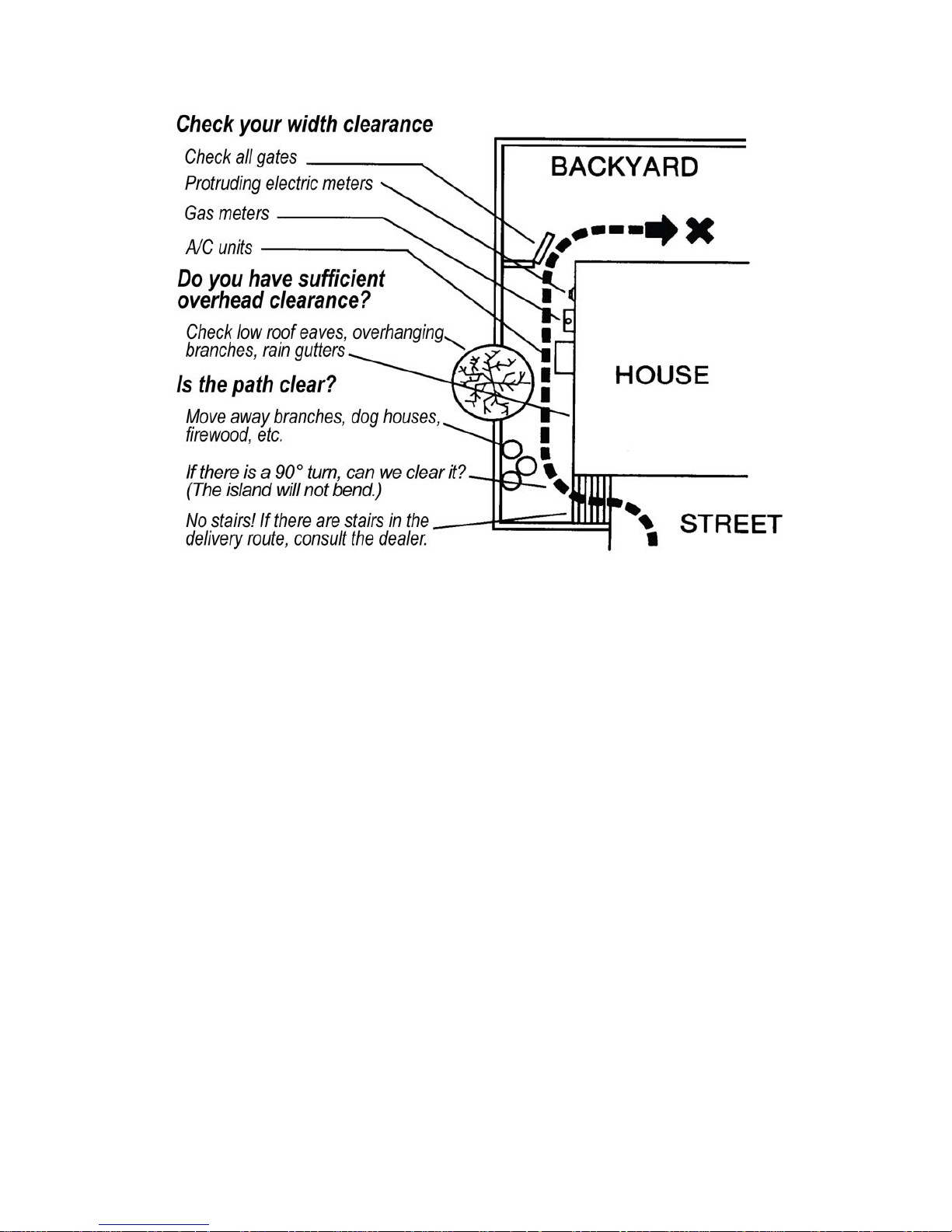

Plan the Delivery Route

Consider the following when planning your delivery route:

Check the width of gates, doors and sidewalks to make sure

your barbecue island will pass through unobstructed. You may

have to remove a gate or part of a fence to allow for adequate

width clearance.

Are there low roof eaves, overhanging branches or rain gutters

that could be an obstruction to overhead clearance?

Barbecue islands need at least the width of the island plus 12”.

If the delivery route will require a 90º turn, check the

measurements at the turn to ensure the barbecue island will

t.

Are there protruding gas meters, water meters or A/C units on

your home which will cause obstructions along the delivery

path to your yard?

Are there stairs in your delivery route? If so, you must consult

your dealer prior to delivery to make adequate preparations.

•

Special Circumstances

The use of a crane for delivery and installation may become

necessary if you are unable to provide an adequate delivery route.

It is used primarily to avoid injury to your barbecue island, your

property or to delivery personnel. Your dealer may be able to

assist you with the arrangements. If your barbecue island delivery

requires the use of a crane, the cost of a crane is generally not

included in the standard delivery service.

Installation After Delivery

For more information on installing your grill and accessories, see

the grill and carts owner’s manual.

If your barbecue island has two or more pieces, the delivery

crew will mate pieces and bolt them together. When sections are

aligned and in place, the crew will apply grout and do whatever

else is necessary cosmetically to ensure the barbecue island is

attractive and presentable.

After your barbecue island is delivered, set in place, and the grill

is mounted, you will need to connect all of the services to your

hardware. If your dealer is not a certied contractor, you will need

to hire a contractor for this.

The natural gas line connects to the grill inside the island. As you

are facing the grill, the connection is located at the right rear side

of the grill. The stub-up will terminate with a valve and a ½” male

tting. Connect the exible tubing from the grill to the male tting.

Both the natural gas and the electrical service connect inside

where the grill outlet is located.

The voltage transformer can be mounted to any part of the frame

where it will not be in the way. Plug it into the 110V grounded

outlet located inside the barbecue island.

Side burners do not require a separate regulator. You can put in

a tee in the line after it comes out of the regulator. For detailed

installation instructions, see the grill and cart owner’s manual.

Autres manuels pour Chef C100

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Calflame Gril

Calflame

Calflame BBQ19875CTG Manuel utilisateur

Calflame

Calflame BBQ870 Manuel utilisateur

Calflame

Calflame Barbecue Carts none Manuel utilisateur

Calflame

Calflame BBqI3P04 Manuel utilisateur

Calflame

Calflame Barbecue Grills Carts Manuel utilisateur

Calflame

Calflame BBQ845P Manuel utilisateur

Calflame

Calflame G-3000 Sports Bar Manuel utilisateur

Calflame

Calflame Barbeque Grill Manuel utilisateur

Calflame

Calflame BBQ10245-KDB Manuel utilisateur

Calflame

Calflame BBQ15K21 Manuel utilisateur

Calflame

Calflame BBQ18P06 Manuel utilisateur

Calflame

Calflame G Series Manuel utilisateur

Calflame

Calflame LTR20081044 Manuel utilisateur

Calflame

Calflame CONVECTION 3000 GRILL Manuel utilisateur

Calflame

Calflame Barbecue Island Manuel utilisateur

Calflame

Calflame BBQ10900 Manuel utilisateur

Calflame

Calflame Kamado XXL Manuel utilisateur

Calflame

Calflame BBQ08882E Manuel utilisateur

Calflame

Calflame P4 Manuel utilisateur

Calflame

Calflame 2008 G4 Manuel utilisateur

Calflame

Calflame MI-001 Manuel utilisateur

Calflame

Calflame Chef C100 Manuel utilisateur

Calflame

Calflame Pavilion Islands Manuel utilisateur

Calflame

Calflame BBQ11955P Manuel utilisateur

Manuels Gril populaires d'autres marques

Orbegozo

Orbegozo GR 2300 Manuel utilisateur

bora

bora PT11 Manuel utilisateur

Klarstein

Klarstein 10031664 Manuel utilisateur

Garland

Garland MWE3W Manuel utilisateur

Char-Broil

Char-Broil 463722714 Manuel utilisateur

Nexgrill

Nexgrill 720-0830HK Manuel utilisateur

Kenmore

Kenmore 415.16123800 Manuel utilisateur

Camp Chef

Camp Chef PG24CLAU Manuel utilisateur

Tucker Barbecues

Tucker Barbecues GTR Series Instructions de montage

Monogram

Monogram ZGG540NCP1SS Manuel utilisateur

Equipex

Equipex Sodir Savoy Manuel utilisateur

Gaggenau

Gaggenau VR 414 610 Manuel utilisateur

Miele

Miele KM 408-1 Manuel utilisateur

George Foreman

George Foreman GGR50B Manuel utilisateur

AOG

AOG T series Manuel utilisateur

Gorenje

Gorenje TG2000CB Mode d’emploi

Weber

Weber Genesis Silver-B Permamount NG 051701 Manuel utilisateur

Glen

Glen SA 3037 Manuel utilisateur
