Calf-Tel MultiMax Manuel utilisateur
Hampel, W194 N11551 McCormick Drive, Germantown, WI 53022
Phone: 262-255-4540 Fax:262-255-9731
1
Revised: 11/28/18 LIT-1412 Rev D

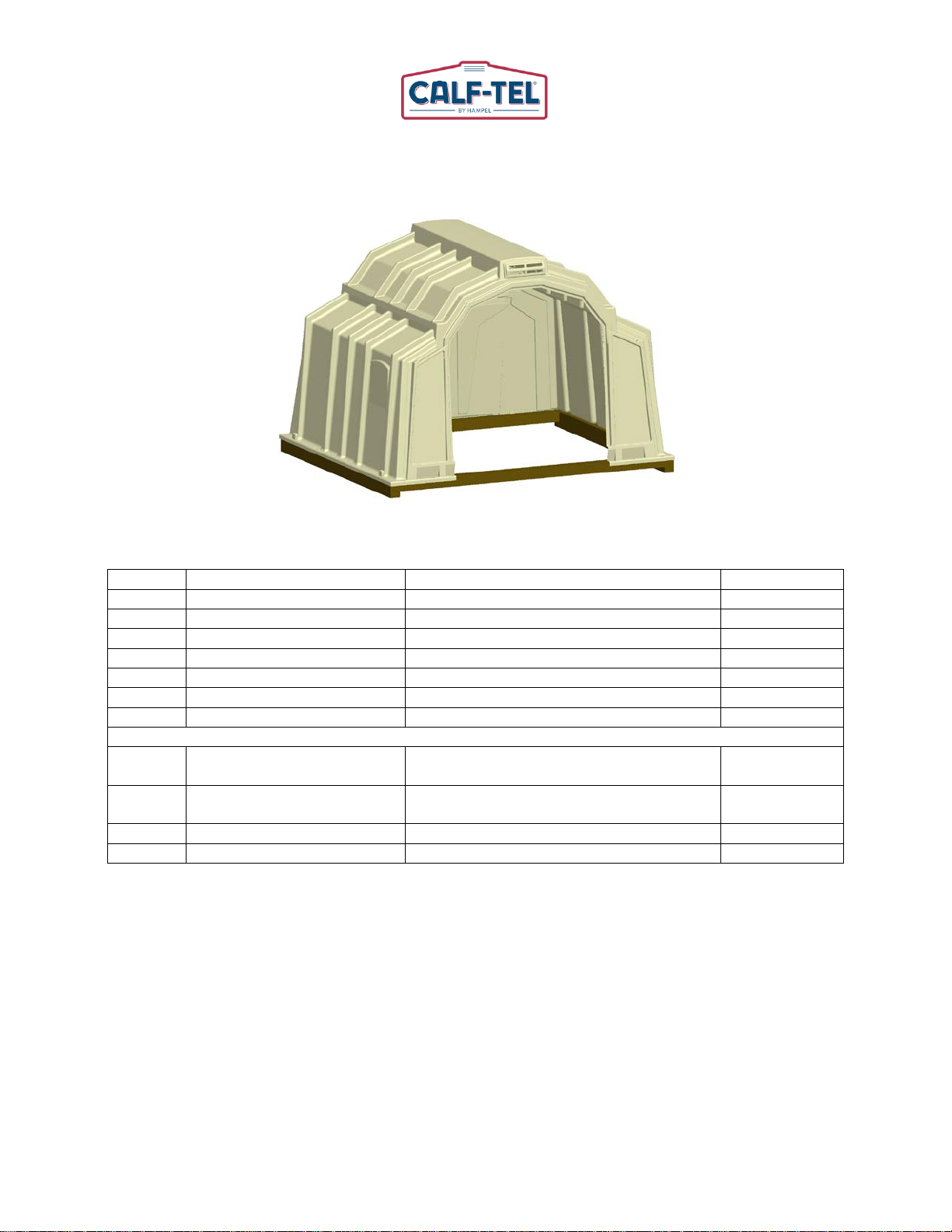

MultiMax Assembly Instructions
Bill of Material:
Item
Hampel Item Number
Description
Qty
1
AH-110-1
Top Cap
1
2
AH-135-L
Left Side
1
3
AH-135-R
Right Side
1
4
AH-220
Back Panel, W/Bedding Door
1
5
AH-151
Knockdown Hardware Kit
1
6
CH-9225
Parts Kit, Warm Weather Latch
2
Optional Item –Lumber Kit
10
AH-LUMBER-KIT
(includes below items)
Wood & Hardware for Mounting Hutch
1
AH-150-1
Bolts and Washers Kit for Mounting
Hutch
1
AH-LUMBER-002-1
Runner, Multimax Base
2
AH-LUMBER-001-1
Side, Multimax Base
2
Tools Needed – To Assemble the Unit: Tools Needed – To Assemble the Latch:
1. ¼” (6mm) Drill Bit 1. 7/16” or 11mm Socket / Ratchet
2. Drill 2. 7/16” or 11mm Wrench
3. 5mm Socket
4. Ratchet
5. Helper(s)
Hampel, W194 N11551 McCormick Drive, Germantown, WI 53022
Phone: 262-255-4540 Fax:262-255-9731
2
Revised: 11/28/18 LIT-1412 Rev D

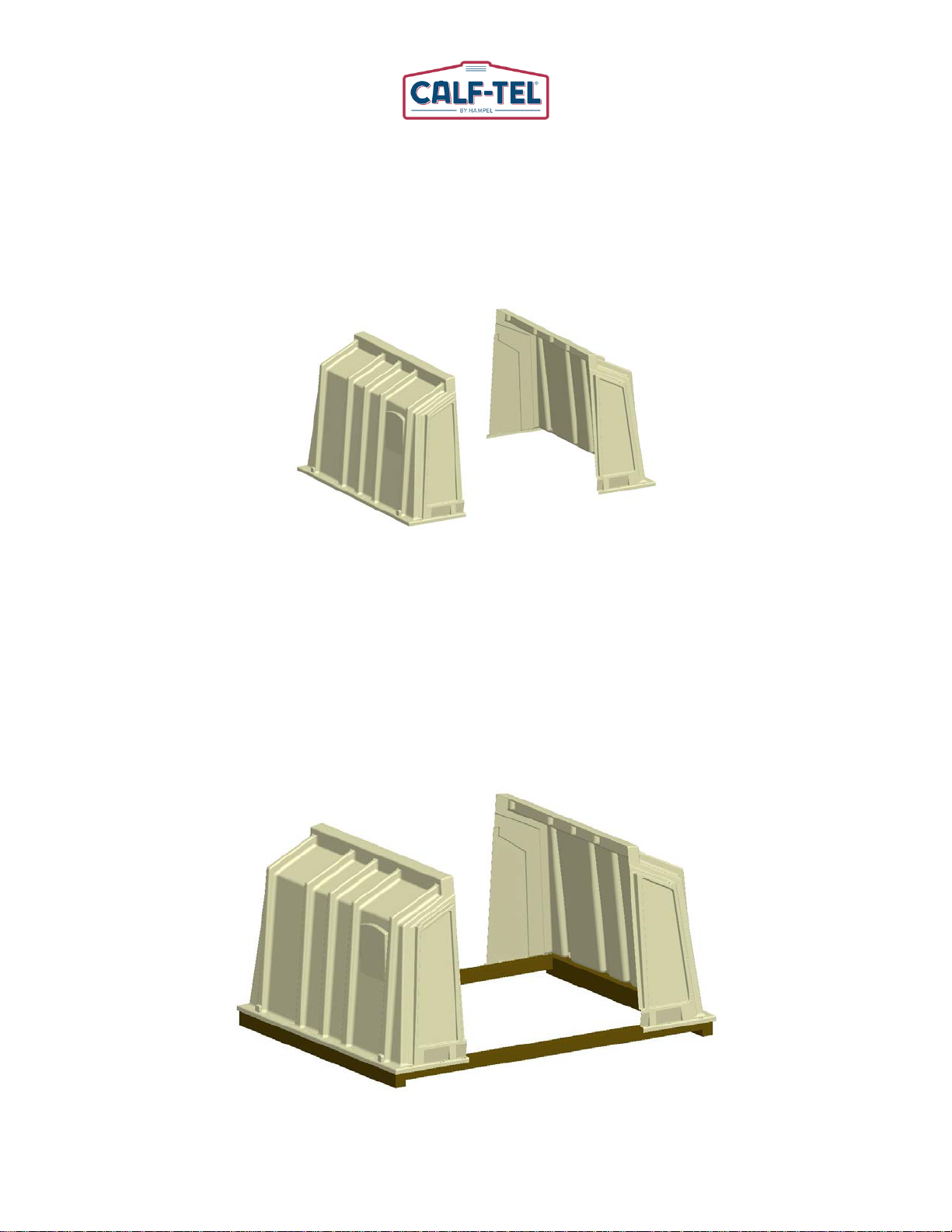

Step 1: Assembling the MultiMax
A. First - Place the Left and Right Sides of the MultiMax on the ground standing upright approx.
60” (1524mm) apart. (as shown in the picture below)
**Optional Method**
Sides may be slightly warped due to shipment configuration. It may help to attach the two
(2) sides to the wood base prior to assembling the MultiMax. (see picture below)
Follow the steps at the end of these instructions …(Optional Item – Lumber Kit)… to
assemble the wood base to the Sides of the MultiMax using the provided screws and
washers. This will hold the Sides in place so the next Steps will be easier to accomplish.
Hampel, W194 N11551 McCormick Drive, Germantown, WI 53022
Phone: 262-255-4540 Fax:262-255-9731
3
Revised: 11/28/18 LIT-1412 Rev D

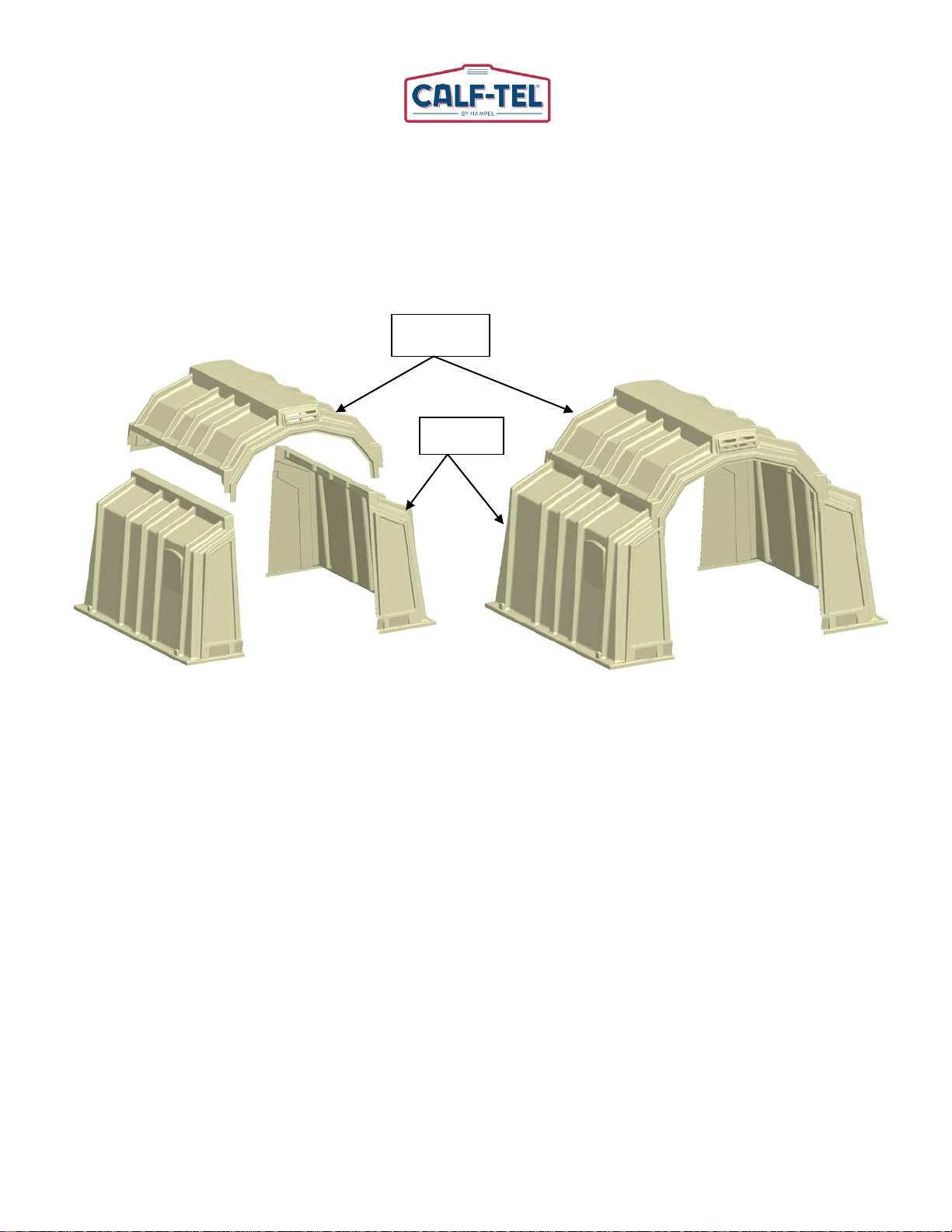

B. Next – Place the Top Cap onto the Left and Ride Sides…the sides may need to be adjusted
so the Top Cap sits correctly. The ribs on the Top Cap should line up with the ribs on the
sides. (as shown in the pictures below)
Top Cap
Sides
Hampel, W194 N11551 McCormick Drive, Germantown, WI 53022
Phone: 262-255-4540 Fax:262-255-9731
4
Revised: 11/28/18 LIT-1412 Rev D

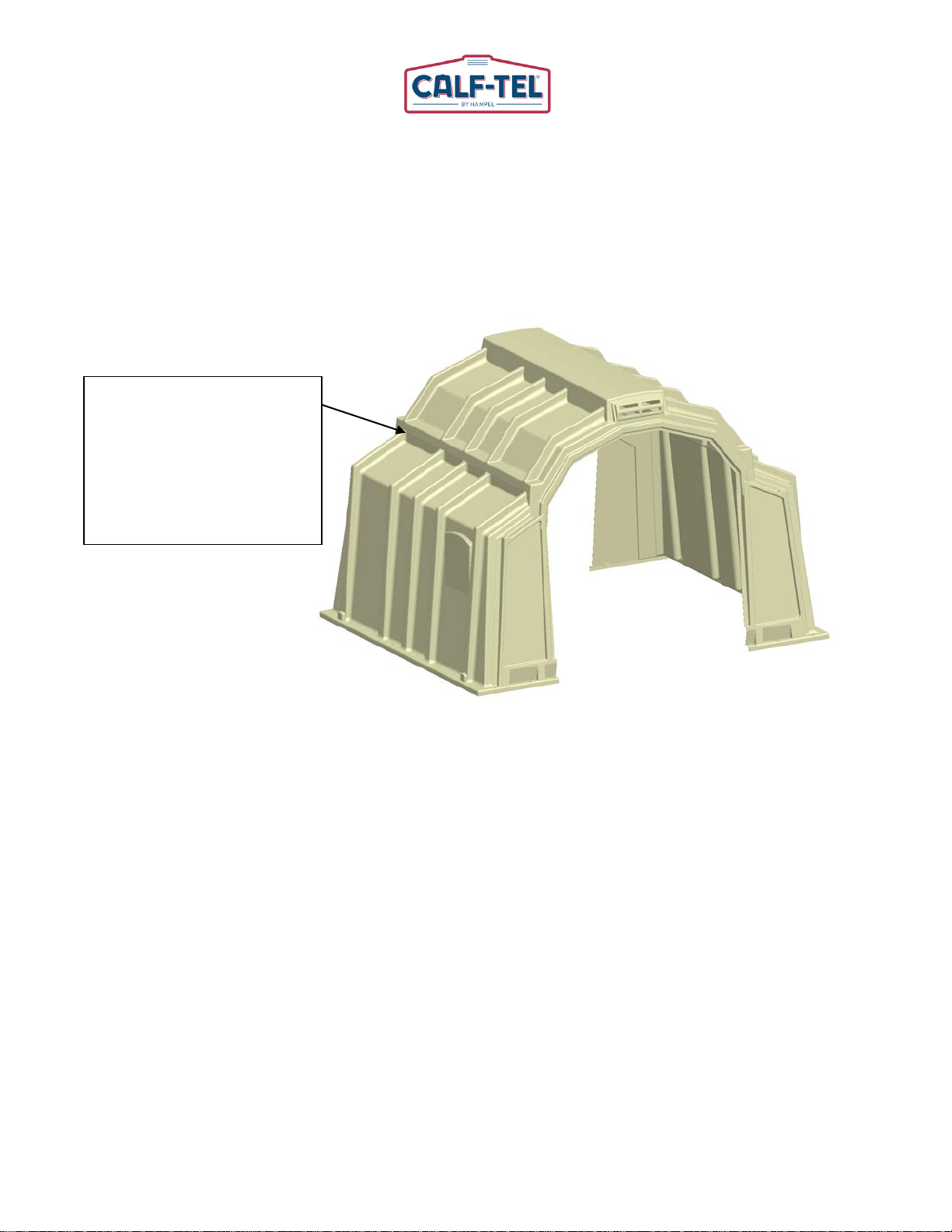

C. Next – Starting in the back corner, attach the Top Cap to the Left and Right Side using the
M5 Bolt, Washers and Lock Nut. Using the 1/4” (6mm) drill bit, locate the predrilled holes
in the Top Cap and use them to drill a hole thru the Sides.
i. The rivet is inserted from the outside of the MultiMax and the backup washer is used
on the inside of the MultiMax. (see detail below)
Start Attaching Here
(7 per side)
Insert a bolt with a washer
from the outside and attach
a washer and nut from the
inside.
Hampel, W194 N11551 McCormick Drive, Germantown, WI 53022
Phone: 262-255-4540 Fax:262-255-9731
5
Revised: 11/28/18 LIT-1412 Rev D

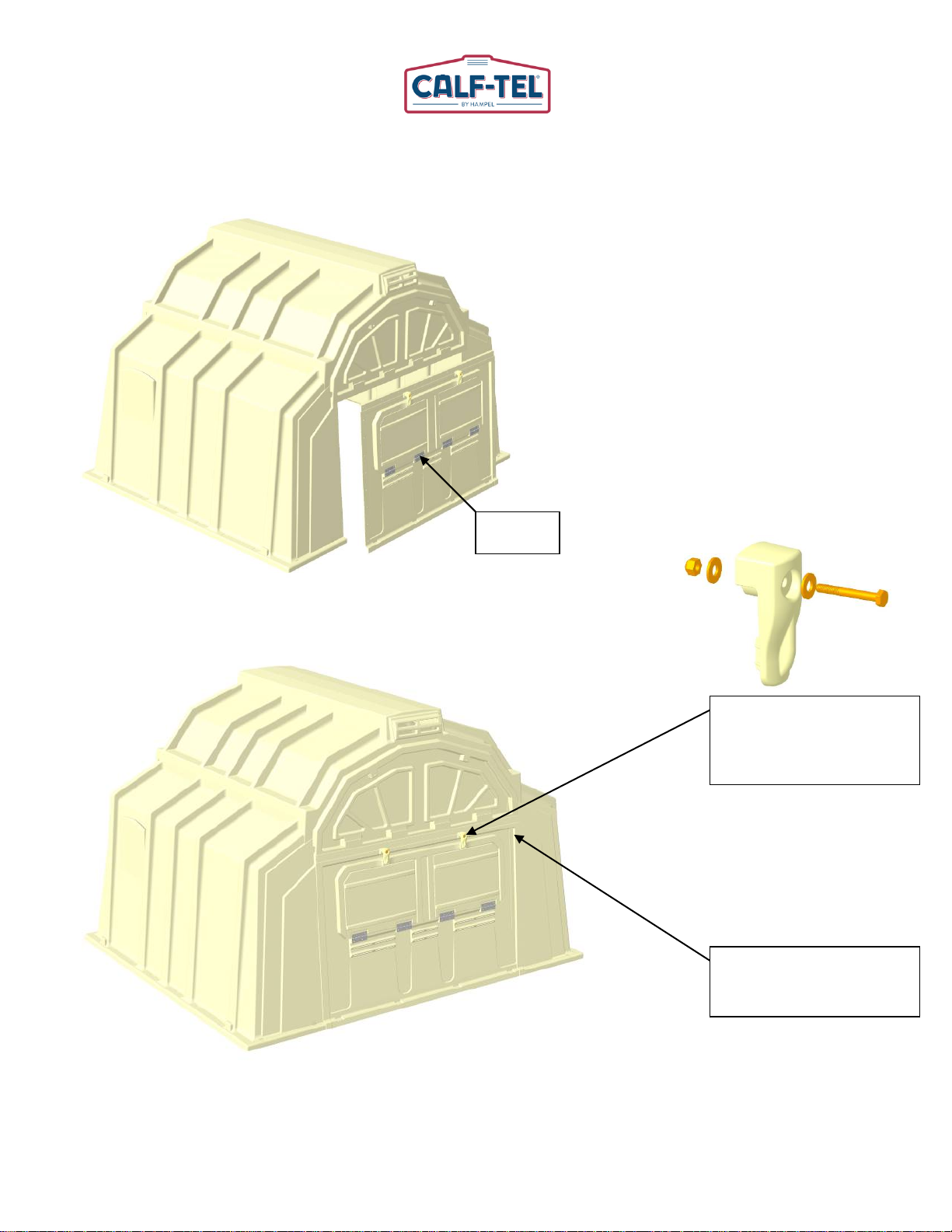

D. Next – Attach the Back of the MultiMax using the 1/4” (6mm) Rivets and Back Up Washers.
Using the 1/4” (6mm) drill bit, locate the predrilled holes in the Back and use them to drill a
hole thru the Sides. The Back slides up under the Top Cap and over the top of the Sides.
Back
Start Attaching Here
(Qty. 25)
CH-9225 Assemble to
AH-220 Back Panel in 2
places
Hampel, W194 N11551 McCormick Drive, Germantown, WI 53022
Phone: 262-255-4540 Fax:262-255-9731
6
Revised: 11/28/18 LIT-1412 Rev D

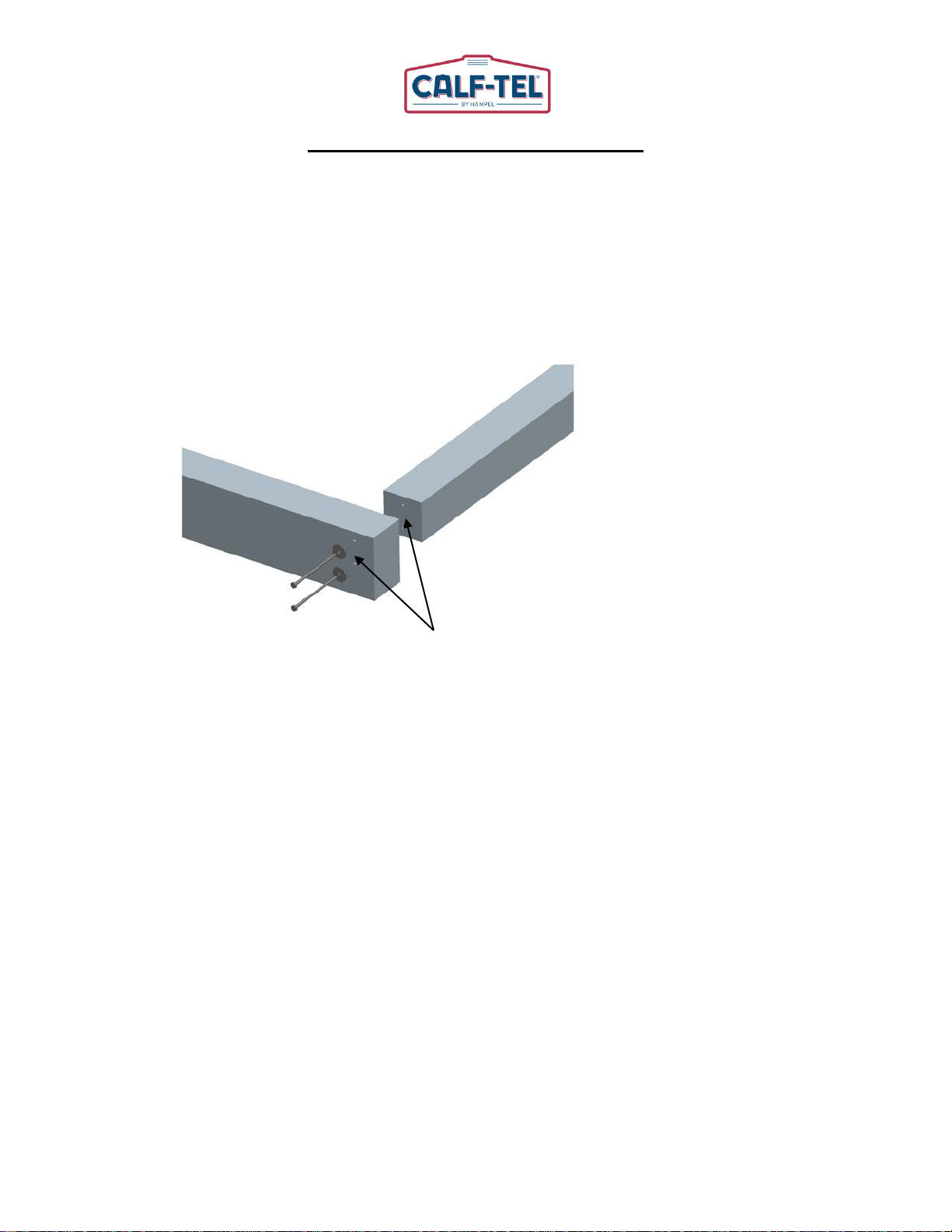

Optional Item – Lumber Kit
Step 1. Base Lumber Kit
Lumber size:
2 pcs - 4” x 4” x 99.125” (101.6mm x 101.6mm x 2517.7)
2 pcs – 4” x 6” x 88.125” (101.6mm x 152.4mm x 2136.7)
A. Using 13/64” (5mm) Drill Bit, drill (8) pilot holes. Repeat for all 4 corners (See Figure 1)
Step 2: Assemble Base
A. Using 5/16” (8mm) Deep Well Socket, assemble lumber using (2) 1” (25.4mm) washers with
(2)5-1/2 x ¼ (139.7mm x 6mm) Lag Screws. Repeat for all 4 corners (See Figure 1)
Step 3: Assemble Base to Hutch
A. Using 5/16” (8mm) Deep Well Socket, washers and screws, fasten (2) brackets (included in
hardware kit) near entrance securing Hutch to Base (see figure 2)
B. Fasten Hutch to Base at remaining locations around perimeter using washers and screws.
Locate 13/64” (5mm) Pilot holes
at approximate center of lumber
Figure 1
Hampel, W194 N11551 McCormick Drive, Germantown, WI 53022
Phone: 262-255-4540 Fax:262-255-9731
7
Revised: 11/28/18 LIT-1412 Rev D

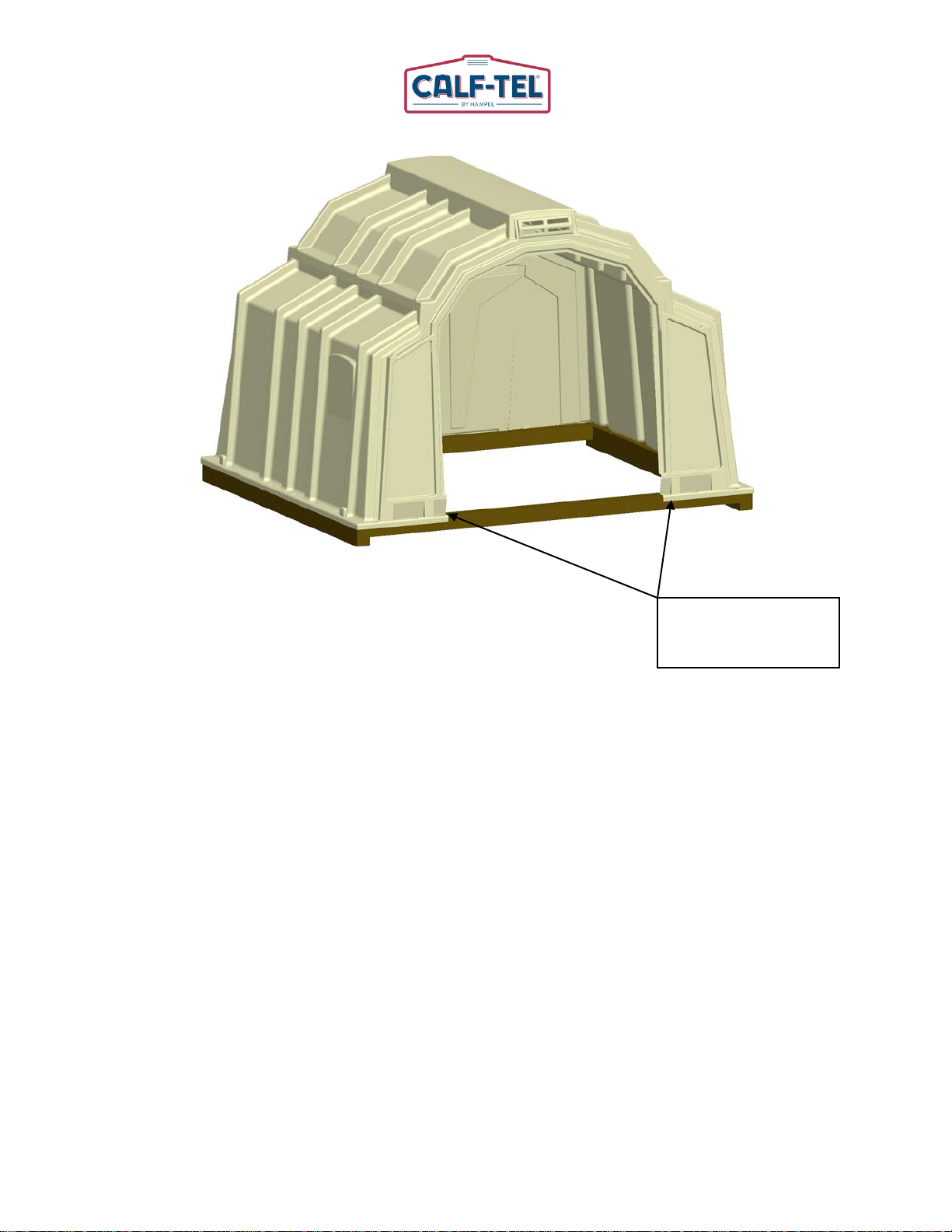

Entrance Bracket
locations
Figure 2
