CalDigit AVPro2 Manuel utilisateur
For more information visit www.caldigit.com
USER GUIDE
2
Table of Contents
Section 1 : Introduction
Introduction 3
System Requirements 6
In the Box 6
AV Pro 2 Diagram 7
Section 2 : Using the AV Pro 2
Connecting the AV Pro 2 8
Powering the AV Pro 2 8
Formatting the AV Pro 2 for Windows OS 8
LED Indicator 12
Charging your Laptop 13
USB Hub 14
Stand-Alone Charging 15
Replacing the AV Pro 2 Drive Moudle 16
Section 3 : Technical Support and
Warranty Information
Technical Support 19
Warranty 19
3
1. Introduction
The CalDigit AV Pro 2 Storage Hub is the exciting new evolution of our original single drive solution.
It is an expandable storage device specically designed to compliment any Thunderbolt™ 3
computer out of the box. Thanks to the AV Pro 2’s ability to connect to any laptop it can be used by
anyone regardless of their connectivity options.
The AV Pro 2 is a triple threat. Not only does it provide extra storage, it will also charge your laptop
in addition to adding a USB 3.0 hub for expanding your connectivity. One cable from the AV Pro 2
to your Thunderbolt™ 3 or USB-C laptop will add all these great features. Why buy an external drive
that only oers storage? The AV Pro 2 goes beyond the ordinary to oer unprecedented features
not traditionally found in a storage device.
4
Please read the AV Pro 2 manual thoroughly and familiarize yourself with the product before
use.
Avoid using the AV Pro 2 in extremely hot and cold environments. A safe temperature range
is between 40°F – 95°F (4.4°C - 35°C).
Avoid using the AV Pro 2 in humid environments. Moisture and condensation can accumulate
in the device and cause damage to the electrical components.
Only use the power adapter that has been supplied with the AV Pro 2. An excessive or
inadequate power supply can result in unstable performance or device failure.
Keep the AV Pro 2 away from liquids and moisture. Exposure to liquids on the AV Pro 2 can
result in damaging the unit, electric shock, and result in a re hazard. If your AV Pro 2 gets wet
while it is still o, do not turn it on. In the case of any issue with the device, do not attempt
to repair or open the AV Pro 2 yourself. Doing so can result in personal injury, damage the
device, and will void the warranty. If you have any issues, please contact CalDigit Technical
Support.
All electrical devices are susceptible to failure. In order to protect yourself against sudden
data loss, it is highly recommended that you create at least two backups of your data. If you
will be sending a drive back to CalDigit for service, please make sure you have backed up your
data beforehand. CalDigit cannot guarantee the integrity of data on drives that are returned
to us. CalDigit cannot make provisions for data recovery or be held liable for any data loss.
General Use Warnings
Safety Warnings
5
Burst transfer rates will vary from one computer to another. Depending on the host conguration,
average speeds are usually lower.
Weight varies by conguration and manufacturing process.
Use of this product is subject to acceptance of the software license agreements included.
The product contains electronic documentation.
1TB (Terabyte) = 1000GB. 1GB = 1,000,000,000 bytes. Total accessible capacity varies
depending upon operating environment (typically 5–10% less).
IMPORTANT
6
System Requirements
Thunderbolt™ 3, USB-C or USB-A computer
Mac OSX 10.8.4 or later
Windows 7, 8, 10 or later
In the Box
A • 1 x AV Pro 2
B • 1 x Drive Module
C • 1 x USB-C Cable
D • 1 x USB 3.0 Cable
D
C
E • 1 x Drive Stand
F • 2 x Drive Keys
G • 1 x AC Adapter
H • 1 x Power Cord (Plug style may vary based on regulations and requirements)
B
A
E
G
H
F
7
* KensingtonTM Security lock (lock is not included). Use a standard computer lock to secure the
AV Pro 2 and prevent theft.

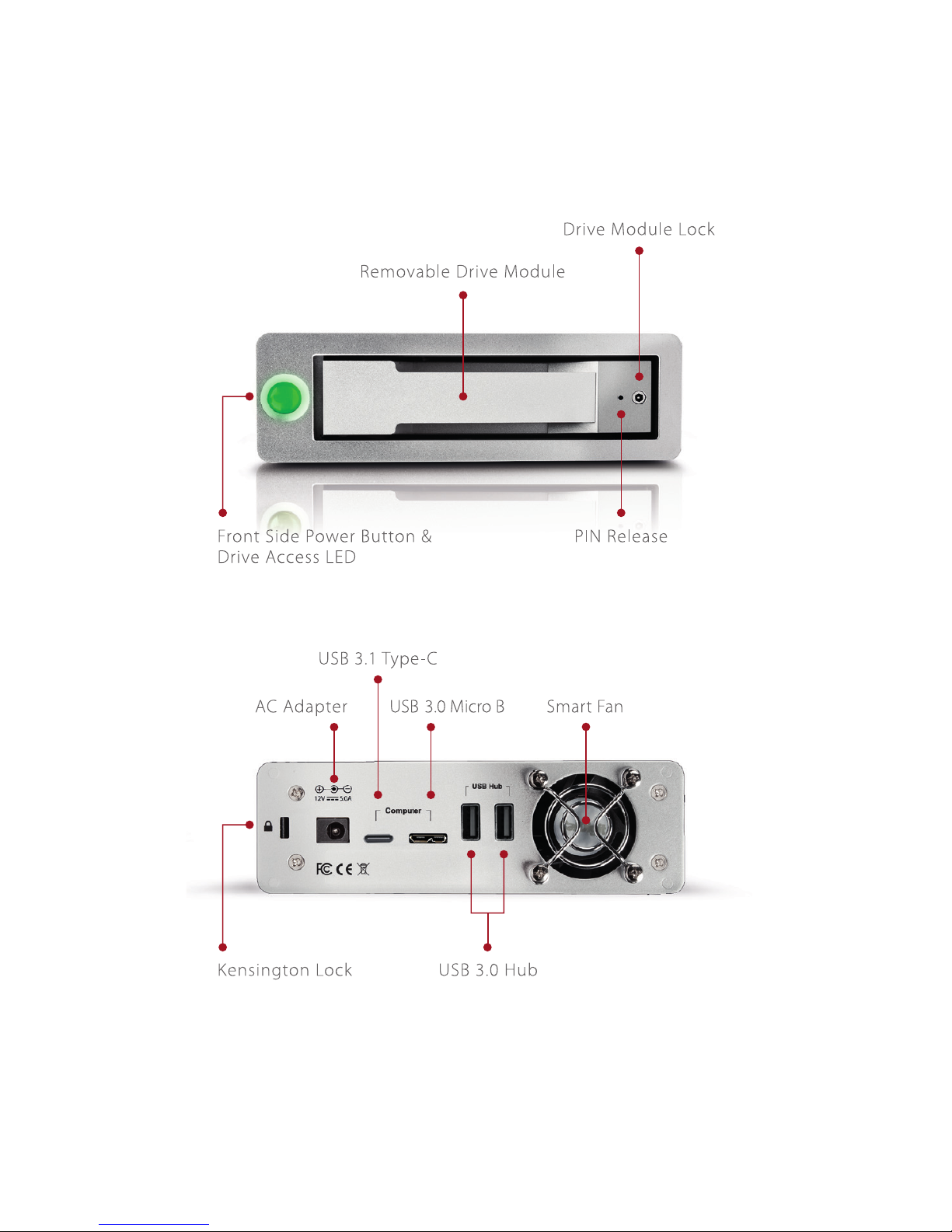

AV Pro 2 Diagram
8
2. Using the AV Pro 2
The AV Pro 2 requires power from the AC Adapter to operate. Connect the AC Adapter to the AC
connector on the back of the AV Pro 2 and to the other side of the AC outlet.
1.
The CalDigit AV Pro 2 is pre-formatted for Mac OS X and ready to work. Windows users please re-
format your AV Pro 2 for use with Windows OS.
Press the power button on the front of the AV Pro 2.2.
To power o the AV Pro 2, unmount your drive from your OS.3.
Powering the AV Pro 2
Connecting the AV Pro 2 to your computer
Formatting the AV Pro 2 for Windows OS
WARNING
Before re-formatting your AV Pro 2 please back-up any data on the AV
Pro 2 onto another drive. Re-formatting a drive will delete all data on
the drive. Only proceed if you have backed-up.
Connect either the USB-C or USB 3.0 cable from the AV Pro 2 to the appropriate Thunderbolt™ 3
Type-C, USB-C or USB 3.0 port on your computer.
9
Connect the AV Pro 2 to your Windows computer.1.
Open Disk Management (Control Panel - Administrative Tools - Computer Management - Disk
Management).
2.
Find the AV Pro 2 that you want to format in the list of drives. Right click on the “Disk number”
and select “Properties”. You will see the “CalDigit AV Pro 2 Device”.
3.
10
On the pop-up window click “YES”to delete the Mac partition.5.
In Disk Management, right click on the partition that was previously formatted for Mac and
select “Delete Volume…”.
4.
