CaddyTalk CUBE Manuel utilisateur
MANUAL
INTRODUCTION
Thank you for purchasing CaddyTalk CUBE Golf Rangefinder.
As a manufacturing brand specializing in IT golf products, CaddyTalk aims to
make new and improved golf products so that everyone can enjoy the
sport of golf.
CaddyTalk CUBE has applied First-Ever technology called Caddy Mode
under the title of 'Three-Dimensional measuring Laser Rangefinder'.
Caddy Mode is CaddyTalk's Triangulation Technology that allows you to
easily select a club by measuring the distance from the golf ball to the target
(in the cart or gallery area) and informing you of the recommended
distance
- Please read this manual carefully before using the product.
Please keep the product instructions for future reference.
- The entire contents of this User's Guide are written by CaddyTalk and cannot be
reproduced, transmitted, recorded, or stored in a search system in any form or by
any means without prior permission, and it cannot be translated into any other language.
- The picture and display shown in the product manual may differ from the actual product.
- We are not responsible for any errors that are not included in the product's user manual.
- Appearance, specification, and functionality of this product are subject to change
without notice.
Box Package
CaddyTalk CUBE
USB-C Type
Cable
Microfiber
Cloth
Quick Start
Guide
Carrying Pouch
PACKAGE INCLUDES
DESCRIPTIONS
Power and Measurement Button
Objective Lens (6X lens)
Laser Aperture
SET-UP Mode, Caddy Mode
(Battery Indicator)
1
2
3
4
Focus Ring
View Finder
Battery Component
1
2
3
Mode Button (Set-Up,
Brightness Control Mode,
Caddy Mode, M or Y shift)
Mode Indicator Light
1
2
4
3
2
2
1
1
1
3
2
LCD DESCRIPTION
3
5
7
4
8
6
E-Slope
M-Slope
Low Battery Mark
Targeting Crosshair
Active Laser
Distance Unit (Meter / Yard)
Caddy Mode
Slope-Adjusted Distance
Straight Line Distance /
Slope Angle
1
2
3
4
5
6
7
8
9
9
1
2

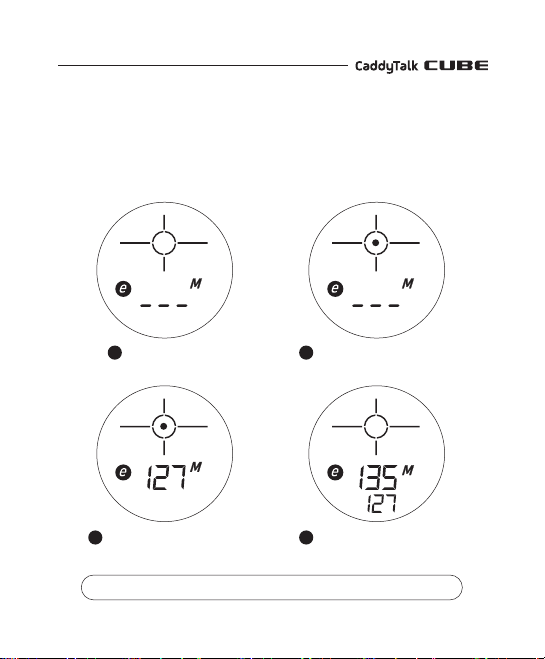

Automatic power off when the button is not pressed for 10 seconds.
POWER & MEASUREMENT
Press the power button and aim at the target. Press the power button again
to start measuring distance.
Enable Display.
1
Press the power button and align
the crosshair with target.
2
Slope-adjusted distance is
displayed.
4
Straight line distance is
displayed.
3
The M-Slope is developed directly in the golf zone by applying the concept of
ballistics. CaddyTalk’s Magic Slope provides higher accuracy of recommended
distances compared to existing rangefinders. See the differences in ballistics
between CaddyTalk and other generic products.
M-Slope Correction Distance
Actual straight distance
M-SLOPE (MAGIC SLOPE)
Considering the altitude (high & low) of the target point, this function shows the
best recommendation.
Example of use: for uphill gradient 5.2 degrees
Other
E-SLOPE (ENVIRONMENTAL SLOPE)
Integrating the M-Slope Function, E-Slope calculates the environmental factors
(temperature, altitude, humidity) of the golf course to the deliver the most accurate
measurement.
High-level golf courses require adjustment of the target distance
due to air pressure that is lower than low-lying golf courses.
Example
If the measured distance to the pin is the same as 127M
For 1,000m above sea level golf course,
Recommended Distance 121M.
For 200m above sea level golf course,
Recommended Distance 126M.
E-Slope
Distance
Straight
Distance
Measure the distance
to the golf ball.
1
Measure the distance
to the target (pin).
2
Show the distance from
the ball to the target
(slope reflection).
3
CADDY MODE
CaddyTalk’s 1st-to-market technology allows you to easily select the right club by
measuring the distance from the golf ball to the target (in the cart or gallery area)
and giving you the recommended distance.
With power on, press the mode button once to activate Caddy Mode.
1) CADDY MODE When the left golf ball icon flashes, hit the golf ball.
2) CADDY MODE When the right flag icon flashes, aim the target.
Then, view the recommended distance indicating the current slope of the
golf ball location to the target.
CASE
Alignment
state
Blinking state
CUBE USER
CADDY MODE
A RECOMMENDED
DISTANCE
MEASURE THE
DISTANCE FROM
USER TO TARGET
MEASURE THE DISTANCE
BETWEEN THE USER AND
THE BALL
STEP 2.
STEP 1.
BALL
TARGET
※ You can use this function to select a recommended club from the cart in advance.
You can also measure the distance from your companion to the target.
