CAD Audio GXLU Guide de l'utilisateur

GXLU

UHF

Wireless

Microphone System

Manual and

Quick Start-up Guide

GXLU

UHF Wireless

MicrophoneSystem

Introduction

Please enjoy the easy and exciting performance that the GXL™

Wireless Series provides for your next performance. CAD Audio

has been creating valued product since 1938 and prides itself on

developing and supporting the live performer. Our design criterion

was straightforward. Develop a high value wireless microphone

system that can cope with today’s challenging RF environment that

is both easy to use and exciting to operate.

The GXLU Wireless includes the following features:

• Two discrete channels of wireless packaged in

one receiver chassis.

• Each channel has RF and AF indicator lights that indicate

the presence of connectivity and audio source.

• UHF Frequency Operation for increased operating range

• Advanced dipole antenna technology for increased

operating range.

• Three output options on the receiver for maximum

performance and exibility of use.

- Professional balanced XLRM-type discrete output

- Professional balanced XLRM-type mixed output

- Professional ¼ inch output for easy output to a guitar amp

or mixer equipped with ¼ inch input connections.

• Handheld transmitter outtted with on/off and mute function

for exibility of use.

• Bodypack transmitter outtted with on/off, mute function

for exibility of use.

• Handheld transmitter features battery life indicator.

• Battery life of >10hrs.

• All Bodypack systems ship with WXGTR guitar cable and

WXHW condenser headworn mic included.

• Insert new high quality alkaline batteries into your transmitter.

• Utilize the exible output format of the receiver to match your

application. Connect to mixer or amplier appropriately.

• Power up the receiver.

• Power up the transmitters.

• The RF indicator light will show connectivity between the

receiver and the transmitter. The AF indicator light shows

the presence of an audio source.

POWE R

Operating Instructions

5 7 98 86

5. ¼ inch output channel B

6. Balanced XLRM-type output mix of channels A and B

7. Balanced XLRM-type output channel A

8. Volume Control

9. DC power jack (use supplied power adapter)

Specications RXGXLU Receiver

Maximum Output Level .................................................................. 6dBV

Output Impedance.................................................................... 800ohms

Frequency Response .......................................................... 20Hz - 20KHz

Frequency Band .................................................................................UHF

RF Sensitivity ............................................................................. -105dBm

Output Connectors ..............................................2x XLRM-type, 1x 1/4"

1. On/Off switch

2. AF indicator light

3. RF indicator light

4. Dipole Antenna

Receiver RXGXLU

1 2 3 3 2

Unbalanced B Balanced A and B Balanced A

Vol B Vol A

DC 13V-18V/350mA

• Transmitter Switch

- Power on/off switch

- Mute on/off switch

• Power indicator light

• Battery life indicator light

Specications TXHGXLU Handheld

Operating Principal................................................Moving coil dynamic

Polar Pattern...................................................................... Supercardioid

Frequency Response ..........................................................80Hz – 16KHz

Sensitivity............................................................. -33dBV (22mV) @ 1Pa

Maximum SPL.................................................................................135dB

Dynamic Range.......................................................................... >105dBA

RFTransmitter Output.................................................................... 10mW

Modulation...........................................................................................FM

Power requirements ................ 2x AA alkaline or rechargeable battery

Battery Life ...............................................................>10 hours (alkaline)

Handheld TXHGXLU Transmitter

• On/Off, mute switch

• TB4M-type connector receives

TA4F-type terminated connection

• Battery compartment

• Antenna

• LED indicator light

Specications TXBGXLU Bodypack

Frequency Response ......................................................... 40Hz – 20KHz

Dynamic Range.......................................................................... >105dBA

Maximum Input Level

Microphone Input: ............................................................. -6dBV

Instrument Input: ............................................................ +10dBV

RFTransmitter Output.................................................................... 10mW

Modulation...........................................................................................FM

Power Requirements ............... 2x AA alkaline or rechargeable battery

Battery Life ............................................................... >10 hours (alkaline)

Bodypack TXBGXLU Transmitter

The GXLU system is available in the following frequencies:

K = 543.1MHz / 554.5MHz

L = 567.1MHz / 593.5 MHz

Channelization

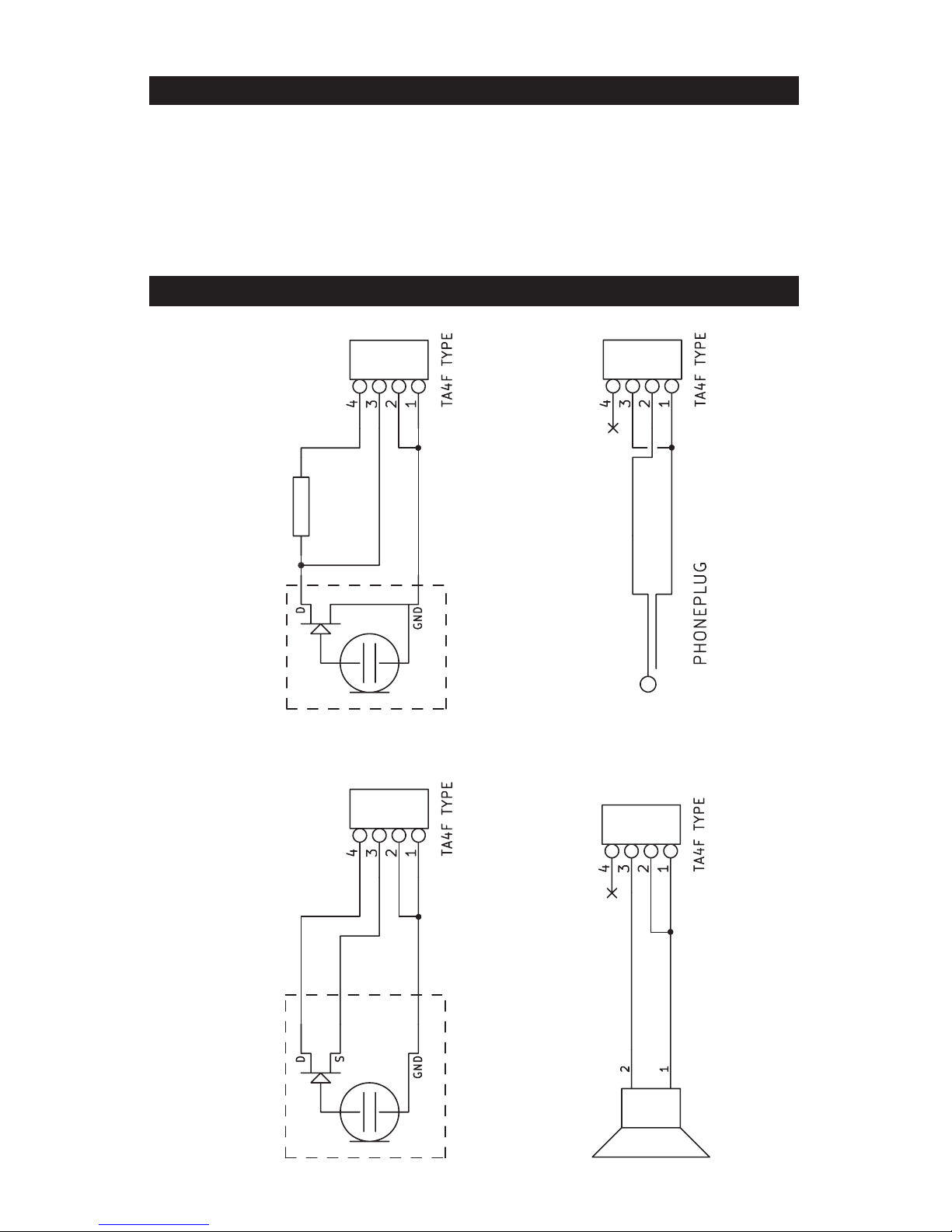

Interfacing to TXBGXLU input connector

3k3

3-wire type electret mic 2-wire type electret mic

3k3

Dynamic mic Instrument

CAD Audio

6573 Cochran Rd., Bldg. ISolon, OH 44139 U.S.A.

Sales: 800-762-9266 cadaudio.com

Individuals with cardiac pacemakers and other similar medical devices

should consult with their physician before using any RF devices. Though

the output level of this wireless system is below 50 milliwatts, the

proximity of the transmitter to the implant device could pose a threat.

As with any wireless product, environmental conditions can reduce or in

some cases prohibit a successful connection between the transmitter

and the receiver.

Most users of CAD Audio wireless products in the United States do not

need a license for operation. However, the rules for unlicensed operation

state that this device must not operate in excess of 50 milliwatts and it

must not cause harmful interference to other wireless devices. Wireless

products meeting CAD factory standards adhere to these rules. The FCC

reserves the right to change these rules at any time.

For more information contact the FCC at 1- 888 - CALL- FCC (TTY:

1-888-TELL-FCC) or visit the FCC’s wireless microphone website at:

www.fcc.gov/cgb/wirelessmicrophones

Please visit our support page for more help or information
