CAB HEKTOR 4 Manuel utilisateur
Strip Separator
HEKTOR 4
Operating Manual
Edition 1/02
2
1.Product Description
Hektor 4 is a tool to separate milled PCB's which are connected by small strips carefully and
economically.
The blades are arranged customized. It depends on the shape and the size of the PCB to be
cut. They are made of special steel and they are low-wear.
The blades are offered in 5 standard width. Special sizes are manufactured by request.
Hektor 4uses compressed air connection for the operation.
It is recommended to connect an industrial vacuum cleaner.This way the separated pieces
may drawn off right away and it is possible to dispose the pieces immediately.
Hektor 4 is prepared to connect an industrial vacuum cleaner.
2.Technical Specification
Separation principleBlade
Number of bladesmax. 20
Thickness of the PCBmax. 2,0 mm
Compressed air connection1/4"-coupling plug
Operating pressure3 - 6 bar
Power supply115/230 V~ - 50/60 Hz
Operating temperature15 - 30°C
Storage-and transport temperature-20 until 85°C
Humidity10 - 85 %
Suction pipeDm. 31 mm
Length x Width x Height (in mm)500 x 320 x 303
3.Contents of Delivery
Hektor 4
Blades according the order
Service tools
Power cable
3
4.Safety Instructions
Caution !
-Hektor may only used to separate PCB boards. Do not use the machine for
any other purpose than it's intended use. The supplier do not take any
responsibility.
-Use only faultless cut tools.
-Attend that the cover is closed during operation.
-When separating PCB's with cover open, protective gloves and goggles should
be worn.
-Keep hands out of the blade area if the compressed air is switched on.
-Disconnect the air after finishing the work.
-Disconnect the power supply after finishing the work by using a suction
device.
5.Connections
Fig. 1Compressed air connection
1 2
Compressed air connection
-Use only waterfree and filtered compressed air.
-Put the compressed air tube, which is used for the pressure air supply, into the socket (2)
belonging to it.
-Connect the compressed air tube at the pressure air supply.
-The valve of the pressure regulator is adjusted at 6 bar working pressure. It is shown at the
manometer.
The working pressure may not be greater than 6 bar (limited by the stability of the blades).
Aworking pressure less than 3 bar is not adjustable.
-If you would like to operate with another working pressure or if it is necessary to adjust it you
have to open the valve of the pressure regulator.
Pull the hood (1) out and adjust the pressure. Press the hood (1) in.
4
5
3
4
6
7 78
6.Operation
Connection of a suction device
-Connect the tube of the suction device with the suction pipe (3) on the side of the strip
separator.
-Make the electrical connection with the industrial vacuum cleaner. Put the power cable of
the cleaner into the socket (5) of the HEKTOR 4.
-Connect the device with an earthed socket. Use the delivered power cable. Put this cable
into the power module (4).
-Now it is possible to switch on and off the suction device on the switch of the strip seperator.

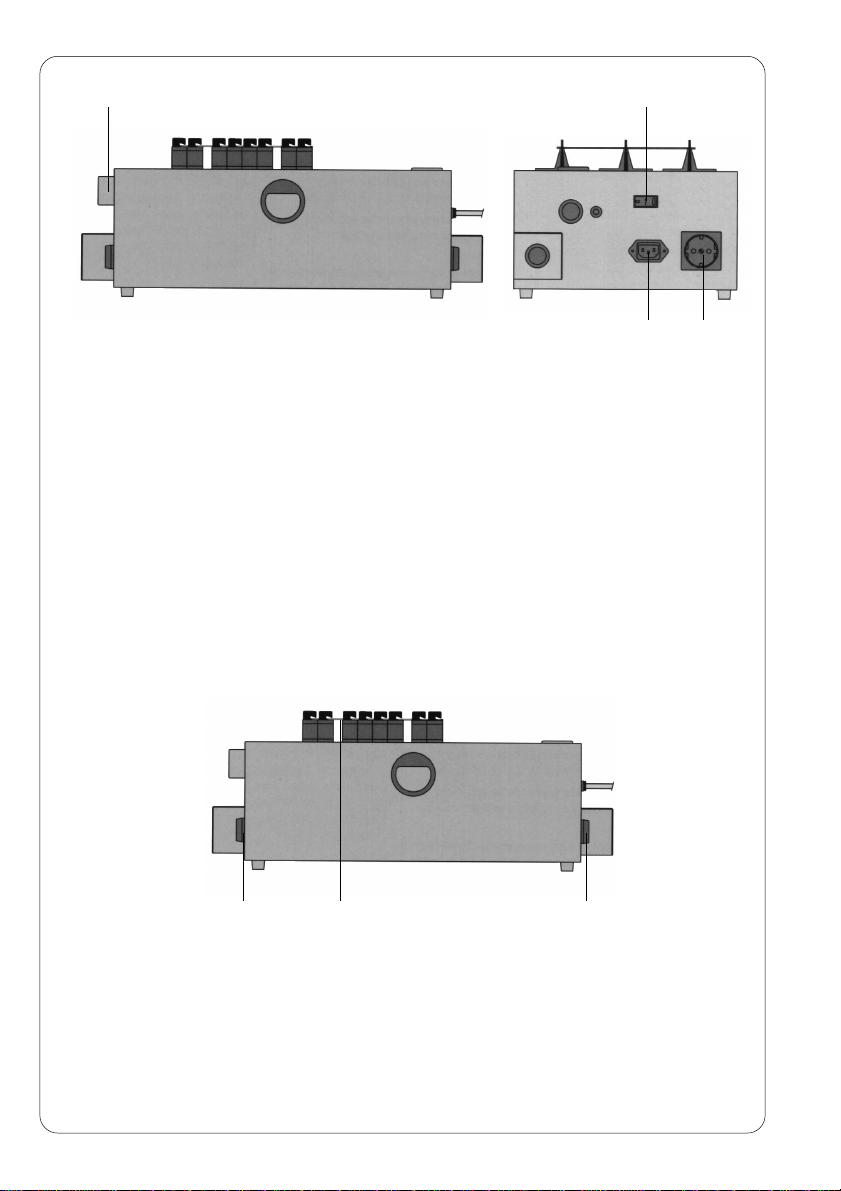

Fig. 2Power supply
-Slide the PCB (8) to be separated with the pre-scored groove from the top to the blades.
Place the strips at the matrices (12) and slide they against the blades.
-Activate the separation by actuating both hand switches (7) on the sides of the strip
separator.
-Remove the separated boards.
By using a suction device the rests will be disposed permanently.
Fig. 3Separation
5
10
9
7.Maintenance and Cleaning
The cleaning of the separator from the rests depends on the number of separated boards.
By using a suction device the rests will be disposed permanently. Nevertheless it is
recommended to check regular whether there are rests in the machine. These rests have to be
disposed.
Cleaning of the machine
WARNING !
Before starting any maintenance, disconnect the Hektor 4 from the power
supply and from the compressed air supply !
CAUTION !
The blades are sharp ! Risk of injury !
-Remove the cover. Use the tool including in the contents of delivery.
-Open the door (9) on the front of Hektor 4 by loosening the screw (10).
-Dispose the rests on the blade sheet and in the area under the blade sheet.
Use compressed air if necessary.
-Close the door, tighten the screw firmly.
-Mount the cover. Use the tool including in the contents of delivery.

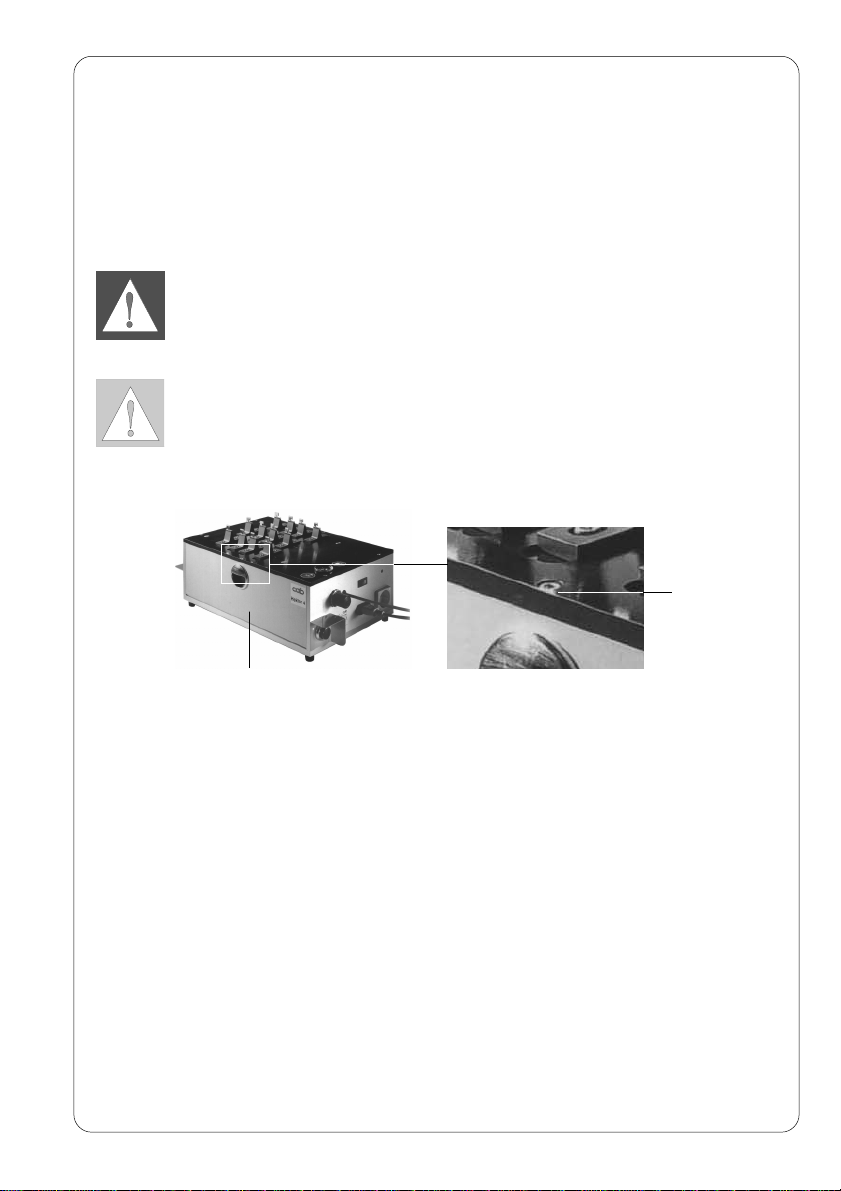

Fig. 4Cleaning the device
6
12
11
14
13
Blades
The blades are to check on wear (broken edges) regularly and to replace if necessary.
-Remove the cover. Use the tool including in the contents of delivery.
-Loosen the screw (12) and remove the matrix (11).
The lower part of the blade and a pin are visible.
Fig. 5Removing the matrix
Fig. 6Changing the blade
-Loosen the pin (14).
-Remove the blade (13).
-Insert a new blade.
-Tighten the pin (14).
-Insert the matrix (11), slide it against the blade and tigten the screw (12).
-Mount the cover. Use the tool including in the contents of delivery.
7
Signature for the producer :
cab Produkttechnik Sömmerda
Gesellschaft für Computer-
undAutomationsbausteine mbH
99610 Sömmerda
Sömmerda, 10.10.01
Erwin Fascher
Geschäftsführer
Gesellschaft für Computer-
undAutomations-
Bausteine mbH
Wilhelm-Schickard-Straße 14
D-76131 Karlsruhe
EU-Conformity Declaration
Herewith we declare that the following described machine, from the design and style and as
we sell it, comply with the relevant EU Safety and Health Requirements.
This declaration will lose the validity if there are any changes of the machine or the purpose
without our consent.
DescriptionType
Strip SeparatorHEKTOR 4
Applied EU-Regulations and Norms
-EC-Machinery Directive98/37/EU
-Safety of machinesEN 292 - 2 : 1991
-Safety distancesEN 294 : 1992 - 08
-EC-Low-Voltage Directive73/23/EEC
-EC Electromagnetic Compatibility Directive89/336/EEC
-Immunity from noise or disturbanceEN 55024 :1998
commercial area as well small enterprises
-Elimination of radio interferences of electricalEN 55014 :1993
production facilities and installations
copyright by cab / 900 8219 / M02 / 1
Technische Änderungen vorbehalten
In accordance with our policy of continual product improvement, we reserve the right to alter specifications without notice
Données technique modifiables sans prévais
HEK4PDFE
cab-Produkttechnik
Gesellschaft für
Computer- und Automations-
bausteine mbH & Co KG
Postfach 19 04D-76007 Karlsruhe
Wilhelm-Schickard-Straße 14D-76131 Karlsruhe
Telefon 0721 / 66 26-0
Telefax 0721 / 66 26-249
