CPWIFISW2
2 Channel WiFi Smart Switch Manual
Features:
•Connects to home WiFi
•Turn devices on and off remotely through the App
•Manage numerous smart switches and other Tuya compatible smart devices from
one App
•Compatible with Amazon Alexa, Google Assistant & Siri (via Shortcuts)
•Set schedules and timers
•Switch device on automatically when you get home (Beta)
•Share access with other users permanently or for a set time period
•Remove access to other users instantly
•Latching or timed mode
•Group device management
•Built in 433.92MHz receiver for remote controls
Specification:
•Input voltage: 7-32Vac/dc
•Max current load: 10A
•WiFi standard: 2.4GHz, 802.11 b/g/n
•Standby/max current draw: 80mA/115mA
•Dimensions: 73 x 46 x 30mm
Device setup
1. Download the ‘Smart Life’ App by searching in the mobile App stores or
scanning the following QR codes.
2. Create an account in the App, or if you already have an account just login.
3. Use a flat screwdriver to prise off the dark grey end covers.
4. Supply power to the WiFi switch and wire the relay outputs to the device(s)
you are controlling.
+
-
Reset button
Manual operation
buttons (activate relays)
5V
Micro-USB
NC
COM
NO
WiFi LED indicator
Wiring examples
Light
Set mode to latching
DC Motor
Set interlocking mode
Gate
Set both outputs to
inching mode - 2 secs
Refer to gate panel
manual for Start and
Pedestrian Start terminals
RC2000
Set both outputs to
inching mode - 2 secs
5. Reset the smart switch by pressing the reset button for 5 seconds until the
red network LED indicator is flashing quickly every 0.5 seconds (if the
network indicator is already flashing quickly, skip this step).

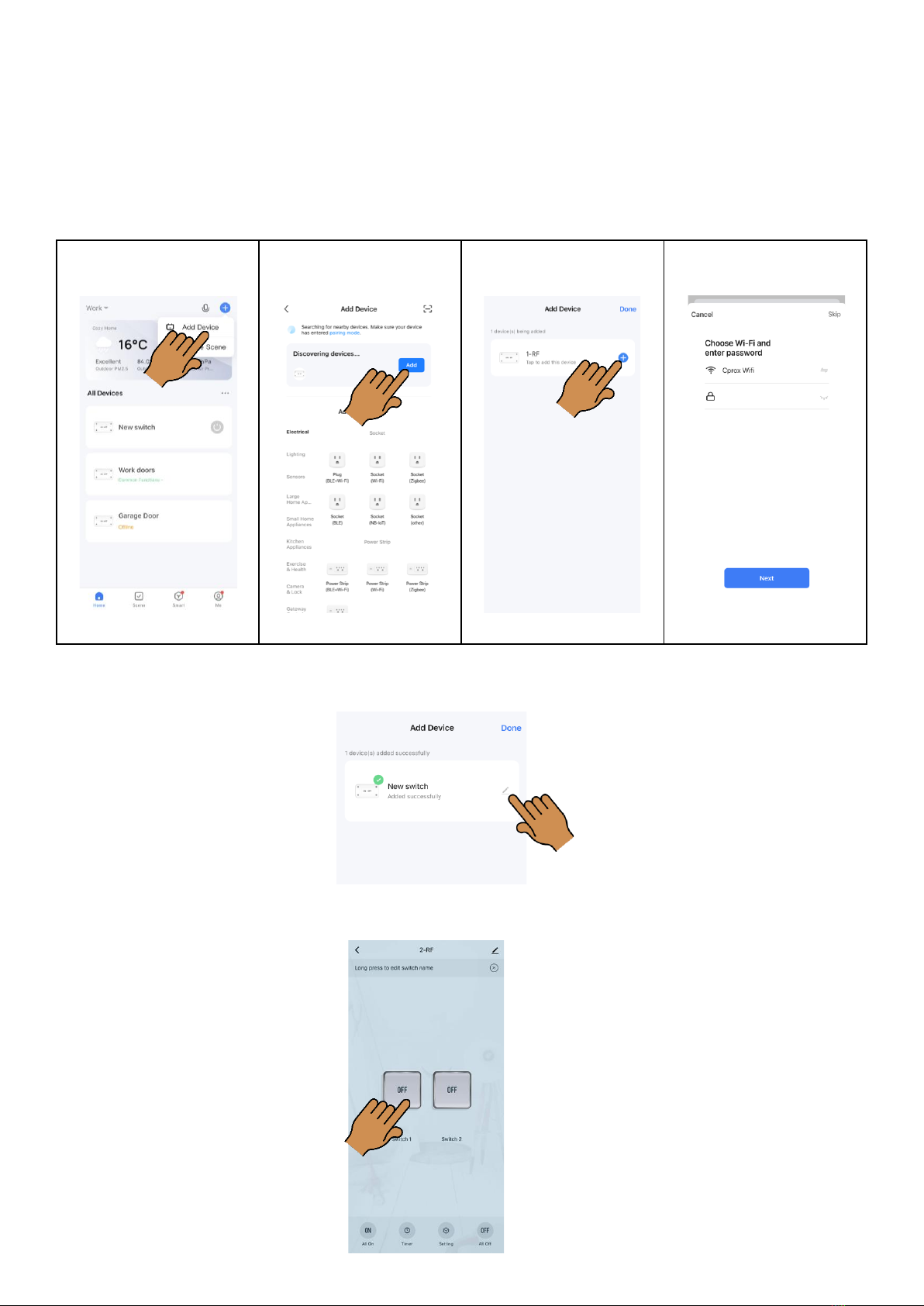

6. Add & connect the device in the App
Tap ‘+’ then ‘Add Device’
After a few seconds the device
will be found, tap ‘Add’
Tap ‘+’
Select a 2.4GHz WiFi network,
enter your password and click
‘Next’.
7. Name the device.
8. Tap the On/Off buttons on the App to switch the device.
App functions
1. Set the following:
Countdown (delay before the output activates)
Weekly schedules (up to 8 per device)
Circulate (set the device to switch on and off on a loop)
Random
Inching (set the outputs to latching or timed)
Tap here to enter
function operation
interface.
3. Rename
Offline notification
Third-party control
Share Device
Create group
Remove device
2. Relay status
Interlock setting
RF remote control setup
1. Countdown
Schedule
Circulate
Random
Inching
4. Smart scenes
Siri
2. Set the following:
Relay status (when the device is switched back on after losing power)
Interlock mode
Tap Add, select both switches and click Save
Then only one switch can be on at a time
RF remote control setup
Tap Add
When prompted, press the remote control button you want to add within 10 seconds
The message ‘The remote has been added’ will be displayed
You can then assign the remote control button to the outputs that need to be controlled
To delete a remote control, swipe it to the left and tap delete
3. Edit device name & location.
Manage third party control, setup Alexa etc.
Share device with other users.
Create a group to control more than one device by a single tap.

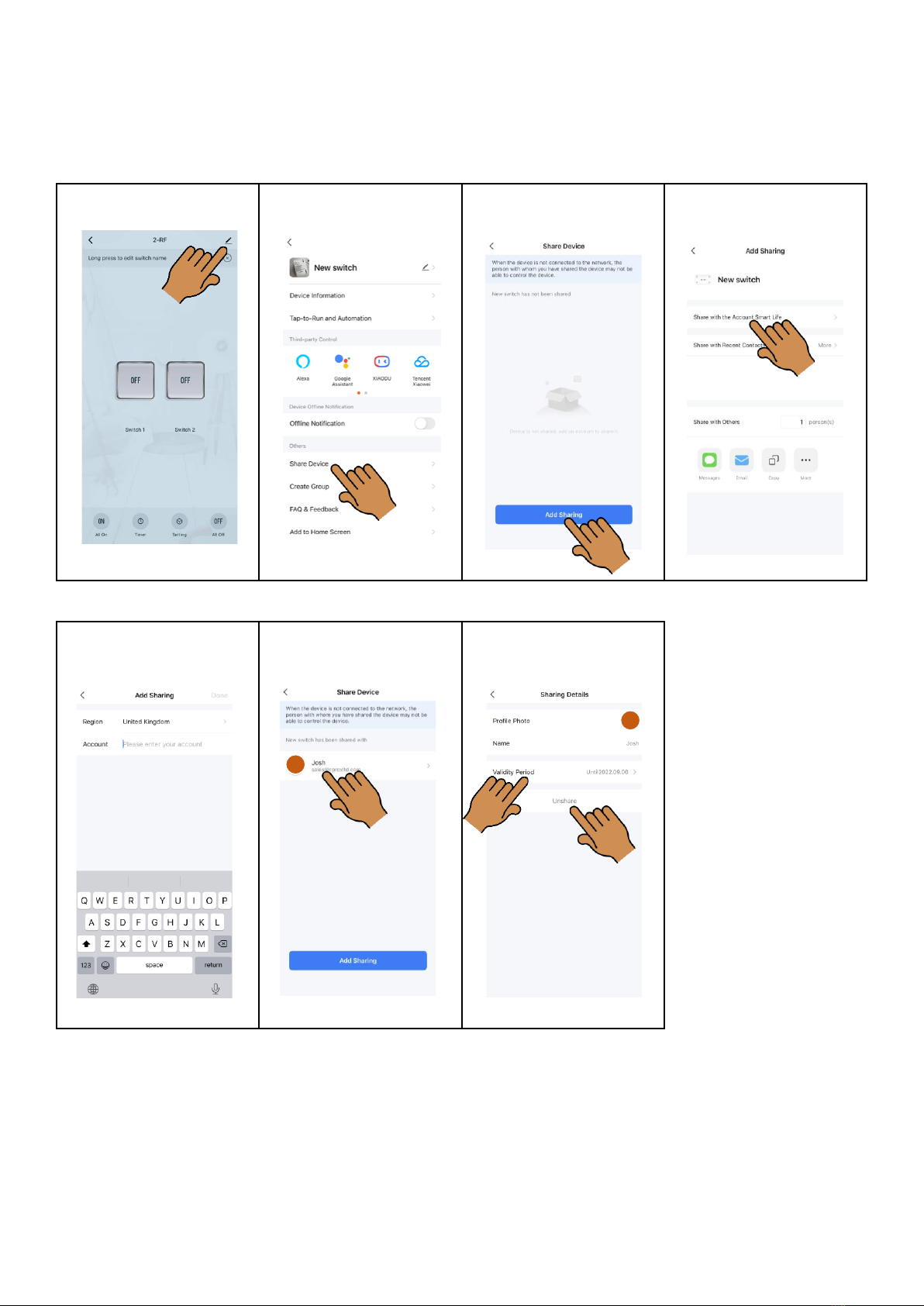

Share device with other users
Other users must have a Smart Life account
Tap ‘Share Device’
Tap ‘Add Sharing’
Tap ‘Share with the Account
Smart Life’.
Enter the email or phone number
of the account you want to share
with and click ‘Done’
Tap on the name of the account
you have shared with
Then you can set a validity
period (if required) or unshare
the device
Create smart scenes and setup Siri
Tap ‘Scene’ then ‘+’ or ‘Create
Scene’
Tap ‘Launch Tap-to-Run’
Tap ‘+’
Tap ‘Run the Device’
Select the appropriate switch
Select the name of switch again,
select ‘ON’ and then tap ‘Save’
followed by ‘Next’
Tap the 3 dots to rename the
scene then tap ‘Save’
Tap ‘Add to Siri’
Select the scene
Tap ‘Change Voice Phrase’ and
enter the desired phrase
Tap ‘Done’
Please note, to use with Siri on other phones, you must share the ‘Home’ with other accounts, rather
than just the device.
Tap ‘Me’ > ‘Home Management’ > Select the name of the Home > ‘Add Member’
Please also make sure that the ‘Shortcuts’ App is downloaded on the phone.
Setup Alexa
Link Alexa and Smart Life Apps.
You may need to login to
Amazon/Alexa.
In the Alexa App, tap ‘Devices’
then scroll across to ‘All Devices’
Tap the name of the switch
Tap ‘Create a Routine’
Tap the ‘+’
