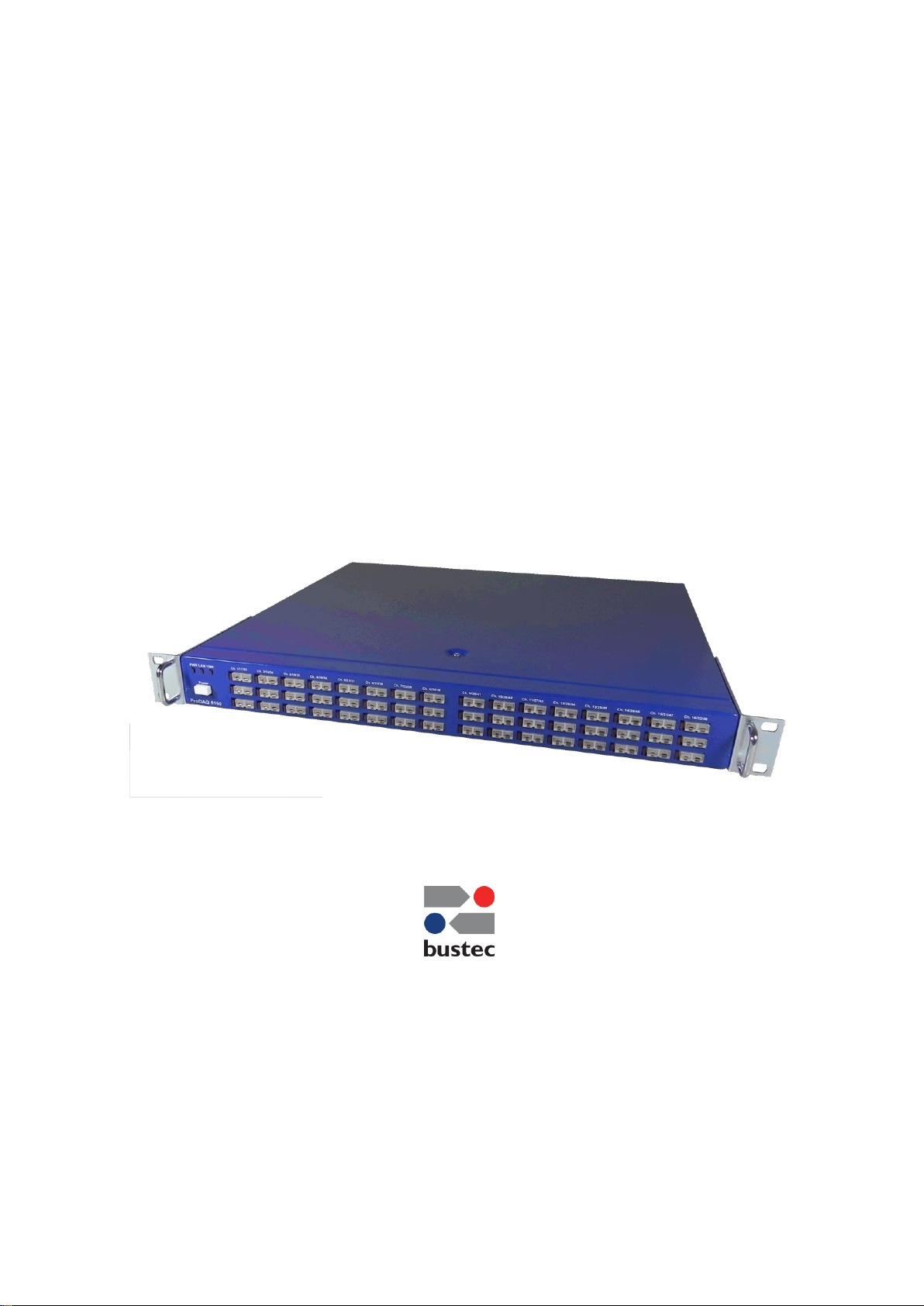

Bustec ProDAQ 6150 Manuel utilisateur

USER MANUAL

ProDAQ LXI Instruments

ProDAQ 6150 Isolated Precision

Thermocouple LXI Instrument

PUBLICATION NUMBER: 6150-XX-UM-1020

Bustec Production, Ltd.

Bustec House, Shannon Business Park, Shannon, Co. Clare, Ireland

Tel: +353 (0) 61 707100, FAX: +353 (0) 61 707106

PROPRIETARY NOTICE

This document and the technical data herein disclosed, are proprietary to Bustec

Production Ltd., and shall not, without express written permission of Bustec

Production Ltd, be used, in whole or in part to solicit quotations from a competitive

source or used for manufacture by anyone other than Bustec Production Ltd. The

information herein has been developed at private expense, and may only be used for

operation and maintenance reference purposes or for purposes of engineering

evaluation and incorporation into technical specifications and other documents,

which specify procurement of products from Bustec Production Ltd.. This document

is subject to change without further notification. Bustec Production Ltd. Reserve the

right to change both the hardware and software described herein.

ProDAQ 6150 Isolated Thermocouple Signal Conditioning Unit User Manual 6150-XX-UM

Copyright, © 2016 Bustec Production Ltd. Page 3 of 64
Table of Contents

Introduction..................................................................................................................8
1. Overview ..........................................................................................................................8
2. Product Features.............................................................................................................8
2.1. Channel Isolation........................................................................................................8
2.2. Mixing of TC Types.....................................................................................................9
2.3. Thermocouple Measurement Range...........................................................................9
2.4. Sigma Delta filtering and Rejection of 50/60Hz...........................................................9
2.5. Simultaneous Sampling..............................................................................................9
2.6. Wide Range of Sampling Rates..................................................................................9
2.7. Open Thermocouple Detection...................................................................................9
2.8. Cold Junction Compensation......................................................................................9
2.9. Industry Standard Input Connectors .........................................................................10
2.10. Isolated Digital I/O.................................................................................................10
2.11. LXI Trigger Bus.....................................................................................................10
2.12. Triggering..............................................................................................................10
2.13. Scalable Technology.............................................................................................10
2.14. Data storage .........................................................................................................10
Getting Started...........................................................................................................12
1. Mounting the ProDAQ 6150 in a 19” Rack ...................................................................12
1.1. The ProDAQ 5725 Rack-mount Kit...........................................................................12
1.2. Installing the ProDAQ 5725 Rack-mount Kit.............................................................12
2. Preparing the ProDAQ 6150 for Tabletop Use.............................................................14
2.1. The ProDAQ 5726 Stackable Desktop Feet Set .......................................................15
2.2. Attaching the ProDAQ 5726 Stackable Desktop Feet Set.........................................15
3. ProDAQ 6150 Connectors and Switches......................................................................16
3.1. Front Panel...............................................................................................................16
3.2. ProDAQ 6150 Rear Panel.........................................................................................17
4. Connecting a Thermocouple.........................................................................................17
5. Accessing the Device....................................................................................................18
5.1. Connecting the ProDAQ 6150 to the Network...........................................................18
5.2. Discovering the Instrument.......................................................................................19
5.3. Using the DNS services for Discovery ......................................................................20
Theory of Operation...................................................................................................22
Specifications.............................................................................................................24
Web Page Operation..................................................................................................26
1. Instrument Home Page..................................................................................................26
2. LAN Configuration.........................................................................................................27
3. mDNS Service Name .....................................................................................................28
4. Synchronization Configuration.....................................................................................30
5. Channel Configuration..................................................................................................33
5.1. Channel Settings......................................................................................................33
5.2. User Thermocouple Types........................................................................................34
6. Measurement .................................................................................................................35
6.1. Continuous Polling....................................................................................................35
6.2. Data Acquisition........................................................................................................35

6150-XX-UM ProDAQ 6150 Isolated Thermocouple Signal Conditioning Unit User Manual


Page 4 of 64 Copyright, ©2016 Bustec Production Ltd.
6.3. Trigger Configuration................................................................................................36
7. Internal Storage .............................................................................................................37
7.1. Displaying stored Data Files.....................................................................................38
8. Device Status.................................................................................................................40
8.1. Basic Status .............................................................................................................40
8.2. Advanced Status ......................................................................................................41
9. System Log....................................................................................................................42
10. Device Configuration.................................................................................................43
10.1. General Settings ...................................................................................................43
10.2. Fan Settings..........................................................................................................44
10.3. Security Settings...................................................................................................45
10.4. Firmware Update...................................................................................................45
11. Documentation...........................................................................................................46
The VXIplug&play Driver ...........................................................................................48
1. Installation......................................................................................................................48
2. The Soft Front Panel......................................................................................................48
2.1. Channel Configuration..............................................................................................49
2.2. Measurement............................................................................................................50
2.3. Internal Storage........................................................................................................54
3. Programming the ProDAQ 6150 ...................................................................................55
4. Connecting to the device ..............................................................................................57
5. Configuring Channels ...................................................................................................58
6. Reading Channel Temperatures...................................................................................59
7. Data Acquisition ............................................................................................................60



ProDAQ 6150 Isolated Thermocouple Signal Conditioning Unit User Manual 6150-XX-UM

Copyright, © 2016 Bustec Production Ltd. Page 5 of 64
Table of Figures

Figure 1 - ProDAQ 6150-AC Isolated Precision Thermocouple LXI Instrument................................8
Figure 2 - ProDAQ 5725 Rack-mount Kit Parts..............................................................................12
Figure 3 - Assembling the front flanges..........................................................................................13
Figure 4 - Assembling the rear support rails...................................................................................13
Figure 5 - Attaching the rear rack-mount flanges ...........................................................................14
Figure 6 - Attaching the ProDAQ 5726 Stackable Desktop Feet Set..............................................15
Figure 7 - ProDAQ 6150-AA Front View.........................................................................................16
Figure 8 - ProDAQ 6150-AB Front View.........................................................................................16
Figure 9 - ProDAQ 6150-AC Front View ........................................................................................16
Figure 10 - ProDAQ 6150 Rear Panel............................................................................................17
Figure 11 - Bustec VISA Configuration Utility.................................................................................19
Figure 12 - Network Instruments Tab.............................................................................................19
Figure 13 - Network Instruments Search Dialog.............................................................................20
Figure 14 - Network Instruments found..........................................................................................20
Figure 15 - LXI Devices in Bustec Agent........................................................................................21
Figure 16 - Bonjour Explorer Bar ...................................................................................................21
Figure 17 - ProDAQ 6150 Block Diagram ......................................................................................22
Figure 18 - Isolated Channel Block Diagram..................................................................................22
Figure 19 - Instrument Home Page................................................................................................26
Figure 20 - IP Configuration Page..................................................................................................27
Figure 21 - Setting the mDNS Service Name.................................................................................29
Figure 22 - Synchronization Configuration Page (Slave Mode)......................................................30
Figure 23 - Synchronization Configuration Page (Master Mode)....................................................31
Figure 24 –Channel Settings Page ...............................................................................................33
Figure 25 - User Thermocouple Types...........................................................................................34
Figure 26 - Continuous Polling Page..............................................................................................35
Figure 27 –Data Acquisition Page.................................................................................................36
Figure 28 - Trigger Configuration Page..........................................................................................37
Figure 29 - Internal Storage Page..................................................................................................37
Figure 30 - Internal Storage Page with installed hard drive............................................................38
Figure 31 - Data file display ...........................................................................................................39
Figure 32 –Basic Device Status Page...........................................................................................40
Figure 33 - Advanced Status Page................................................................................................41
Figure 34 - System Log Page ........................................................................................................42
Figure 35 - Device Configuration Page..........................................................................................43
Figure 36 - General Settings Page.................................................................................................44
Figure 37 - Fan Settings Page.......................................................................................................44
Figure 38 - Security Settings Page.................................................................................................45
Figure 39 - Firmware Update with Status.......................................................................................46
Figure 40 - Datasheet Page...........................................................................................................46
Figure 41 - Choosing the connection method.................................................................................48
Figure 42 - Selecting one of multiple ProDAQ 6150.......................................................................48
Figure 43 - Continuous Polling Tab................................................................................................49
Figure 44 - Channel Configuration / Settings Tab ..........................................................................50
Figure 45 - Channel Configuration / User TC Types Tab ...............................................................50
Figure 46 - Waveform Display........................................................................................................51
Figure 47 - Multi-window Waveform Display..................................................................................51
Figure 48 - Manual Scaling............................................................................................................52
Figure 49 - Data Acquisition Setup.................................................................................................52
Figure 50 - Isolated Trigger Configuration......................................................................................53
Figure 51 - Internal Storage Tab....................................................................................................54
Figure 52 - VXIplug&play Driver functions......................................................................................55
Figure 53 - Managing a Session ....................................................................................................57
Figure 54 - Configuring Channels ..................................................................................................58

6150-XX-UM ProDAQ 6150 Isolated Thermocouple Signal Conditioning Unit User Manual

Figure 55 - Reading Channel Temperatures..................................................................................59

Figure 56 - Reading consecutive data from one channel ...............................................................60

Figure 57 - Acquiring scans of data................................................................................................61

ProDAQ 6150 Isolated Thermocouple Signal Conditioning Unit User Manual 6150-XX-UM

Reference Documents

Title

Number

Temperature-Electromotive Force - Reference Functions and

Tables for the Letter-Designated Thermocouple Types Based on

the ITS-90

NIST Monograph 175

Safety

When hazardous voltages (higher than 42.4 VAC peak or 60 VDC) are

present on any channel, all channels are considered hazardous.

Ensure that external wiring or any circuits connected to the device are

properly insulated from human contact.

This device contains no user-serviceable parts. Do not open the device

or attempt to disassemble the internal parts or modify them in any way.

If it should appear to be malfunctioning, discontinue use immediately

and contact Bustec Ltd. for support.

To operate this device, use a three-conductor power cord and an

power outlet providing protective earth. Do not use a two-conductor

extension cord or a three-prong/two-prong adapter.

If you replace the power cord provided, make sure that the

replacement is rated for the power consumption stated in the

specifications.

Do not position the device so that it is difficult to operate the

disconnecting device.

If the equipment is used in a manner not specified by the

manufacturer, its safety may be impaired.

Waste Electrical and Electronic Equipment (WEEE)

This product complies with the WEEE Directive 2002/96/EC marking

requirement. The affixed product label indicates that you must not

discard this electrical product in domestic household waste.

Product Category: Monitoring and Control Instrumentation

To return unwanted products, contact Bustec Ltd.

6150-XX-UM ProDAQ 6150 Isolated Thermocouple Signal Conditioning Unit User Manual

1. Introduction

1.1. Overview

The ProDAQ 6150 is a 1U high rack-mountable LXI instrument. The ProDAQ 6150 is available in

three versions (16-, 32-, and 48 channel) and provides high precision measuring of thermocouple

sensors. Each channel is identical and is isolated from every other channel and from chassis

ground for common-mode working voltages up to 350VRMS.

Figure 1 - ProDAQ 6150-AC Isolated Precision Thermocouple LXI Instrument

Every channel has a universal thermocouple connector allowing any type of thermocouple to be

connected. Thermocouples can be mixed in any fashion. The software interface provides for all

common thermocouple types J, E, N, K, T, R, S and B as well as custom types via a programmable

conversion. Each channel has individual cold-junction compensation (CJC) located right at the

thermocouple connector inputs. Open-thermocouple detection (OTD) is provided per channel, the

occurrence of which is signaled both in software and by a front panel LED.

The ProDAQ6150 uses one 24-bit Sigma-Delta ADCs per channel to provide the highest possible

measurement accuracy and simultaneous sampling. The sampling rate can be varied from 5 S/s to

1000 S/s. At sample rates of 20 S/s or lower, special digital filters still allow to reject both 50Hz and

60Hz frequencies, thus eliminating the effects of power line noise.

1.2. Product Features

1.2.1. Channel Isolation

The ProDAQ 6150 provides complete isolation both from channel to channel and from channel to

ground. This allows the operator to connect thermocouple sensors with high Common Mode (CM)

voltages without affecting other channels or the measurement accuracy. The ProDAQ 6510 has

been tested to IEC 61010-1 Ed 3.0 (2010-06) and IEC 61010-2-030 Ed 1.0 (2010-06). It has been

type tested to Class II with a working common mode voltage of up to 350VRMS.

Having isolation per channel also reduces the effects of offset and noise due to ground loops on

measurement accuracy. This can occur when both the sensor and the measuring equipment is

grounded. In such cases the difference is GND potential can cause current loops which manifest as

voltage differences in the grounds of the two devices. Even a few microvolt of offset can affect the

accuracy of the measurement. Having a floating thermocouple measurement eliminates this

potential source of error.

ProDAQ 6150 Isolated Thermocouple Signal Conditioning Unit User Manual 6150-XX-UM

1.2.2. Mixing of TC Types

Each channel is independently configurable for the standard thermocouple types J, E, N, K, T, R, S

and B as well as for custom types. Each channel permits up to two custom types to be stored.

Hence, a 48-channel unit allows for 96 custom thermocouples to be used, if dedicated to particular

channels. Up to 16 coefficients can be programmed for each custom thermocouple.

1.2.3. Thermocouple Measurement Range

The ProDAQ 6150 allows for a wide range of precision thermocouple measurements to be

performed, as shown in Table 1-1.

Thermocouple

Minimum °C

Maximum °C

-210

1200

-200

1372

-200

400

-200

1000

-50

1768

-50

1768

250

1820

-200

1300

Table 1-1: Measurement Range for Standard Thermocouples

1.2.4. Sigma Delta filtering and Rejection of 50/60Hz

At sample rates of 20 Samples/sec or less both 50Hz and 60Hz interference are rejected by a

special filter in the ADC. For higher sample rates, the external circuitry of the channel performs the

rejection. Hence, power line noise, a potential source of error, is rejected.

1.2.5. Simultaneous Sampling

The ProDAQ 6150 uses independent Sigma-Delta ADCs per channel to provide true simultaneous

sampling.

1.2.6. Wide Range of Sampling Rates

The ProDAQ 6150 allows choosing freely any sample rate between 1 Sample/second up to 1000

Samples/second with a resolution of 1 S/s. Lower sample rates can be achieved by using the

trigger scheme implemented.

1.2.7. Open Thermocouple Detection

Each channel of the ProDAQ 6150 contains an independent OTD circuit, which may be switched

ON or OFF as required. When switched on, a broken wire is indicated both optically via a front-

panel LED and programmatically through error status codes and events.

1.2.8. Cold Junction Compensation

Each channel of the ProDAQ 6150 contains its own Cold Junction Compensation (CJC) circuit. The

measurement of the CJC is directly at the copper terminals of the front panel connector, i.e. directly

6150-XX-UM ProDAQ 6150 Isolated Thermocouple Signal Conditioning Unit User Manual

at the cold junction. In this way the highest possible accuracy is achieved as changes in the cold

junction temperature are immediately sensed. A precision interchangeable thermistor, configured in

a ratiometric manner, is used to sense the temperature.

1.2.9. Industry Standard Input Connectors

The ProDAQ 6150 uses industry standard uncompensated mini-TC Cu-Cu thermocouple input

connectors. This connector provides a solid and reliable connection. Different thermocouple types

can be mixed throughout the unit without hardware modification, since the connector is not

thermocouple-type specific.

1.2.10. Isolated Digital I/O

Each version of the ProDAQ 6150 features 4 isolated digital I/O lines on the rear panel, 2 input and

2 output. These are generic lines which may be used for generating and/or receiving digital signals

as for example trigger events.

1.2.11. LXI Trigger Bus

Optional the ProDAQ 6150 can feature the LXI Hardware trigger bus, allowing the device to share

trigger signals with all compatible LXI devices.

1.2.12. Triggering

An extended trigger scheme allows hardware trigger received via the isolated trigger lines or the

LXI trigger bus as well as software triggers like LXI events to control the acquisition process.

1.2.13. Scalable Technology

A single ProDAQ 6150 can contain either 16, 32 or 48 channels. However, multiple units can easily

be synchronized using the IEEE1588 clock synchronization via Ethernet or the optional LXI trigger

bus, providing any amount of simultaneous sampled channels required.

1.2.14. Data storage

The ProDAQ 6150 features a RAM disk of 64MB to store data acquired independently of the host

controlling the device. Optional SSD hard drives can be installed to permanently store data on the

device, allowing a fully independent stand-alone mode. Data acquisition to both storage devices as

well as the data retrieval can be done via the web interface.
