Bushnell 119512B Manuel utilisateur

Digital Land Camera

w/Night Vision

Instruction Manual

Lit# 98-2189/02-12

Model#: 119512B

Page Index

Introduction 5

Parts & Controls Guide 6-7

Battery and SD Card Installation 8

About the Setup Menu 9

Using the Setup Menu 9

SETUP MENU REFERENCE TABLE 10-11

Camera Operation 12

Mount the Camera 12

Power on the Camera 12

Test the Coverage Area 13

Secure the Camera 13

Viewing the Photos and Videos 14

Glossary 15

Technical Specications 16

Troubleshooting/FAQ 17-20

IMPORTANT NOTE

Congratulations on your purchase of one of the best Land cameras on the

market! Bushnell is very proud of this little unit and we are sure you will be

pleased with it as well. We appreciate your business and want to earn your

trust. Please refer to the notes below and the instructions in this manual

to ensure that you are completely satised with this product.

If your Bushnell Land Cam does not seem to be functioning properly

or if you are having photo/video quality issues, please check the

Troubleshooting/FAQ section on pages 18-21.

Problems are often due to something simple that was overlooked, or

require only changing one setting to solve.

If your problem continues after trying the solutions in the

Troubleshooting/FAQ section, please call Bushnell Customer Service

at (800) 423-3537. In Canada, call (800) 361-5702.

Bushnell recommends using 4 Energizer® Lithium AA batteries in this

Land Cam to obtain maximum battery life.

Do Not Mix Old and New Batteries

Do not mix battery types-use ALL lithium or ALL alkaline.

Rechargeable batteries are not recommended.

Bushnell recommends using SanDisk® SD and SDHC Cards

(up to 32GB capacity) in this Land Cam.

INTRODUCTION

Congratulations on your purchase of the Bushnell 119512B Digital Land

Camera. This camera is designed to record human or animal activity in the

outdoors with its still image and movie modes and weatherproof, rugged

construction. Your Land Cam features a compact, portable size and an

extra long battery life.

Main Features:

• 5.0 MP digital sensor

• Compact Size (120mm*94mm*46mm)

• Long Battery Life (Up to 6 months)

• Trigger Time=1.3 seconds or less

• Automatic IR Filter

• LCD Display

• 18 Night Vision LEDs

• Adjustable Photo Delay: 5~ 59 second ,1~ 10mins (default 10S)

• Multiple Shot Mode (3 images per trigger)

• 640*480 at 30 FPS Videos

• Supports up to 32 GB SD Card

• Date, Time & Moon Phase Imprint

• Auto Exposure

• Auto White Balance

• Power Supply: 4 AA batteries (lithium or alkaline)

• Mounting Socket for Standard Tripods

• Weatherproof

Parts and Controls Guide

Front of Camera

Camera

Lens

Infrared

LED Array

PIR Motion

Sensor

Tripod

Socket

Padlock

Hole

IR LED Array Detail

PIR

Indicator

(Setup

Mode

Only

Light

Sensor

Control Panel Detail

Parts and Controls Guide

Control Panel

(Front Unlatched & Opened)

Power

Switch

USB Port LCD

Display

SD Card

Slot

Battery

Compartment

BATTERY and SD CARD INSTALLATION

The Bushnell 119512B Digital Land Camera is designed to operate using

4 AA batteries. We recommend using Lithium (for longest life) or Alkaline

batteries.

NOTE: Always set the power switch to the OFF position when installing or

removing batteries.

Please make sure the batteries are inserted correctly, as indicated inside

the battery compartment. Incorrect voltage or polarity (+/-) will damage

the camera.

Do not mix old and new batteries.

Do not mix battery types-use ALL lithium or ALL alkaline.

Rechargeable batteries are not recommended.

Memory

Your 119512B Digital Land Camera has a memory card slot, to accept SD

cards up to 32GB max. capacity (sold separately).

Inserting an SD card

• Make sure the power switch is in the OFF position whenever adding

or removing memory.

• Insert an SD card into the card slot completely and oriented correctly

as shown by the icon above the slot (label up, contacts facing down

and notched corner on the right).

• To remove the SD memory card, depress the SD card and pull out

the card gently.

Using a new, blank SD card is recommended. If the SD card has been used

in another device, please make sure to format using the Format option

in the Land Camera’s Setup menu before you set the camera to capture

photos/videos. New cards are ready to use straight from the package.

ABOUT THE SETUP MENU

Slide the power switch to the On position.You’ll see“WAIT”on the display,

then the setup menu screen. Before you start using the camera, you’ll no

doubt want to set the date/time so they are imprinted correctly on your

photos, and maybe change the trigger delay time and image resolution

to your preferences. This is done by editing the settings of an item listed

in the Setup Menu.

To enter the Setup Menu at any time, press the SETUP button (to left of

the power switch).

USING THE SETUP MENU

The Setup Menu has 5 dierent items, which appear on a list in the left

frame of the display. Here’s how to edit (change) the setting of a menu

item:

1. Select the menu item you want to edit by pressing the UP or DOWN

button until the item is blinking. Note: you can see the current/

default setting for each item (without changing it) in the main center

frame as you move up and down the list of items.

2. Press the OK button.

3. You can now select the setting you prefer for the selected item by

pressing the UP or DOWN button. The setting displayed in the

center frame will blink until you press OK to conrm it is the setting

you want to save.

4. To exit the Setup menu at any time, simply press the Setup button.

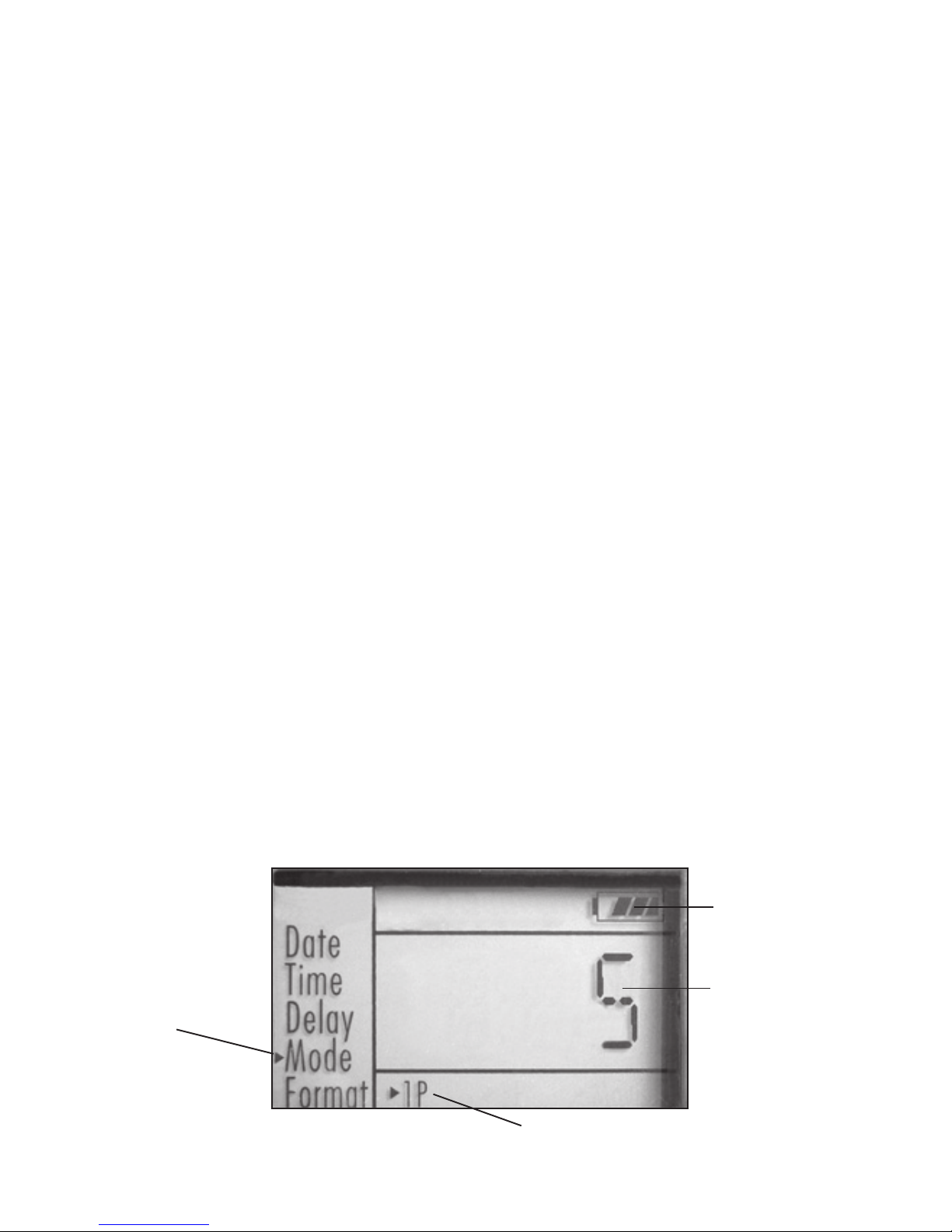

SETUP MENU DISPLAY

SELECTED

ITEM

CURRENT

SETTING OF

SELECTED ITEM

Indicates Photo (1P or 3P) or Movie Mode

Battery Level

Menu Item Settings

(Bold=default)

Description

Date set year, month,

and day

Press OK and use the UP/DOWN

keys to change the year setting,

then press OK again and repeat

these steps to also set the current

month and day. Press OK after

setting the day to go to the next

menu item (setting Time).

Time set hour and

minute

Press OK and use the UP/DOWN

keys (to change the setting) then

OK again ( to move to the next

eld) to set the current hour (24-

hr format only, “00”=midnight,

“12”=noon) and minute.

Delay set minutes (0-

10) or seconds

(5-59)

Default delay

time= 10 sec.

Selects the length of time that

the camera will “wait” until it

responds to any additional

triggers from the PIR after an

animal is rst detected and

remains within the sensor’s

range. During this user set

“ignore triggers”interval, the

camera will not capture photos/

videos. This prevents the card

from lling up with too many

redundant images. Settings

begin with 10 second default

time. Press OK, set the delay time

in minutes (if desired), press OK

and set the delay in seconds.

The following table lists all of the menu items, their available settings,

and a description of their functions:
