Buffalo TS-XL Manuel utilisateur

TeraStation User Manual

TS-XL/R5, TS-RXL/R5, and TS-WXL/R1 models

www.buffalotech.com v2.86

Introduction

Congratulations on your new TeraStation! The TeraStation is a powerful le server that’s

as easy to use as a hard drive. With its straightforward Web Admin Tool, anyone can

easily congure the TeraStation’s settings. You don’t even necessarily need to congure it

at all; right out of the box it’s ready to be plugged in and put to work. But the TeraStation

remains a fast, reliable, Linux-based server, with multiple hard drives that may be

congured in RAID arrays. This user manual is intended to assist you in conguring your

new TeraStation.

Because we’re constantly updating our product, the images and text in this manual may

vary slightly from the images and text displayed by your TeraStation. These changes

are minor and should not affect the ease of setup adversely. As time passes, future user

interfaces, updated software, and later versions of this manual may be freely available for

download at our web site: http://www.buffalotech.com.

Introduction

Diagrams and Layout 4

TS-XL/R5 4

TS-WXL/R1 7

TS-RXL/R5 10

Power Mode 13

Using your TeraStation

Using your TeraStation with a PC 14

Using your TeraStation with a Mac 17

Finding your TeraStation’s IP address 20

Settings and Conguration

Web Admin Tool 21

Users/Groups

Adding Users 24

Adding Groups 27

Disk Quotas 28

Network

Settings 29

Port Trunking 30

Workgroup/Domain 32

NFS 34

DFS 35

System

Settings 36

Disks

RAID Conguration 37

Hot Spare 39

Hot Swap 40

USB Hard Drives 41

Formatting Hard Drives 42

Encryption 42

Adding Shares 43

Mapping Additional Shares 46

TeraSearch 48

Maintenance 51

Replication 52

Backup Jobs 53

Initialization 54

NS-SHFT 57

EXT3 Reader 59

UPS 60

Extensions

Sleep Timer 61

Print Server 62

Time Machine 66

DLNA Media Server 71

Bittorrent Client 73

Direct Copy 75

Remote Access

WebAccess 76

FTP 81

Troubleshooting

Error codes 82

Troubleshooting Multiple Shares 84

Replacing a Hard Drive 86

Appendix

Specications 88

Factory Defaults 89

Contact Information 90

GPL Information 91

TeraStation Quick Setup

Front Panel (TS-XL/R5)

Power On/Off

LCD Display

Door Lock

Display Button

Status LEDs

Function Button

TeraStation Quick Setup

Open Front Panel (TS-XL/R5)

Diagnostic Port

(Buffalo factory use

only)

Drive Lock

(Press left to

open drive)

Drive LED

Init Button

Serial Port for UPS

TeraStation Quick Setup

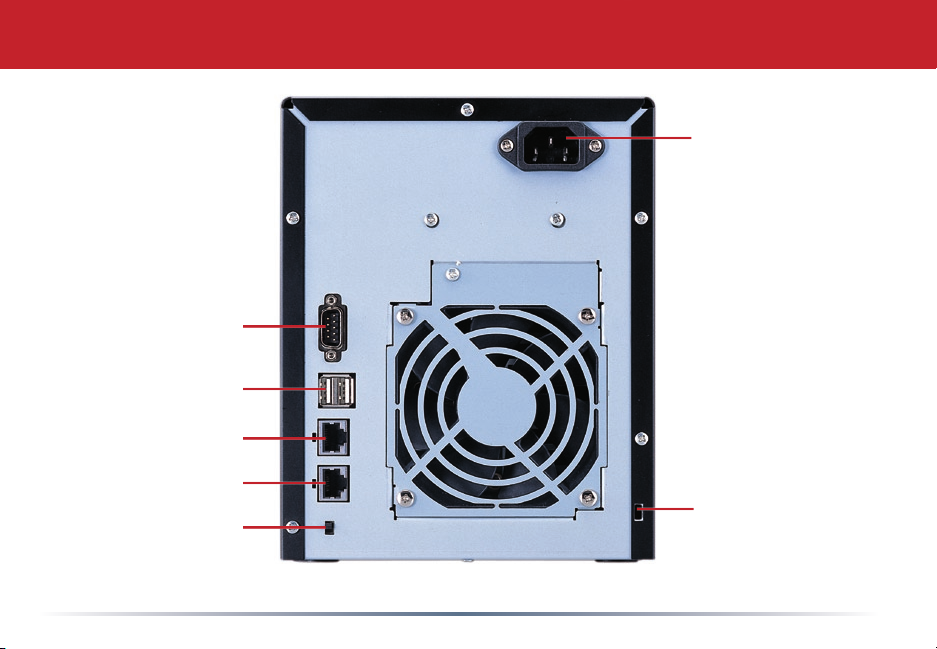

Rear Panel (TS-XL/R5)

USB

Ethernet 1

Ethernet 2

Power Connector

Security Mount

Power Mode Auto

Manual

TeraStation Quick Setup

Front Panel (TS-WXL/R1)

Power On/Off

LCD Display

Door Lock

Display Button

Status LEDs

Function Button

TeraStation Quick Setup

Open Front Panel (TS-WXL/R1)

Diagnostic Port

(Buffalo factory use

only)

Drive Lock

(Press left to

open drive)

Drive LED

Init Button

Serial Port

for UPS

TeraStation Quick Setup

Rear Panel (TS-WXL/R1)

USB Ports

Ethernet 1

Ethernet 2

Power

Connector

Security

Mount

Power Mode

Auto Manual

TeraStation Quick Setup

Front Panel (TS-RXL/R5)

Power On/Off

LCD Display Door Lock

Display Button

Status LEDs

UID LED On/Off
