Bticino Classe100 X16E Manuel d'utilisation

User and installation manual

www.bticino.com

Classe100 X16E

User and installation manual

Contents

Classe100 X16E

User and installation manual

Quick guide 4

Answer a call 4

Auto-switching on and camera scrolling 6

Call another room or apartment (intercom) 8

Dissociate a smartphone 10

Dissociate an user 11

Customise the home page of the Door entry Classe100X App 13

General information 15

Warnings and recommendations 15

Avvertenze normative 16

Front view 17

Function keys and status LEDs 17

Rear view 19

Installation 20

Dimensional data and recommended installation heights 20

Wall-mounted installation 20

Installation on the tabletop bases 344692 (optional) 21

Configuration 23

Programming of the programmable keys 24

Use from the device 31

Functions 31

Answer a call 31

Call another room or apartment (intercom) 32

PE or cameras direct auto-switching on 34

Door lock release 36

Paging 37

Services 38

Inductive loop 38

Door status 39

Professional Studio (Office) 40

Safe door lock 41

Device adjustments and settings 42

Use of the joystick 42

Wi-Fi adjustments and settings 43

Settings 54

Use with the Door entry Classe100X App 57

Introduction 57

Account registration 58

Authentication 60

Forgotten password 61

Help 62

FAQ 63

Sending log 63

Association of the device 64

Home page 73

Display the cameras or Entrance Panels 74

Open door locks 76

Staircase Lights 76

To receive a video door entry call 77

Call home: Call your Classe100 X16E 78

Menu 80

Users 81

Settings 85

Account 98

Quick guide

Classe100 X16E

User and installation manual

Quick guide

Answer a call

Touch to answer the call.

If necessary, during the call press the joystick to display the audio/video parameter adjustment

icons.

Move the joystick up/down to select the type of parameter for which you want to modify the

value (see the following table) among:

–

Speaker volume (Parameter that can be adjusted only with active audio);

– Image brightness;

–

Image contrast;

–

Image colour.

Quick guide

Classe100 X16E

User and installation manual

Touch to end the call.

Touch to open the main Entrance Panel door lock

Quick guide

Classe100 X16E

User and installation manual

Auto-switching on and camera scrolling

Note: switching from one camera to another is also possible without enabling the audio.

2. If necessary, touch to activate the audio communication

3. Touch to display another Entrance Panel or camera (using the scrolling service). When

switching from one camera to the next the key lights up.

1. Touch to display the Entrance Panels or the cameras in your system.

Quick guide

Classe100 X16E

User and installation manual

4. Touch to end camera display mode, or wait for the automatic switch off time to elapse.

Quick guide

Classe100 X16E

User and installation manual

Call another room or apartment (intercom)

Key (A) lights up to indicate that the call is active.

1. For example, touch programmable key to activate the communication with the Internal Unit

(e.g. configured as 2)

Note: the programmable key to use for calling a certain Internal Unit is set by the installer (see

Programming of the programmable keys).

Quick guide

Classe100 X16E

User and installation manual

When the Internal Unit answers, the key starts flashing. Touch it to end the call or establish

communication with the Internal Unit.

Note: if during the conversation a call is received from the Entrance Panel, the conversation is

interrupted in order to answer the Entrance Panel call.

Quick guide

Classe100 X16E

User and installation manual

Dissociate a smartphone

4. Touch to continue.

5. Touch to confirm

The user will no longer be able to manage the system using that smartphone.

To re-associate the smartphone simply repeat the authentication process.

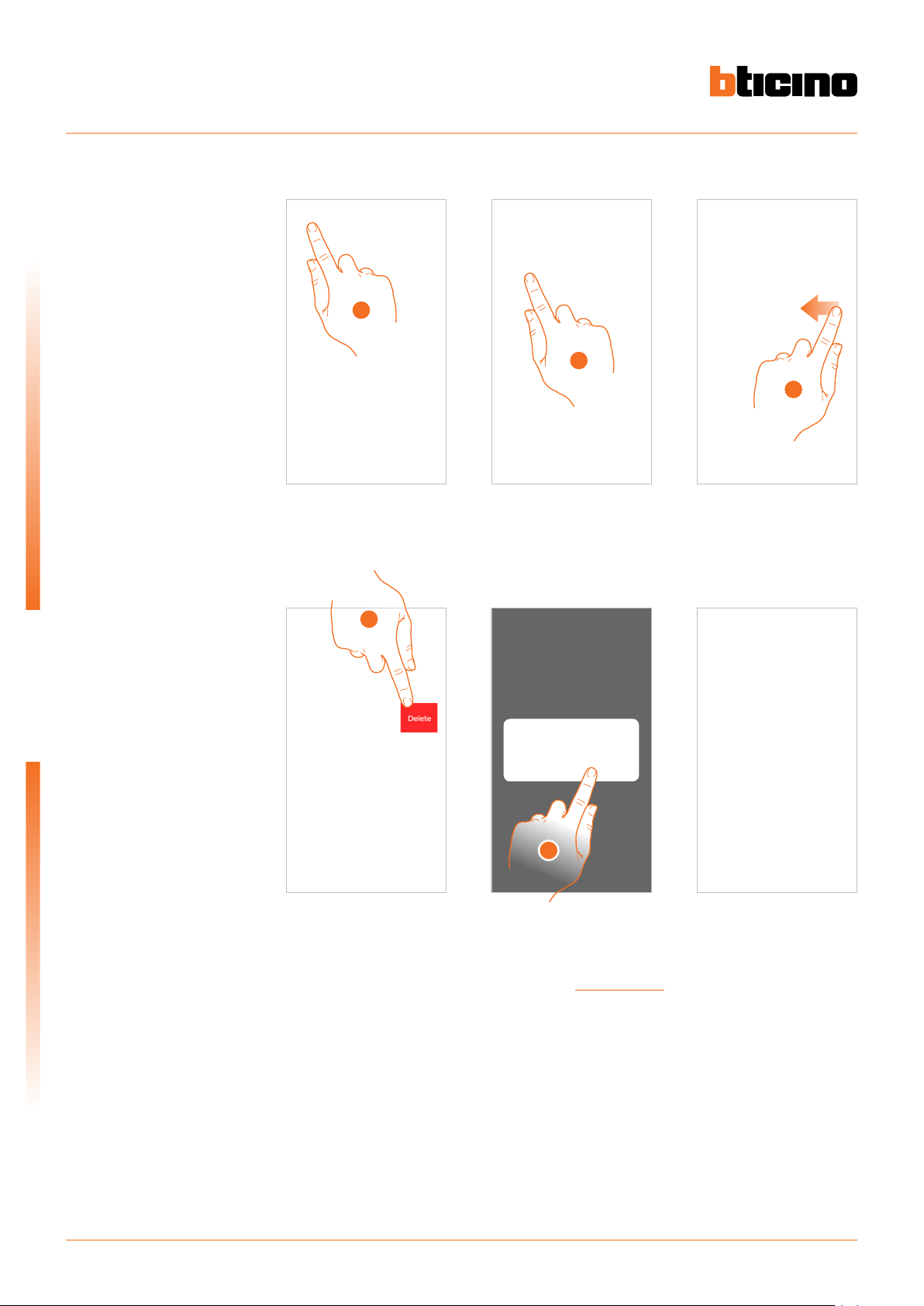

1. Touch to open the pull-down menu.

2. Touch to open the user section.

3. Scroll to dissociate a smartphone.
