BT FREESTYLE 80 PLUS Manuel utilisateur

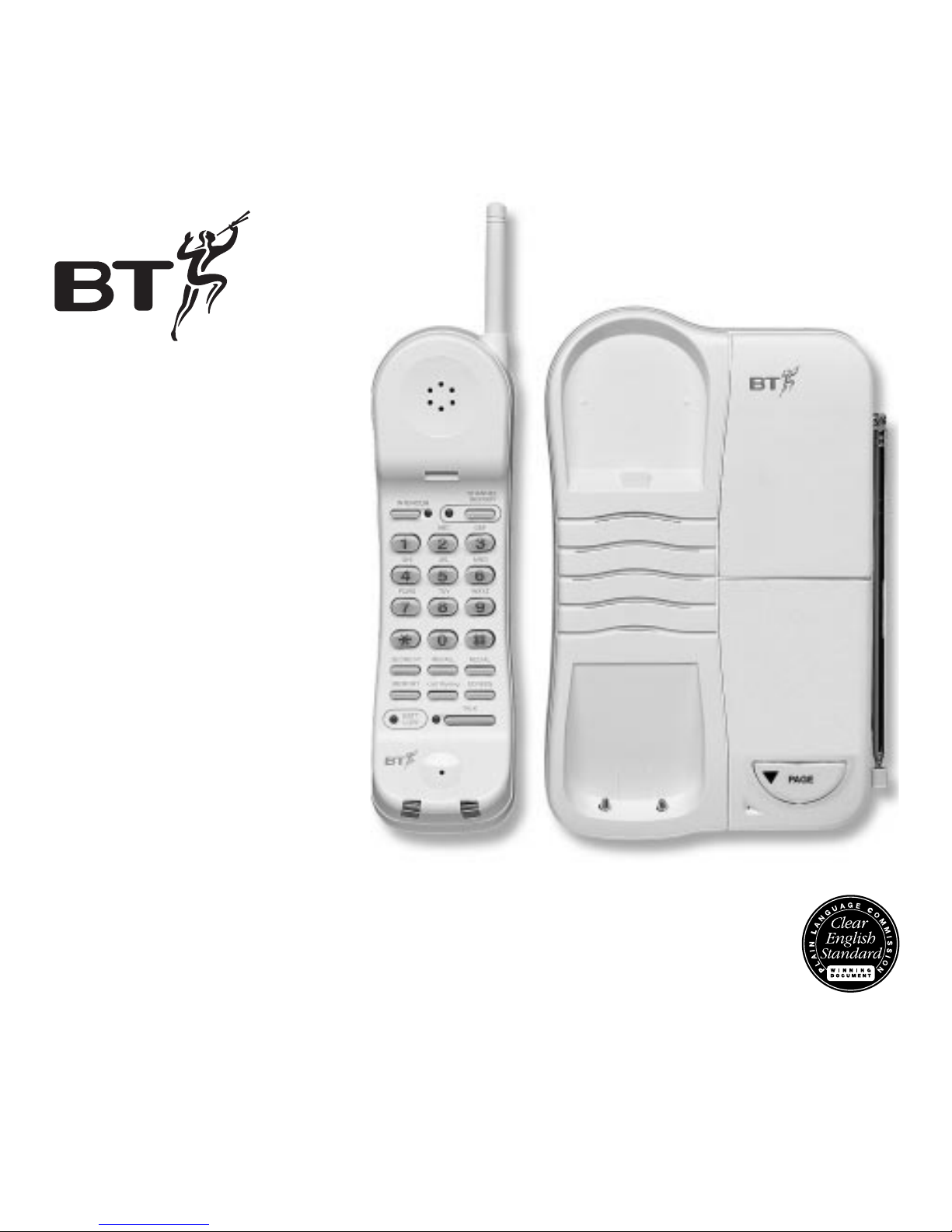

Freestyle 80 Plus

Freestyle80 Plus

User guide

Please open this page for an ‘At a glance’ guide

to your Freestyle 80 Plus.

RECALL REDIAL

QUICKDIAL

ABC

GHI JKL MNO

PQRS TUV WXYZ

DEF

789

SECRECY

TALK

BATT

LOW

CHANNEL

SEEKER

1471 Call Waiting Call My Bill

Ring mode switch

Sets the handset ringer

on or off.

see page 11

Secrecy button (and light)

When pressed, it stops the

caller hearing you.

see page 14

Recall button

For use with PBXs and

Select Services.

see page 12

Quickdial button

Allows you to store and dial up

to 10 numbers in the memory.

see page 12

1471 button

Lets you hear the

telephone number of the last

person who called you.

see page 18

Batt low light

Flashes when the handset

battery is low.

see page 9

Charging contacts

Aerial

Does not extend, do not

pull out.

Channel seeker button

Selects the best alternative

radio frequency if interference

occurs during a call.

see page 11

Call Waiting button

To switch between two callers

when Call Waiting has been

ordered from BT Select

Services.

see page 16

Redial button

Redials the last number dialled.

see page 14

Call My Bill button

Press for billing information.

see page 17

Talk standby button

(and light)

For making or receiving a call.

see page 10

At a glance

POWER

CHARGING

IN USE

PAGE

Freestyle 80 Plus

4 CHANNEL AUTO SELECTION

Base unit telescopic aerial

Power light

Lights up red when the mains

power is on.

see page 9

In-use light

Comes on when the handset

is in use.

see page 10

Charging light

Comes on when the handset

batteries are being charged.

see page 9

Page button and light

Press to page the handset

see page 15

Back-up battery

compartment

Holds 8 x AAA batteries.

see page 6

Battery charging

contacts

Telephone line

cord socket

see page 7

Tel Mode switch

Allows you to select Tone or Pulse dialling.

see page 11

Base unit ringer volume

Switch between Hi, Lo or Off.

see page 11

LINE

T-TB T-E P-E

TEL MODE

RINGER

HI LO OFF

12V AC

Mains power

socket

see page 7

In this guide

At a glance 1

Introduction 4

Setting up 5

Using your Freestyle 80 Plus 10

BT Select Services 16

Help 19

Technical information 21

Maintenance 24

Index 27

Wall mounting 29

Hints and tips boxes

In this user guide, we’ve included helpful tips and

useful notes. They are shown in a grey box.

Customer Helpline

Should you have problems with your Freestyle 80

Plus, call the BT Helpline from 9.00am to 5.30pm

Monday to Friday on Lo-call 0345 697146.

Calls will be charged at local rate.

Introduction Your Freestyle 80 Plus has been designed

for ease of use and made to the very high standards set by BT.

We thank you for making the right choice and

expect that you will have many years of

quality service.

Please read the instructions carefully before

use and keep this user guide for future

reference.

For your records

Date of purchase:

Place of purchase:

Serial number:

(on the underside of the machine)

Purchase price:

For warranty purposes, proof of purchase is

required, so please keep your receipt.

Emergency calls

The emergency services can be contacted in the UK

by dialling 999. You may also dial 112, which is

valid in any country that is a member of the

European community.

As the Freestyle 80 Plus is a mains-powered

cordless telephone, there are certain situations

where you may not be able to make an emergency

call:

• If there is severe radio interference.

• If the handset batteries fail.

• If there is a power cut and there are no back-up

batteries in the base unit.

If your Freestyle 80 Plus is connected to a PBX

(private branch exchange switchboard), you may

have to dial an access number before 999 to

contact the emergency services.

Some switchboards cannot dial out during a power

failure.

Check that your Freestyle 80 Plus is

complete. When you unpack you should

have:

•Freestyle 80 Plus handset.

•Freestyle 80 Plus base unit with

telephone line cord attached.

•Mains power adaptor plug.

•Wall mounting bracket with screws.

•Spare Qua al dicrctcory labels.

3 Insert battery (for back-up only)

To fit back-up batteries, slide the cover off

towards the right and insert 8 new AAA

alkaline batteries (not supplied) as shown in

the diagram above. The power light on the

base unit light up. The battery removal

ribbon should be placed under the lower

layer of batteries. Pulling the ribbon will help

you remove of the batteries when they need

replacing. Replace the battery compartment

cover.

Good quality, fresh batteries should last about

six months. To ensure constant battery back-

up, replace the batteries every six months.

1 Handset aerial

Your Freestyle 80 Plus uses a compact aerial

which does not pull out.

2 Check your telephone wall

socket

If you do not have a modern phone socket,

call BT on Freefone 0800 800 150 and ask

for an engineer to come and fit the right

socket within two metres of a mains socket.

✖

Back-up batteries will only engage when the

battery compartment cover is correctly replaced.

Remember that

the flat ends of the

batteries should be

pressed against the

springs.

Setting up

If your Freestyle 80 Plus is your only phone, you

should fit back-up batteries so that it can always

be used in emergencies.

Like all cordless phones, your Freestyle 80 Plus

handset will need charging for 24 hours before use.

In the event of power failure, the batteries will

give you up to one hour talk time or seven hours

on standby.

Warnings

1Do not use any power supply except the one

provided, otherwise you could permanently

damage your Freestyle80 Plus.

2Your Freestyle 80 Plus should not be fitted

in wet or damp conditions, for example in a

bathroom. Also, the handset should not be

left out in the rain.

3There is a slight chance that your phone

could be damaged by an electrical storm.

We recommend that you unplug the base

unit from the mains during storms.

Setting up

4 Plug the power cable into the

back of the base unit

Plug the mains power cable into the socket

on the back of your Freestyle 80 Plus.

LINE

T-TB T-E P-E

TEL MODE

RINGER

HI LO OFF

12V AC

You can now use the telephone and store

numbers in the memory.

6 Plug the phone into the BT

socket

5 Connect the base unit

three-pin adaptor to a power

socket

Like all cordless phones, your Freestyle 80 Plus

handset will need charging for 24 hours before use.

For the best reception

Try to avoid putting the telescopic aerial near

other electrical appliances, fluorescent lights and

large metallic objects such as cookers, radiators

and garage doors as these may cause interference

and reduce the quality of your calls.

7 Extend the base unit

telescopic aerial

Extend the base unit telescopic aerial on your

Freestyle 80 Plus (as shown below) to ensure

the best possible signal and reception.

8 To wall-mount your product

(See ‘Wall mounting’, page 29.)

To plan the location of the base unit

Your Freestyle 80 Plus works by sending and

receiving radio signals between the base unit

and the handset. The strength of the signal

depends on where you site the base unit and

how the aerial is deployed. The higher the

base unit is located, the better. An upstairs

room is ideal. The following points should be

considered:

• It should be within easy reach of a mains

socket and a telephone socket. A new-style

telephone socket is required for this product.

If you do not have one, call us on Freefone

0800 800 150.

• Try to avoid locations near metallic

obstructions or electrical appliances, such

as TV sets, fridges, computers, fluorescent

lights, radiators, metal pipes and metal

window frames.

• The Freestyle 80 Plus can be wall mounted

by using the bracket and screws supplied;

see page 31 for template.

Setting up

LINE

T-TB T-E P-E

TEL MODE

RINGER

HI LO OFF

12V AC
