Bryant TSTATBBPS101 Mode d’emploi

1 Day Programmable

4 Time Periods per Day

Auto Changeover

Easy To Read Display

Thermoglow Backlight

No Batteries Required

HEAT

COOL

AUTO

6:03

Heat Pump & Heat Cool

USERS INFORMATION MANUAL

MODEL TSTATBBPS101

PROGRAMMABLE DIGITAL

THERMOSTAT

NOTE TO INSTALLER:

This manual must be left with the equipment user.

Heating & Cooling Systems

Meets California Title 24 Residential

Table Of Contents

FRONT PANEL

DISPLAY

QUICK START Set the clock and go

BASIC OPERATION

PROGRAMMING 4 Time Periods

ADVANCED SETUP

ABOUT ADVANCED OPERATION

WARRANTY

Page 1

CAUTION

Follow Installation Instructions before proceeding.

SET THERMOSTAT TO MODE “OFF” PRIOR TO

CHANGING SETTINGS IN SETUP OR RESTORING

FACTORY DEFAULTS.

TSTATBBPS101

Residential Light Commerical Systems Carrier Corporation 4/01

Front Panel

Page 2

Backlit LCD Display

Warmer or + Button

Cooler or - Button

Mode Button

Heat or Cool Indicator

Red = Heat, Green = Cool

HEAT

COOL

AUTO

6:03

SET CLOCK

PROGRAMVACATIONOUTSIDEFAN MODE

Programmable

Thermostat

FAN PROGRAM

BACKLIGHT SET CLOCK

EMERGENCY HEAT

HEAT

COOL

AUTO

6:03

Mode Indicators

Selects the operation mode of the equipment.

HEAT - indicates the heat mode.

COOL - indicates the air conditioning mode.

AUTO - indicates the system will automatically

changeover between heat and cool modes

as the temperature varies.

OFF - indicates the entire system is turned off.

PROGRAM ON - indicates the stored program

is enabled to run. Page 6.

Time Clock

Indicates the current time of day. This clock is

also used to program the timer periods. Page 8.

Room Temperature Display

Indicates the current room temperature.

Desired Set Temperature

Indicates desired room temperature(s). Page 6

Display

Page 3

HEAT

COOL

OFF

AUTO

Fan On

Program

Locked

Setup

Start

12:00

Day

Night

Evening

Morning

Morning, Day, Evening & Night Indication

Indicates the program time period. Page 8-10.

Setup Indication

Indicates the thermostat is in the programming

mode. Page 6.

Fan Operation Indication

Fan On - indicates constant, continuous fan

operation.

When Fan On is not lit - indicates the fan will

only operate when necessary to heat or

to cool. Page 7.

Locked Indication

Locked appears after the right combination of

buttons are pressed, rendering the buttons

inoperative. Page 16.

Start Indication

Start appears when programming

timer functions. Page 8

Display

Page 4

During Setup & Programming:

Pressing the Mode button

selects different flashing items.

(Represented in dark black)

Pressing the Up and Down

buttons will modify the flashing

selection.

Press the Set Clock

button to enter Setup

screens.

Press the SET CLOCK

button to return to

normal operation.

Quick Start Set the Clock and Go

Page 5

The thermostat is preprogrammed from the

factory to operate 1 stage of cooling or 2 Stages

of heating equipment* without the need for further

programming. To optimize the installation of this

thermostat follow the instructions in the Advanced

Setup section.

* The thermostat is not preprogrammed from the

factory to operate electric heat or heat pump systems.

To control these systems, follow the steps in the

Advanced Setup section, pages 11 & 12.

Press

buttons.

To adjust the

clock or Day use

SET CLOCK

MODE

SET CLOCK

Setup

I2:00

Setup

The HEAT setting indicates the

temperature the room has to

reach before the furnace will

turn on to heat the room.

The COOL setting indicates the

temperature the room has to

reach before the air conditioner

will turn on to cool the room.

OFF indicates both heating

and air conditioning

systems are turned off.

AUTO will automatically select

heat or cool based on room

temperature demand.

Program On will activate the

stored timer operation.

(Morning, Day, Evening

& Night Periods)

Select Mode

Basic Operation

Page 6

Press

MODE

HEAT

12:00

COOL

12:00

HEAT

COOL

AUTO

12:00

OFF

12:00

HEAT

COOL

ProgramOn

12:00

Day

buttons.

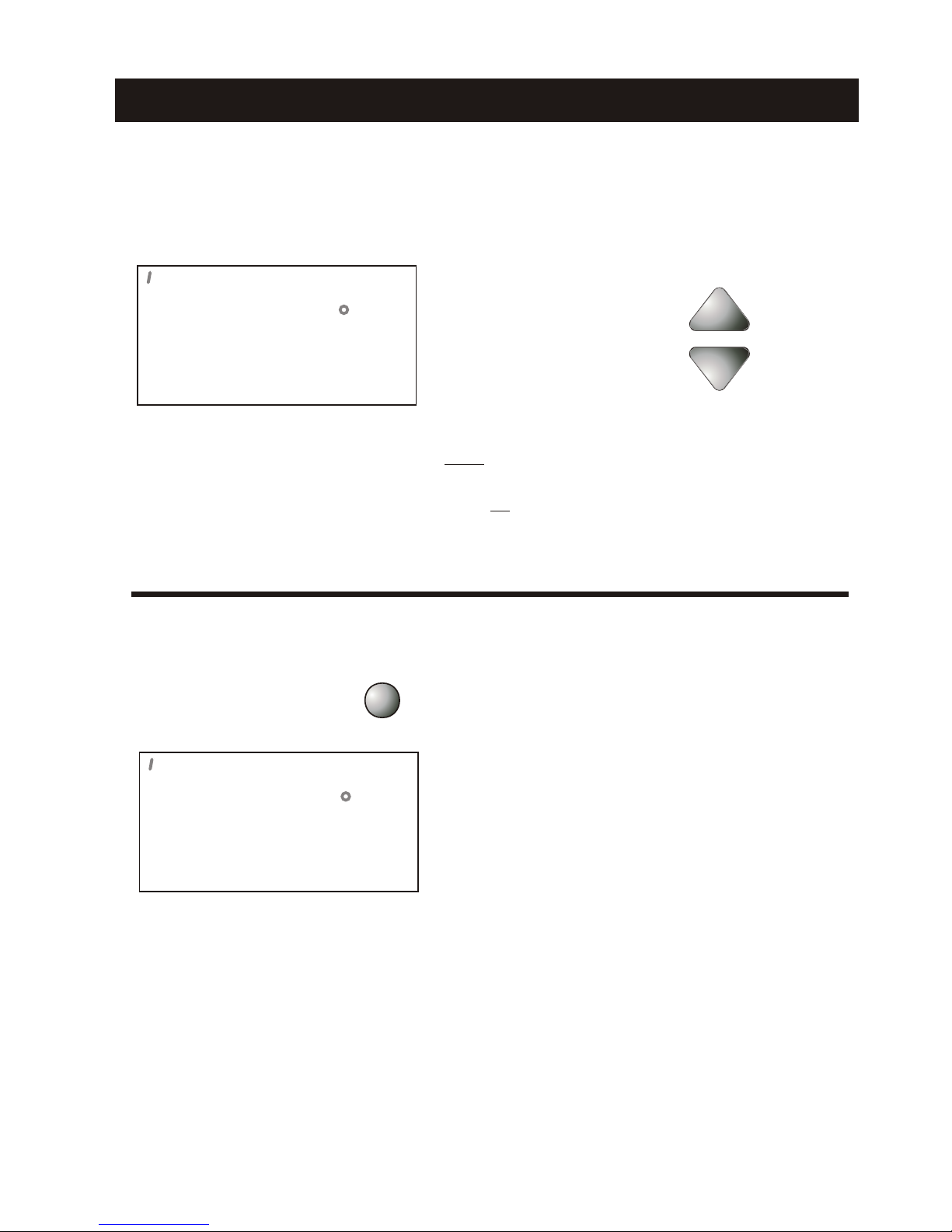

In any mode, adjust the

desired Set Temperature

with

Pressing the Up or Down buttons in Auto mode will adjust both the heat and cool

set temperatures simultaneously.

Pressing the Up or Down buttons in Heat or Cool modes will adjust only the

heat or cool set temperature.

Select Desired Temperature

Fan

Operation

Page 7

Basic Operation

HEAT

COOL

AUTO

12:00

Fan On indicates constant fan operation.

This feature is active even if the thermostat

is set to Off.

HEAT

COOL

12:00

Fan On

Press

FAN

Programming 4 Time Periods

Page 8

Press the PROGRAM button to enter time period programming.

Continued

Adjust the start time

for Morning.

Adjust the heating

setpoint for Morning.

Adjust the cooling

setpoint for Morning.

(35 - 99 )

Start

7 30

Morning

COOL

7 30

Morning

HEAT

COOL

7 30

Morning

Use the back cover Programming Worksheet to help with this section.

Press

PROGRAM

Press

MODE

Press

MODE

Press

MODE

Programming 4 Time Periods

Page 9

Continued

Adjust the start time

for Evening.

Adjust the cooling

setpoint for Evening.

Adjust the start time

for Day.

Adjust the heating

setpoint for Day.

Adjust the cooling

setpoint for Day.

(35 - 99 )

Start

I0 30

Day

Start

5 30

Evening

Day

COOL

I0 30

Evening

COOL

5 30

Day

HEAT

COOL

I0 30

Press

MODE

Press

MODE

Press

MODE

Press

MODE

Press

MODE
