Bryant TSTATBBNB001 Mode d’emploi

NON-PROGRAMMABLE DIGITAL

THERMOSTAT

AUTO COOL

HEAT

Dual Setpoint

Thermoglow Backlight

No Batteries Required

Auto Changeover

Locking Keypad

Heat Pump & Heat Cool

Heating & Cooling Systems

MODEL TSTATBBNB001

PROGRAMMABLE DIGITAL

THERMOSTAT

USERS INFORMATION MANUAL

Meets California Title 24 Residential

Table Of Contents

FRONT PANEL

DISPLAY

BASIC OPERATION

ADVANCED SETUP

ABOUT ADVANCED OPERATION

WARRANTY

Page 1

CAUTION

Follow Installation Instructions before proceeding.

SET THERMOSTAT TO MODE “OFF” PRIOR TO

CHANGING SETTINGS IN SETUP OR RESTORING

FACTORY DEFAULTS.

TSTATBBNB001

Residential Light Commercial Systems Carrier Corporation 04/01

AUTO COOL

HEAT

Front Panel

Page 2

Liquid Crystal Display

with Thermoglow

Up/Down Buttons

Mode Button

Fan Button

Heat or Cool Indicator

Heat = Red, Cool = Green

Page 3

Mode Indicators

Selects the operation mode of the equipment.

HEAT - indicates the heat mode.

COOL - indicates the air conditioning mode.

AUTO - indicates the system will automatically

changeover between heat and cool modes

as the temperature varies.

OFF - indicates the entire system is turned off.

Page 6.

Room Temperature Display

Indicates the current room temperature.

Desired Set Temperature

Indicates desired room temperature(s). Page 7.

Display

Fan On

AUTO

OFF

COOL

HEAT

Fan Operation Indication

Fan On - indicates constant, continuous fan

operation.

When Fan On is not lit - indicates the fan will

only operate when necessary to heat or

to cool. Page 7.

Page 4

The HEAT setting indicates the

temperature the room has to

reach before the furnace will

turn on to heat the room.

The COOL setting indicates the

temperature the room has to

reach before the air conditioner

will turn on to cool the room.

OFF indicates both heating

and air conditioning

systems are turned off.

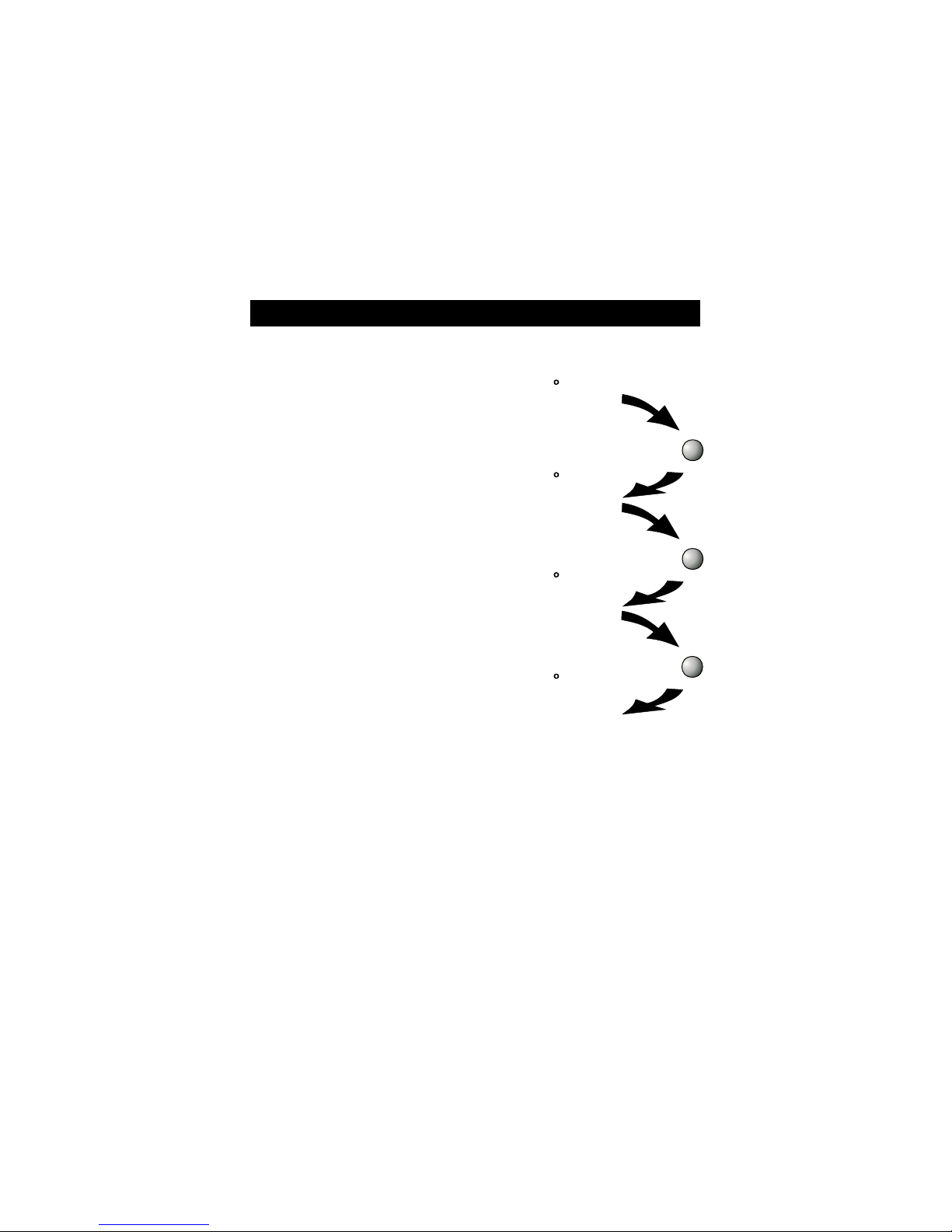

AUTO will automatically select

heat or cool based on room

temperature demand.

Select Mode

Basic Operation

HEAT

COOL

AUTO COOL

HEAT

OFF

MODE

Page 5

buttons.

In any mode, adjust the

desired Set Temperature

with

Pressing the Up or Down buttons in Auto mode will adjust both the heat and cool

set temperatures simultaneously.

Pressing the Up or Down buttons in Heat or Cool modes will adjust only the

heat or cool set temperature.

Select Desired Temperature

Basic Operation

Fan

Operation

Fan On indicates constant fan operation.

This feature is active even if the thermostat

is set to Off.

Press

FA N

AUTO COOL

HEAT

Fan On

AUTO COOL

HEAT

Advanced Setup

Page 6

Press

Continued

Press the Mode button.

While holding the Mode,

press the Fan button

for 5 seconds to enter Setup

screens.

NOTE: Each step # is located at

the top right corner of the

display for easy reference.

FA N

MODE

Select residential Heat Pump,

ON or OFF.

Off

OFF

Select the reversing

valve polarity for

Heat Pump, O or B.

(Step 5 only appears if

heat pump is on in step 4)

Select 2 for dual setpoint

1 for single setpoint.

Advanced Setup

Page 7

Press

Continued

Select Electric Heat On

or Off. (Step 6 only

appears if heat pump is

off in step 4)

Adjust the deadband

from 1 - 6 degrees.

Adjust the minimum

difference between

cooling & heating

setpoints.

(0 - 6 )

MODE

OFF

COOL

HEAT

Select the cycles per

hour limit.

d=cycles per hour

limit defeated.

d1=d + defeat 5 min.

Compressor lockout.

(d, d1, 2 - 6)

Advanced Setup

Page 8

Press the Mode button.

While holding the Mode, press the Fan

button for 2 seconds to leave the Setup

screens. If no buttons are pressed, the

display will leave the setup screens after

30 seconds.

Press

Select the display back-

light always On, or Off

after 8 seconds.

Off

Select thermostat

operation in degrees

Fahrenheit or Centigrade.

MODE

FA N

HEAT

l i

i i

Advanced Setup

Page 9

Step # Description Range Factory Default

2 Display Type Dual (2) or Single (1) 1-2 2

4 Heat Pump Off / On Off

5 Reversing Valve polarity O / B O

6 Electric Heat Off / On Off

7 Deadband or Temperature swing 1 - 6 2

8 Forced minimum difference heat/cool 0 - 6 2

9 Cycles per hour d, d1, 2 - 6 6

Thermoglow backlight Off / On On

Fahrenheit or Centigrade F / C F

Advanced Setup Table
