Operator’s Manual
ELANSTRAIGHT STAIRLIFT
(Spanish / español / espagnol 19)
(French / francés / français 37)
Made in USA
www.bruno.com
©Bruno Independent Living Aids, Inc.®SRE-3050 OPERATOR 01 NOVEMBER 2019
2
Register online at
bruno.com/warranty
PRODUCT REGISTRATION
Made in USA
First Name: Last:
Address: City:
State/Province: Zip/Postal Code:
Phone:( ) - Email Address:
Date of Purchase (mm/dd/yy):
Rate your Bruno dealer:
excellent good average poor
Rate your Bruno product:
excellent good average poor
SAMPLE
PRODUCT REGISTRATION FORM
Bruno is pleased to provide you with this
mobility-enhancing product.
The Product Registration Form is shipped
in a plastic bag with this manual. It is very
important that you ll out and return this form
at your earliest convenience so that we may
complete the warranty registration process for
your unit.
The serial number is found on labels axed
to the manual, as well as on the unit itself.
Serial and model numbers must be provided
when ling a warranty claim, requesting service
or ordering parts. We encourage you to keep
this information readily available at all times.
Please Note:
The warranty for the SRE-3050 Stairlift
is rendered null and void if the unit is
installed or maintained by anyone other
than an authorized Bruno dealer.
©Bruno Independent Living Aids, Inc.®SRE-3050 OPERATOR 01 NOVEMBER 2019
3
Regulatory Information and Specications ................................4
Safety..........................................................5
Circuit Breaker....................................................6
Seating.........................................................6
Operation ....................................................7-12
Standard Swivel Seat ............................................7
Optional Power Swivel Seat .......................................8
Optional Power Footrest..........................................9

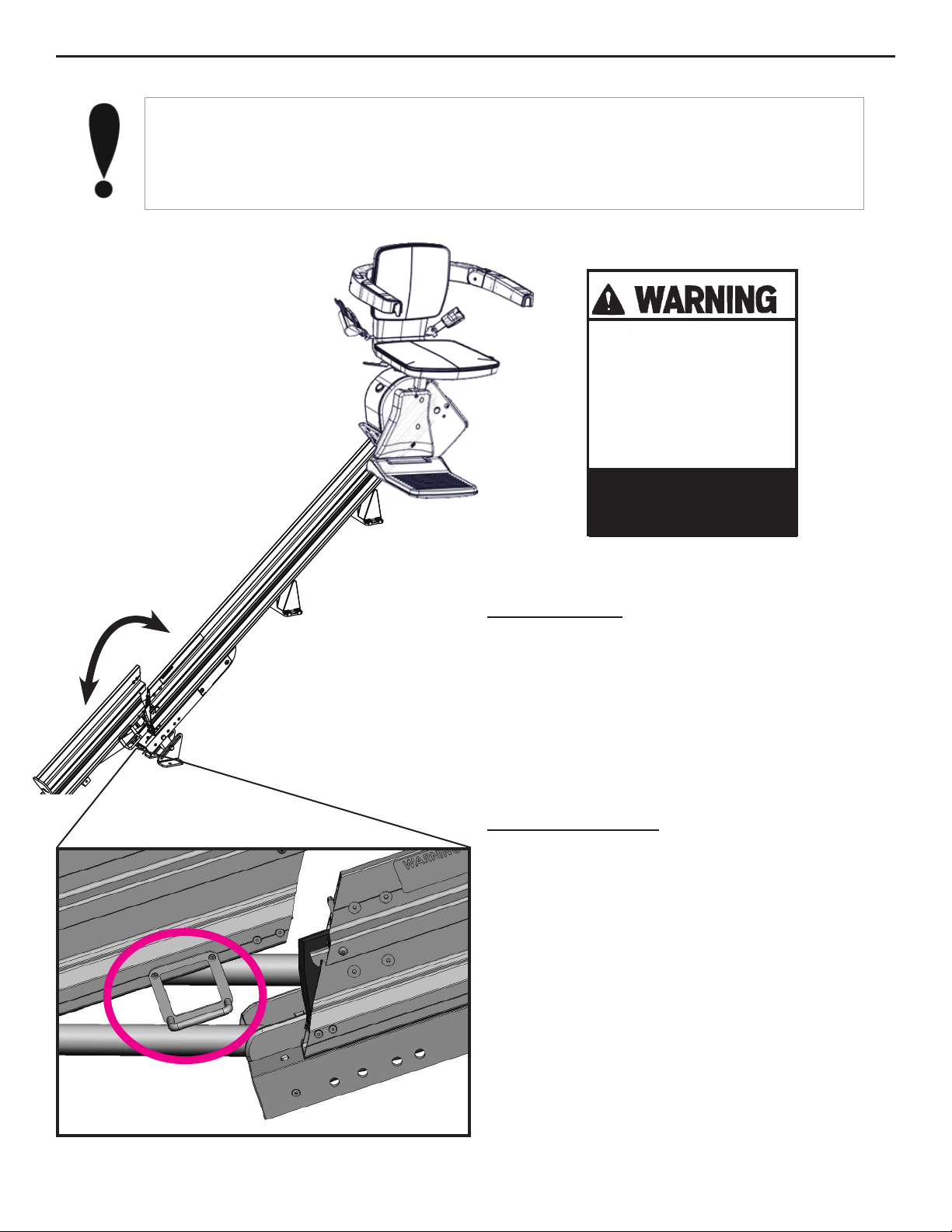

Optional Manual Folding Rail .....................................10
Optional Power Folding Rail ................................... 11-12
Battery Charger ..................................................13
Charging ....................................................13
LEDs.......................................................13
Transmitters ....................................................14
Maintenance ....................................................15
Troubleshooting ..................................................16
Vacation and Long-Term Storage ......................................17
Warranty.......................................................18
TABLE OF CONTENTS
©Bruno Independent Living Aids, Inc.®SRE-3050 OPERATOR 01 NOVEMBER 2019
4
REGULATORY INFORMATION and SPECIFICATIONS
This lift is intended to be installed in accordance with the current edition of:
• EN 81-40:2008 Safety rules for the construction and installation of lifts - Special lifts for the
transport of persons and goods - Part 40: Stairlifts and inclined lifting platforms intended for per-
sons with impaired mobility
• ASME A18.1:2017 Safety Standard for Platform Lifts and Stairway Chairlifts
• CAN/CSA-B613-00 (R2012) - Private Residence Lifts for Persons With Physical
Disabilities
• ASME A17.5/CSA B44.1 - 2019 Elevator and Escalator Electrical Equipment
• NFPA 70: National Electrical Code®
• CSA C22.1 Canadian Electrical Code
Veriy applicable local codes with the appropriate regulatory authorities.
SPECIFICATIONS
Weight Capacity: 300 lbs. (136 kg)
Control: constant pressure (armrest and two remotes)
Maximum Incline: 45 degrees, specials to 52 degrees
Seat Swivel: 0, 67 and 90 degrees at top landing only
Battery Charger: 120VAC, 60 Hz, 0.35A input; 24VDC, 1A output, continuous monitoring
The SRE-3050 Elan is NOT recommended for these type of users:
•. Those who use a scoot-pivot transfer from a wheelchair without weight bearing through their legs, whose full body
weight is placed on a single stairlift armrest.
•. Those with leg weakness, during stand to sit transfer, whose knees buckle with uncontrolled lowering
to the stairlift seat.
For the above type of users, the SRE-2010 Elite IS recommended.

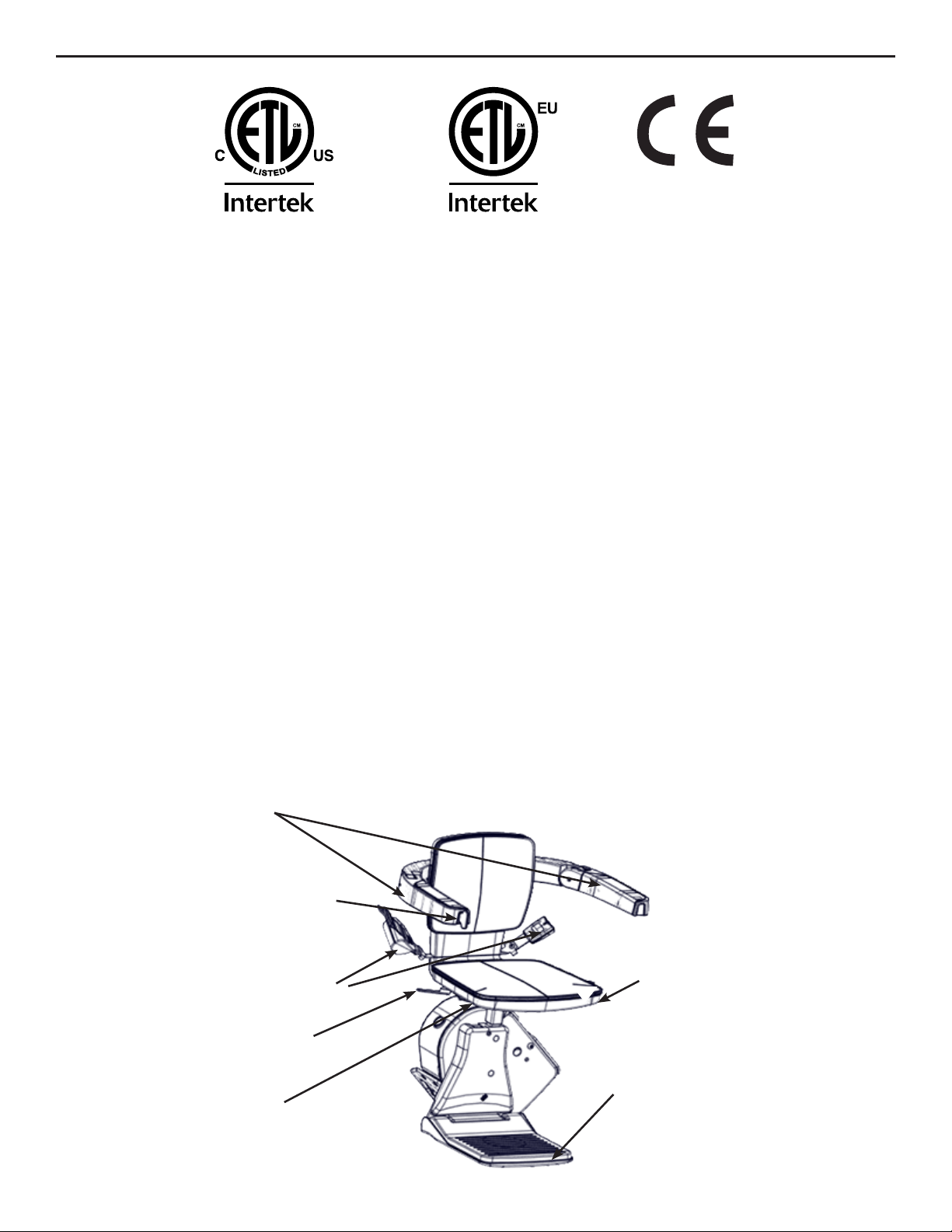

COMPONENTS OF THE SRE-3050
4004689 4004689
Folding, Swivel Seat
(in riding position)
Option: Power Swivel Seat
Arm Rests
(fold up and down)
Folding Footrest
(with obstruction sensors)
Option: Power Footrest
Seat Swivel
Release
UP/DOWN
Paddle Control
Lap Belt
Circuit Breaker
with On/O Switch
©Bruno Independent Living Aids, Inc.®SRE-3050 OPERATOR 01 NOVEMBER 2019
5
SAFETY
FOR YOUR SAFETY
• Read and understand the operating instructions, and all safety precautions prior to
using the SRE-3050.
• Be sure stairs are clear of objects before operating the stairlift.
• Always be aware of the surface onto which you are stepping as you get on and o the
stairlift.
• Avoid carrying items with you on the stairlift which could hinder movement of the
stairlift up and down the stairs.
• Do not wear LOOSE clothing that could interfere with stairlift movement.
• Fasten your lap belt before operating the stairlift.
• Make sure the seat is locked in the correct riding position.
• Be sure that the seat swivel path is clear before swiveling in or out of the ride position,
and before repositioning the seat.
• Be certain the seat swivel is locked in place before attempting to get on or o the
stairlift.
• Make certain that there are no obstacles that would prevent complete raising/lowering
of the optional power footrest (if unit is so equipped).
• NON-AMBULATORY USERS: Bruno recommends carrying a cellular or cordless
telephone or an emergency communication device when riding the stairlift while alone
in the house.
Each stairlift is designed to travel down the stairway at a slightly slower speed than is
the case when travelling UP.
The footrest is equipped with obstruction sensors which stop the carriage if an obstacle
is encountered on the stairs.
If this should occur, press the opposite side of the UP/DOWN paddle control (on the armrest)
to run the carriage in the opposite direction. Clear the obstacle from the stairway or rail
then resume travel in the desired direction.
Your SRE-3050 is battery powered and will continue to operate for some time during a
power outage. The length of operation will depend on the battery condition, the length of
the stairs and the weight of the rider.
Only in the event of a prolonged power outage (more than one hour) will it be necessary
to turn the power o (circuit breaker switch on the carriage) and turn o or unplug the
charger from the wall outlet to conserve battery charge.
The power swivel seat option is equipped with current overload sensing to prevent
further seat swivel if a jam is detected.
The power footrest option is equipped with current overload sensing that will cause
the footrest to return to its last position if a jam is detected.
The power folding rail option is equipped with current overload sensing to prevent
damage if an obstruction or jam is detected.
©Bruno Independent Living Aids, Inc.®SRE-3050 OPERATOR 01 NOVEMBER 2019
6
CIRCUIT BREAKER and SEATING

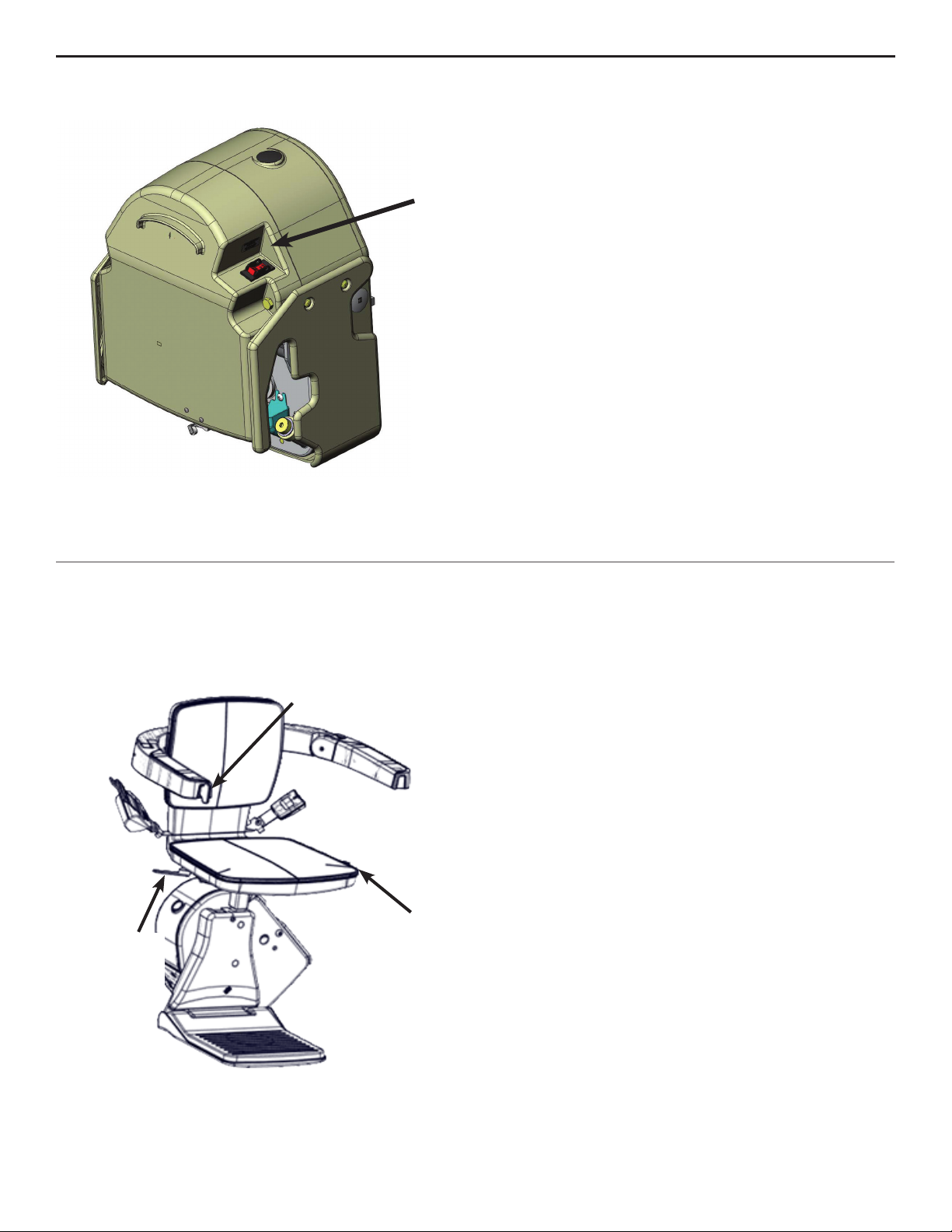

The SRE-3050 includes a circuit breaker
with a built-in ON/OFF switch located on
the back side of the carriage.
The circuit breaker protects the battery,
controller and motor circuits in the stairlift
carriage.
It is unlikely that this circuit breaker will trip
during normal use. However, if the stairlift
becomes inoperative, check the circuit
breaker as a rst troubleshooting step. Reset
it, if necessary.
Possible causes of circuit breaker tripping:
• foreign object jamming the rail or gear
rack;
• exceeding the rated weight capacity of
the stairlift.
The seat assembly on the SRE-3050 is
designed to swivel and to lock at 0, 67 and
90 degrees.
Pushing down on either side of the swivel
lever allows you to swivel the seat to a
convenient position for transferring into or
out of the seat.
Once you release the swivel lever, the seat
will lock at the next available position.
To lower the seat assembly from a folded
position to the riding position, simply push
down on the seat.
SEATING
seat
swivel
lever
seat
swivel
lever
UP/DOWN
paddle control
CIRCUIT BREAKER
©Bruno Independent Living Aids, Inc.®SRE-3050 OPERATOR 01 NOVEMBER 2019
7
OPERATION: standard swivel seat
The SRE-3050 includes a “soft-start” feature
which prevents the unit from moving abruptly the
instant the UP/DOWN paddle control is pressed.
Press and hold the paddle control for a moment
to begin the gentle acceleration of the stairlift
to operating speed.
1. Position yourself in the seat.
2. Fasten the lap belt.
3. Depress and hold the seat swivel lever.
4. Rotate the seat so that you are at right
angles to the rail (with your back to
the stairway wall).
5. Release the seat swivel lever to secure
the seat in that position.
A safety switch prevents operation of
the SRE-3050 unless the seat is locked
in position at right angles to the rail
(the “riding” position).
6. Lower both armrests completely.
7. Position both feet securely on the foot-
rest and place your arms on the arm-
rests.
8. Press and hold the paddle control
(located on the front edge of one of
the armrests) to travel UP / DOWN the
rail.
9. Once you have reached the top or bottom
landing, release the paddle control.
10. Depress and hold the seat swivel lever as
you rotate to the position for transferring
from the seat.
NOTE: The seat will only swivel at the
top landing.
11. Release the seat swivel lever and allow
the seat to lock in this position.
12. Unbuckle the lap belt and carefully exit
the seat.
Depressing and holding the paddle
control will cause the carriage to move
until the carriage stops automatically
at the upper or lower end of the stair
rail, or until the switch is released.
Two (2) remotes enable you to move
the carriage to or from either end of
the stair rail.
Remotes are designed to
call / send an empty seat only!
The remotes are NOT designed to move
a seat with a person on board.
STANDARD SWIVEL SEAT
©Bruno Independent Living Aids, Inc.®SRE-3050 OPERATOR 01 NOVEMBER 2019
8
OPERATION: power swivel seat (optional)
1. Position yourself in the seat.
2. Fasten the lap belt.
3. Position both feet securely on the footrest
and place your arms on the armrests.
4. Press and hold the paddle control (located
on the front edge of one of the armrests)
to travel UP / DOWN the rail.
5. Once you have reached the top or bottom
landing, release the paddle control.
6. To rotate the seat at the top landing,
press the paddle control again on the
same side.
7. Release the paddle control when you
have fully rotated out.
8. Unbuckle the lap belt and carefully exit
the seat.
NOTES:
• You may use the remotes to return the
rotated power seat back to the ride
position.
• If the unit stops unexpectedly while
traveling, check for obstructions or
excessive loading. You will only be able
to run the unit in the opposite direction
until the overload is cleared.
POWER SWIVEL SEAT (optional)
©Bruno Independent Living Aids, Inc.®SRE-3050 OPERATOR 01 NOVEMBER 2019
9
OPERATION: power footrest (optional)
If your unit is equipped with an optional
power footrest, follow the operating
instructions indicated below.
1. Raise the seat to raise the footrest to its
stored position.
2. Lower the seat to lower the footrest to
the ride position.
NOTES:
• Do not try to manually raise or lower the
footrest. Always raise/lower the footrest
by raising/lowering the seat. Failure to
follow this instruction could damage the
unit.
• If a jam occurs while raising or lowering
the footrest, the footrest will attempt to
return to its last position. This will produce
a sequence error.
To restore normal footrest operation:
▫Clearthejam.
▫Movetheseatupanddownuntilthe
footrest moves again.
▫Ifnormalfootrestoperationisnot
restored, contact your authorized
Bruno dealer.
POWER FOOTREST (optional)
©Bruno Independent Living Aids, Inc.®SRE-3050 OPERATOR 01 NOVEMBER 2019
10
OPERATION: MANUAL folding rail (optional)
To fold rail UP:
1. Using the handle, gently pull up and toward
the top of the rail.
2. Using the handle, gently lower the folding
rail section to the position shown to the
right.
To fold rail DOWN:
1. Using the handle, gently pull up and toward
the bottom of the rail.
2. Using the handle, gently lower the folding
rail section to the ground.
When folding the rail UP, the carriage MUST be either at the mid-park position or
parked at the top position!
Damage to the carriage WILL occur if the carriage is below the mid-park position
when the rail is folded up.
PINCH POINT!
Make sure the areas above and
below the folding rail are clear
before operating the
folding rail.
Keep children and pets at a safe
distance.
Failure to observe this warning
could result in injury or
damage to equipment.
Autres manuels pour ELAN SRE-3050
1
Table des matières
Langues :
Autres manuels Bruno Monte-escalier
Bruno
Bruno SRE-1550 Electra-Ride II Manuel utilisateur
Bruno
Bruno OUTDOOR ELITE CRE-2110E Manuel utilisateur
Bruno
Bruno ELAN SRE-3050G Manuel utilisateur
Bruno
Bruno ELITE SRE-2010 Manuel utilisateur
Bruno
Bruno SRE-3000 Elan Instructions d'utilisation et d'installation
Bruno
Bruno ELITE Manuel utilisateur
Bruno
Bruno ELECTRA-RIDE II Manuel utilisateur
Bruno
Bruno SRE-3000 Elan Manuel utilisateur
Bruno
Bruno OUTDOOR ELITE SRE-2010E Manuel utilisateur
Bruno
Bruno ELITE SRE-2010 Manuel utilisateur
