Brother PED-BASIC Manuel utilisateur

Version 1.0

Instruction Manual

Manuel d’instructions

Bedienungsanleitung

Gebruiksaanwijzing

Manual de instrucciones

Manuale di istruzioni

Federal Communications Commissions (FCC) Declaration of Conformity

(For USA Only)

Responsible Party : Brother International Corporation

100 Somerset Corporate Boulevard

Bridgewater, NJ 08807-0911 USA

declares that the product

Product Name: Brother USB Writer

Model Number: PED-Basic

complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device

may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communica-

tions. However, there is no guarantee that interference will not occur in a particular installation. If this equip-

ment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the fol-

lowing measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Consult the dealer or an experienced radio/TV technician for help.

– Changes or modiﬁcations not expressly approved by the manufacturer or local sales distributor could

void the user’s authority to operate the equipment.

Canadian Department of Communications Compliance Statement

(For Canada Only)

This digital apparatus does not exceed the Class B limits for radio noise emission from digital apparatus as set

out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Department

of Communications

Radio Interference

(Other than USA and Canada)

This machine complies with EN55022 (CISPR Publication 22) /Class B.

IMPORTANT INFORMATION : REGULATIONS.

Congratulations on choosing our product!

Thank you very much for purchasing our product. To obtain the best performance from this unit and to ensure

safe and correct operation, please read this instruction manual carefully, and then keep it in a safe place

together with your warranty.

Please read before using this product

For safe operation

• Avoid dropping a needle, a piece of wire or other metallic objects into the card slot.

• Do not store anything on the unit.

For a longer service life

• When storing the unit, avoid direct sunlight and high humidity locations. Do not store the unit close to a

heater, iron or other hot objects.

• Do not spill water or other liquids on the unit or cards.

• Do not drop or hit the unit or cards.

For repairs or adjustments

• In the event malfunction occurs or adjustment is required, please consult your nearest service center.

Notice

The purpose of instruction manual is not to explain how to use your computer and it’s Windows based program.

Please refer to the Windows manuals for additional information on installation of programs. It may also be help-

ful if you visit the web site for www. microsoft. com for driver updates.

Caution

This software included with this product is protected by copyright laws. This software can be used or copied

only in accordance with the copyright laws.

“For additional product information and updates, visit our web

site at : www.brother.com”

“SAVE THESE INSTRUCTIONS”

“This product is intended for household use.”

Windows is a registered trademark of Microsoft Corporation.

IBM is a registered trademark of International Business Machine Corporation.

Pentium is a registered trademark of Intel Corporation.

Before UseContents Installing the Software Getting Started Menu Bar Commands

Before Use

■

Product description...................................................................................................... 1

■

Package includes ......................................................................................................... 1

■

Optional supplies......................................................................................................... 1

■

Principal parts.............................................................................................................. 1

Installing the Software

■

System requirements .................................................................................................... 2

■

Installation ................................................................................................................... 2

■

Online registration ....................................................................................................... 5

■

Uninstalling ................................................................................................................. 5

■

Technical support ........................................................................................................ 5

Getting Started

■

Operation screen ......................................................................................................... 6

■

Operating procedure.................................................................................................... 8

■

Selecting patterns......................................................................................................... 9

■

Other operations.......................................................................................................... 9

Menu Bar Commands

■

File ............................................................................................................................ 10

Print................................................................................................................................................. 10

Print Setup ....................................................................................................................................... 10

Print Preview ................................................................................................................................... 11

Exit .................................................................................................................................................. 12

■

Option ....................................................................................................................... 12

Select System Unit ........................................................................................................................... 12

■

Help .......................................................................................................................... 12

Contents .......................................................................................................................................... 12

Using ............................................................................................................................................... 13

Online Registration .......................................................................................................................... 13

About PED-Basic.............................................................................................................................. 13

Contents

Before UseContents Installing the Software Getting Started Menu Bar Commands

● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●

●

Product description

This system allows you to perform simple editing operations of embroidery data (.pes ﬁles) created with

our embroidery design software, then write them to original cards. PES ﬁles can also be purchased or

obtained from the Internet.

● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●

●

Package includes

Check that the following items are included. If anything is missing or damaged, contact your service repre-

sentative.

● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●

●

Optional supplies

● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●

●

Principal parts

This product cannot be used to create embroidery data.

The only original cards that can be used with this

USB card writer box are those like the one enclosed

or optional original cards of the same type.

Since power is supplied to the USB card writer box through the USB connection with the computer,

there is no power supply cable or power switch.

Before Use

CD-ROM Original card Instruction manual

USB card writer box

Original card

USB connector

Connect to the computer.

LED

cator

This indicator lights up when the unit is turned on, and

ﬂashes when the USB card writer box is communicating

with the computer.

Never remove an original card or

unplug the USB cable while this indi-

cator is ﬂashing.

Card slot

Insert an original card here.

Before UseContents Installing the Software Getting Started Menu Bar Commands

● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●

●

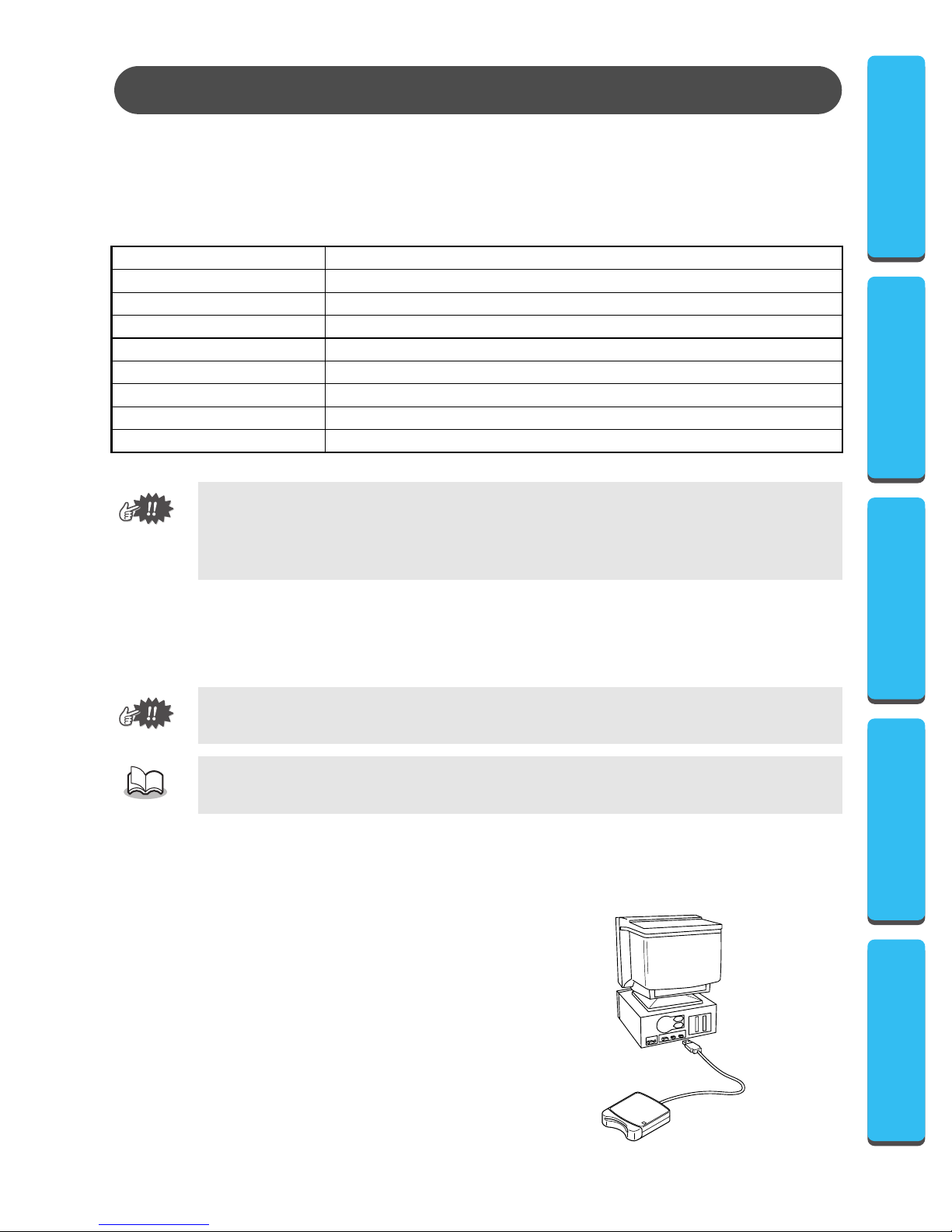

System requirements

Before installing the software in your computer, make sure that the computer meets the following require-

ments.

● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●

●

Installation

This section describes how to install the driver and application software.

Turn on the computer and start Windows.

Quit all other applications.

Plug the USB connector into the USB

port on the computer.

Make sure that the connector is fully

inserted.

Computer

IBM PC or compatible (DOS/V) computer originally equipped with a USB port

Operating system

Windows 98, ME, XP or 2000

Processor

Pentium 133 MHz or higher

Memory

Minimum 32 MB (64 MB or more is recommended)

Hard disk free space

Minimum 10 MB

Monitor

SVGA (800

600), 16 bit color or higher

Port

USB Ver. 1.1

Printer

Printer supported by your system (for printing pattern information)

CD-ROM drive

Required for installation

•

Power is supplied to this USB card writer box through the USB connection. Connect the USB card

writer box to a USB connector of the computer or to a self-powered USB hub that can supply

enough power to the card writer box. If the card writer box is not connected in this way, it may

not operate correctly.

•

This product may not operate correctly with some computers and USB expansion cards.

Be sure to perform the installation according to the following instructions. If the installation is inter-

rupted or not performed according to the instructions, the software will not be installed correctly.

The following installation procedure includes descriptions and dialog boxes for Windows 98. The

procedure and dialog boxes for other operating systems may be slightly different.

Installing the Software

Before UseContents Installing the Software Getting Started Menu Bar Commands

After a short while, the first Add New

Hardware Wizard dialog box appears.

Click [Next].

Make sure that “Search for the best

driver for your device.

(Recommended)” is selected, and then

click [Next].

Insert the enclosed CD-ROM into the

computer’s CD-ROM drive.

Select “CD-ROM drive”, and then

after 5 to 10 seconds, click [Next].

When UsbWriter appears, click [Next].

When the dialog box shown at the

right appears, click [Finish].

This completes the installation of the driver

software.

When using XP, select “Install from a list

or speciﬁc location (Advanced)” on the

ﬁrst Wizard screen and click [Next].

Depending on the operating system, the

dialog box shown in step 9 may also

appear; however, the operation

described in step 8 should be performed

before continuing to step 9.

Depending on the operating system, the

message “No digital signature.” may

appear; however, the installation can be

continued.

A message may appear, indicating that

the computer should be restarted; how-

ever, it is not necessary to restart yet, so

click [Cancel].

Before UseContents Installing the Software Getting Started Menu Bar Commands

The Choose Setup Language dialog

box appears. Select the desired

language, and then click [OK].

After a short while, the application

installer automatically starts up.

If the installer does not automatically start

up:

1) Click the [Start] button.

2) Click [Run].

The Run dialog box appears.

3) Type in the full path to the installer, and then click [OK] to start up the installer.

For example: D:\Setup (where “D:” is the name of the CD-ROM drive)

When the InstallShield Wizard appears,

click [Next] to continue with the

installation.

Click [Next] to install the application

into the default folder.

To install the application into another folder:

1) Click [Browse]. Select the drive and folder (if

necessary, type in the name of the new

folder).

2) When the desired folder is selected, click

[OK].

3) The “Choose Destination Location” shows

the selected folder. Click [Next] to install the

application into that folder.

◆

Click [Back] to return to the previous step.

◆

Click [Cancel] to exit.

When the installation is completed,

the dialog box shown at the right

appears.

This completes the entire setup operation.

With Windows 98 and ME, the computer

must be restarted. Be sure to click

[Restart] to complete the setup.

With other operating systems, it is not

necessary to restart the computer. Click

[Finish] to complete the setup.

Before UseContents Installing the Software Getting Started Menu Bar Commands

● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●

●

Online registration

If you wish to be contacted about upgrades and provided with important information such as, future prod-

uct developments and improvements, you can register your product online by following a simple registra-

tion procedure.

Click Online Registration on the Help menu to start up the installed Web browser and open the online

registration page on our Web site.

In addition, while registering, trial embroidery data can be downloaded at no cost from the online registra-

tion page of our Web site.

For details on downloading, refer to our Web site.

● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●

●

Uninstalling

Turn on the computer and start Windows.

Click the Start button in the task bar, select [Setting], and then click [Control Panel].

In the Control Panel window, double-click “Add/Remove Programs”.

In the Add/Remove Programs Properties dialog box, select program, and then click

[Add/Remove].

● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●

●

Technical support

Please contact Technical Support if you have a problem.

Please check the company web site to ﬁnd the Technical Support address for your area.

Online registration may not be available in some areas.

Have the following information ready before contacting Technical Support.

•The make and model of your PC you are using as well as the Windows version. (Please check the

system requirements for this product once again. See page 2.)

•Information on any error messages that appear.

Before UseContents Installing the Software Getting Started Menu Bar Commands

● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●

Operation screen

NO.

Name/Button Function

1Title bar This allows you to adjust the size of the window or quit the application.

2Menu bar This contains commands for the various functions that you can perform. (See page 10,

“Menu Bar Commands”)

3Hoop size

selector

This is used to select the size of the embroidery hoop that can be used with your

embroidery machine. (See page 8, “Select the embroidery hoop size.”)

4Browse button

()

Select the folder where the pattern ﬁle (.pes) is saved. (See page 8, “Select the folder.”)

5Available

patterns list Images of the pattern ﬁles (.pes) saved in the folder selected after clicking (4) are

displayed here. The name of the ﬁle appears below the image.

6Size display This displays the size of the pattern selected in the “Available patterns list” (5).

Getting Started

6 7 9

C D E F

Do not select a hoop size larger than the embroidery hoop that can be

used with your embroidery machine. The created card will not work

correctly with the embroidery machine.

If you change the hoop size while selecting patterns, remove the pat-

terns that have already been selected.

For details on .pes ﬁles, refer to “Product description” on page 1.

•

Patterns that are either too large or have too many stitches

for the embroidery hoop size, selected with the “Hoop

size selector” (3), are crossed out with a red .

•

Patterns that are larger than the speciﬁed embroidery hoop

size are marked with a yellow . The program will automat-

ically reduce the design to ﬁt within the hoop size speciﬁed. It

may be possible to reduce the design more by using the “Pat-

tern size slider” (7), but, 90% is the lowest it can be reduced.

•Patterns created for the optional extra-large embroidery

hoop are marked with the symbol.

•This is available only if one pattern in the Available patterns list (5)

is selected.

•If the pattern is sized, the new pattern size is displayed here.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Brother Logiciel

Brother

Brother RuggedJet RJ-4030 Instructions de montage

Brother

Brother BR-Raceipts Manuel utilisateur

Brother

Brother MacBroidery„ Embroidery Lettering Software for... Manuel utilisateur

Brother

Brother PEDESIGNNEXT Manuel de la liste des pièces

Brother

Brother MacBroidery„ Embroidery Lettering Software for... Manuel utilisateur

Brother

Brother PEDESIGN PLUS Manuel utilisateur

Brother

Brother DCP-375CW Manuel utilisateur

Brother

Brother CP-1800 Manuel utilisateur

Brother

Brother MFC-8460N Manuel utilisateur

Brother

Brother PE-Design Next Manuel utilisateur

Brother

Brother Print/Scan Manuel utilisateur

Brother

Brother BES Embroidery Software 2 Manuel utilisateur

Brother

Brother Pacesetter Embroidery Lettering Manuel utilisateur

Brother

Brother DCP-8110DN Manuel utilisateur

Brother

Brother DCP-8110DN Manuel utilisateur

Brother

Brother Print/Scan Manuel utilisateur

Brother

Brother Fax Manuel utilisateur

Brother

Brother SV-100B Manuel utilisateur

Brother

Brother PEDESIGN PLUS Manuel utilisateur

Brother

Brother PEDESIGN PLUS Guide de configuration

Brother

Brother BT-1000 Manuel utilisateur

Brother

Brother Quattro 2 6700D Manuel utilisateur

Brother

Brother Pacesetter BES Lettering Manuel utilisateur

Brother

Brother IntelliFax-2840 Manuel utilisateur

Manuels Logiciel populaires d'autres marques

COMPRO

COMPRO COMPROFM Manuel utilisateur

Muratec

Muratec OFFICEBRIDGE ONLINE Manuel utilisateur

Oracle

Oracle Contact Center Anywhere 8.1 Manuel utilisateur

Adobe

Adobe 65007312 - Photoshop Lightroom Manuel

Avaya

Avaya NULL One-X for RIM Blackberry Manuel utilisateur

HP ProLiant BL420c Manuel utilisateur

PS Audio

PS Audio PowerPlay Manuel du propriétaire

Brady

Brady LOCKOUT PRO 3.0 Manuel de service

Avaya

Avaya Interaction Center Manuel utilisateur

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manuel

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manuel utilisateur

Oracle

Oracle Application 9i Manuel utilisateur

Acer

Acer RDM Manuel utilisateur

Canon

Canon Vixia HF21 Manuel utilisateur

Canon

Canon ZR950 Manuel utilisateur

Samsung

Samsung Auto Backup Manuel utilisateur

Polycom

Polycom Vortex EF2201 Instructions d'installation et d'utilisation

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manuel utilisateur
