Date: 07/30/2010 ID: faq00000026_021

Clear paper jams.

When the paper jam occurs, the following LED indications is shown on the control panel. The Error LED is flashing.

Please follow the steps below to solve the problem:

Open the front cover and leave the machine for at least 10 minutes to cool down.

After you have just used the printer, some internal parts will be extremely hot. Wait at least 10 minutes for the machine to cool

down.

To prevent any degradation to the print quality, DO NOT touch the shaded parts shown in the illustrations.

Slowly take out the drum unit and toner cartridge assembly. The jammed paper may be pulled out with the drum unit and toner cartridge assembly,

or this may release the paper so you can pull it out of the paper tray opening.

Clear paper jams. | Brother https://support.brother.com/g/b/faqend.aspx?c=us&lang=en&prod=hl22...

1 of 6 11/13/2018, 2:16 PM

We recommend that you put the drum unit and toner cartridge assembly on a piece of disposable paper or cloth in case you

accidentally spill or scatter toner.

To prevent damage to the machine caused by static electricity, DO NOT touch the electrodes shown in the illustration.

Close the front cover.

Do not put the drum unit and toner cartridge assembly back in at this point.

Pull the paper tray completely out of the machine.4. Use both hands to slowly pull out the jammed paper.

Open the back cover (face-up output tray).6.

Clear paper jams. | Brother https://support.brother.com/g/b/faqend.aspx?c=us&lang=en&prod=hl22...

2 of 6 11/13/2018, 2:16 PM

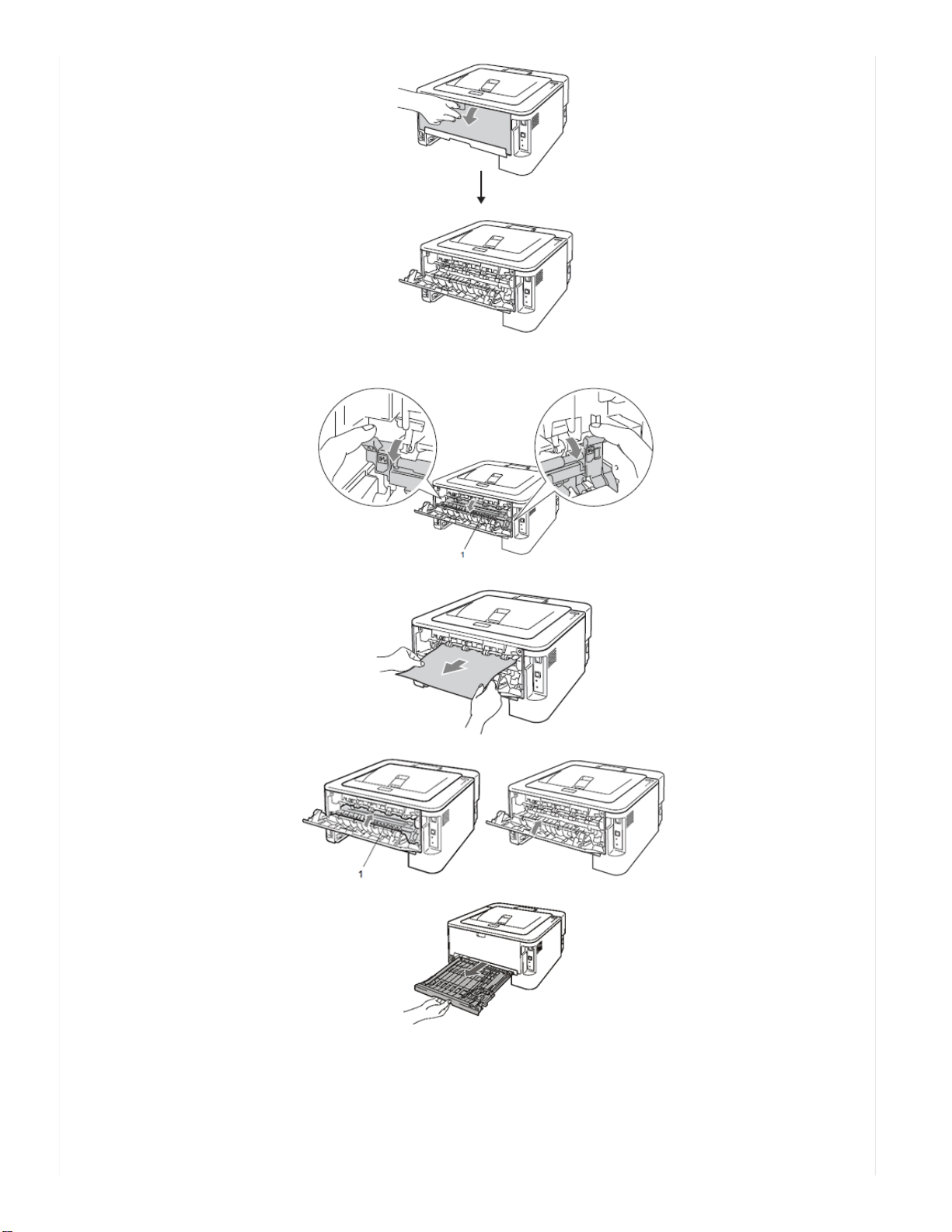

Pull down the tabs at the left and right hand sides to open the fuser cover (1).7.

Using both hands, gently pull the jammed paper out of the fuser unit.8.

Close the fuser cover (1) and the back cover (face-up output tray).9.

Pull the duplex tray completely out of the machine.10.

Pull the jammed paper out of the machine or the duplex tray.11.

Clear paper jams. | Brother https://support.brother.com/g/b/faqend.aspx?c=us&lang=en&prod=hl22...

3 of 6 11/13/2018, 2:16 PM

Make sure that the jammed paper does not remain under the machine from static electricity.12.

Put the duplex tray back in the machine.13. Put the paper tray firmly back in the machine.14. Push down the green lock lever and take the toner cartridge out of the drum unit. Clear the jammed paper if there is any inside the drum unit.

Handle the toner cartridge carefully. If toner scatters on your hands or clothes, wipe or wash it off with cold water at once

To avoid print quality problems, DO NOT touch the shaded parts shown in the illustrations.

15.

Put the toner cartridge back into the drum unit until you hear it lock into place. If you put the cartridge in properly, the green lock lever will lift

automatically.

16.

Open the front cover. Put the drum unit and toner cartridge assembly back into the machine.17.

Clear paper jams. | Brother https://support.brother.com/g/b/faqend.aspx?c=us&lang=en&prod=hl22...

4 of 6 11/13/2018, 2:16 PM

Please confirm that you have installed both a toner cartridge and a drum unit in the machine. If you have not installed a drum unit or

have installed the drum unit improperly, then this may cause a paper jam in your Brother machine.

Close the front cover.18. Make sure that the Error LED is off and then, the Ready LED lights. If the machine does not start printing automatically, press the Go button.19.

Please confirm that you have installed both a toner cartridge and a drum unit in the machine. If you have not installed a drum unit or have

installed the drum unit improperly, then this may cause a paper jam in your Brother machine.

Related FAQs

JAM TRAY 1

JAM INSIDE

JAM REAR

JAM DUPLEX

If your question was not answered, have you checked other FAQs?

Go to the Top page in the FAQs & Troubleshooting section

See other FAQs in this category

Have you checked the manuals?

Go to the Manuals section

If you need further assistance, please contact Brother customer service:

Go to the Contact Us section

Related Models

HL-2220, HL-2230, HL-2240, HL-2240D, HL-2270DW, HL-2275DW

Content Feedback

To help us improve our support, please provide your feedback below.

Step 1: How does the information on this page help you?

Very helpful

Helpful

Not helpful

Step 2: Are there any comments you would like to add?

Clear paper jams. | Brother https://support.brother.com/g/b/faqend.aspx?c=us&lang=en&prod=hl22...

5 of 6 11/13/2018, 2:16 PM

Please note this form is used for feedback only.

Submit

Clea

Clear paper jams. | Brother https://support.brother.com/g/b/faqend.aspx?c=us&lang=en&prod=hl22...

6 of 6 11/13/2018, 2:16 PM
