PARTS REFERENCE LIST
MODEL: LX-180/LX-200/
LX-900/LX-910D
Aug., 2001
NOTES FOR USING THIS PARTS REFERENCE LIST
1. In the case of ordering parts, it needs mentioning the following items:
(1) Code
(2) Q'ty
(3) Description
(4) Symbol (PCB No., Revision , and Parts location mounted on the PCB.)
Note : No orders without Parts Code or Tool No. can be accepted.
[ Example ]
(4) (1) (2) (3)
REF. NO. SYMBOL CODE Q’TY DESCRIPTION REMARKS
Revision No. : marked on the printed circuit board.
B48J300 - 1 01 A
Design change indication
Specification No.
Pattern alteration No.
Circuit board No.
2. Design-changed parts:
When the parts are changed, any one of the following symbols is indicated in the REMARKS column.
CHNG#A : compatible between old and new
CHNG#B : replaceable from old to new
CHNG#D : incompatible
ADD : newly established
3. The original of this list was made based on the information available in Sep, 2000.
4. Parts are subject to change in design without prior notice.
CONTENTS
1 . B-CHASSIS........................................................................... 1
2 . CHASSIS MECHA-1 ............................................................. 1
3 . CHASSIS MECHA -2 ............................................................ 3
4 . CHASSIS MECHA -3 ............................................................ 3
5 . CHASSIS MECHA -4 ............................................................ 5
6 . CHASSIS MECHA -5 ............................................................ 5
7 . CHASSIS MECHA -6 ............................................................ 7
8 . CHASSIS MECHA -7 ............................................................ 7
9 . CHASSIS MECHA -8 ............................................................ 9
10 . CHASSIS MECHA -9 ........................................................... 9
11 . T-CHASSIS ....................................................................... 11
12 . MOTORS ........................................................................... 11
13 . COVERS............................................................................ 13
14 . LABELS.............................................................................. 16
15 . SENSORS.......................................................................... 16
16 . AC ADAPTERS.................................................................. 18
17 . MAIN PCB.......................................................................... 19
18 . SWITCH PCB ....................................................................21
19 . JACK PCB.......................................................................... 21
20 . OPTIONS........................................................................... 23
21 . PRINTED MATTER............................................................ 23
22 . PACKING MATERIALS...................................................... 25
23 . ADJUSTMENT TOOL........................................................ 27
1
MODEL LX-180,200,900,910D 86S-101-034

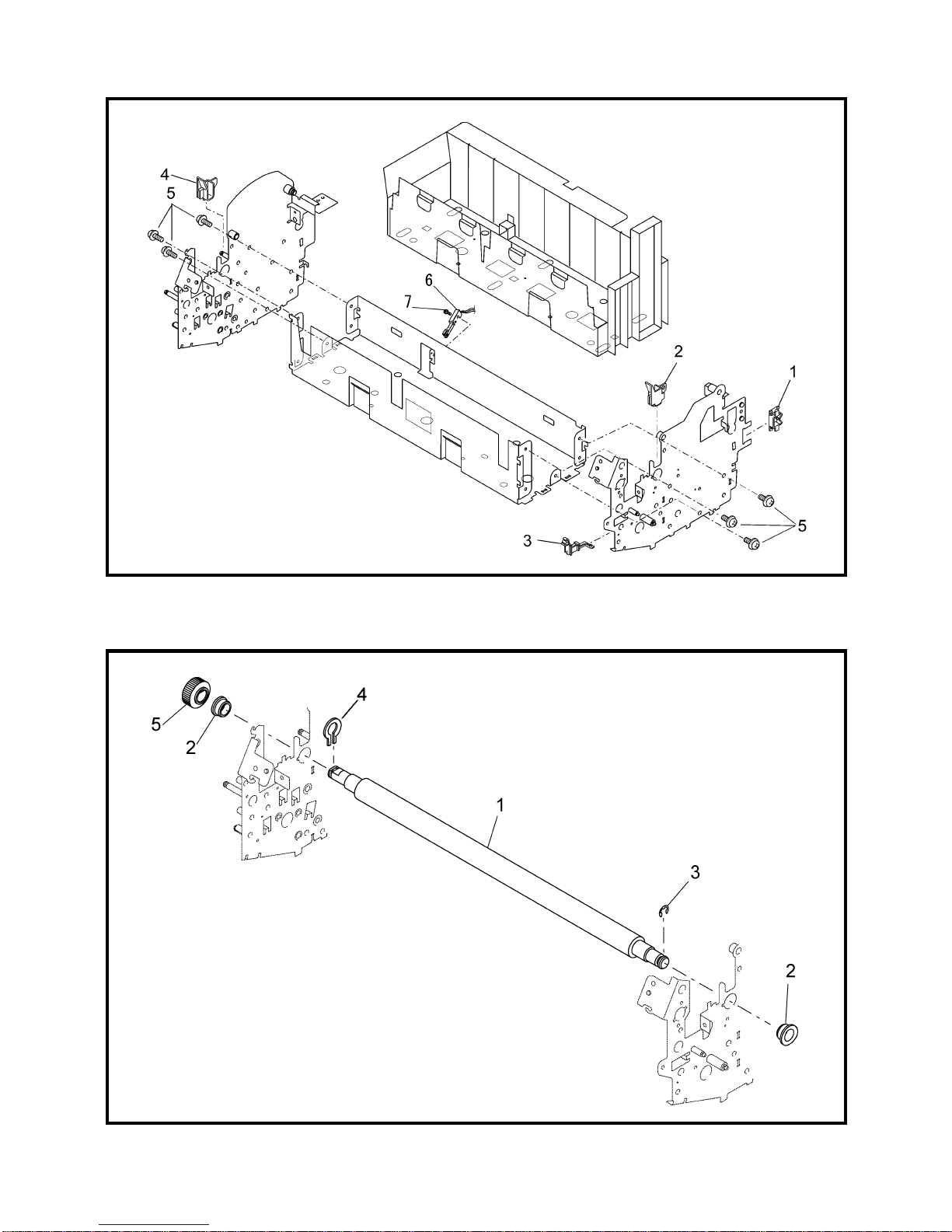

1 . B-CHASSIS
MODEL LX-180,200,900,910D 86S-101-033
2 . CHASSIS MECHA-1
2
1 . B-CHASSIS CL2001006
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1UA9514001 1EDGING SADDLE EDS-1
2UA9325036 1ROLLER GUIDE R
3UA9327000 1Y-SENSOR LEVER
4UA9326036 1ROLLER GUIDE L
5UA9905001 6TAPTITE, CUP M3X5 (SIDE CHASSIS SCREW)
6LC0895001 1LEAF SWITCH C ASSY CHNG#B
7 062260805 1PAN-HEAD (LEAF SW C SCREW)
MODEL LX-180,200,900,910D 86S-101-033
2 . CHASSIS-MECHA-1
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1UA9321001 1DRIVING ROLLER SHAFT
2UA9323000 2BEARING L (DRIVING ROLLER BEARING))
3 048060346 1RETAINING RING, E6 (DRIVING ROLLER E RING)
4 048080142 1RETAINING RING, C8 (DRIVING ROLLER C RING)
5UA9324000 1GEAR 16M1 HOOK
MODEL LX-180,200,900,910D 86S-101-034
3
MODEL LX-180,200,900,910D 86S-101-034
3 . CHASSIS MECHA-2
MODEL LX-180,200,900,910D 86S-101-034
4 . CHASSIS MECHA-3
4
3 . CHASSIS MECHA-2
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1-2 UA9542001 1X-CUTTER UNIT
1 UA9513001 1LEAF SWITCH F ASSY
2 083210615 1TAPTITE, PAN B M2X6 (LEAF SW SCREW)
3 UA9505001 1X-CUTTER HARNESS ASSY
4 UA9905001 2TAPTITE, CUP M3X5 (X-CUTTER SCREW)
5UG3005000 1FERRITE CORE:16X8X10
MODEL LX-180,200,900,910D 86S-101-034
4 . CHASSIS MECHA-3
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1 UA9357001 1PAPER FEED ROLLER ASSY
2 UA9365001 1PAPER FEED SUB ROLLER ASSY
3 UA9359000 2ROD HOLDER
4 UA9360000 2BEARING (PAPER FEED ROLLER BEARING)
5 048040346 1RETAINING RING, E4 (PAPER FEED ROLLER RING)
6 UA9361000 2GEAR 16 HOOK
7 UA9362001 1PAPER FEED SHAFT SPRING
8UA9906001 1PAPER FEED SHAFT SPRING R
9UA9363001 1PAPER SENSOR CRANK
MODEL LX-180,200,900,910D 86S-101-034
5
MODEL LX-180,200,900,910D 86S-101-034

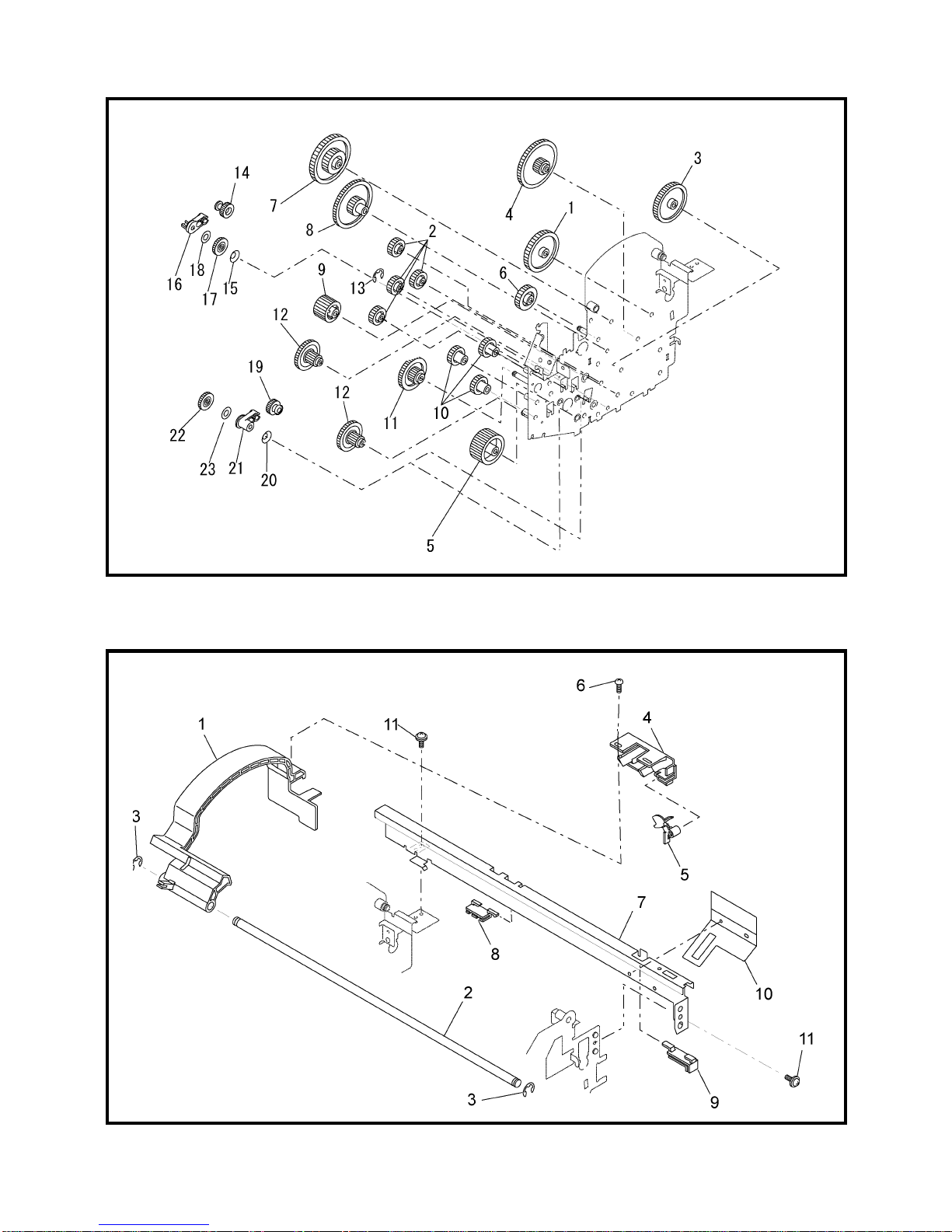

5 . CHASSIS MECHA-4
MODEL LX-180,200,900,910D 86S-101-034
6 . CHASSIS MECHA-5
6
5 . CHASSIS MECHA-4
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1UA9543001 1Y-DIVERSION LEVER ASSY
2UA9375000 2PAPER EJECT ROLLER BEARING
3UA9361000 1GEAR 16 HOOK
4UA9402000 1Y-DRIVING GEAR
5UA9905001 1TAPTITE, CUP M3X5 (PAPER EJECT ROLLER SCREW)
6UA9369000 1PAPER EJECT SHAFT HOLDER R
7UA9370000 1PAPER EJECT SHAFT HOLDER L
8UA9373001 2PAPER EJECT SUB ROLLER SPRING
9UA9399001 1Y-D SHAHT
10 UA9400000 1Y-CUTTER CAM R
11 UA9401000 1Y-CUTTER CAM L
12 UA9546001 1PAPER EJECT ROLLER UNIT
13 UA9547001 1PAPER EJECT SUB ROLLER UNIT
MODEL LX-180,200,900,910D 86S-101-034
6 . CHASSIS MECHA-5 CL2001006
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1UA9403000 1Y-GEAR 40-20
2UA9511001 1Y-EXTENSION SPRING R
3UA9404001 2Y-EXTENSION SPRING L
4UA9381000 1TY-PLANET GEAR
5UA9382001 1TY-SPRING WASHER
6UA9383000 1TY-PLANET GEAR HOLDER
7UA9384000 1TY-IDLE GEAR
8UA9548001 1FELT
9LC0891001 1LEAF SWITCH Y ASSY CHNG#B
10 062260805 1PAN HEAD (LEAF SWITCH Y SCREW)
11 UA9437000 1PLATE SPRING
12 UA9905001 1TAPTITE, CUP M3X5 (PLATE SPRING SCREW)
MODEL LX-180,200,900,910D 86S-101-034
7
MODEL LX-180,200,900,910D 86S-101-034
7 . CHASSIS MECHA-6
MODEL LX-180,200,900,910D 86S-101-034
8 . CHASSIS MECHA-7
