Brother DCP-8110DN Manuel utilisateur

Start Here DCP-8110DN

DCP-8150DN

DCP-8155DN

Quick Setup Guide

USA/CAN Version 0

Thank you for choosing Brother, your support is important to us and we value your business. Your Brother product

is engineered and manufactured to the highest standards to deliver reliable performance, day-in and day-out.

Please read the Product Safety Guide first, then read this Quick Setup Guide for the correct setup and installation

procedure.

To view the Quick Setup Guide in other languages, please visit http://solutions.brother.com/.

In USA:

Please go to the Brother Solutions Center at http://solutions.brother.com/ and click Manuals on your model page

to download the other manuals.

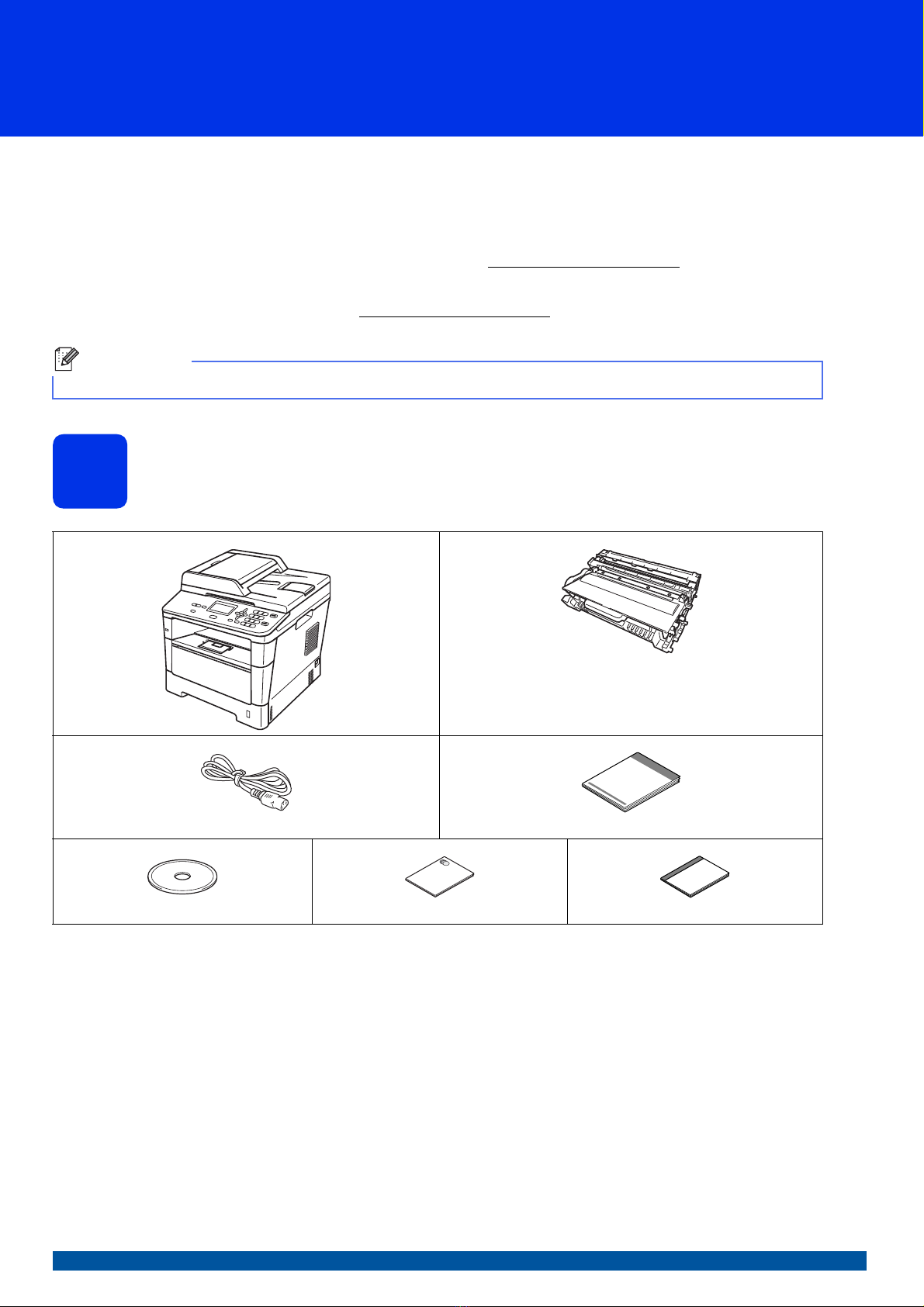

Unpack the machine and check the components

Note

Not all models are available in all countries.

Drum Unit and Toner Cartridge Assembly

(pre-installed)

AC Power Cord Quick Setup Guide

Installer CD-ROM Product Safety Guide Basic User's Guide

WARNING

• Plastic bags are used in the packing of your machine. Plastic bags are not toys. To avoid the danger

of suffocation, keep these bags away from babies and children and dispose of them correctly.

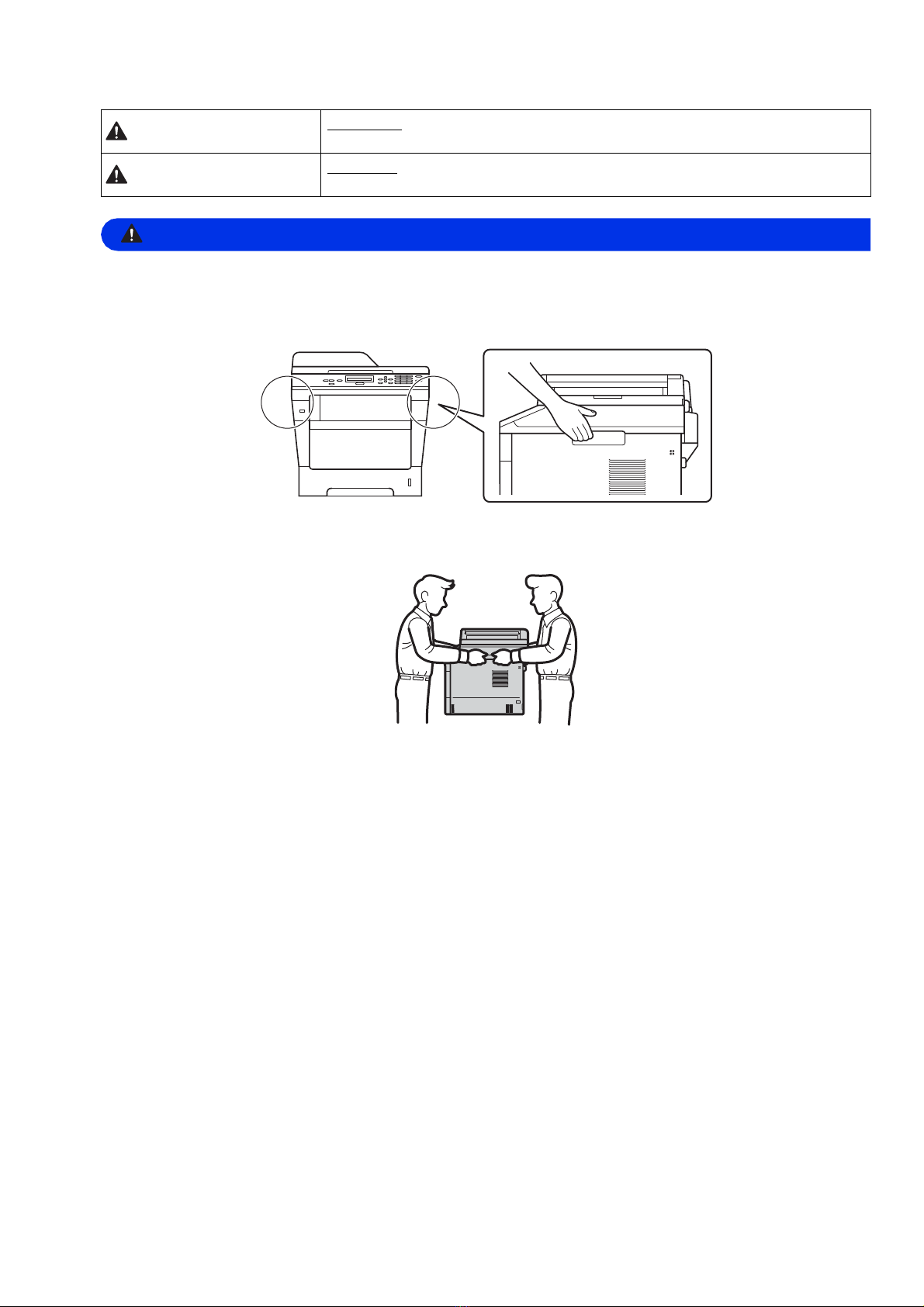

• When moving the machine, grasp the side handholds firmly from the front of the machine. The side

handholds are located under the scanner. DO NOT carry the machine by holding it at the bottom.

• (For DCP-8150DN and DCP-8155DN)

This machine is heavy and weighs more than 39.7 lb. (18.0 kg) including paper. To prevent possible

injuries at least two people should lift the machine by holding it from the front and back.

• (For DCP-8150DN and DCP-8155DN)

If you use a Lower Tray, DO NOT carry the machine with the Lower Tray as you may be injured or cause

damage to the machine because it is not attached to the Lower Tray.

WARNING indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injuries.

CAUTION indicates a potentially hazardous situation which, if not avoided, may

result in minor or moderate injuries.

WARNING

CAUTION

Note

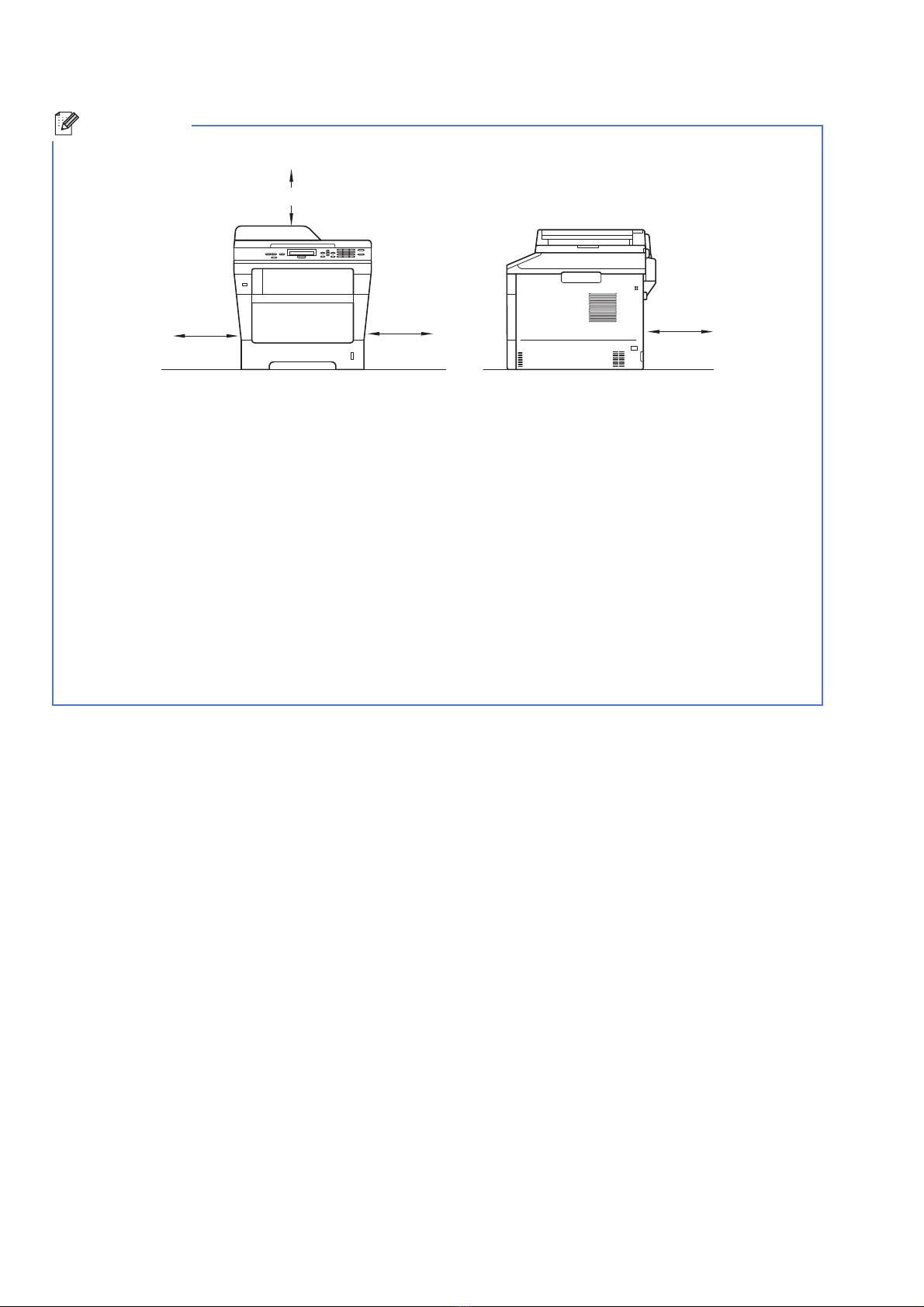

• Keep a minimum gap around the machine as shown in the illustration.

• The components included in the box may differ depending on your country.

• We recommend that you save the original packaging.

• If for any reason you must ship your machine, carefully repack the machine in the original packaging to avoid

any damage during transit. The machine should be adequately insured with the carrier. For how to repack

the machine, see Packing and shipping the machine in the Advanced User's Guide.

• Illustrations in this Quick Setup Guide are based on the DCP-8110DN.

• The interface cable is not a standard accessory. Buy the appropriate interface cable for the connection you

want to use (USB or Network).

USB cable

• It is recommended to use a USB 2.0 cable (Type A/B) that is no longer than 6 feet (2 meters).

• DO NOT connect the interface cable at this time. Connecting the interface cable is done during the MFL-Pro

Suite installation process.

Network cable

Use a straight-through Category 5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast Ethernet

Network.

6.00 in.

(150 mm)

6.00 in.

(150 mm)

6.00 in.

(150 mm)

15.70 in. (400 mm)

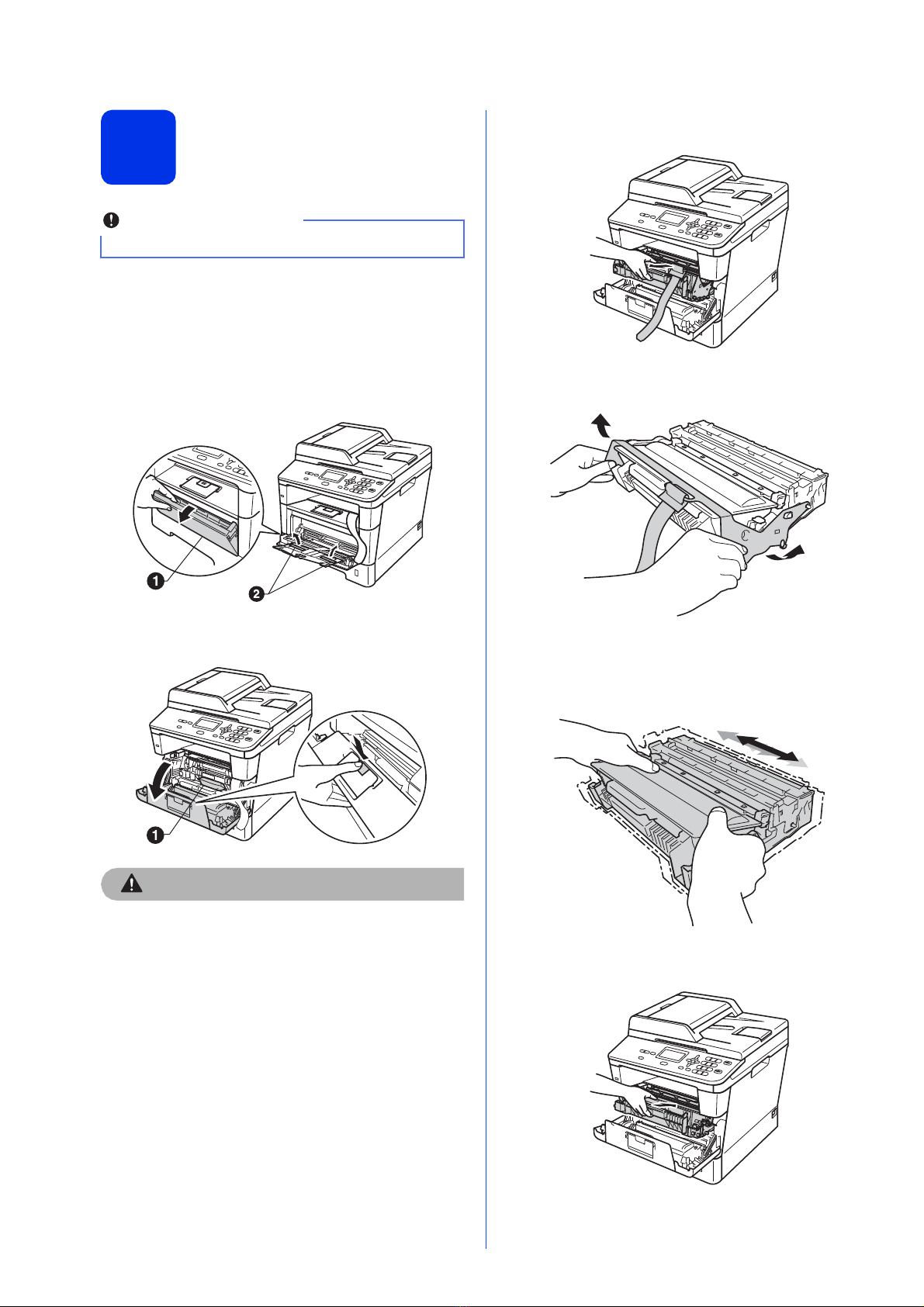

Remove the packing

material from the

machine

aRemove the packing tape from the outside of

the machine and the film covering the scanner

glass.

bOpen the MP tray a, and remove the packing

tape bfrom the MP tray support, then close

the MP tray.

cPress the front cover release button and open

the front cover. Remove the silica gel pack a.

CAUTION

DO NOT eat the silica gel pack. Please throw

away. If ingested, seek medical attention

immediately.

dTake out the drum unit and toner cartridge

assembly.

eRemove the orange protective material from

the drum unit and toner cartridge assembly.

fHold the drum unit and toner cartridge

assembly level with both hands and gently

shake it from side to side several times to

distribute the toner evenly inside the cartridge.

gPut the drum unit and toner cartridge assembly

firmly back in the machine.

hClose the front cover of the machine.

Important

DO NOT connect the AC power cord yet.

Load paper in the paper

tray

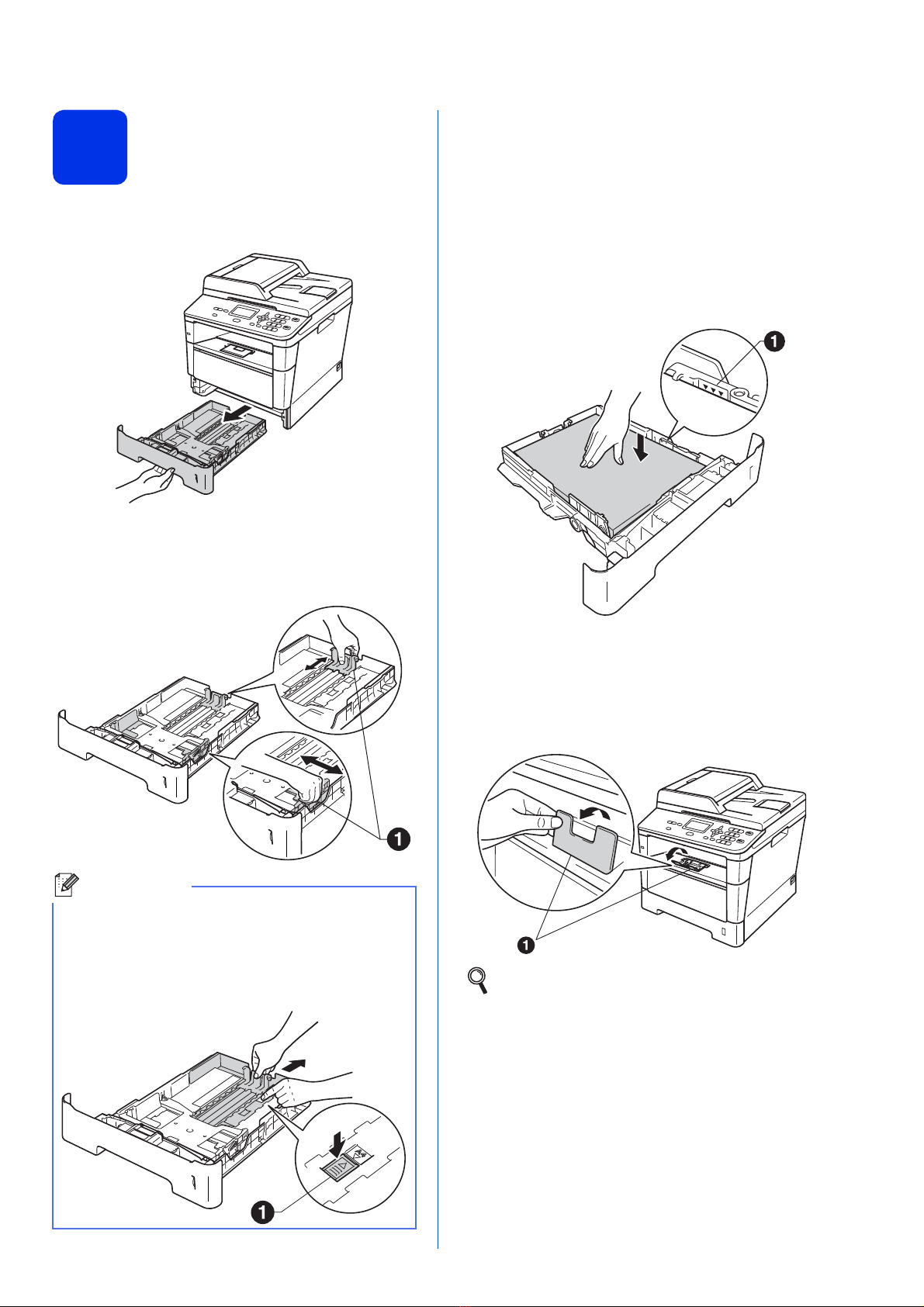

aPull the paper tray completely out of the

machine.

bWhile pressing the green paper-guide release

lever a, slide the paper guides to fit the paper

size you are loading in the tray. Make sure that

the guides are firmly in the slots.

cFan the stack of paper well to avoid paper jams

and misfeeds.

dPut the paper in the tray and make sure:

The paper is below the maximum paper

mark (bbb)a.

Over filling the paper tray will cause paper

jams.

The side to be printed on is face down.

The paper guides touch the sides of the

paper so it will feed properly.

ePut the paper tray firmly back in the machine.

Make sure that it is completely inserted into the

machine.

fLift up the support flap ato prevent paper from

sliding off the face-down output tray.

Note

For Legal or Folio size paper, press the release

button ain the bottom of the paper tray and then

pull out the back of the paper tray.

(Legal or Folio size paper are not available in

some regions.)

For more information about recommended

paper, see Recommended paper and print

media in the Basic User's Guide.

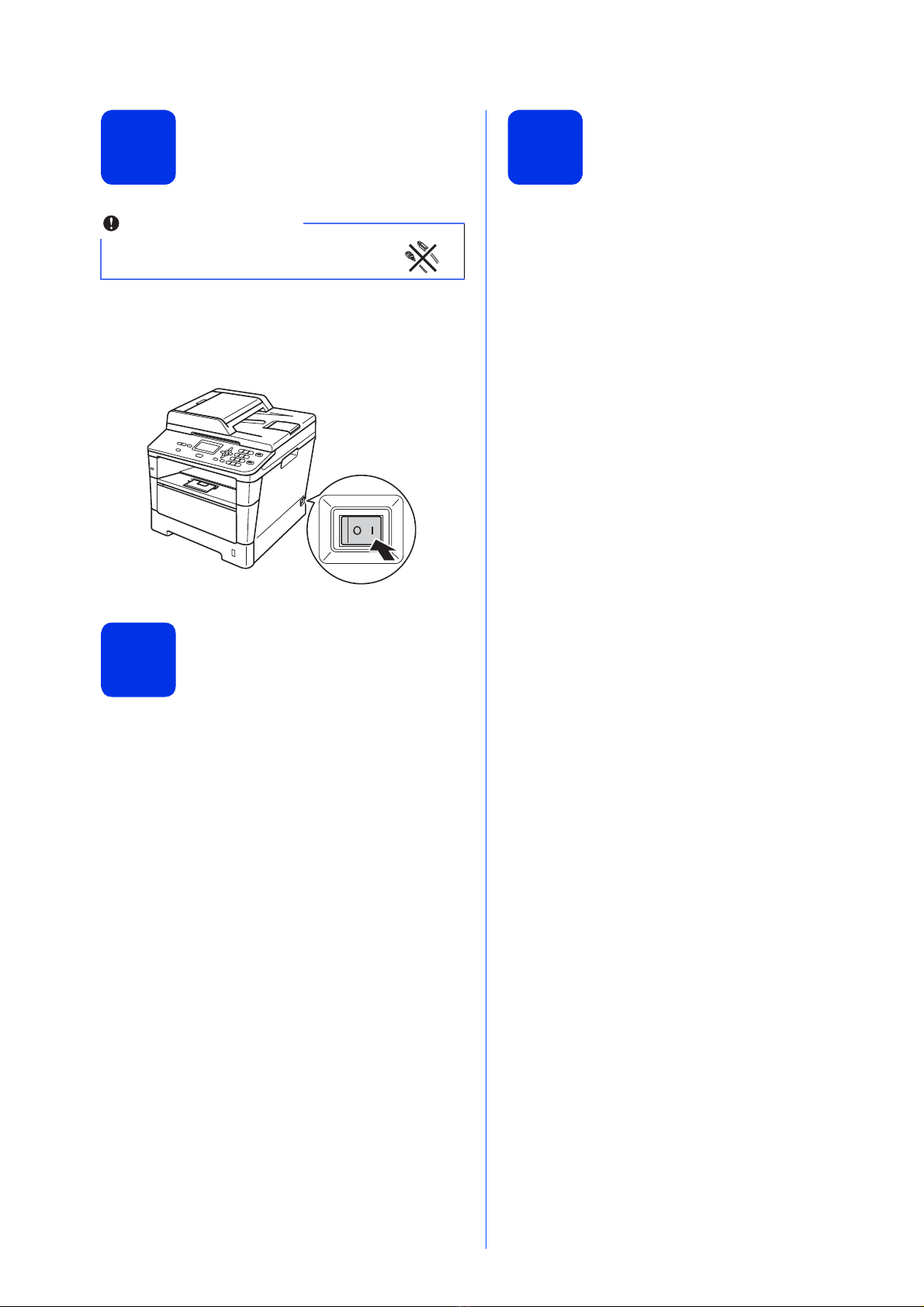

Connect the power cord

aConnect the AC power cord to the machine and

then plug it into an AC power outlet.

bTurn the machine's power switch on.

Choose your language

(if needed)

aPress Menu, 1, 0.

bPress aor bto choose your language.

Press OK.

cPress Stop/Exit.

Set the LCD contrast

(if needed)

If you are having difficulty reading the LCD, try

changing the contrast setting.

aPress Menu, 1, 6.

bPress cto increase the contrast.

—OR—

Press dto decrease the contrast.

Press OK.

cPress Stop/Exit.

Important

DO NOT connect the interface cable

yet.

Set the date and time

aPress Menu, 6, 1, 1.

bEnter the last two digits of the year on the dial

pad, and then press OK.

61.Date&Time

Year:2012

Enter & OK Key

(e.g. Enter 1, 2for 2012.)

cEnter the two digits for the month on the dial

pad, and then press OK.

61.Date&Time

XX/XX/2012

Month:03

Enter & OK Key

(e.g. Enter 0, 3for March.)

dEnter the two digits for the day on the dial pad,

and then press OK.

61.Date&Time

03/XX/2012

Day:25

Enter & OK Key

(e.g. Enter 2, 5for 25th.)

eDo one of the following:

If you want to use the 24-hour clock, press a

or bto choose 24h Clock, and then press

OK. Go to step f.

If you want to use the 12-hour clock, press a

or bto choose 12h Clock, and then press

OK. Go to step g.

61.Date&Time

03/25/2012

a12h Clock

b24h Clock

Select ab or OK

fEnter the time in 24-hour format on the dial

pad, and then press OK. Go to step i.

61.Date&Time

03/25/2012

Time:15:25

Enter & OK Key

(e.g. Enter 1, 5, 2, 5for 15:25.)

gEnter the time in 12-hour format on the dial

pad, and then press OK.

61.Date&Time

03/25/2012

Time:03:25

Enter & OK Key

(e.g. Enter 0, 3, 2, 5for 3:25.)

hPress aor bto choose AM or PM, and then press

OK.

61.Date&Time

03/25/2012 03:25

aAM

bPM

Select ab or OK

(e.g. Choose PM for 3:25 P.M.)

iPress Stop/Exit.

Automatic Daylight

Saving Time

You can set the machine to change automatically for

Daylight Saving Time. It will reset itself forward one

hour in the Spring and backward one hour in the Fall.

aPress Menu, 6, 1, 2.

bPress aor bto choose On (or Off).

Press OK.

cPress Stop/Exit.

Set the Time Zone

You can set the time zone (not summer time but

standard time) on the machine for your location.

For example, the time zone for Eastern Time in the

USA and Canada is UTC-05:00.

aPress Menu, 6, 1, 3.

bPress aor bto choose the time zone.

Press OK.

cPress Stop/Exit.

Windows®

USB

Macintosh

Windows®Macintosh

Wired Network

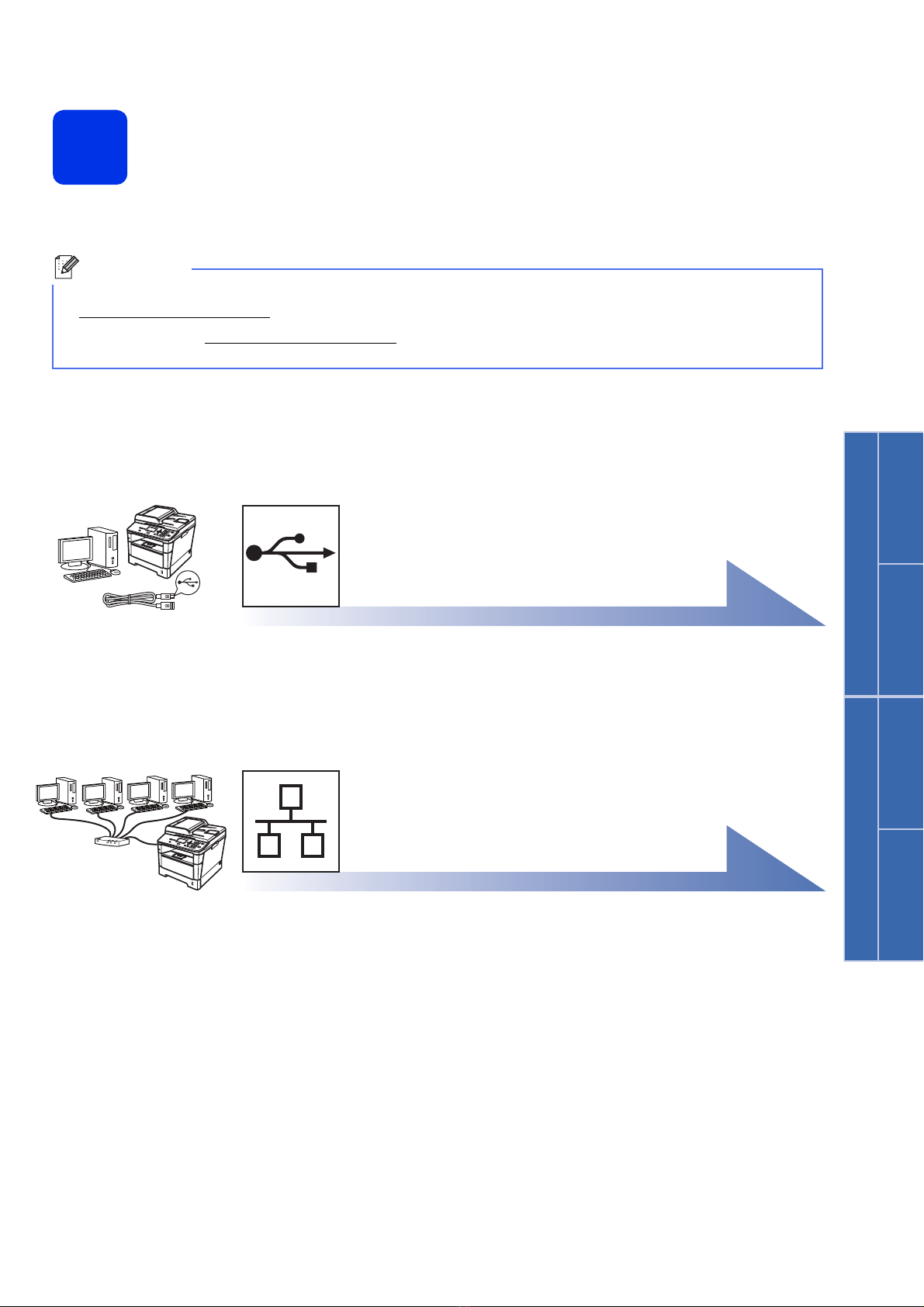

Choose your connection type

These installation instructions are for Windows®XP Home/Windows®XP Professional, Windows®XP

Professional x64 Edition, Windows Vista®, Windows®7, and Mac OS X (versions 10.5.8, 10.6.x and 10.7.x).

Note

• For Windows Server®2003/2003 x64 Edition/2008/2008 R2 and Linux®, visit your model page at

http://solutions.brother.com/.

• You can visit us at http://solutions.brother.com/ where you can get product support, the latest driver updates

and utilities, and answers to frequently asked questions (FAQs) and technical questions.

For USB Interface Users

Windows

, go to page 10

Macintosh, go to page 12

For Wired Network

Windows

, go to page 14

Macintosh, go to page 17

Windows®

USB

For USB Interface Users

(Windows

XP/XP Professional x64 Edition/Windows Vista

Windows

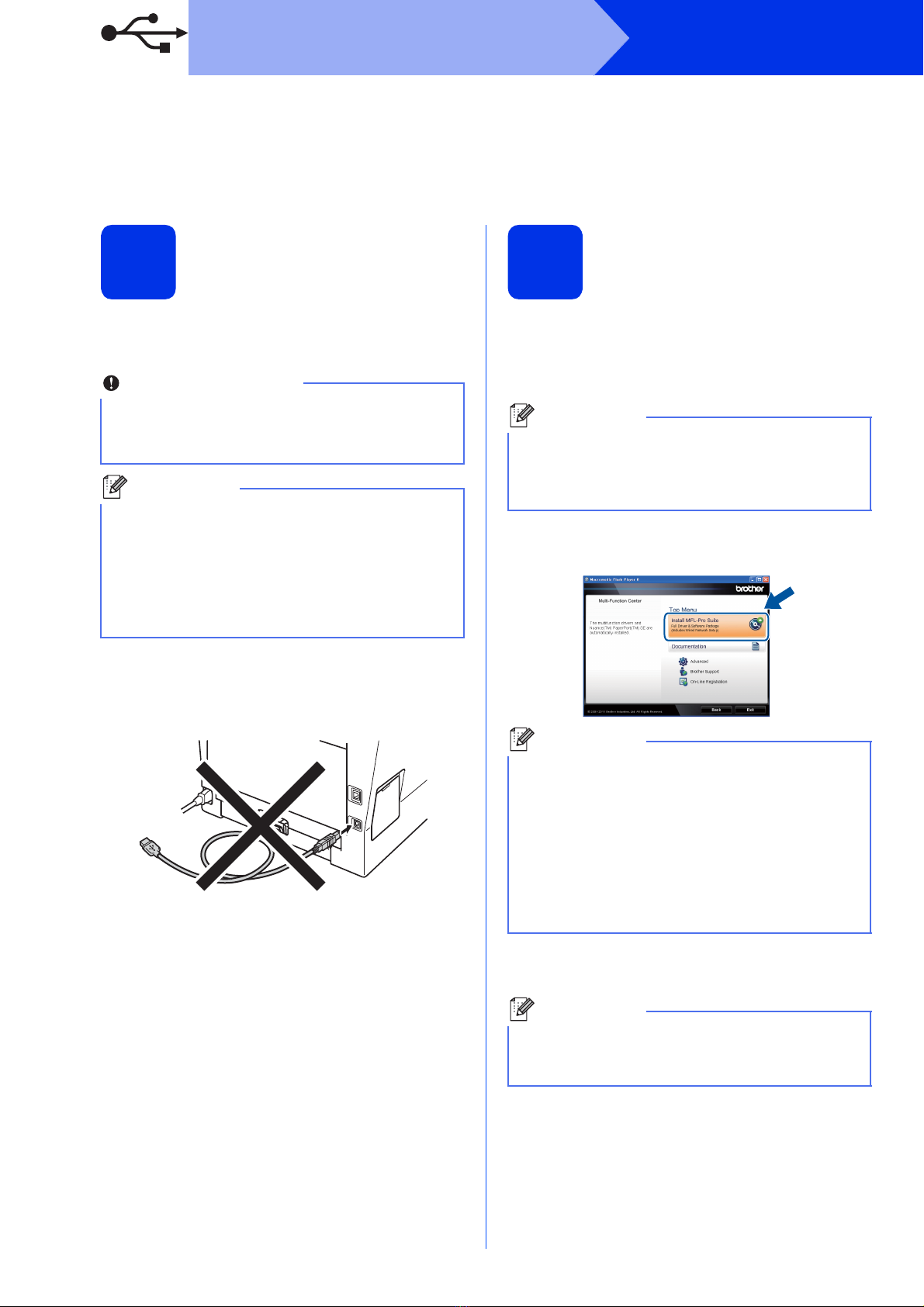

Before you install

aMake sure that your computer is ON and you

are logged on with Administrator rights.

bTurn off the machine and make sure the USB

interface cable is NOT connected to the

machine. If you have already connected the

cable, disconnect it.

Install MFL-Pro Suite

aPut the installer CD-ROM into your CD-ROM

drive. If the model name screen appears,

choose your machine. If the language screen

appears, choose your language.

bClick Install MFL-Pro Suite, and click Yes if

you accept the license agreements.

cChoose Local Connection (USB) and then

click Next.

Important

• If there are any programs running, close them.

• The screens may differ depending on your

operating system.

Note

The installer CD-ROM includes Nuance™

PaperPort™ 12SE. This software supports

Windows®XP (SP3 or greater), XP Professional

x64 Edition (SP2 or greater), Windows Vista®

(SP2 or greater) and Windows®7. Update to the

latest Windows®Service Pack before installing

MFL-Pro Suite.

Note

If the Brother screen does not appear

automatically, go to My Computer (Computer),

double-click the CD-ROM icon, and then

double-click start.exe.

Note

• If the installation does not continue

automatically, open the top menu again by

ejecting and then reinserting the CD-ROM or

double-click the start.exe program from the

root folder, and continue from step bto install

MFL-Pro Suite.

• For Windows Vista®and Windows®7 users,

when the User Account Control screen

appears, click Allow or Yes.

Note

If you want to install the PS driver (BR-Script3

printer driver), choose Custom Install and then

follow the on-screen instructions.

Autres manuels pour DCP-8110DN

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Brother Imprimante tout-en-un

Brother

Brother MFC-9*970CDW Instructions de montage

Brother

Brother 8840DN - B/W Laser - All-in-One Manuel utilisateur

Brother

Brother MFC-9010CN Manuel utilisateur

Brother

Brother MFC 4300 Manuel utilisateur

Brother

Brother DCP-7040 Manuel utilisateur

Brother

Brother DCP-J140W Manuel d'utilisation et d'entretien

Brother

Brother MFC 3240C - Color Inkjet - All-in-One Guide de sécurité

Brother

Brother MFC-8480DN Manuel utilisateur

Brother

Brother MFC-J6925DW Manuel utilisateur

Brother

Brother MFC-J220 Manuel utilisateur

Brother

Brother MFC 3420C - Color Inkjet - All-in-One Manuel utilisateur

Brother

Brother MFC-J245 Manuel utilisateur

Brother

Brother MFC-J4310DW Guide de l'utilisateur

Brother

Brother IntelliFAX 2480C Manuel utilisateur

Brother

Brother DCP-9020CDW Instructions de montage

Brother

Brother MFC-8510DN Manuel utilisateur

Brother

Brother MFC9320DW Manuel

Brother

Brother HL-P2000 Manuel utilisateur

Brother

Brother MFC-J2340DW Manuel technique

Brother

Brother MFC-J6510DW Manuel d'utilisation et d'entretien

Brother

Brother MFC 3360C - Color Inkjet - All-in-One Manuel utilisateur

Brother

Brother DCP-J140W Manuel d'utilisation et d'entretien

Brother

Brother dcp-9015cdw Manuel d'utilisation

Brother

Brother MFC-J4320DW Manuel d'utilisation et d'entretien

Manuels Imprimante tout-en-un populaires d'autres marques

Triumph Adler

Triumph Adler DC 2016 Manuel

Epson

Epson WorkForce WF-2510 Guide de l'utilisateur

Epson

Epson Stylus Scan 2000 Manuel d'installation et d'exploitation

Epson

Epson PictureMate Snap PM 240 Mode d’emploi

Konica Minolta

Konica Minolta bizhub C35 Manuel utilisateur

Konica Minolta

Konica Minolta BIZHUB 558 Manuel utilisateur

Lexmark

Lexmark MX710 Series Manuel

Lexmark

Lexmark XC8155 Manuel utilisateur

Lexmark

Lexmark X642E Manuel utilisateur

Sharp

Sharp MX-2310U Mode d’emploi

Aficio

Aficio 200 Manuel utilisateur

Canon

Canon ImageCLASS 2300 Manuel

Ricoh

Ricoh Pro C900 Manuel utilisateur

Lexmark

Lexmark X925 Manuel utilisateur

Epson

Epson Stylus CX8400 Series Manuel utilisateur

Oce

Oce VarioLink 5022 Manuel utilisateur

Copystar

Copystar CS 4551ci Manuel utilisateur

Konica Minolta

Konica Minolta Magicolor 4650EN Manuel utilisateur
