BROSA Orion Floor Lamp Manuel utilisateur

Orion

Floor Lamp

A S S E M B LY GU I D E

V3

FOR YOUR SAFETY

Lift, don’t drag. This protects

your ﬂoor and product.

Avoid loose screws. Tighten

ﬁxtures every few months.

Assembly requires 2 people.

It's always easier with a

friend.

Contact our support online

or call 1300 027 672.

Check the assembly guide

for required components.

?

Assembling this product on

a soft surface protects its

ﬁnish.

Safety

1. For indoor use only.

2. Follow instructions carefully. Any deviations may be hazardous, or

void your warranty.

3. The external ﬂexible cable or cord of this luminaire cannot be

replaced; if the cord is damaged, the luminaire shall be destroyed.

4. Never use a bulb of a greater wattage than recommended.

5. To replace the bulb, unplug the lamp from its power source and

allow it to cool ﬁrst. Then change the bulb, plug it in and switch it on.

6. This product is not suitable for children under 14 years of age.

7. Periodically check and re-tighten all screws and fasteners.

8. Switch oﬀ and wipe down your lamp with a clean cloth as needed.

9. Firmly secure all pieces. Small parts may present a choking hazard.

Notes:

1. Bulb is not included.

MAX.40W E27

220-240V ~ 50Hz

Components

HardwareHardware

Before you get started, check you have all of the pieces below.

If anything’s missing, we’ll sort it out right away. Simply visit:

www.brosa.com.au/pages/product-return-and-parts-request

A x 1 B x 1

②

③

①Stand x 1 Shade x 1

Base Plate x 1

Base Weight x 1

④

Step 1 Unscrew the bolts and nuts with the spanner B

and remove them from the joint along with the ﬂat

washers. Keep the removed parts for the

following assembly.

B x 1

B

Step 2 Re-arrange the cable as shown in the diagram

below.

Fit the lower part of stand into the joint.

Fit the parts removed in Step 1 back to the joint

again and then tighten them with the spanner B.

B x 1

B

Step 3 Unscrew the nut from the bottom of the stand

with the spanner B.

Remove the nut along with the spring washer and

ﬂat washer.

Keep the removed parts for the following

assembly.

B x 1

B

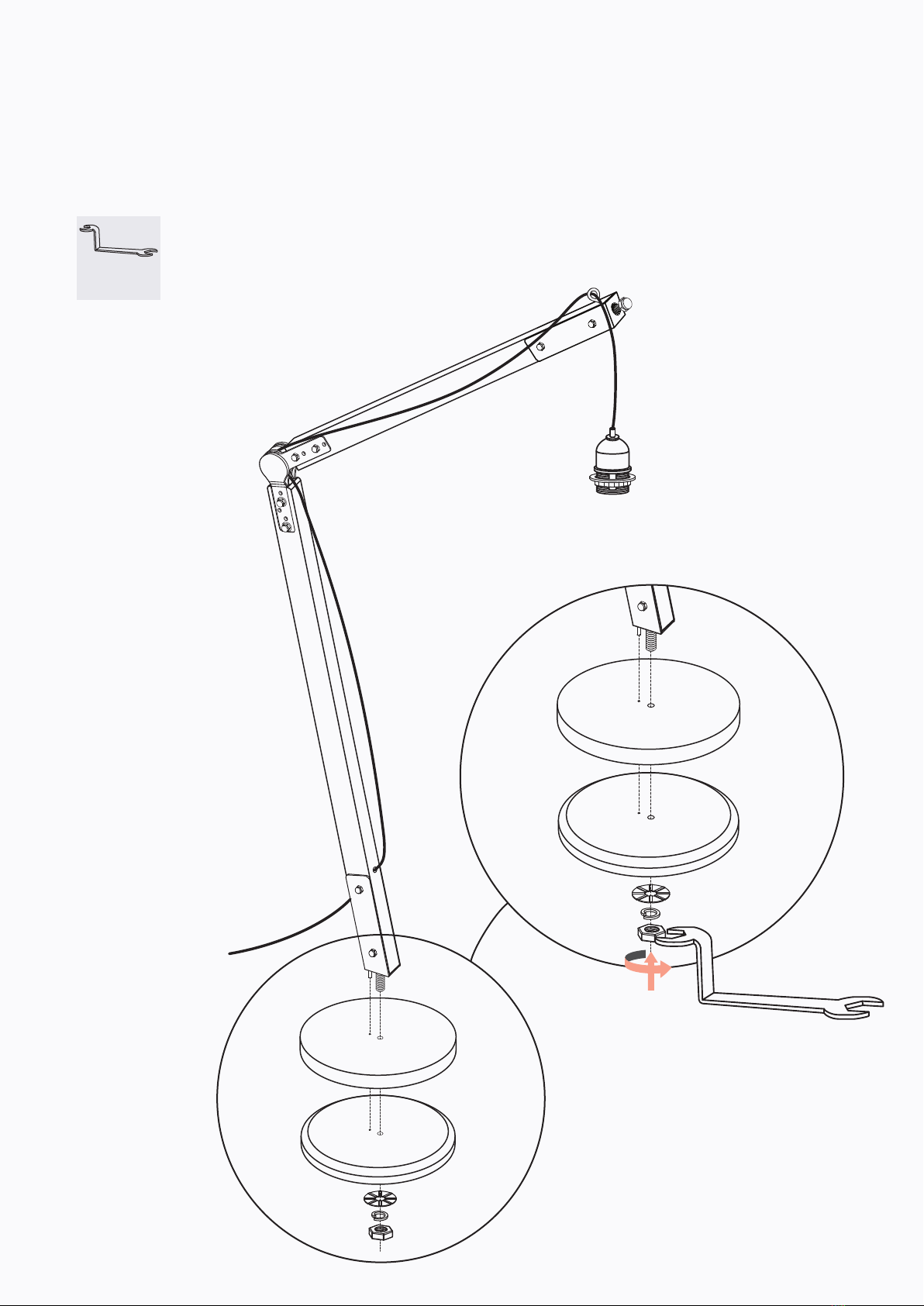

Step 4 Align the base plate ③with the rods on the

bottom of the stand followed by the base weight

④ and make sure the long rod protrudes from the

bottom of the base weight.

Fit the ﬂat washer onto the rod followed by the

spring washer and then the nut. Tighten the nut

using the spanner B.

B x 1

③

④

B

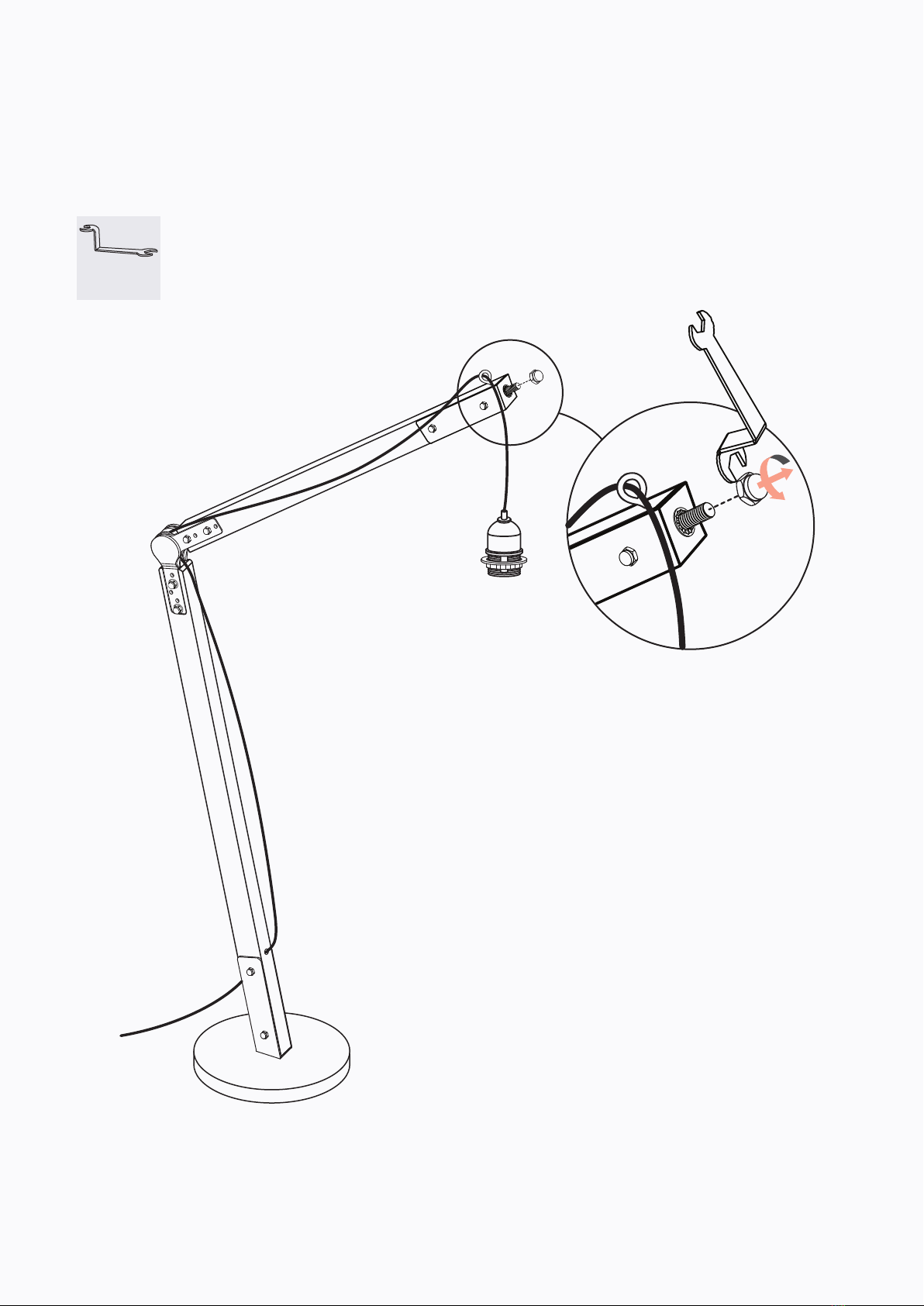

Step 5 Unscrew the nut from the top of the stand using

the spanner B.

B x 1

B

Step 6 Attach the shade ②to the top of the stand and

make sure the rod protrude from the brace. Fit

the nut removed in Step 5 to the rod and tighten

it with the spanner B.

B

②

B x 1
