BROSA Apollo Wall Light Manuel utilisateur

Apollo Wall Light

A S S E M B LY G U I D E

FOR YOUR SAFETY

Lift, don’t drag. This protects

your ﬂoor and product.

Avoid loose screws. Tighten

ﬁxtures every few months.

Assembly requires 2 people.

It's always easier with a

friend.

Contact our support online

or call 1300 027 672.

Check the assembly guide

for required components.

Assembling this product on

a soft surface protects its

ﬁnish.

Safety MAX.25W E14

220-240V ~ 50Hz

1. For indoor use only.

2. Follow instructions carefully. Any deviations may be hazardous, or

void your warranty.

3. The external ﬂexible cable or cord of this luminaire cannot be

replaced; if the cord is damaged, the luminaire shall be destroyed.

4. Never use a bulb of a greater wattage than recommended.

5. To replace the bulb, unplug the lamp from its power source and

allow it to cool ﬁrst. Then change the bulb, plug it in and switch it on.

6. This product is not suitable for children under 14 years of age.

7. Periodically check and re-tighten all screws and fasteners.

8. Switch oﬀ and wipe down your lamp with a clean cloth as needed.

9. Firmly secure all pieces. Small parts may present a choking hazard.

Notes:

1. Bulb is not included.

Components

Before you get started, check you have all of the pieces below.

If anything’s missing, we’ll sort it out right away. Simply visit:

www.brosa.com.au/pages/product-return-and-parts-request

Light x 1

HardwareHardware

A x 2 B x 2

①

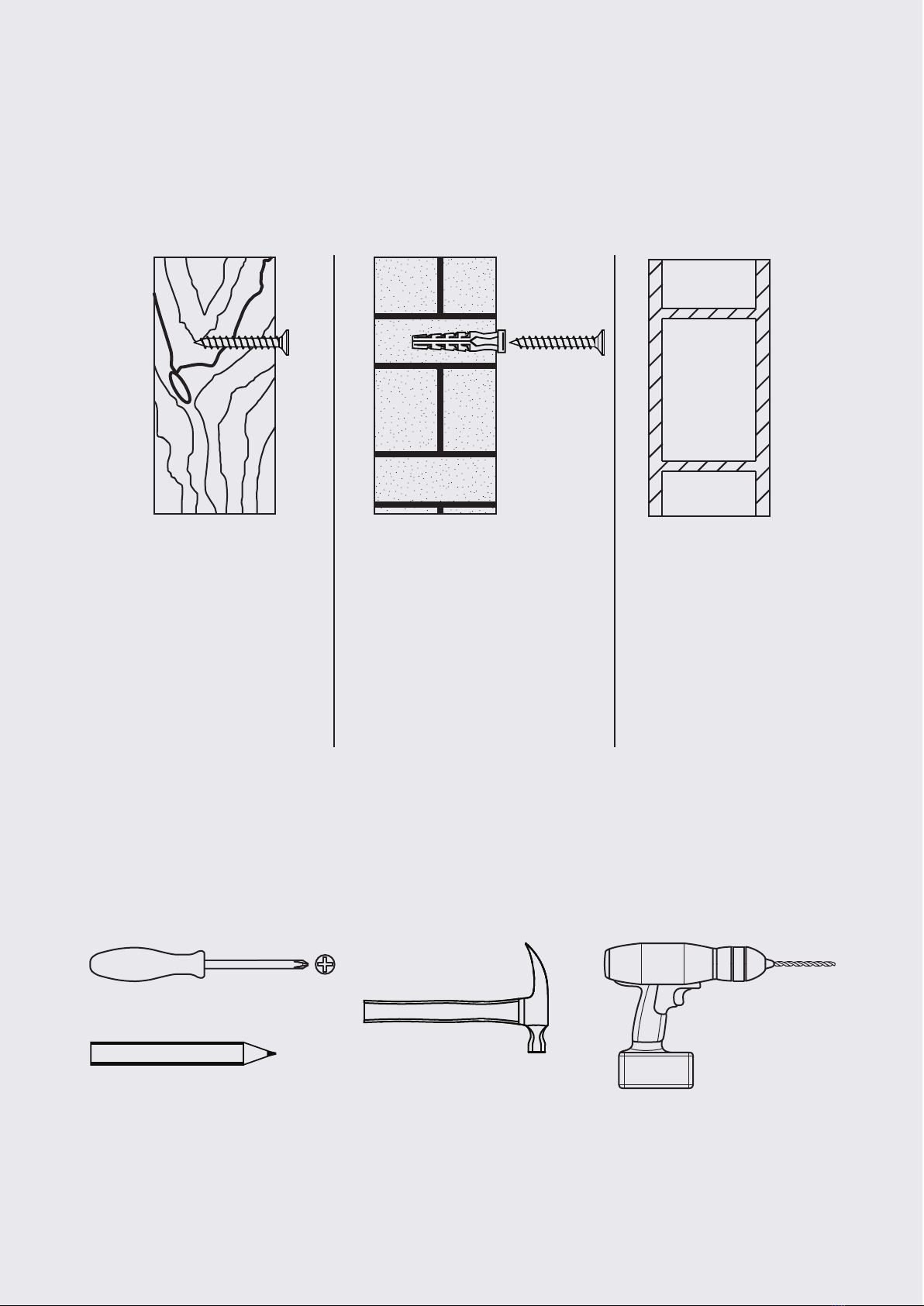

Wall Fixings

Wood

If ﬁxing to wood

make sure that it

isn’t chipboard as

screws can easily

pull away from the

core structure.

Brick or Masonry

Use an appropriate

wall plug provided

you are sure your

wall is sound.

Cavity Wall

Special toggle wall

plugs are needed.

Seek expert

advice.

Because of the variety of wall compositions, we can’t provide you with

appropriate wall ﬁxings. Please identify your wall composition and

contact your local hardware store to get the appropriate ﬁxings.

What You Need

Step 1

①

Unscrew the bolts attached to the base using a

Phillips head screwdriver. Remove both bolts and the

mounting bracket attached to the base. Keep the

removed bolts and mounting bracket for the

following assembly.

Step 2

Instructions below demonstrate how to attach the light to the wall

using the provided wall plugs. However please do identify the type of

your wall and choose the appropriate wall ﬁxings.

Before attaching, check wall for hidden pipes and

cables.

Place the mounting bracket against the wall. Make

sure the bracket is aligned vertically. Mark location

for ﬁxings using a pencil through the bracket slots.

Remove the bracket and drill holes for the wall plugs

using a drill.

Step 3

A x 2

B x 2

Knock the plugs A into the holes using a hammer.

Place the mounting bracket against the wall and

make sure it is aligned vertically again and ﬁx the

bracket in place with the screws B.

Step 4 Align the base with the mounting bracket and make

sure the bolt holes on each part overlap. Insert the

bolts removed in Step 1 into both holes and tighten

them with a Phillips head screwdriver.

Step 5 Gently screw the correct bulb (not included) into the

bulb holder.
